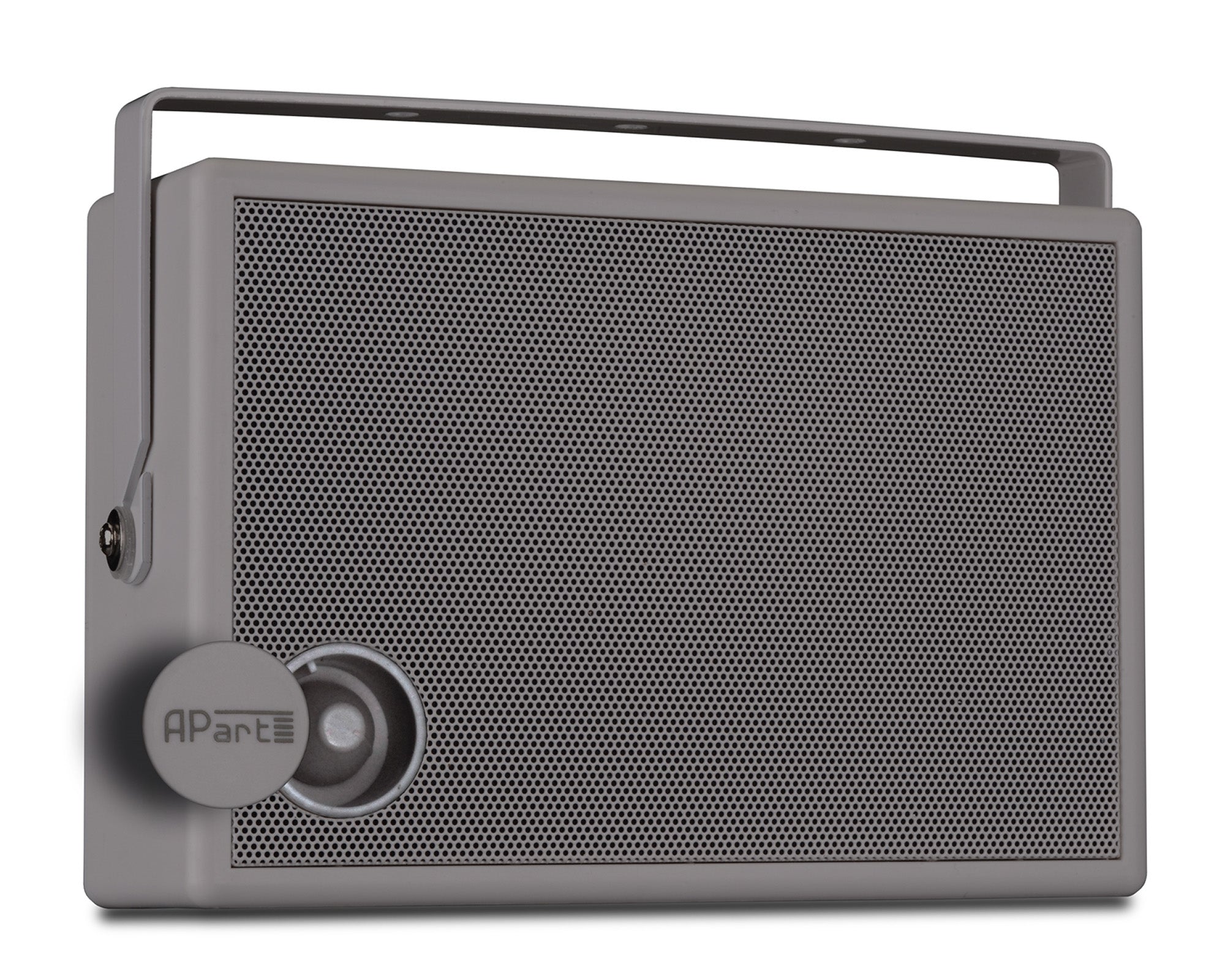

The Apart SMB6VG is a no-frills surface-mount cabinet speaker for 100V line systems, built for background music and paging in public buildings, schools, car parks and supermarkets. A 5.25 inch paper woofer sits behind a steel grille in an ABS housing, with 100V transformer taps at 6, 3 and 1.5 watts, and the supplied U-bracket lets you angle it on walls, ceilings or columns. A volume controller is discreetly hidden under the logo shield, keeping the setting safe from tampering.
6 W
Maximum 100V tap
98 dB
Max SPL at 1 m
5.25″
Paper woofer
1.06 kg
Net weight
Features
5.25″ paper woofer with built-in 100V power transformer
Power taps at 6, 3 and 1.5 W
Volume controller hidden under the logo shield to deter tampering
U-bracket for angled mounting on ceilings, walls and columns
ABS plastic housing with steel grille
Ideal for background music and paging duties
Grey finish; also available in white as the SMB6VW
Specifications
| Colour | Grey (closest RAL colour RAL7038, subject to deviations) |
| Type | Cabinet Loudspeaker |
| Transformer | 100 Volt Transformer; Power Taps: 1.5 – 3 – 6 Watts |
| Frequency Response | In Hz: 200 – 20K |
| SPL | 1W / 1m: 92 dB; Max SPL 1m: 98 dB |
| Mounting | U-bracket |
| Material | Housing: ABS Plastic; Grille: Steel |
| Dimensions | 140 x 202 x 72 mm (H x W x D) |
| Weight | 1.06 kg |
| Woofer | 5.25 inches; Paper Cone |
| Discontinued Products | Discontinued |
