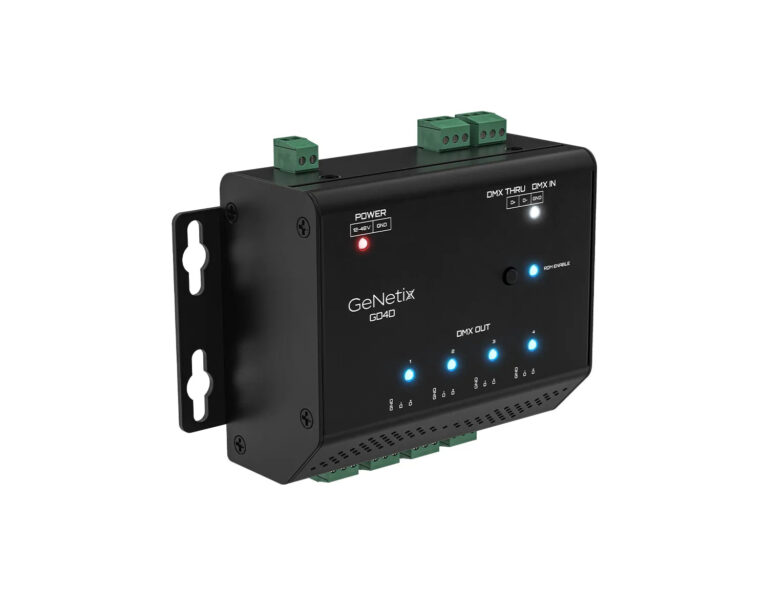

The ChamSys GeNetix GD4D is a 4-port DMX splitter in DIN rail mount format, suited to permanent AV installations in building management panels or distribution enclosures. One DMX input (with a DMX thru) distributes to four isolated outputs with RDM pass-through. All DMX connections are Phoenix screw terminals, so you wire DMX cable straight in; there are no XLR sockets on the unit. It needs an external 12-48V DC power supply, sold separately. An RDM disable option strips RDM and retimes the DMX.
1
DMX In
4
DMX Out
DIN Rail
Mount · panel install
RDM-Transparent SplittingGeNetix GD splitters pass RDM messages bidirectionally through the split, so an RDM controller can address and poll fixtures on every output line. This is not possible with passive splitters that block RDM.
Features
4 isolated DMX outputs from 1 input
DIN rail mount for panel and enclosure installation
Full bidirectional RDM pass-through
Optical isolation per output
Compact footprint for tight installations
Specifications
| DMX Inputs | 1 |
| DMX Outputs | 4 |
| Mount | DIN rail |
| RDM | Bidirectional pass-through |
| Isolation | Optical per output |
