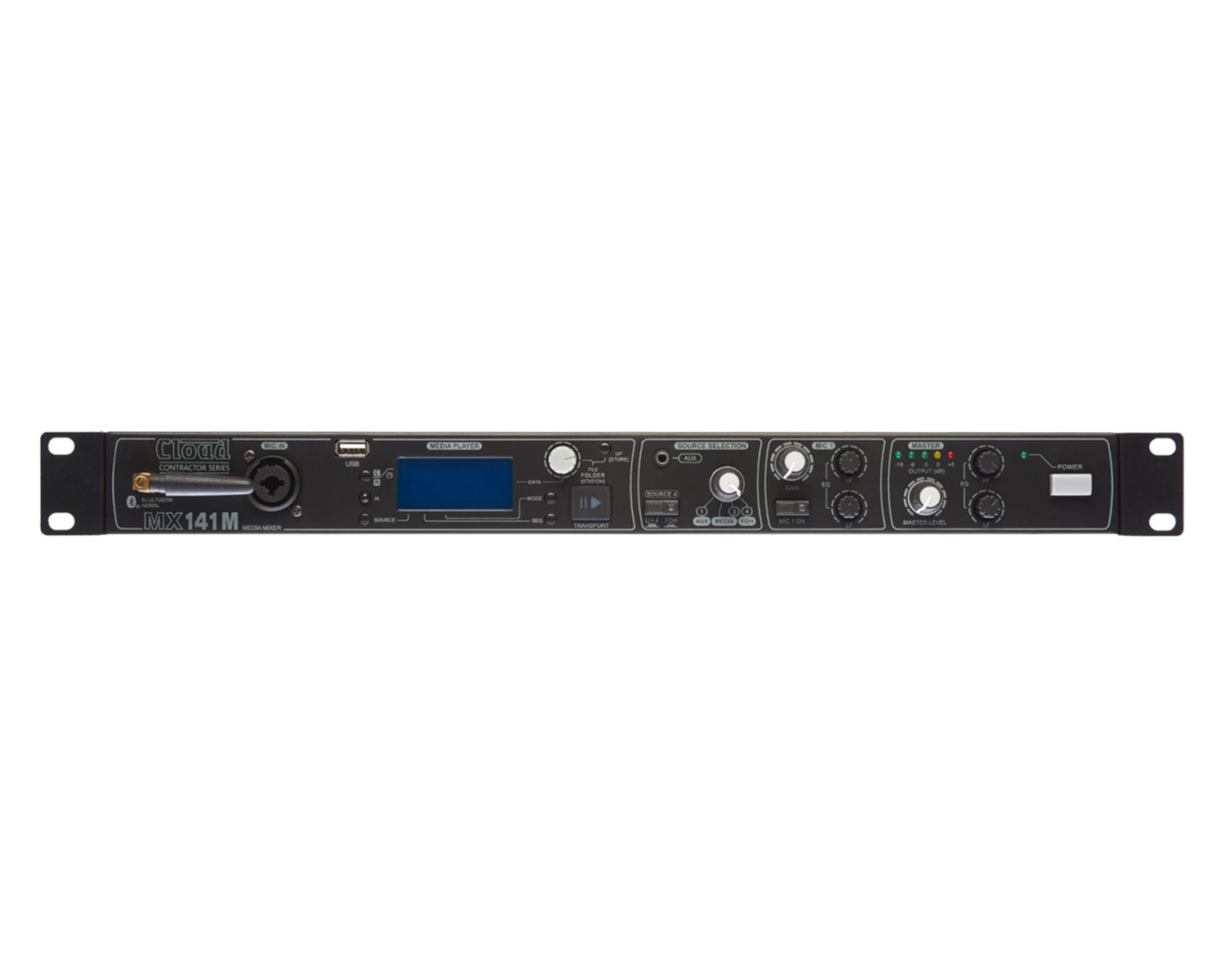

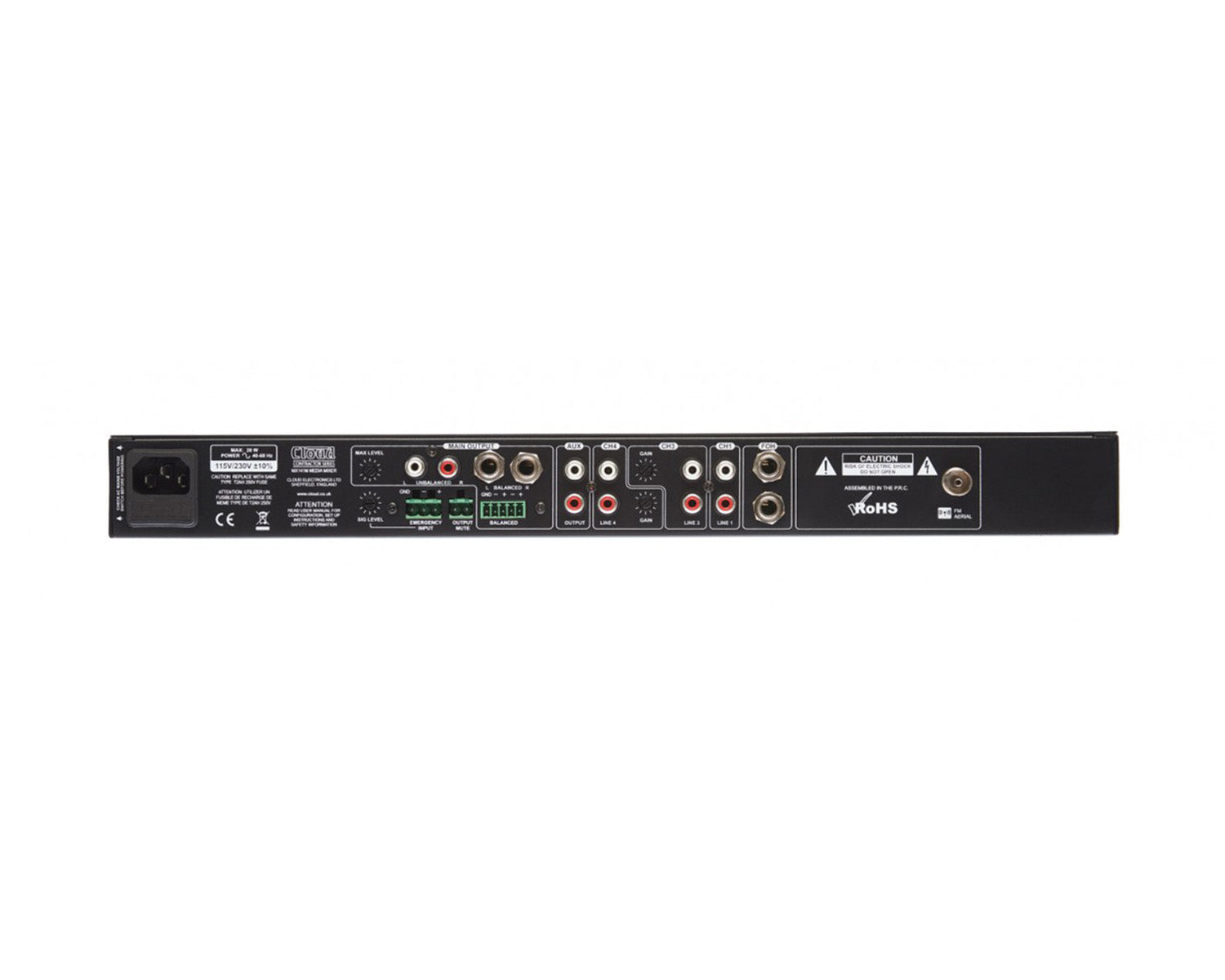

Cloud MX141M Media Mixer 4-Line 1-Mic In 1-Out FM and Bluetooth 1U

Product code: 181170

£261.00 inc VAT
£217.50 ex VAT

SKU: MX141MEK

6 in stock (more available subject to additional lead time)

11 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

1U rack-mounting stereo mixer and media player for commercial premises. It mixes one of four stereo music sources plus a microphone, and one of those sources is an on-board media player carrying both Bluetooth and an FM tuner, so a bar or café gets its music, its paging and its source switching from one box. An infrared remote for the media player functions is supplied.

4
Stereo in

1
Mic in

BT + FM
Media

1U
Rack

Features

Four stereo music sources plus one microphone input
On-board media player with Bluetooth and FM tuner
Infrared remote control supplied
1U rack mounting
Simple to install and operate
Designed as the centrepiece of a commercial sound system

Specifications

Cloud MX141M Media Mixer 4-Line 1-Mic In 1-Out FM and Bluetooth 1U specifications
Brand Cloud
Series Contractor
Manufacturer part number MX141MEK
Type Stereo mixer / media player
Music inputs 4 stereo
Microphone inputs 1
Outputs 1
Media player Bluetooth and FM tuner
Remote Infrared (supplied)
Rack size 1U

Full features

  • Industrial quality music player for commercial installations
  • Three unbalanced line inputs (RCA jack pairs) for external stereo music sources
  • Front panel 3.5 mm jack socket for laptop, tablet, phone, etc.
  • Balanced stereo line input on multipin connector for interfacing with external audio system
  • Internal media player: plays MP3 files from USB stick or streamed via Bluetooth wireless technology from compatible devices
  • Integral FM tuner (87 to 108 MHz) with station presets
  • Combi microphone input with on/off, level and HF/LF EQ controls, all on front panel
  • 12 V phantom power available at mic input (enabled by internal jumper)
  • Media player/FM tuner functions controlled through LCD display and data entry wheel
  • Sequential and random play modes
  • Emergency Input (balanced) with separate level control – mutes programme for critical announcements
  • Balanced stereo output available on multipin connector and ¼” TRS jacks
  • Unbalanced stereo output on phono sockets
  • Unbalanced post-mix stereo auxiliary output
  • Output level, HF/LF EQ controls and LED bargraph on front panel
  • Maximum output level can be defined to protect downstream equipment
  • Music mute control input
  • Infra-red remote control included – operates most media player functions
  • 230 V or 115 V operation (selectable)

Full specifications

Inputs

  • Mic input: Balanced, 40 dB gain; Combi-type connector
  • Line inputs (Chs1, 3 & 4): Unbalanced stereo, 0 dB gain, 2 x RCA jacks (phonos)
  • Aux input (Ch 1 only): Unbalanced stereo, 0 dB gain, 3.5 mm TRS jack
  • FOH input: Balanced stereo, 0 dB gain; 2 x ¼” TRS jacks
  • Emergency input: Balanced mono, 0 dB gain; plug-in multipin connector

Outputs

  • Main output:
    • Balanced stereo: max. output level +18 dBu, plug-in multipin connector and 2 x ¼” TRS jacks
    • Unbalanced stereo: max output level +18 dBu, 2 x RCA jacks (phonos)
  • Aux output: Unbalanced stereo, 0 dBu typical, 2 x RCA jacks (phonos)

Equalisation (outputs)

  • LF: +/-10 dB @ 50 Hz
  • HF: +/-10 dB @ 10 kHz

Mic equalisation

  • LF: +/-12 dB @ 60 Hz
  • HF: +/-12 dB @ 12 kHz

Performance

  • Signal-to-noise ratio: >80 dB (line inputs)
  • Crosstalk: >70 dB (line inputs)
  • THD: <0.07% (output <+18 dBu)
  • Frequency response: 20 Hz to 22 kHz, +0/-3 dB
  • Channel balance: <3 dB

General

  • Power input: Selectable 115 VAC or 230 VAC; 50/60 Hz
  • Power consumption: 13 W max.
  • Fuse details: 5 x 20 mm, 2 A, type T2AH

Physical

  • Dimensions (W x H x D)
  • Net:
    • 483 mm (427 mm without rack ears) x 44.5 mm (1U) x 152 mm
    • 19” (16.8” without rack ears) x 1.75” (1U) x 6.0”
  • Shipping (Gross):
    • 540 mm x 90 mm x 260 mm
    • 21.3” x 3.5” x 10.3”
  • Weights:
    • Net: 2.6 kg (5.83 lb)
    • Shipping (Gross): 4.7 kg (10.4 lb)
