Cloud VMA120 Mixer Amplifier 4-Line/2 Mic In 120W 4Ω or 100V-Line 2U

• Power output: 120 W/channel
• Outputs suitable for either low-impedance (min. 4 ohm) or 25/70/100 V-line systems

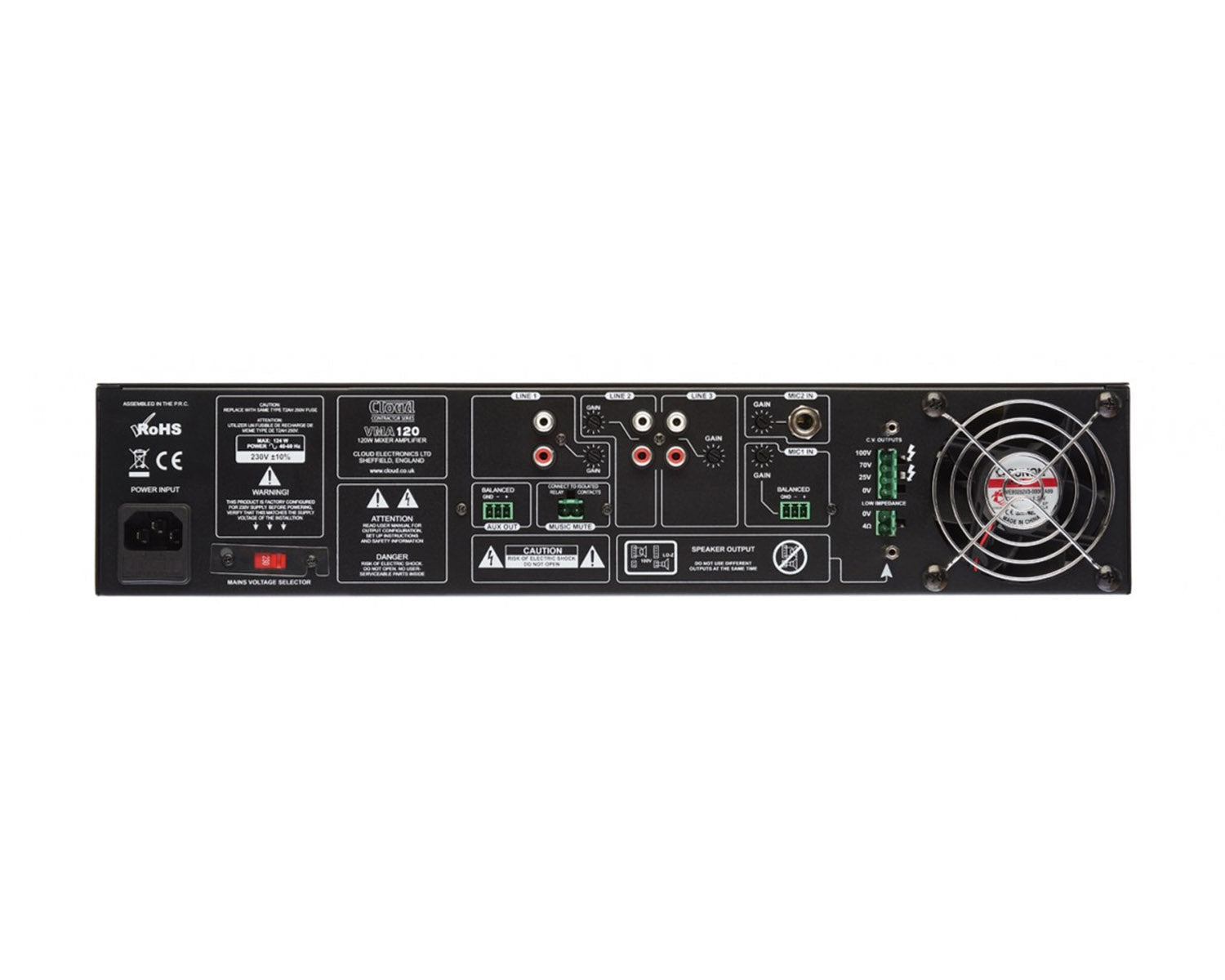

• Four stereo unbalanced line inputs (3 x RCA jack pairs, 1 x 3.5 mm TRS jack on front panel)
• Rear panel line inputs have individual gain controls
• Two balanced mic inputs (1 x multipin connector, 1 x ¼” TRS jack), with individual preset gain controls

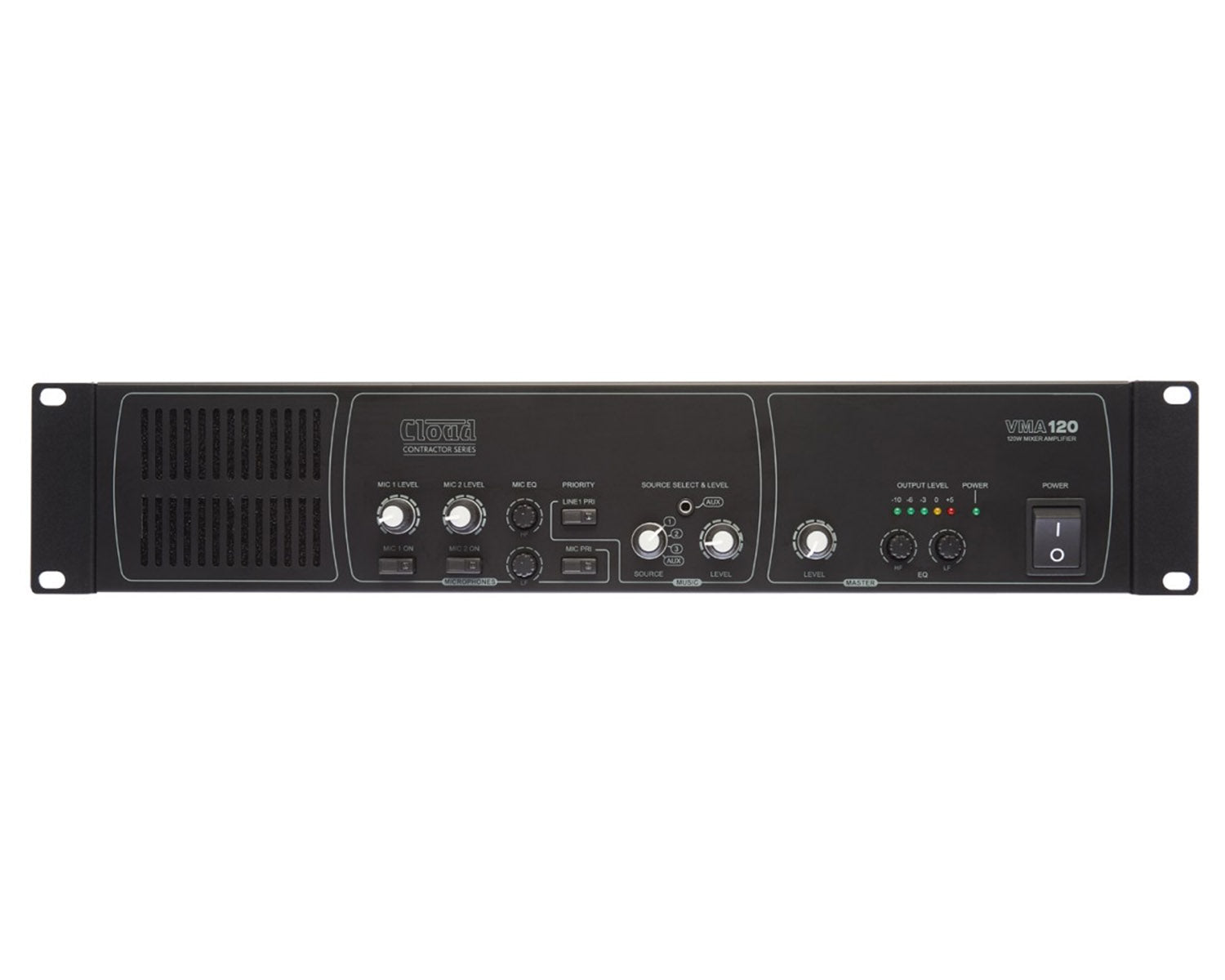

• Front panel controls for mic and music levels, line input selection, mic EQ, master level and EQ
• Mic input mute switches on front panel
• Line 1 priority, enabled by front panel switch
• Mic-over-music priority, enabled by front panel switch
• 15 V phantom power available at either mic input
• 100 Hz high-pass filter on each mic input
• 70 Hz high-pass filter in output stage, for use with 5/70/100 V-line systems
• Fixed limiter – prevents clipping
• Front panel LED bargraph – indicates output signal level
• Over-temperature and output DC protection
• 230 V or 115 V operation
• Forced-air cooling

Line Inputs

• Frequency Response: 20 Hz to 20 kHz, ±1 dB
• Gain range: 0 dBu to +20 dBu
• Input impedance: 47 kohms
• Noise: <-82 dB (22 kHz bandwidth)
• Equalisation: LF: ±10 dB @ 50 Hz HF: ±10 dB @ 10 kHz

Microphone Inputs

• Frequency Response: -3 dB @100 Hz (fixed filter) to 20 kHz, ±1 dB
• Gain range: 2.45 mV (-50dBu) to 245 mV (-10 dBu)
• Input Impedance: 3.3 kohms (balanced)
• Phantom Power: 15 V, switchable per-input by jumpers
• Noise (EIN): -125 dBu (20 Hz to 22 kHz bandwidth, max gain, Rs = 150 ohms)
• Equalisation: LF: ±10 dB @ 100 Hz; HF: ±10 dB @ 5 kHz

For full detailed specifications, please find the datasheet located in the downloads tab.
