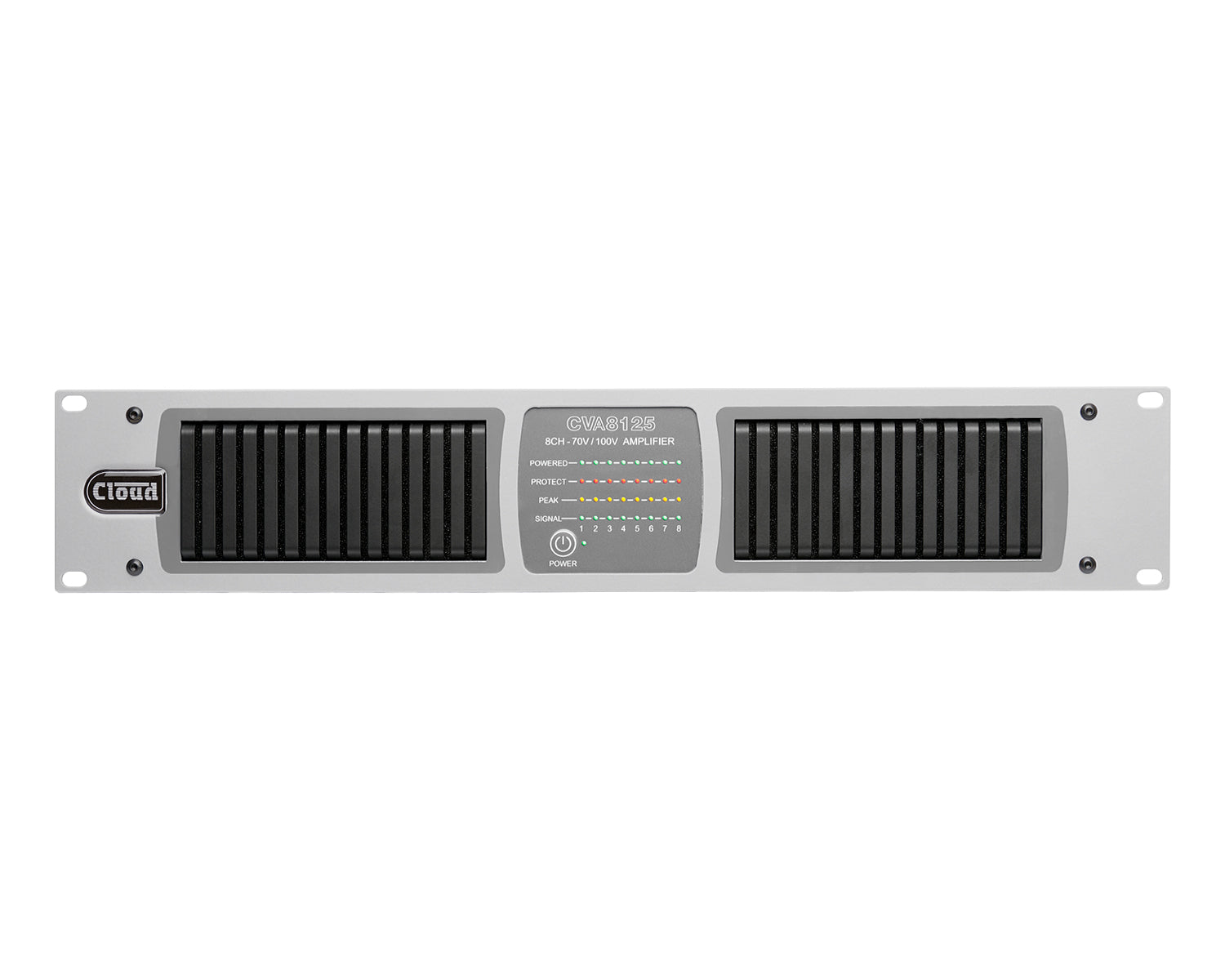

Cloud CVA8125 Energy Efficient Power Amp with DSP 8x125W LowZ/100V 2U

Product code: 153884

£2,448.00 inc VAT
£2,040.00 ex VAT

SKU: CVA8125EK
1 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Output: 100V line or low impedance.

The Cloud CVA8125 is the 8-channel variant of the energy-efficient CVA series, delivering 8×125W in either low-impedance or 70V/100V line mode, selectable per channel. The highest channel density in the range, suited to large installations requiring many independent zones with hybrid speaker infrastructure.

8
Channels
8×125W
Power · LowZ or 70/100V line
Per channel
DSP · EQ + delay

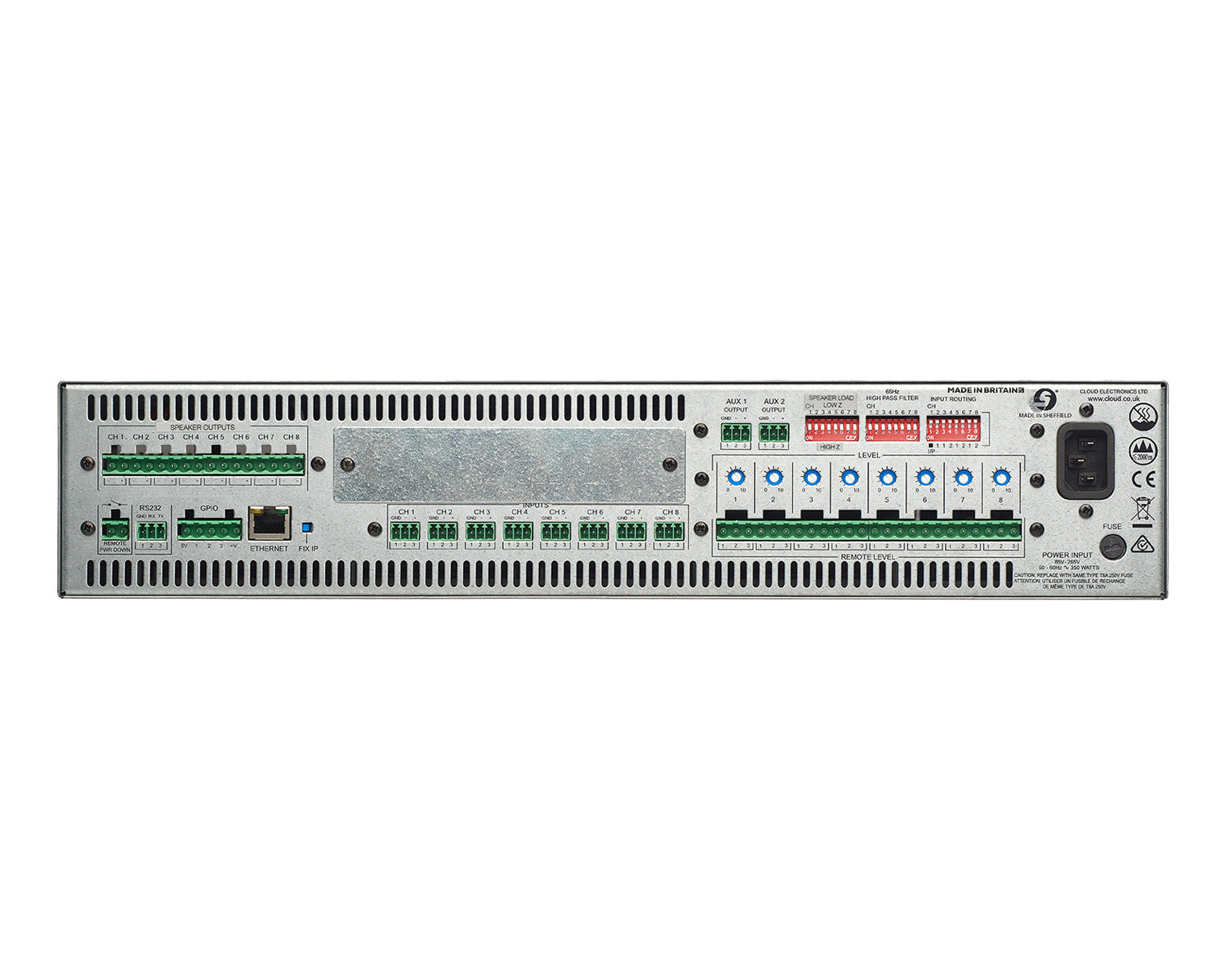

LowZ and 100V in One UnitEach CVA channel is set independently to low-impedance (4Ω, 8Ω or 16Ω) or 70V/100V line via the rear SPEAKER LOAD switches and DSP pages, useful in hybrid systems mixing near-field monitors and distributed ceiling speakers from the same amp chassis.

Features

Per-channel choice of low-impedance (4/8/16Ω) or 70V/100V line output
Energy efficient Class D design with DSP per channel
Ethernet web server for remote control
Optional Dante networking via CDI-CV expansion card
Intelligent signal-sensing standby mode
Fault detection and thermal protection
2U 19″ rack format

Specifications

Cloud CVA8125 Energy Efficient Power Amp with DSP 8x125W LowZ/100V 2U specifications
Output Power (LowZ) 8×125W (4Ω/8Ω)
Output Power (70/100V) 8×125W
Channels 8
DSP Per channel
Networking Ethernet / optional Dante
Format 2U 19″ rack

Full features

  • Advanced design of 2, 4 and 8-channel Class D power amplifiers
  • Standard “out-of-the-box” Cloud amplifier functionality: requires no computer configuration or internal access for basic 100 V-line or 4Ω operation
  • Transformerless output stage drives 70/100 V-line and low impedance systems directly
  • Nominal power ratings:2 x 500 W (CVA2500), 4 x 250 W (CVA4250), and 8 x 125 W (CVA8125)
  • On 4 and 8 channel models (only in 70/100 V-line mode), power sharing allows odd and even channel groups to deliver a maximum of 500 W each
  • Thermal protection, overcurrent limiting and DC offset protection
  • Switch-on delay for speaker protection during power-up
  • Per-channel, front panel LEDs for signal presence, peak level, protection activity and power/thermal limiting status
  • Balanced line level inputs
  • Per-channel output level controls
  • Rear panel input routing switches configure amplifier for manual selection of multichannel, stereo or mono operation
  • Rear panel switches select 70/100 V-line or low-impedance output levels
  • Per-channel high-pass filter (65 Hz default frequency: adjustable in software) to protect against transformer saturation in 70/100 V-line systems
  • Balanced, line level auxiliary outputs with full channel functionality, configurable and controllable via software
  • Independent Automatic Power Down on odd and even channel groups; minimises power consumption in absence of an input signal
  • <3 W power consumption with all channels quiescent
  • RS-232C serial port for remote control of all amplifier functions, including DSP configuration
  • Compatible with standard Cloud RL Series remote level control plates (per-channel)
  • Remote Power Down control input
  • 3-way GPIO port for master mute function or fault reporting
  • Variable speed forced-air cooling
  • 2U 19” rackmounting units

Full specifications

  • Output Power: Total output power 1 kW, all channels
  • Output Voltage: 70/100v line (RMS) / 4Ω / 8Ω / 16Ω low-impedance.
  • Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
  • High Pass Filter:
    • -3 dB @ 65 Hz via rear panel switches
    • -3 dB @ 20 Hz to 200 Hz via DSP configuration
  • Distortion: 0.03%THD @1 kHz, 1 dB below rated output
  • Noise: -94 dB, 22 Hz to 22 kHz
  • Crosstalk:
    • < -90 dB @1 kHz, -82 dB @10 kHz adjacent channels
    • <-107 dB @1 kHz, -93 dB @10 kHz non-adjacent channels
    • All tested with 125 W load

Inputs

  • Connectors: 3-pole 3.5 mm-pitch plug-in screw-terminal connectors
  • Sensitivity: 0 dBu (0.775 Vrms)
  • Input Impedance: 10 kohms (balanced); 5 kohms (unbalanced)

General

  • Output connectors: 2-pole 5 mm-pitch plug-in screw-terminal connectors
  • Remote level control connectors:
    • 3-pole 5 mm-pitch plug-in screw-terminal connectors
    • Compatible with Cloud RL Series remote control plates
  • Power input: 85 to 264 V AC, 40 to 60 Hz
  • Mains protection: Class 3T 250 V fuse, 20 x 5 mm, rating T8A
  • Normal Operating Temperature: 0 °C to 35 °C (Note performance and specifications cannot be guaranteed outside this range)
  • Power Consumption:
    • Standby: 2.5 W, 24.4 VA
    • Idle: 59.7 W, 89.3 VA
    • 1/8th power: 207.0 W, 248.8 VA
    • 1/3rd power: 352.6 W, 387.5 VA
  • Heat loss:
    • Standby: 9.1 KJ/hr (8.7 BTU/hr
    • Idle: 215.0 KJ/hr (203.9 BTU/hr)
    • 1/8th power: 278.7 KJ/hr (264.3 BTU/hr)
    • 1/3rd power: 334.4 KJ/hr (317.1 BTU/hr)
  • Amplifier Protection:
    • Overcurrent
    • DC
    • Switch-on delay
  • Status Indicators: Protection active, Signal peak, and Signal present
  • Cooling: Variable speed fan
  • Dimensions (W x H x D): 482.6 mm x 88 mm x 381.8 mm (19 in x 3.46 in x 15.03 in)
  • Weight: 8.05 kg (18.03 lb)
