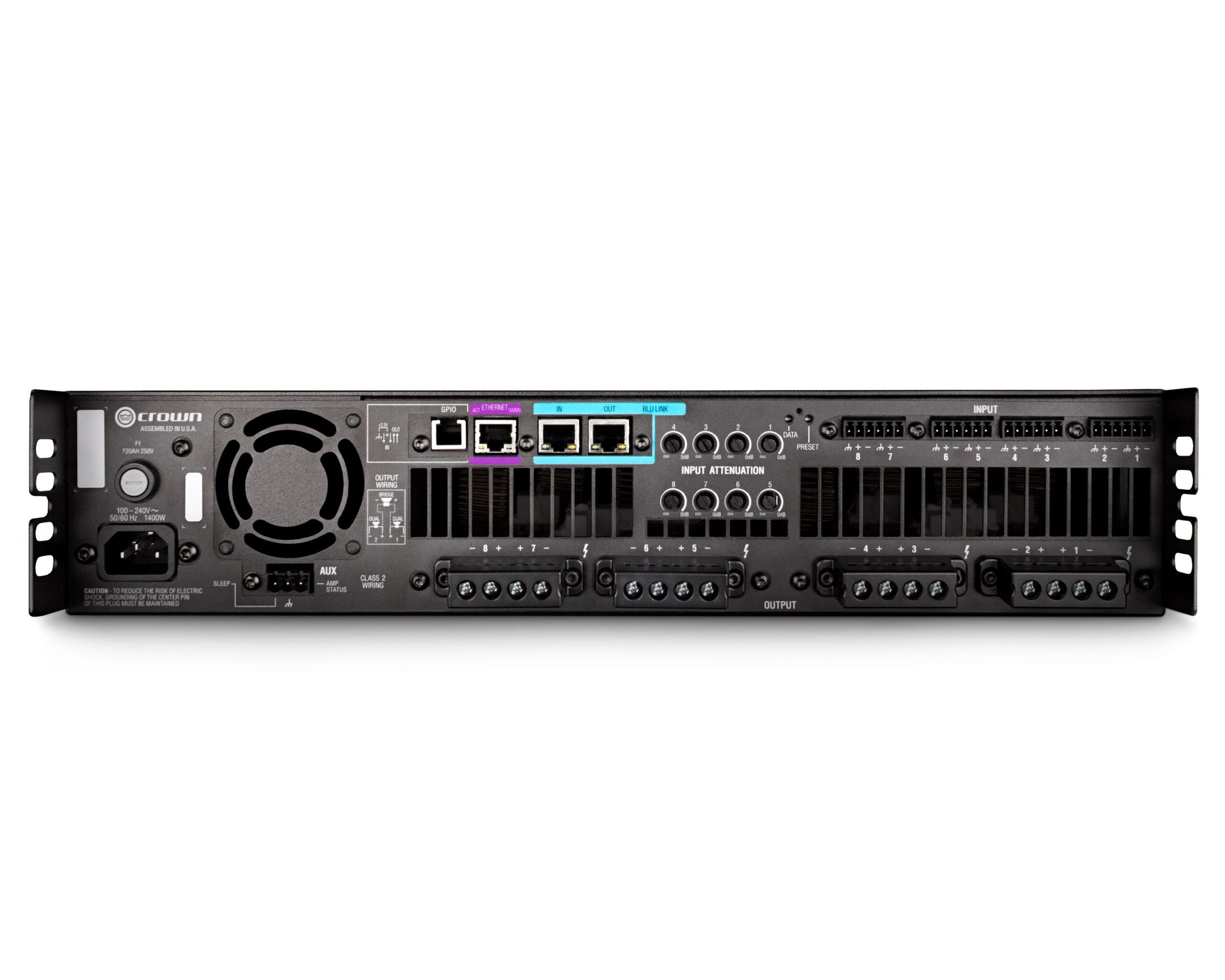

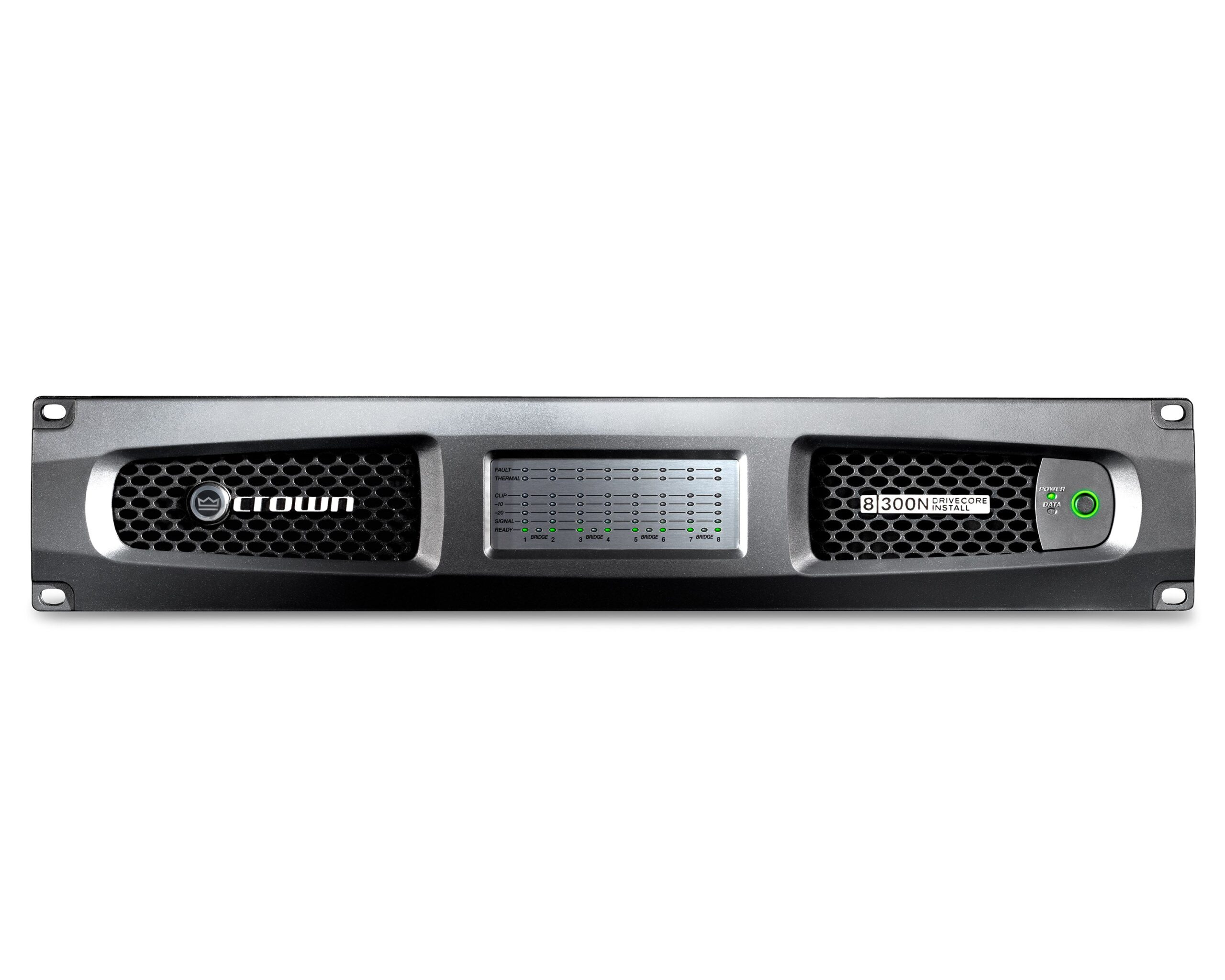

Crown DCi 8|300N DriveCore Install Network Amplifier 8x300W 2U

Product code: 192060

£3,593.00 inc VAT
£2,994.17 ex VAT

SKU: DCI8X300N-U-EKFX

11 in stock (more available subject to additional lead time)

11 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Output: 100V line or low impedance.

The Crown DCi 8|300N is an eight-channel networked DriveCore Install amplifier rated at 8x 300W into 4 or 8 ohms, or on 70V or 100V lines without output transformers. It adds BLU link digital audio, HiQnet network control and onboard DSP. It suits multi-zone installs in hotels, large venues, stadiums, campuses and transport buildings.

8x 300W
4/8 ohm, 70V, 100V
BLU link
Digital audio
2U
Rack height
SoftwareNetwork monitoring and DSP set-up use HARMAN Audio Architect software over HiQnet.

Features

Eight channels, 8x 300W into 4 or 8 ohms, 70V or 100V
Direct drive of 70V and 100V lines, selectable per channel
Bridgeable channel pairs for 600W
BLU link digital audio plus balanced analogue inputs, with automatic failover to a backup input
DSP: LevelMAX limiters, input and output EQ, crossover, delay, matrix mixer and speaker line monitoring
HiQnet network monitoring and control over TCP/IP
Programmable GPIO for volume, preset recall and fault reporting
Power factor corrected universal power supply

Specifications

Crown DCi 8|300N DriveCore Install Network Amplifier 8x300W 2U specifications
Output power, all channels driven 2 ohm: 150W, 4 ohm: 300W, 8 ohm: 300W, 16 ohm: 150W, 70V: 300W, 100V: 300W
Bridged output 4 ohm: 300W, 8 ohm: 600W, 16 ohm: 600W, high impedance: 600W
Bridged load range 4 to 16 ohms; 140V or 200V lines
Frequency response 20 Hz to 20 kHz (±0.25 dB, 8 ohms)
THD 0.35% at full rated power
Damping factor >1000 (20 to 100 Hz)
Cooling Variable-speed fans, front to back
Fan noise 47 dBA SPL at 1 m maximum
Mains 100 to 240 V AC, 50/60 Hz, 15A IEC
Dimensions (W x H x D) 483 x 89 x 362 mm, 2U
Weight 10.66 kg

Full features

  • Analogue & Digital Inputs – With digital audio transport via HARMAN’s proprietary BLU-Link, plus balanced analogue inputs, DCi gives you a tremendous audio advantage – at a much lower cost. The priority input router allows you to specify a primary input, and if audio is lost the amp automatically switches to the other input.
  • Network Monitoring & Control – Better monitoring, control and audio manipulation with the HiQnet™ protocol that’s over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.
  • Programmable General Purpose Input/Output Ports – GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.
  • Digital Signal Processing – DSP capabilities include the following:

    • LevelMAX Limiters
    • Input/Output EQ
    • Crossover
    • Delay
    • Matrix Mixer
    • Speaker Line Monitoring
  • EN 54-16 Compliant for Life Safety Applications - Part 16 of the European Union’s (EU) EN 54 standard for fire detection and alarm systems has a specific requirement for voice alarms, which output messages in the form of a voice message rather than a traditional siren. This amplifier is certified as part of an EN 54-16 VACIE*, meeting the stringent requirements of a life safety system to serve the needs of hospitality, large venue and other markets.

Full specifications

Power

  • Output Power: Dual Mode - All Channels Driven
    • Channels:  8
    • 2Ω:  150W
    • 4Ω:  300W
    • 8Ω:  300W
    • 16Ω:  150W
    • 70Vrms:  300W
    • 100Vrms:  300W
  • Output Power: Bridge Mono Mode - All Channels Driven:
    • 4Ω:  300W
    • 8Ω:  600W
    • 16Ω:  600W
    • 140Vrms:  600W
    • 200Vrms:  600W

General

  • Output Channels:  8
  • Frequency Response (8Ω, 20Hz - 20kHz):  ±0.25dB
  • Total Harmonic Distortion (at full rated power, 20Hz - 20kHz):  0.35%
  • Damping Factor (20Hz to 100Hz):  >1000
  • Load Impedance (Stereo/Dual Mode):  2Ω - 16Ω; 70Vrms and 100Vrms
  • Load Impedance Bridge Mono:  4Ω - 16Ω; 140Vrms and 200Vrms
  • Cooling:  Continuously variable speed forced air, front to back airflow
  • Maximum Fan Noise (re dBA SPL @ 1M):  47
  • Required AC Mains (±10%):  100V-240V ~ 50/60Hz
  • Power Connector:  15A IEC
  • Dimensions (W x H x D):  483 mm x 89 mm x 362 mm (19 in x 3.5 in x 14.25 in)
  • Weight:  10.66 kg (23.5 lbs)
