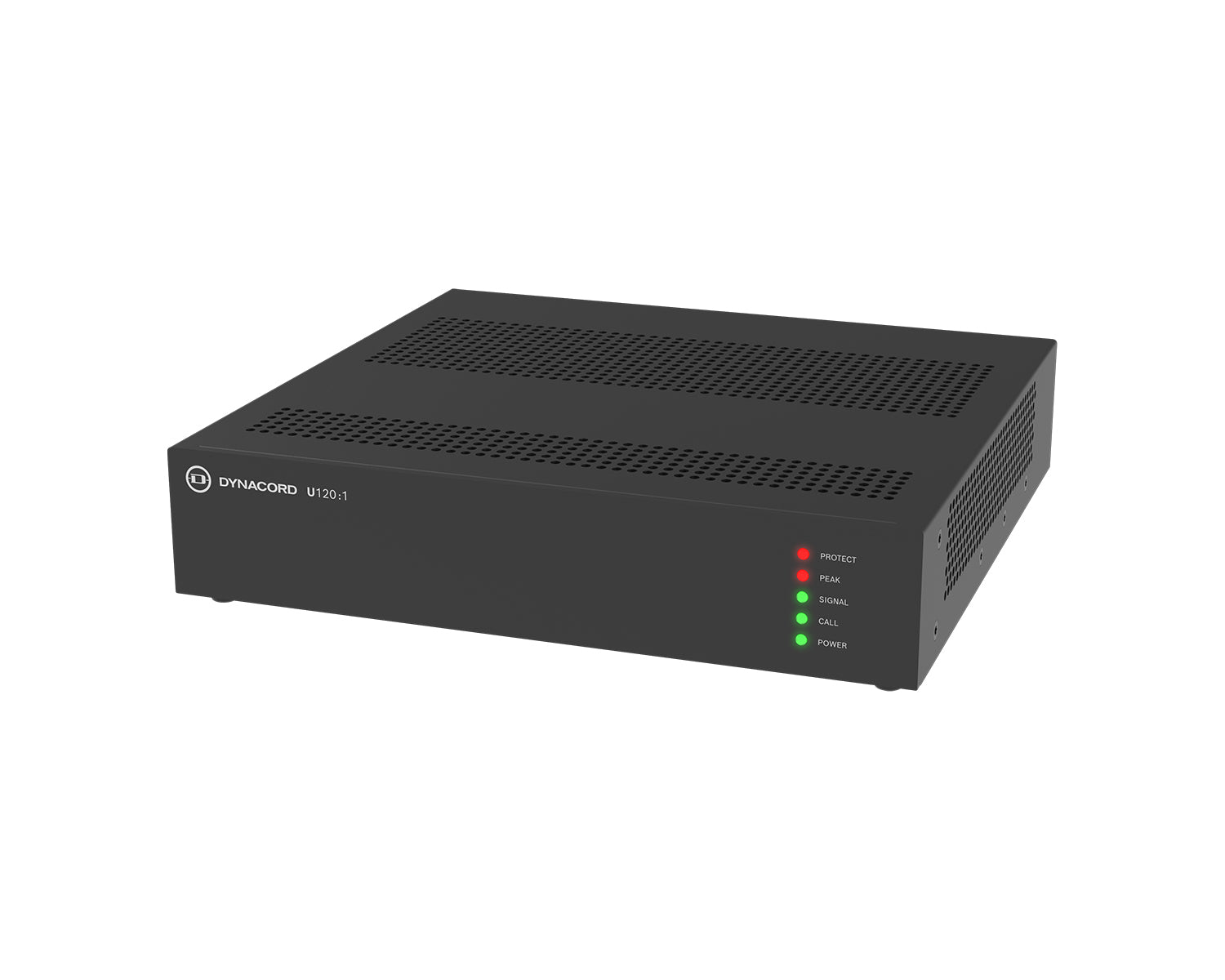

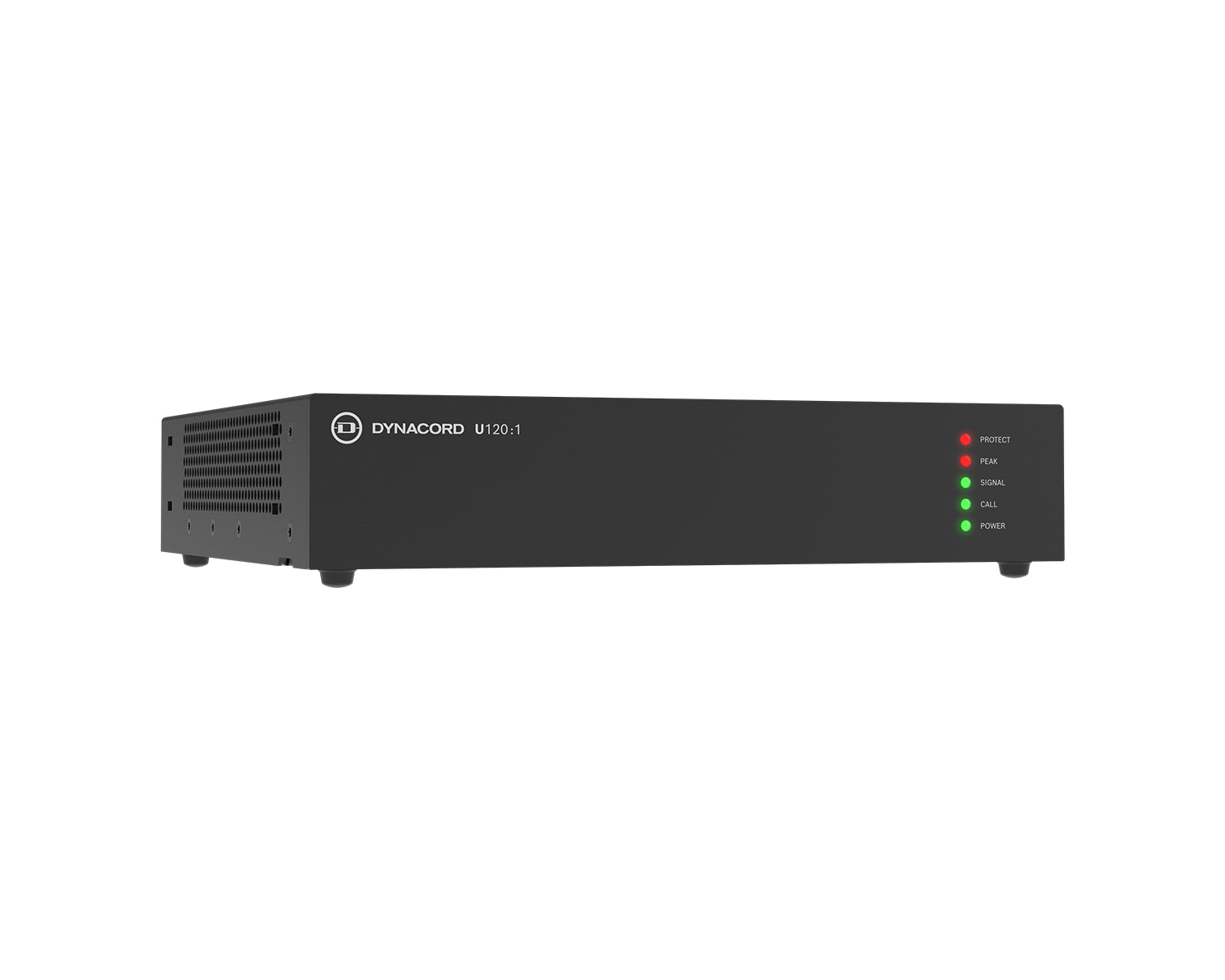

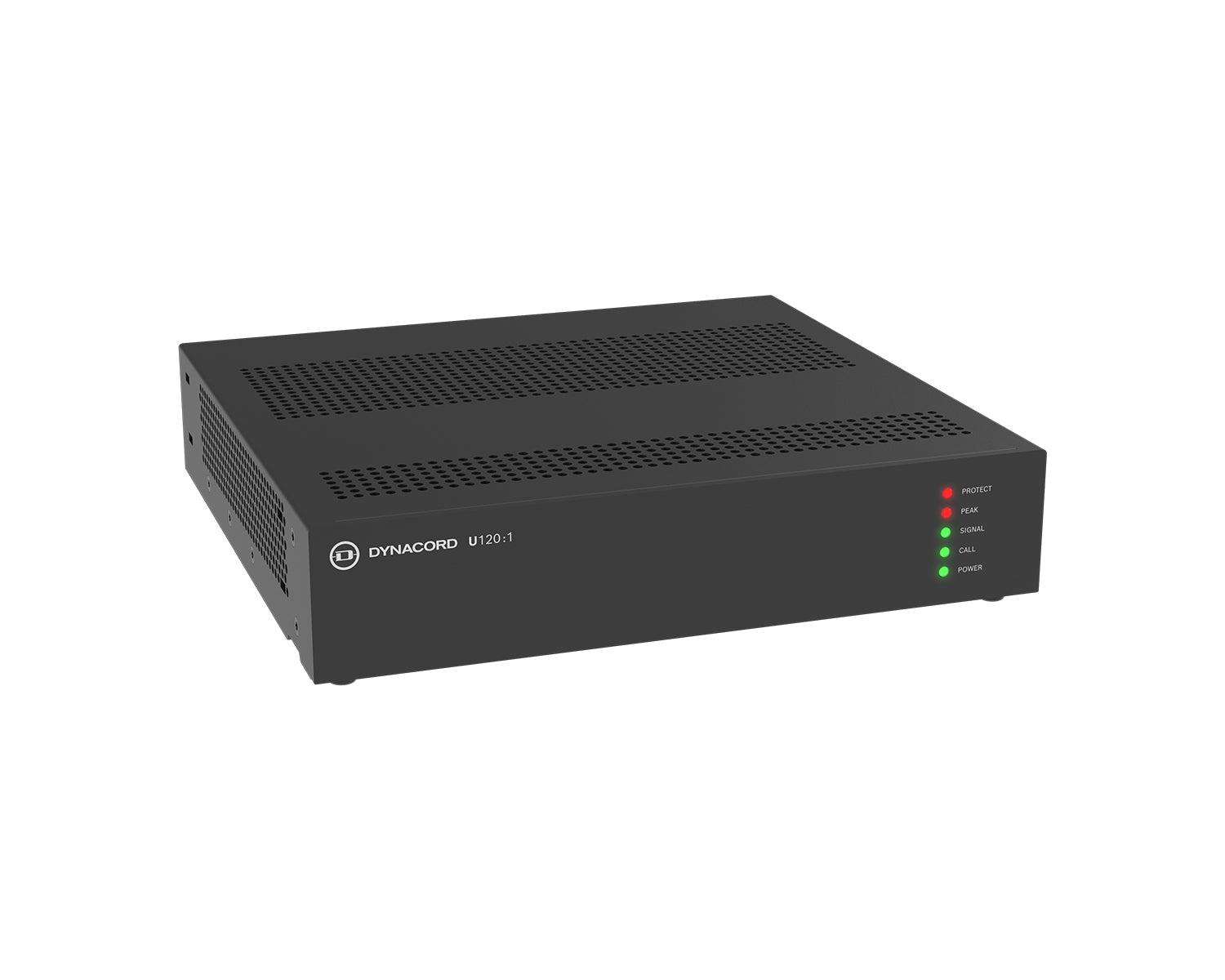

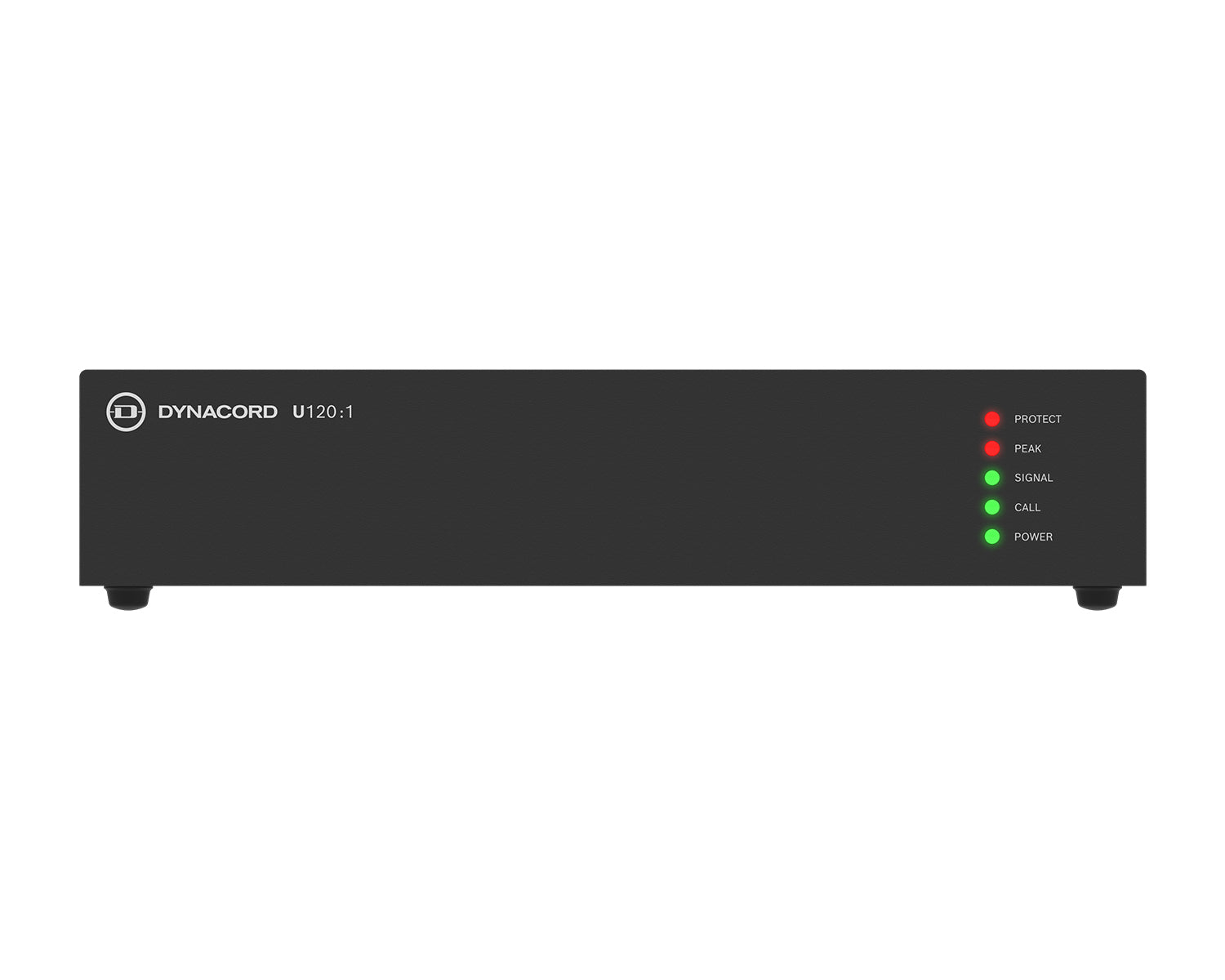

The Dynacord U120:1 is a single-channel 120W installation power amplifier that drives 4 ohm, 8 ohm, 70V or 100V loudspeaker lines. It takes one line-level source plus an EMG override input, for background music and paging in bars, restaurants, shops, schools, houses of worship and meeting rooms. The 1U half-rack chassis fits two units side by side in one rack space.
120W
4/8 ohm, 70V, 100V
1 + EMG
Inputs
Class D
Output stage
1U half
Rack size
Features

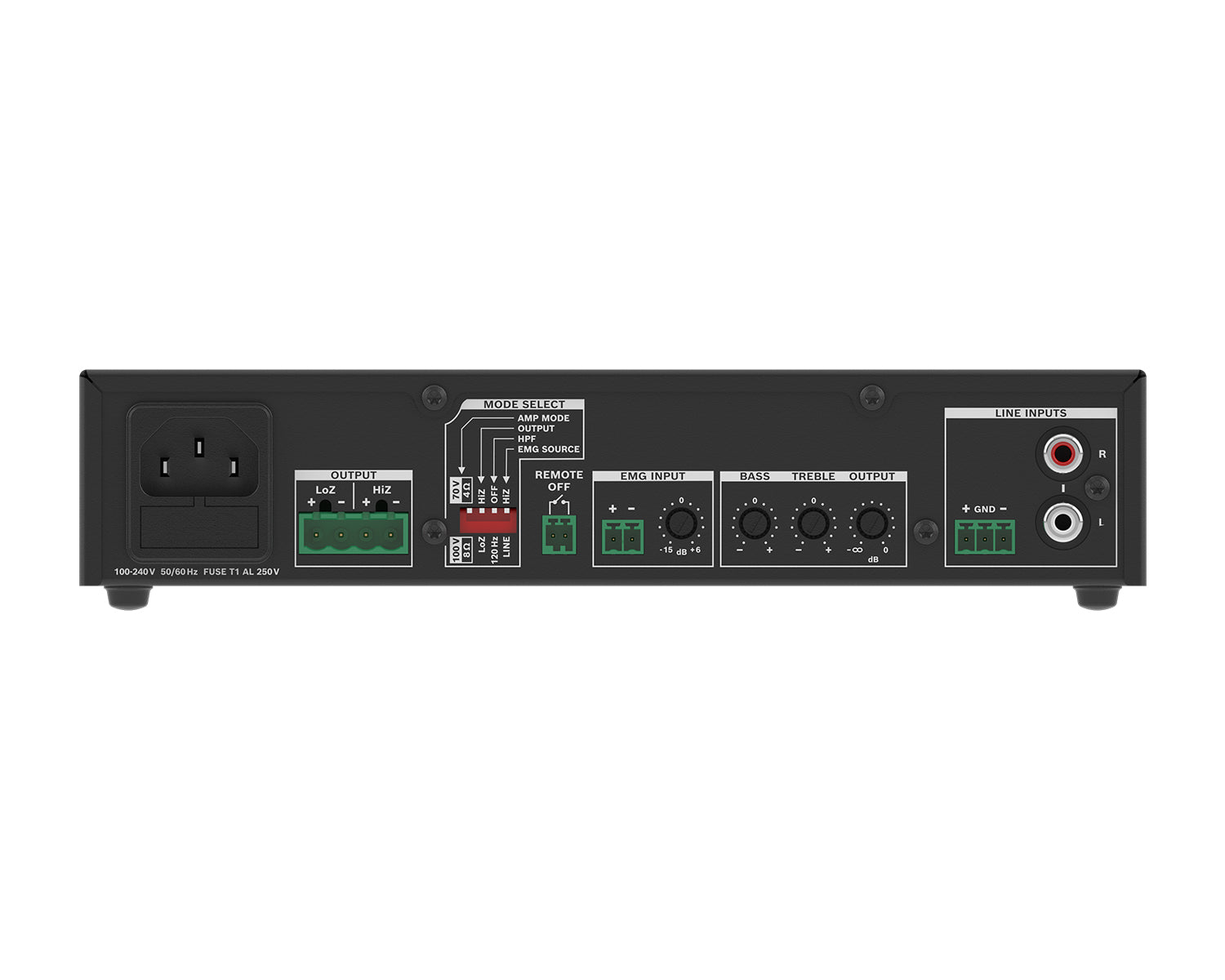

120W rated output into 4 ohms, 8 ohms, 70V or 100V, selected by DIP switch
Line input on RCA (stereo summed to mono) or 3-pin balanced Euroblock
EMG override input, line level or 100V
Bass and treble shelving (±12 dB) and a switchable 120 Hz high-pass filter
Remote standby via a 2-pin contact closure
Protection against over-temperature, DC, HF, short circuit and over-current, plus mains over/under-voltage protection
Four-stage fan cooling (off, slow, medium, fast)

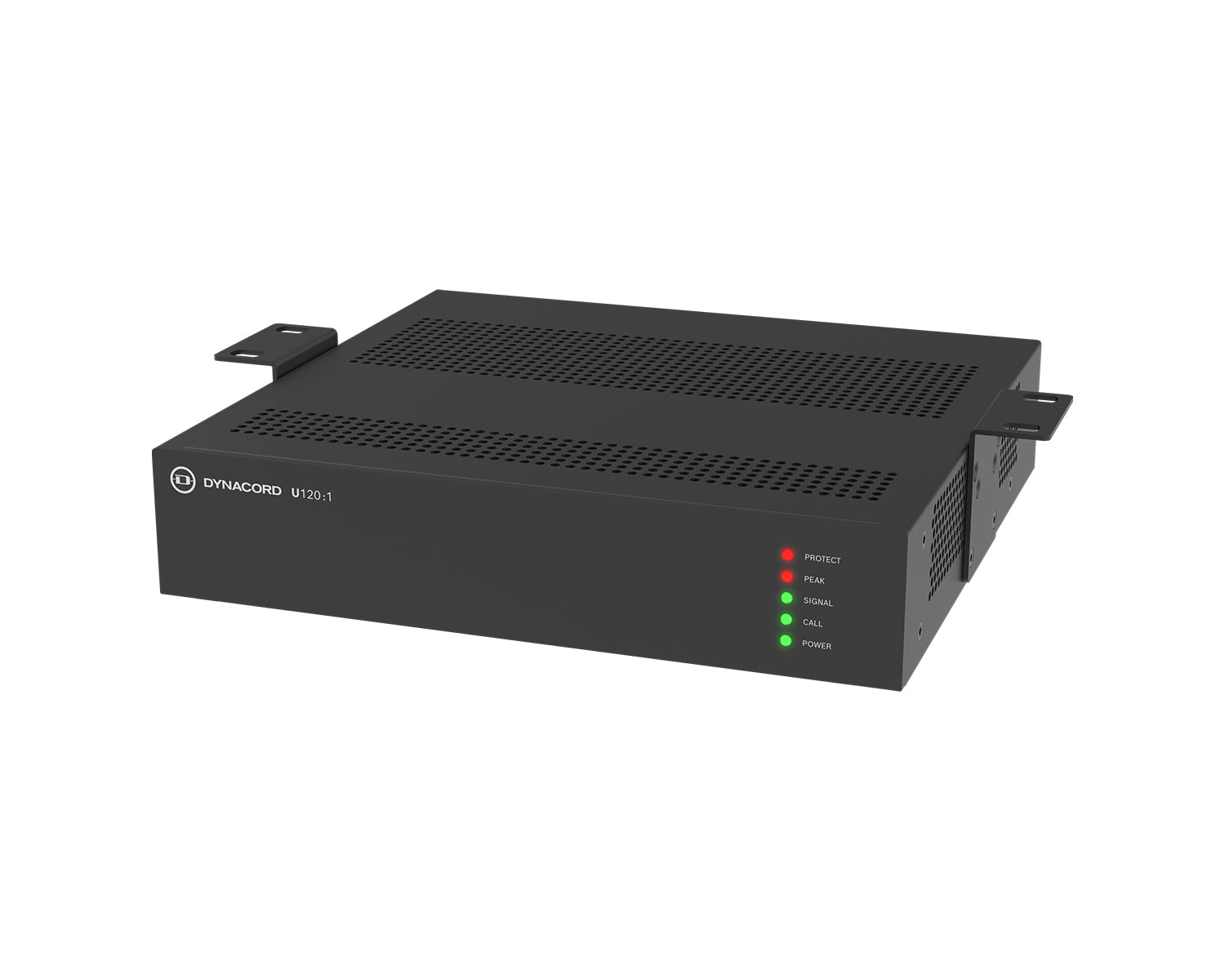

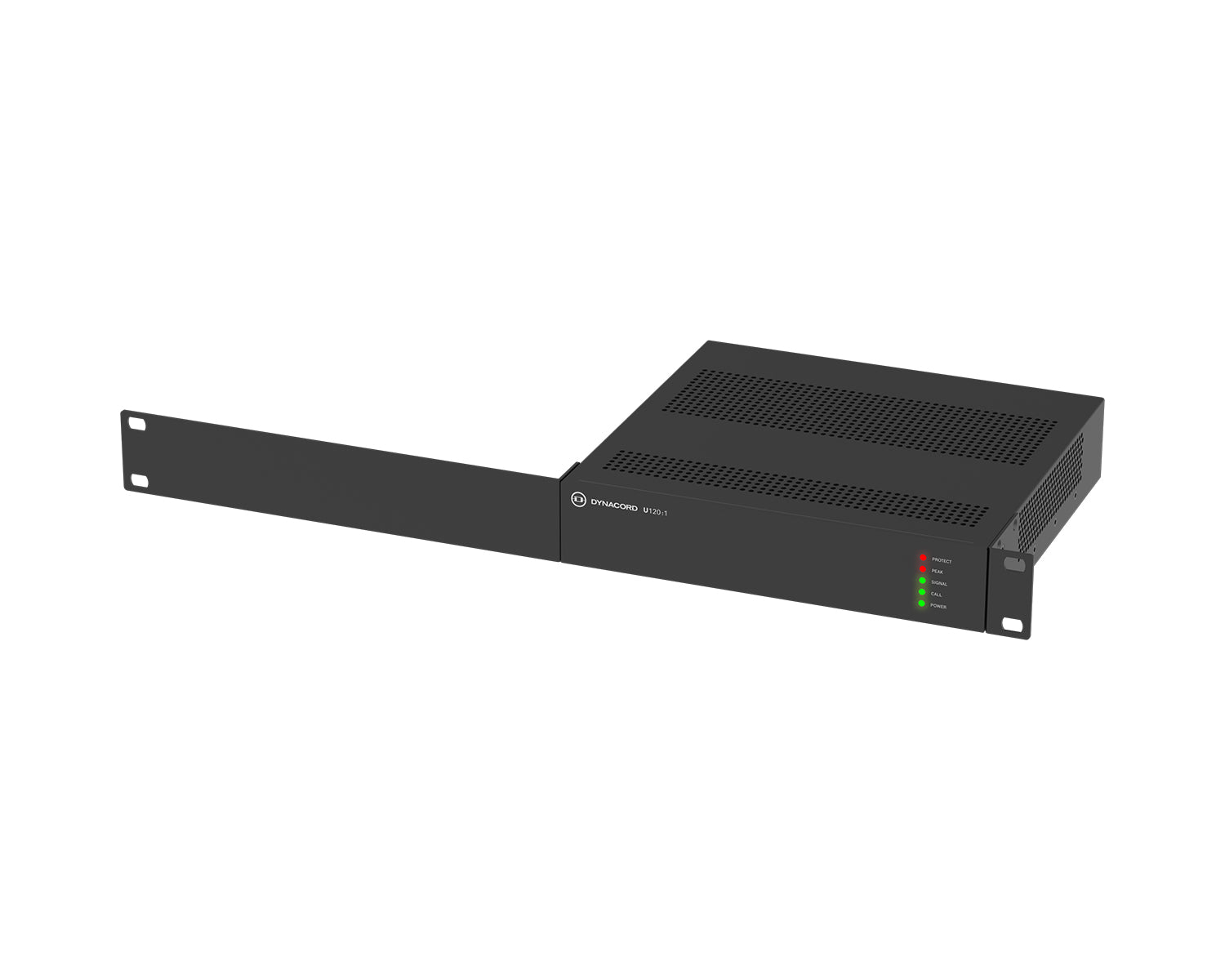

Half-rack, 1U chassis; brackets included for single or side-by-side rack mounting, desktop or under-counter use
Specifications
| Rated output power | 120W into 4 ohms, 8 ohms, 70V or 100V |
| Maximum output voltage (1 kHz, no load) | 4 ohm: 22 Vrms, 8 ohm: 32 Vrms |
| Output stage | Class D |
| Frequency response | <10 Hz to 22 kHz (-3 dB) |
| Switchable high-pass | 120 Hz, 12 dB/oct |
| Line input | RCA (summed mono) or 3-pin Euroblock balanced; 100 mV sensitivity, 4.6 kohm |
| EMG input | 2-pin balanced, line or 100V |
| Signal-to-noise ratio | >95 dB (min volume/muted), >60 dB (max volume) |
| Speaker output | 4-pin Euroblock (2 pins low impedance, 2 pins 70V/100V) |
| Mains | 100 to 240 V AC, 50/60 Hz, 400 VA |
| Power consumption | Standby 1.25W, idle 9 to 11W |
| Dimensions (H x W x D) | 44.2 x 218 x 217.7 mm, 1U half-rack |
| Weight | 1.86 kg (2.32 kg with brackets) |
