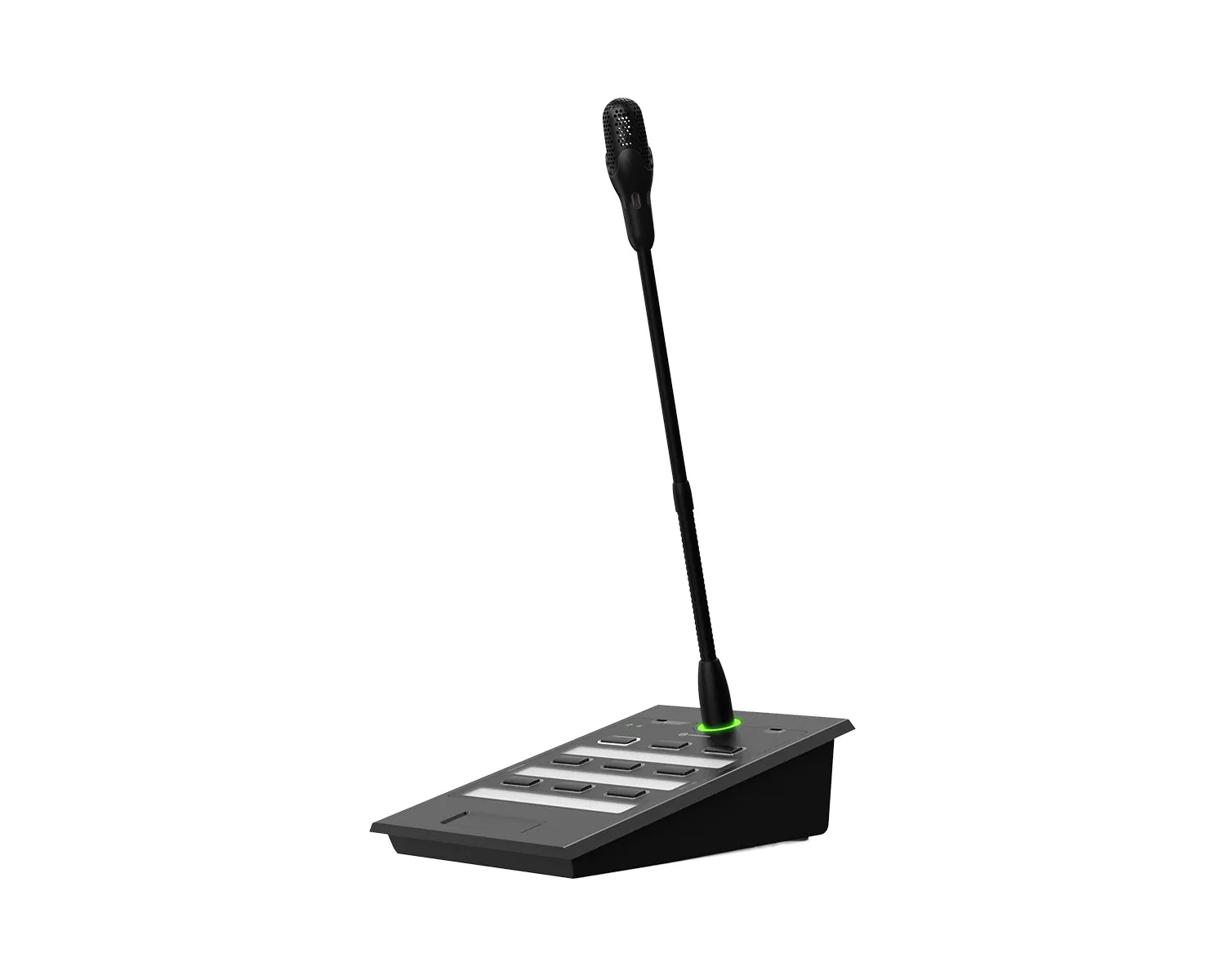

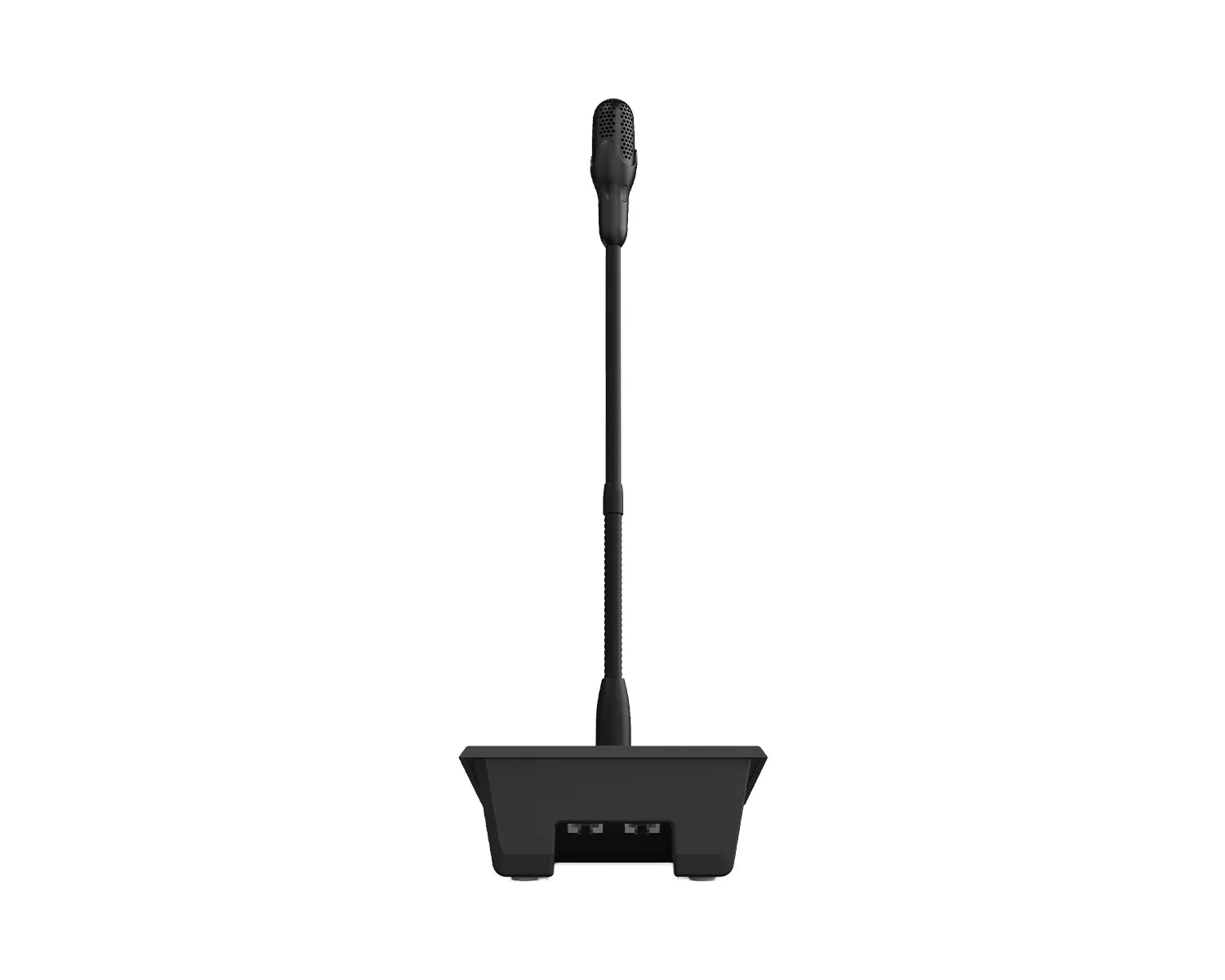

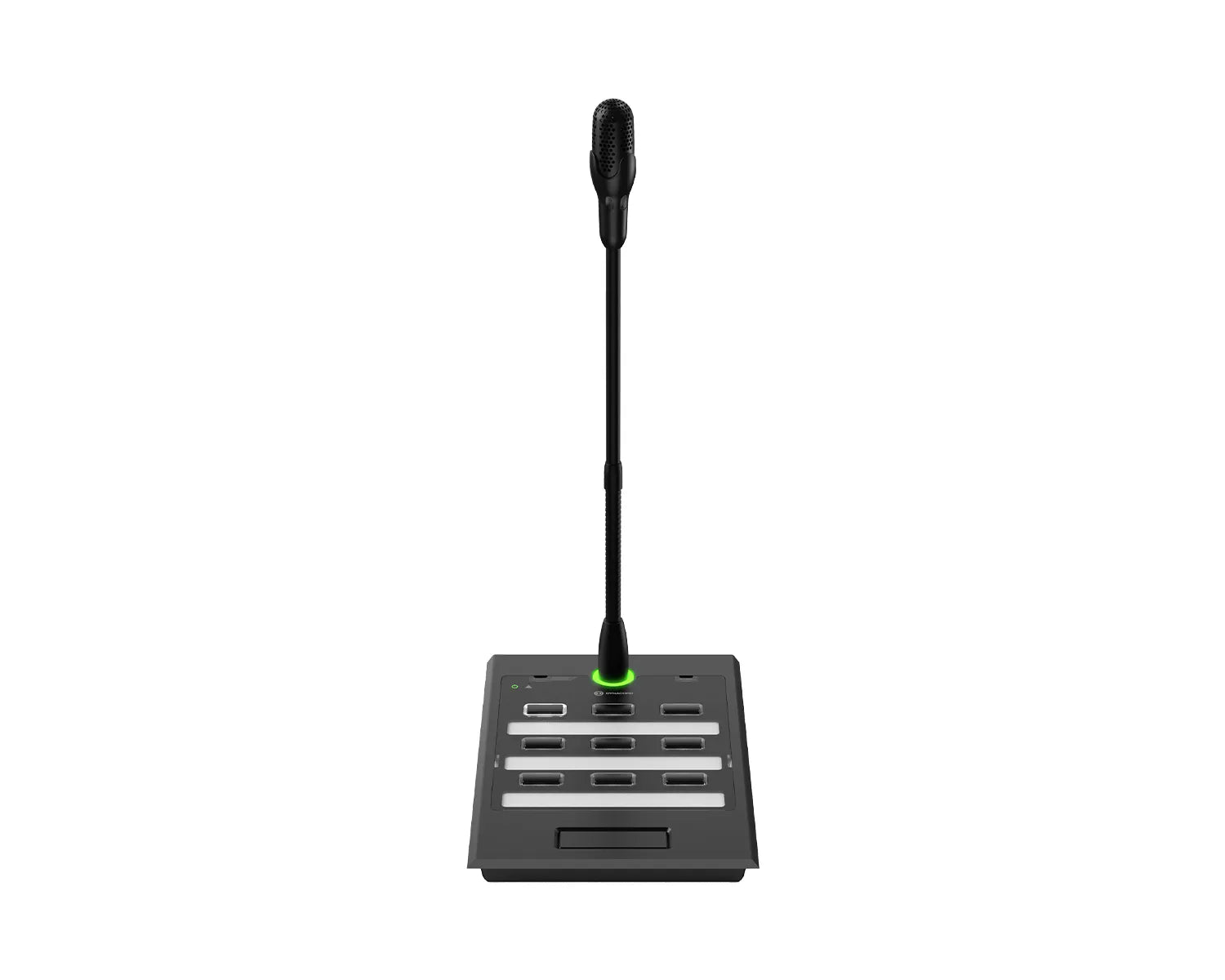

The Dynacord VCS-8 is a desktop paging station with a fixed gooseneck microphone, built for the Dynacord VZX-8 zone processor. Nine programmable buttons page single zones, zone groups or all zones, or trigger other system functions. It suits receptions, shops, schools, hotels and houses of worship using a VZX-8 system.
8 zones
Zone buttons
9 + PTT
Buttons
Up to 8
Per VZX-8
RJ45
Powered by bus
Requires a Dynacord VZX-8The VCS-8 is powered and connected by the VZX-8 accessory bus and does not work on its own. A 120 ohm RJ45 termination plug goes in the unused port of the last accessory on each line.
Features
Electret condenser gooseneck microphone, unidirectional, non-detachable
9 programmable buttons plus push-to-talk
9 LED indicators, one per zone plus one assignable, with busy indication
RGB light ring for status
Priority settings, mutual exclusion and selectable chimes
VZX-8 supports 4 simultaneous pages to different zones
Connects and draws power over RJ45; daisy-chain up to 8 call stations per VZX-8
Heavy die-cast base for desktop use
Specifications
| Microphone | Electret condenser, unidirectional, gooseneck |
| Frequency response | 100 Hz to 14 kHz |
| Maximum acoustic input | 120 dB SPL |
| Dynamic range | >90 dB |
| Sample rate | 48 kHz |
| Connections | 2x RJ45 (in, out for daisy chain) |
| Power | VZX-8 accessory bus, 37 to 57 V DC |
| Maximum per system | 8 per VZX-8 |
| Operating temperature | 5 to 40°C |
| Dimensions (H x W x D) | 60 x 130 x 192 mm without microphone |
| Weight | 0.92 kg |
