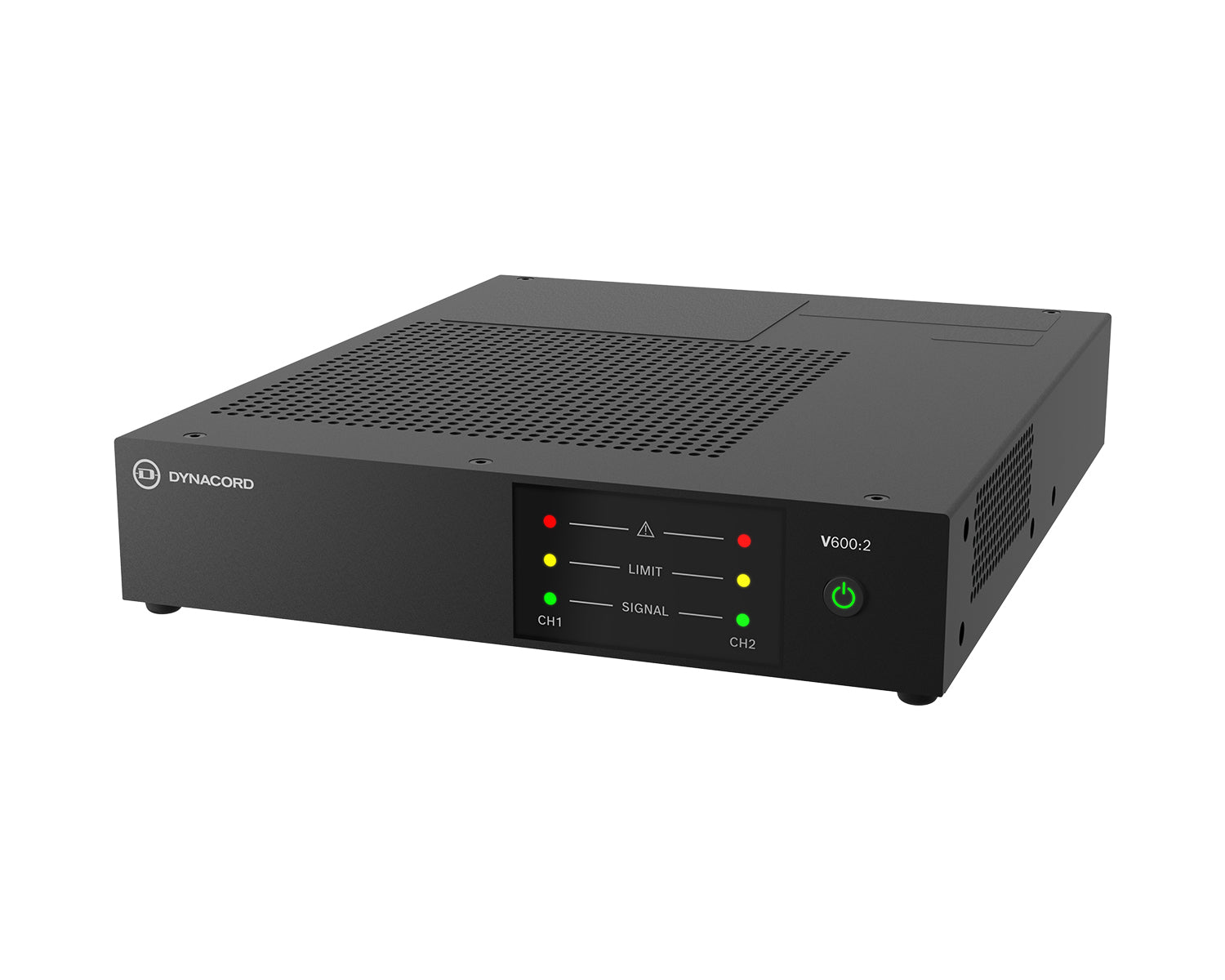

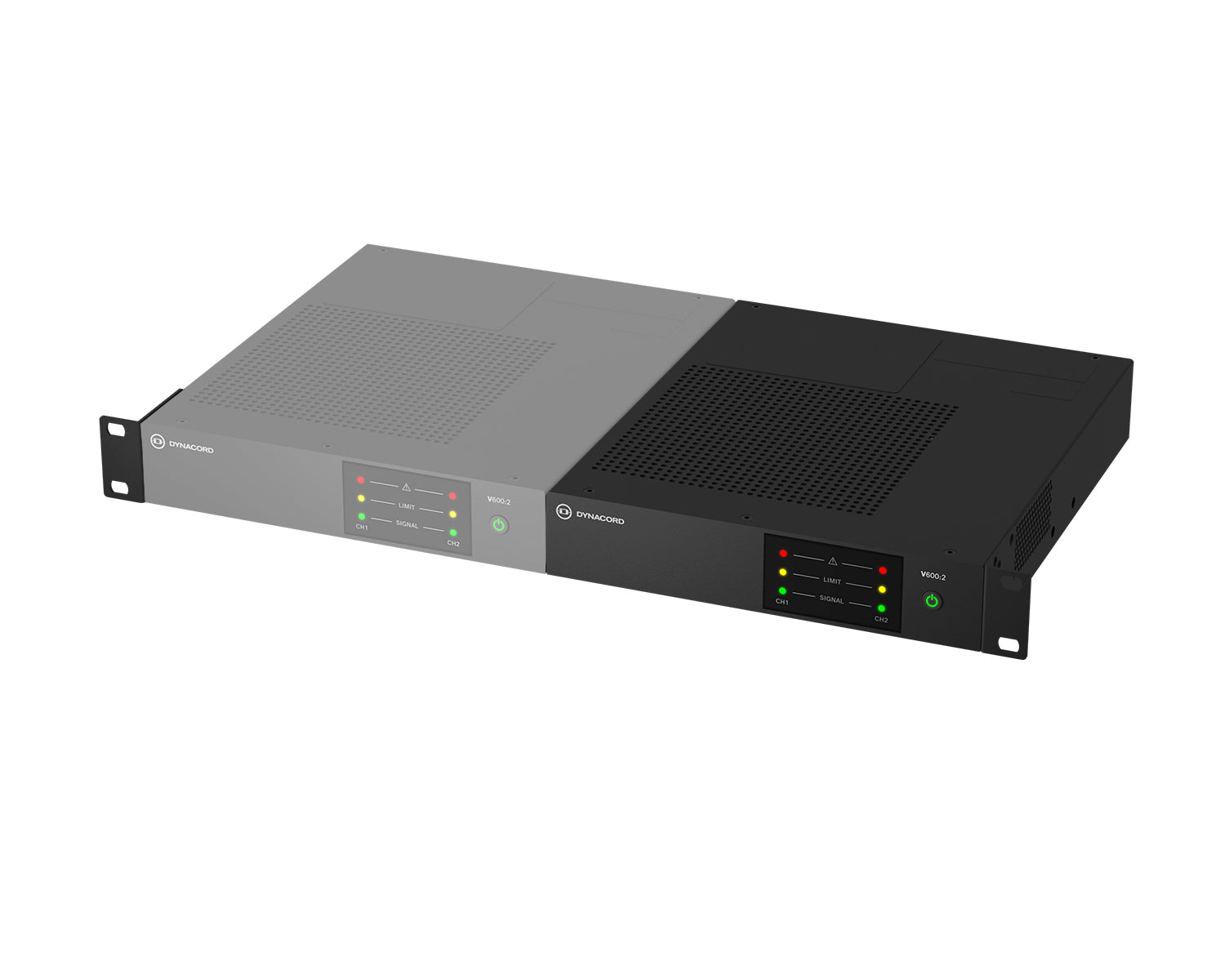

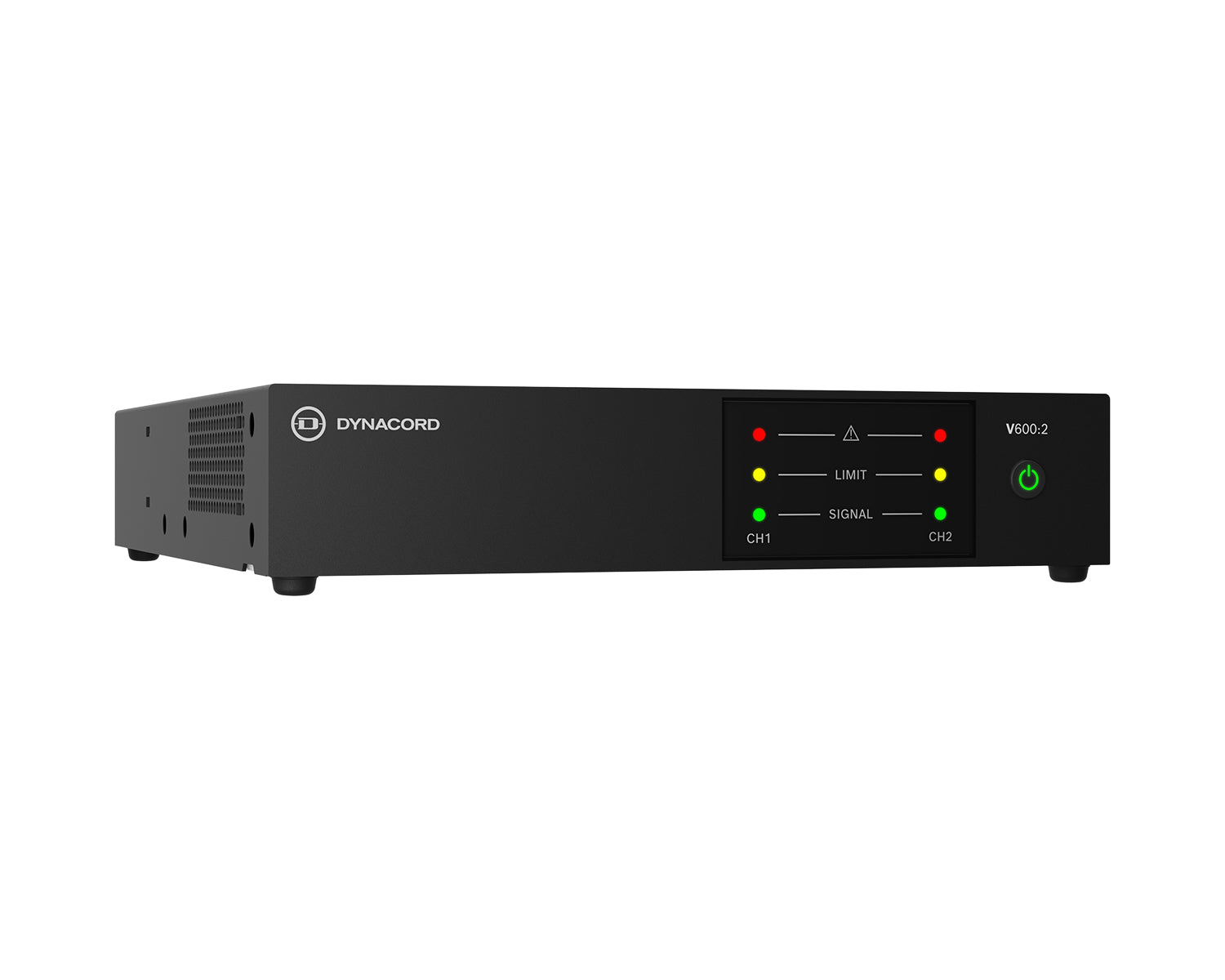

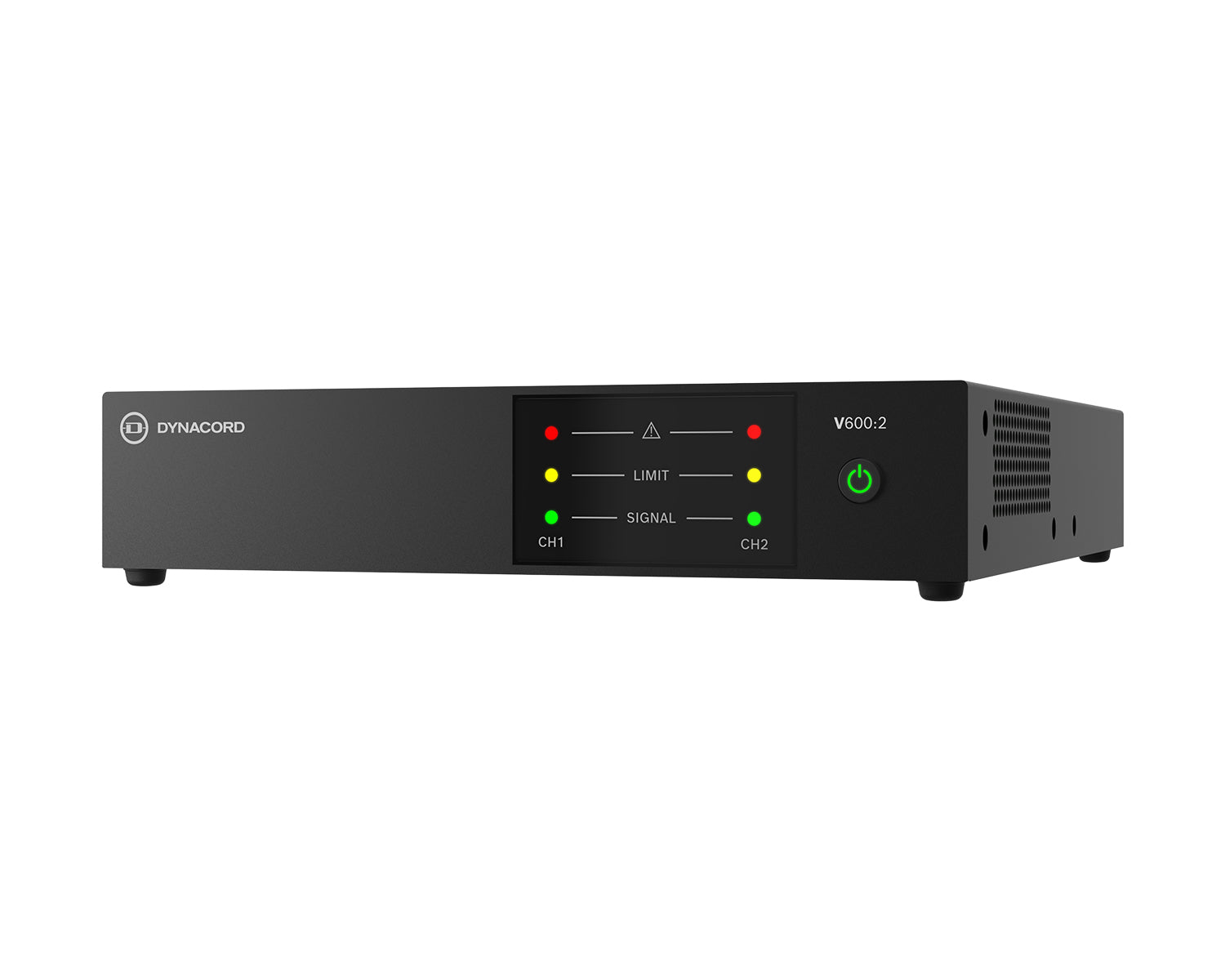

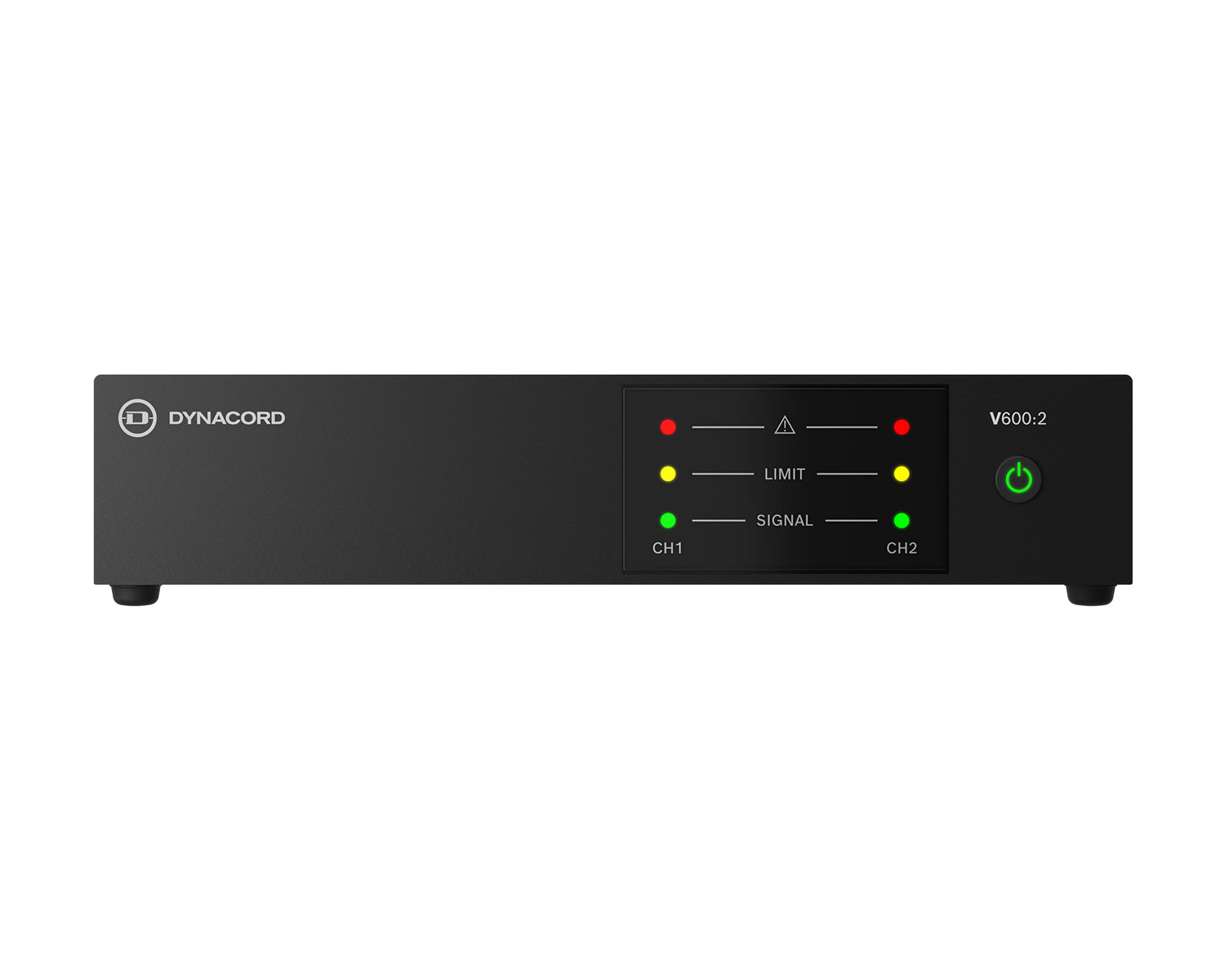

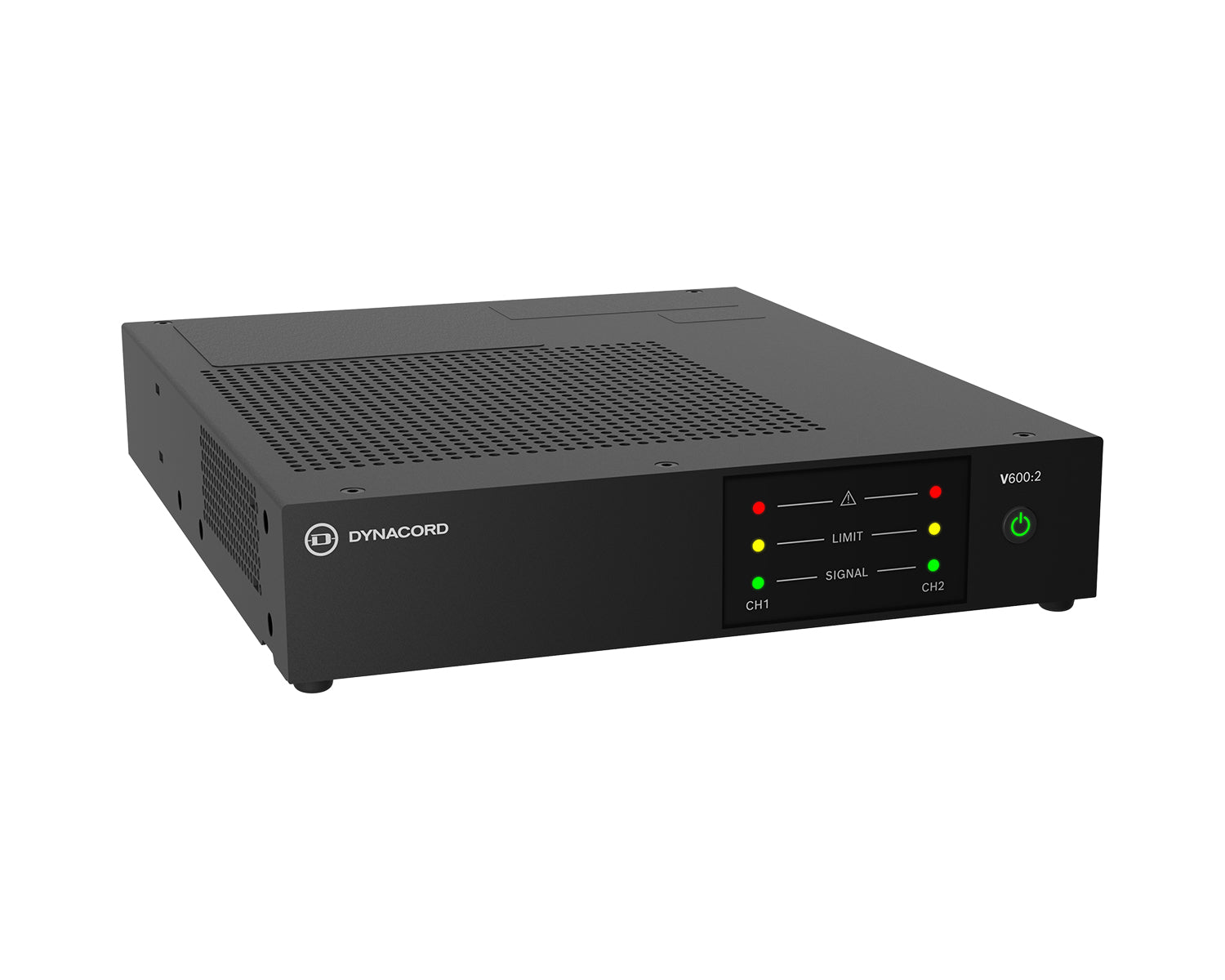

The Dynacord V600:2 is a two-channel installation amplifier rated at 2x 300W into 4 ohms, 8 ohms, 70V or 100V, with 600W of total power that can be shared unevenly between the channels. It is a 1U half-rack unit for background music, announcements and higher-level music in schools, hotels, bars, retail and houses of worship. Two units fit side by side in one rack space.
2x 300W
4/8 ohm, 70V, 100V
600W
Max per channel, 8 ohm/100V
<1W
Auto standby
1U half
Rack size
Features
Two channels, 2x 300W rated into 4 ohms, 8 ohms, 70V or 100V
powerTANK sharing: one channel can deliver up to 500W (4 ohms/70V) or 600W (8 ohms/100V)
Balanced inputs on a 6-pin Euroblock, plus a parallel RJ45 input (AES72-1E) for single-cable wiring
High-pass and low-pass filters (24 dB/oct), input routing and peak limiter
ecoRAIL idle mode under 12W, and Auto Power Down to under 1W with no signal
Convection cooled, with a multi-speed fan for high temperatures
Power factor corrected supply with full protection, including mains over/under-voltage
Remote on/standby contact and ready/fault relay on a 5-pin Euroblock

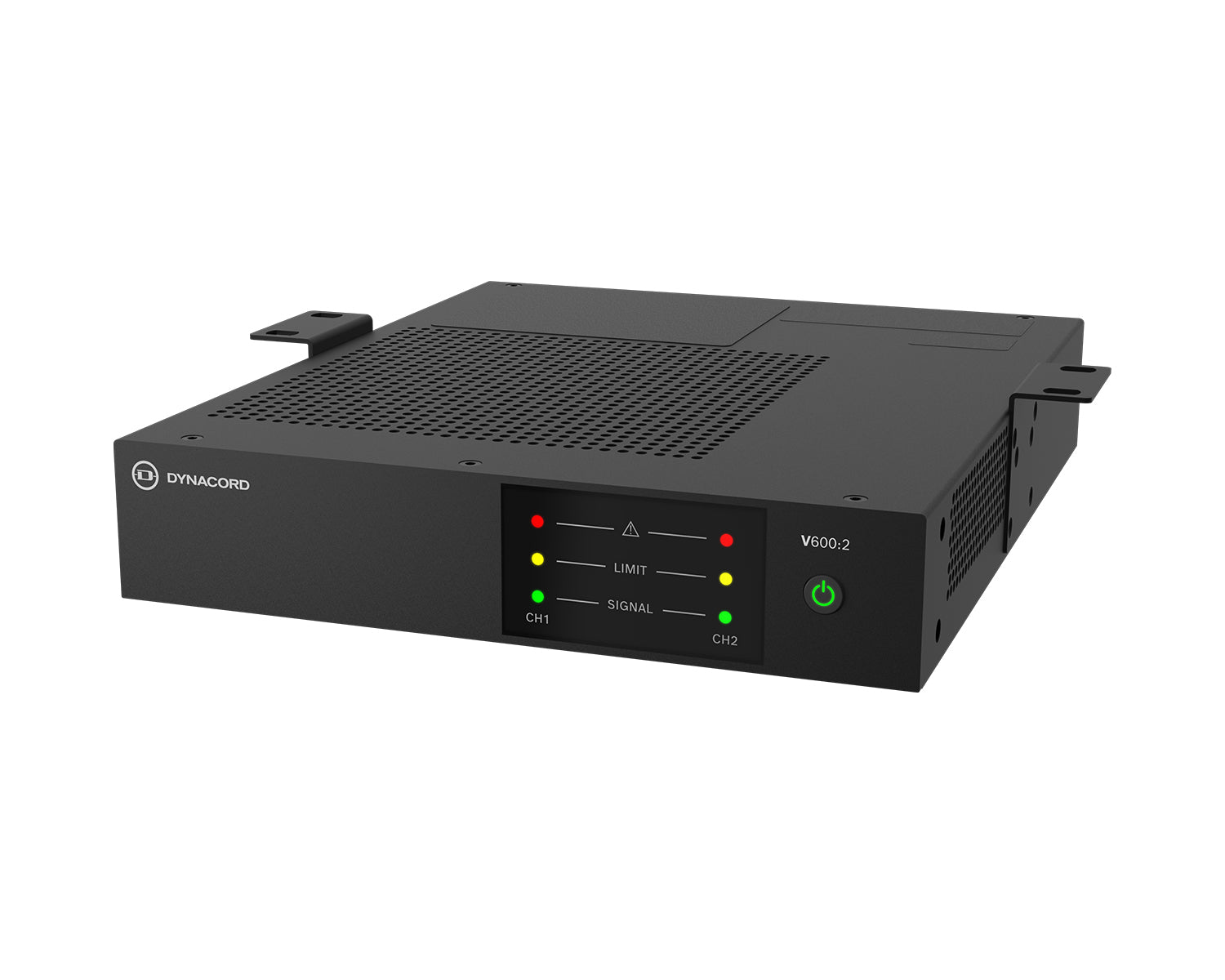

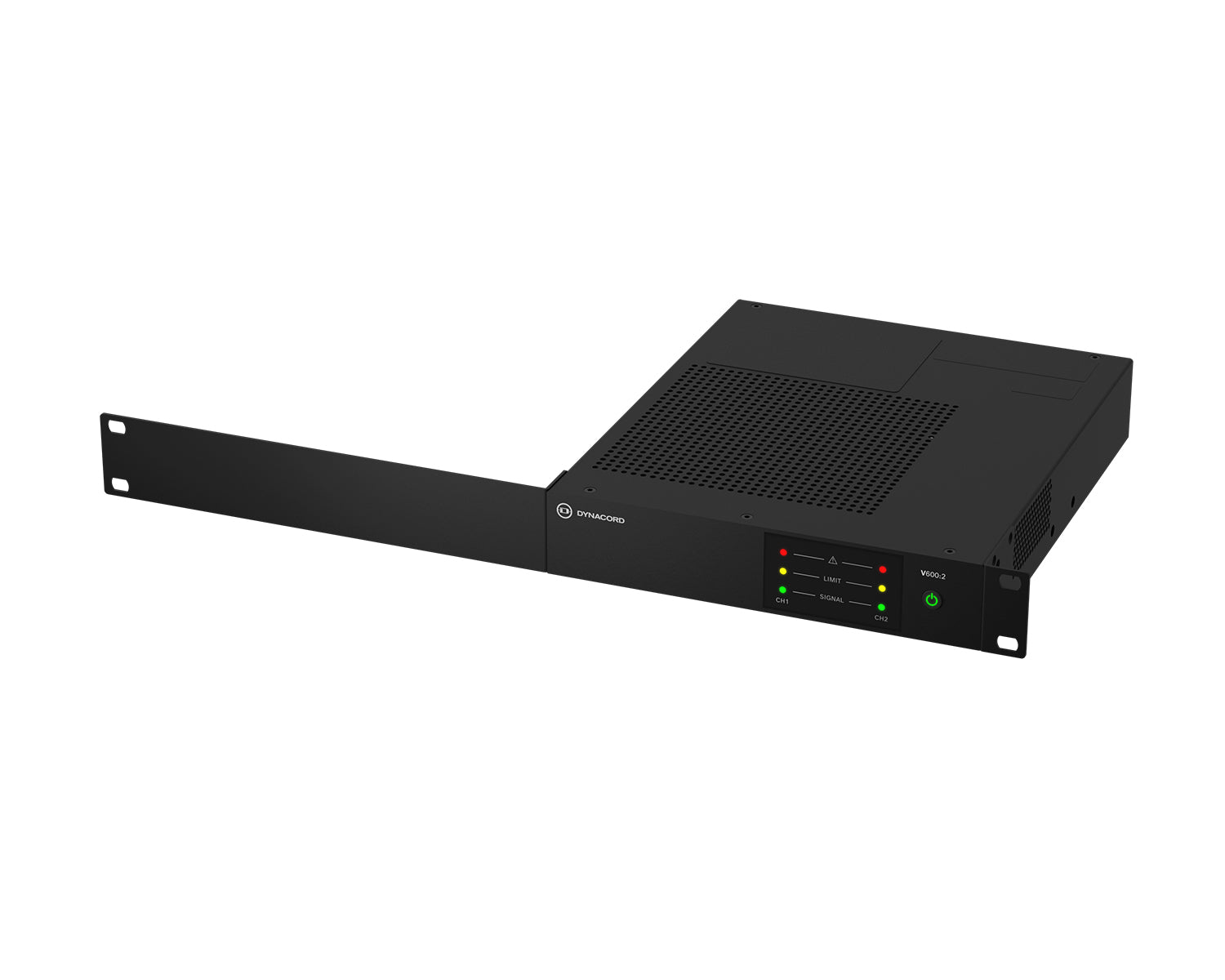

Brackets included for single or side-by-side rack mounting, or under-counter fitting
Specifications
| Rated output power | 2x 300W into 4 ohms, 8 ohms, 70V or 100V |
| Maximum per channel (power sharing) | 4 ohm: 500W, 8 ohm: 600W, 70V: 500W, 100V: 600W |
| Total output power | 600W |
| THD+N | <0.1% (1/8 rated power, 1 kHz) |
| Signal-to-noise ratio | >100 dB (A-weighted, ref. rated power) |

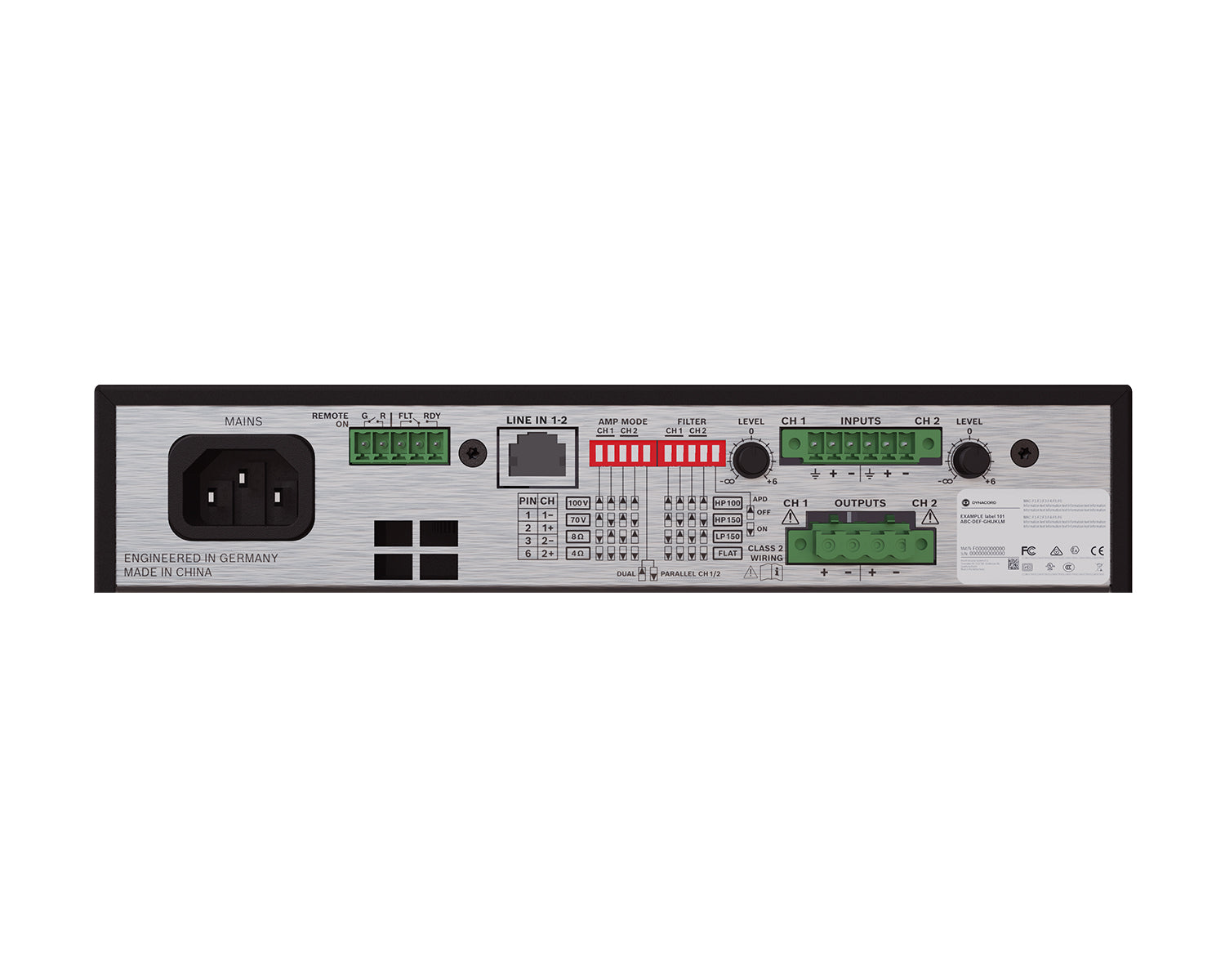

| Inputs | 1x 6-pin Euroblock (3.81 mm), parallel 1x RJ45 (AES72-1E) |
| Maximum input level | +18 dBu |
| Speaker outputs | 2x 4-pin Euroblock (5.08 mm) |
| Control port | 5-pin Euroblock: remote on/standby, ready/fault relay |
| Power consumption | 115W at 1/8 rated power; <12W idle (ecoRAIL); <1W standby |
| Mains | 100 to 240 V AC, 50/60 Hz, IEC C14 |
| Dimensions (H x W x D) | 44.2 x 218 x 269.5 mm, 1U half-rack |
