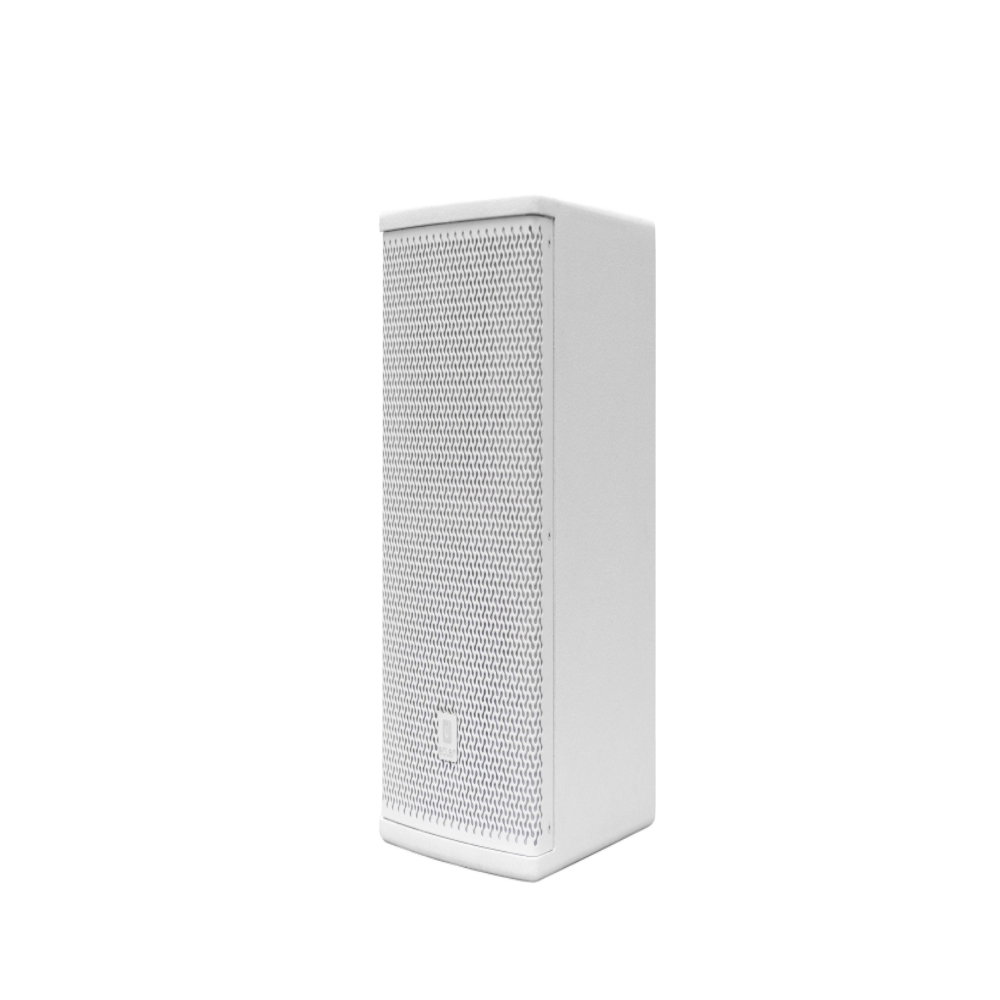

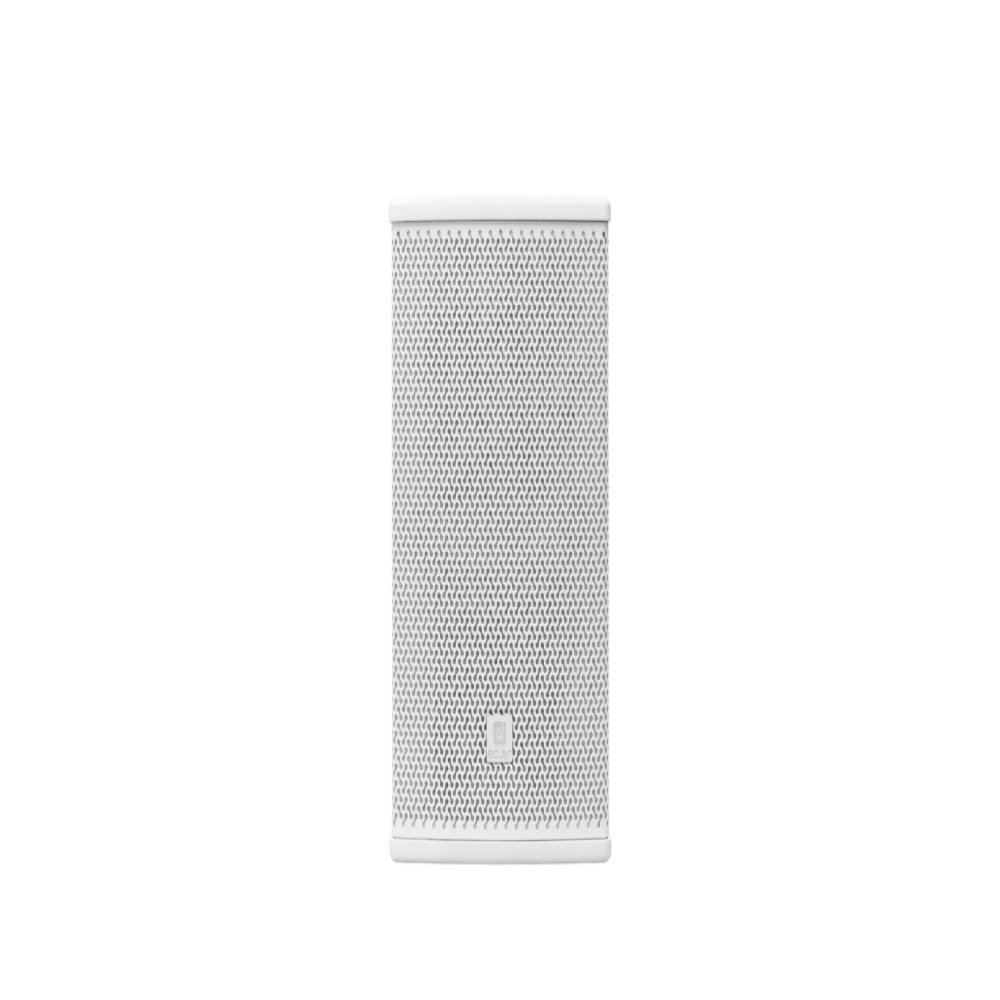

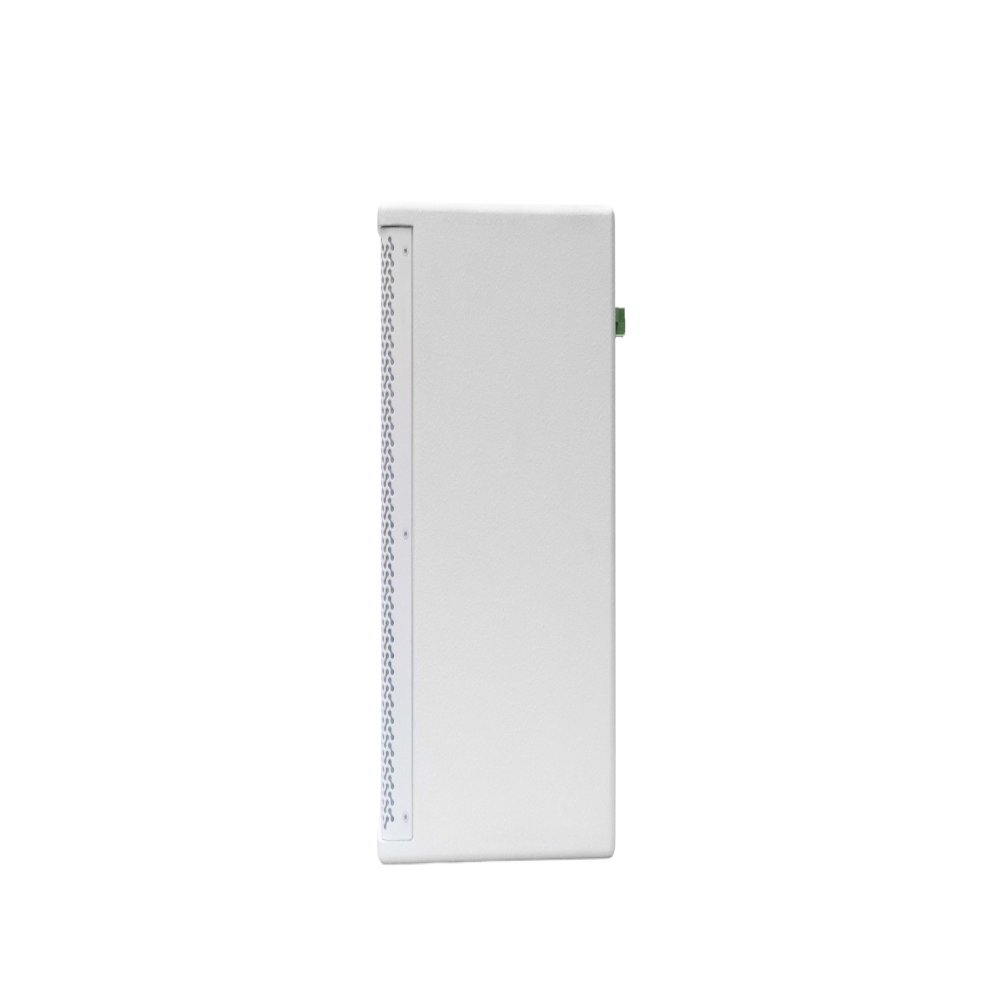

The Ecler ARQIS 106i is a 2-way passive installation speaker in an MDF cabinet with a 6 inch woofer and rotatable 1 inch compression driver, rated at 120W RMS at 8 ohms. It comes with the VEASY wall bracket, which gives pan and tilt adjustment and fixes with a single screw. It suits bars, restaurants, hotel lounges, retail and meeting rooms that need full-range music from a compact wall speaker. Sold as a single unit in white.
6in
2-way
120W
RMS at 8 ohms
140° x 160°
Coverage (H x V)
VEASY
Bracket included
8 ohm onlyARQIS i series cabinets have no line transformer, so they need a low-impedance amplifier output and cannot go on a 100V line. Ecler recommends a high-pass protection filter on the amplifier or processor.
Features
2-way design: 6 inch woofer with rotatable 1 inch compression driver
120W RMS, 480W peak at 8 ohms

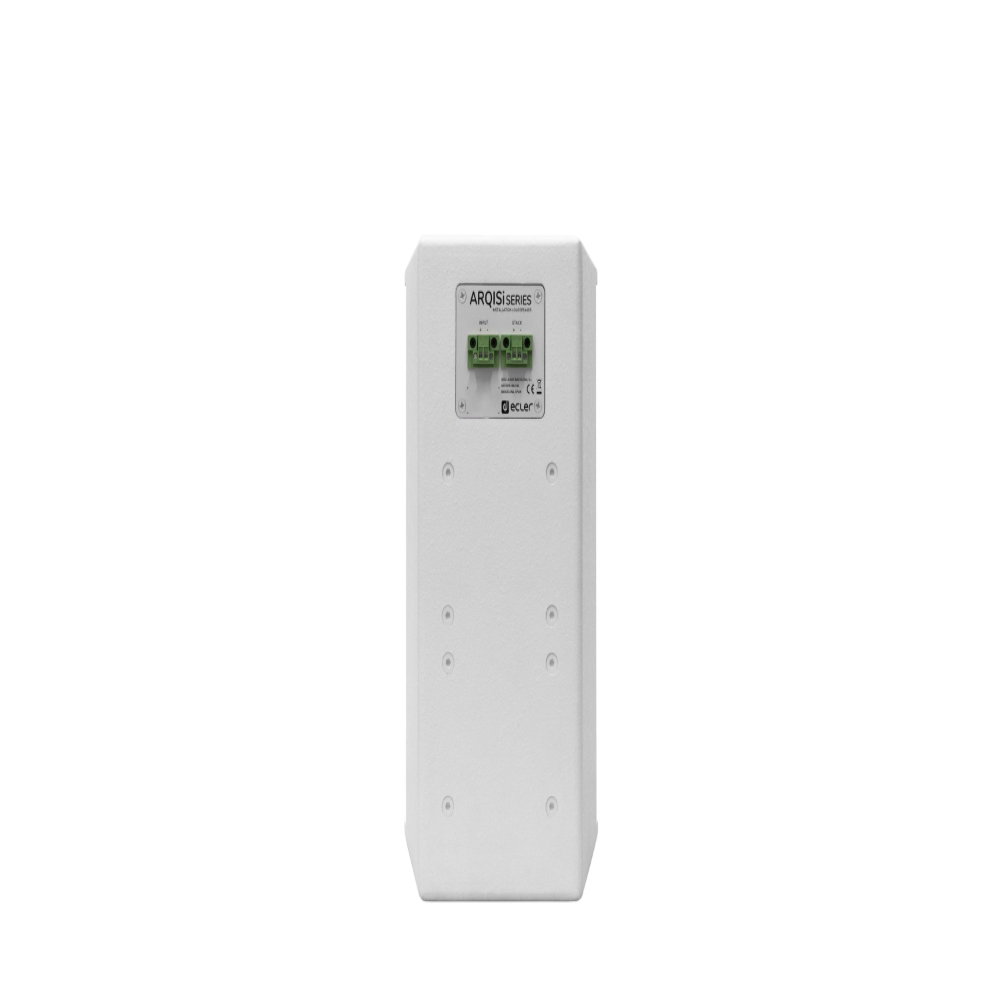

Double Euroblock input/link connector with locking screws

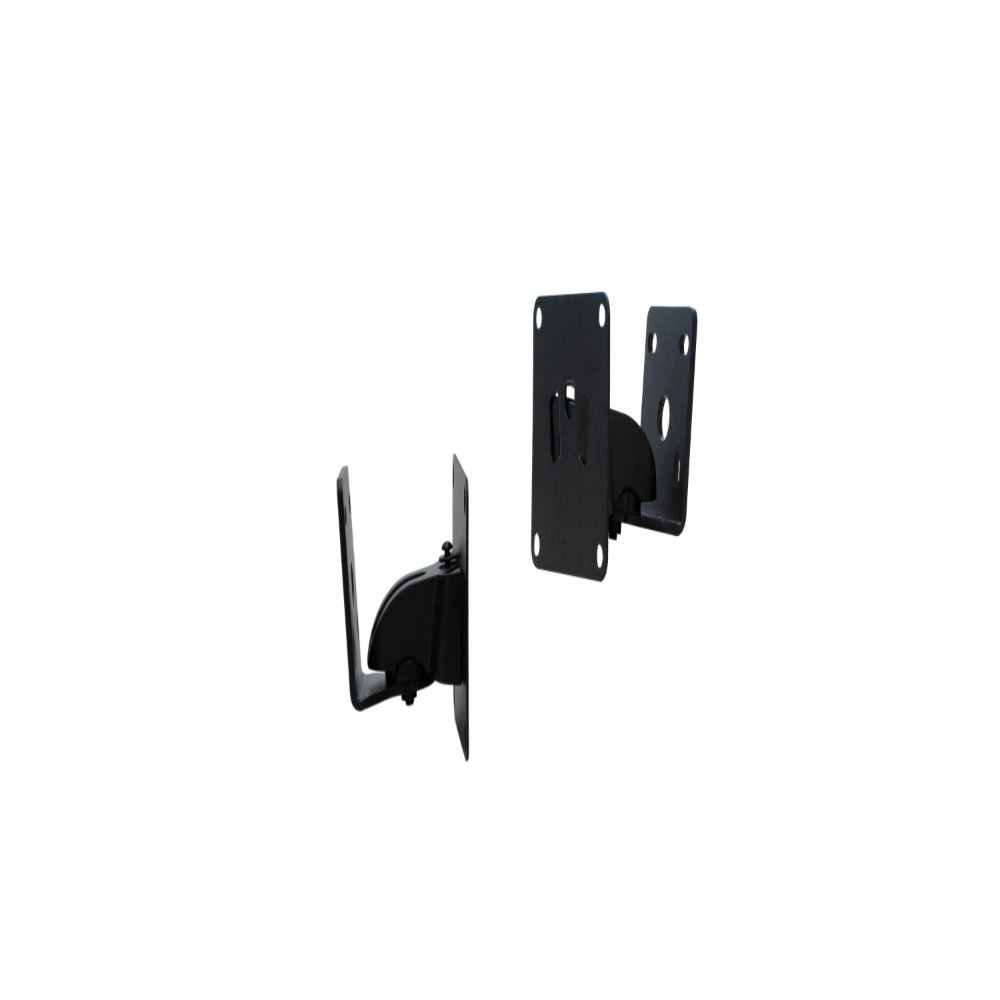

VEASY pan and tilt wall bracket included (VESA compatible), with markings to repeat speaker angles
Metal safety sling included
MDF cabinet with steel grille
White finish (RAL 9003)
Specifications
| Frequency range | 75 Hz to 20 kHz (-10 dB) |
| Coverage | 140° x 160° (H x V) |
| Power handling | 120W RMS, 480W peak |
| Nominal impedance | 8 ohms |
| Sensitivity | 88 dB (1W/1m) |
| Maximum SPL | 109 dB continuous, 115 dB peak |
| Recommended amplifier | 240W RMS |
| Crossover | 3.2 kHz |
| Recommended high-pass | 70 Hz, 12 dB/octave minimum |
| Connection | 2 x Euroblock |
| Rigging points | 8 x M6 |
| Environmental | IP31 |
| Dimensions (W x H x D) | 215 x 350 x 240 mm |
| Weight | 7.4 kg |
| Included | VEASY wall bracket, 3, 4 and 6 mm Allen keys |
| Operating temperature | -20°C to 70°C |
| Colour | White (RAL 9003) |
