Rated 4.9 (120 reviews)

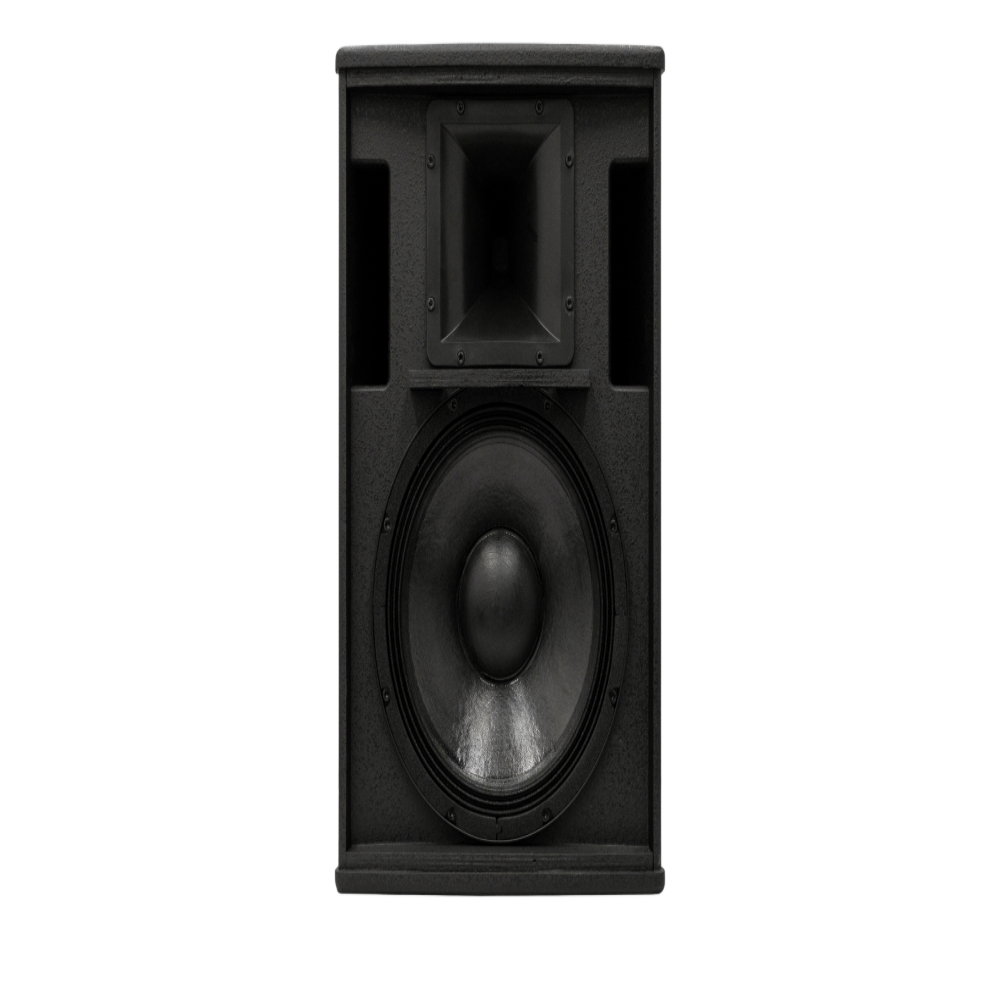

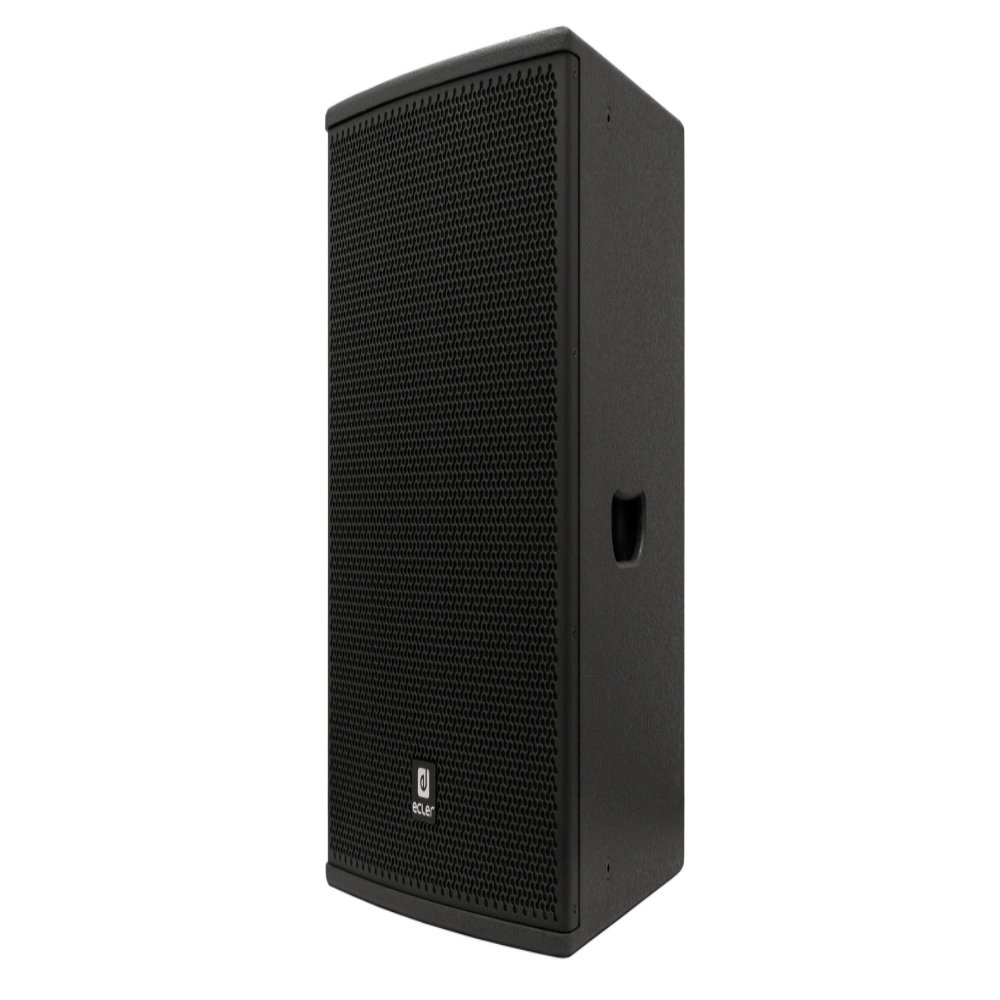

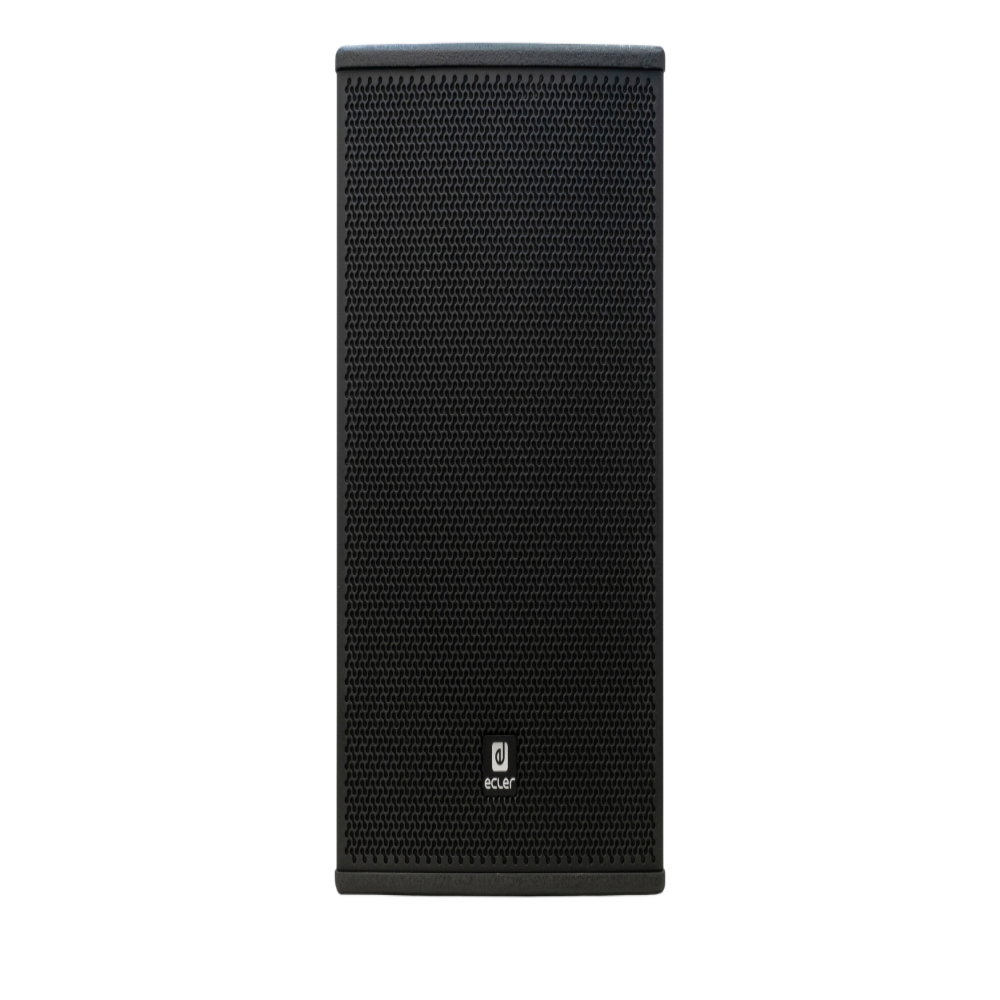

The Ecler ARQIS 112i is a 2-way passive installation speaker in an MDF cabinet with a 12 inch woofer and a rotatable 1.7 inch compression driver, rated at 500W RMS at 8 ohms. It has a 35 mm pole socket and 12 M8 rigging points for horizontal or vertical mounting; the U-bracket is sold separately. It is used as main or fill speakers in bars, clubs, restaurants, function rooms, gyms and halls. Sold as a single unit in black.
12in
2-way
500W
RMS at 8 ohms
120° x 110°
Coverage (H x V)
129 dB
Max SPL peak
8 ohm onlyARQIS i series cabinets have no line transformer, so they need a low-impedance amplifier output and cannot go on a 100V line. Ecler recommends a high-pass protection filter on the amplifier or processor.
Bracket not includedWall mounting needs the ARQ112UB U-bracket or an SR12 wall bracket on the 35 mm socket, both sold separately.
Features
2-way design: 12 inch woofer with rotatable 1.7 inch compression driver
500W RMS, 2000W peak at 8 ohms

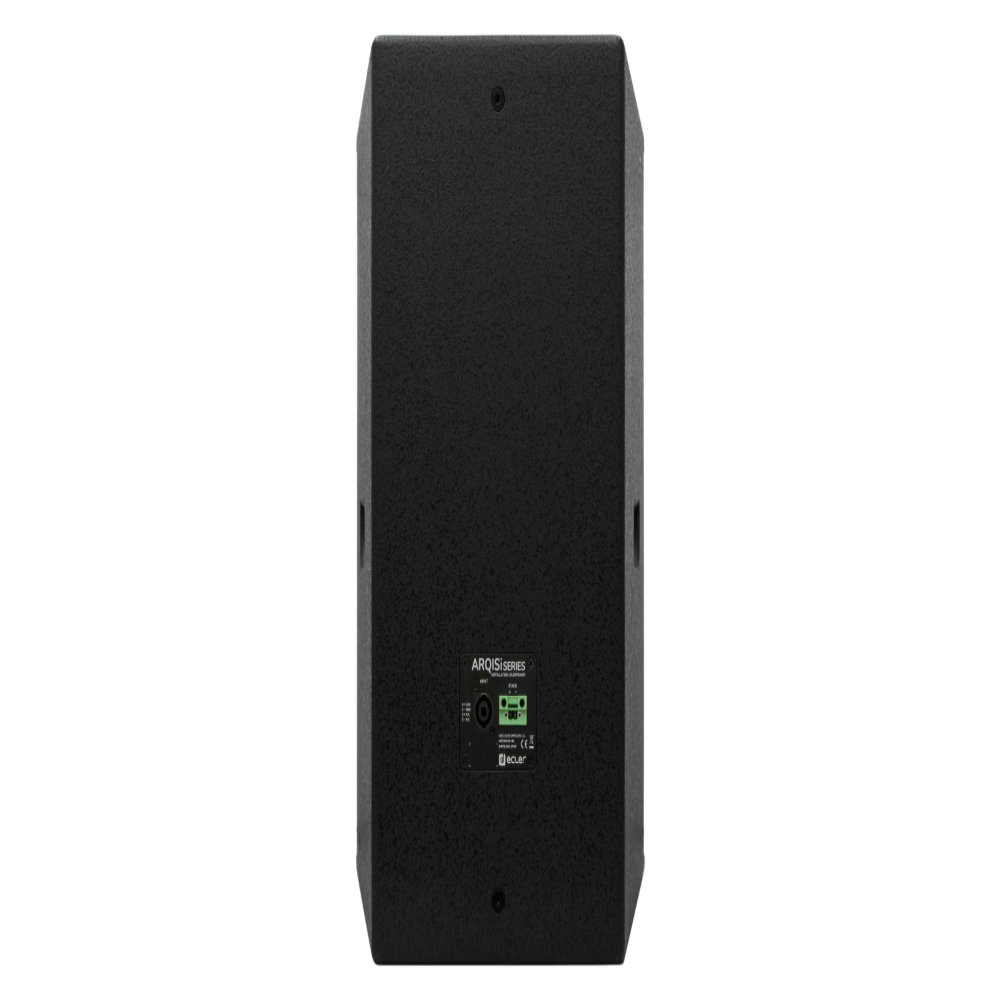

Euroblock and Speakon input/link connectors, Euroblock with locking screws
35 mm pole socket for SR12 wall bracket or TRIPO1 stand
12 x M8 rigging points; horizontal or vertical mounting
Compatible with the ARQ112UB U-bracket (not included)
MDF cabinet with steel grille; rubber feet included
Black finish (RAL 9005)
Specifications
| Frequency range | 70 Hz to 19 kHz (-10 dB) |
| Coverage | 120° x 110° (H x V) |
| Power handling | 500W RMS, 2000W peak |
| Nominal impedance | 8 ohms |
| Sensitivity | 96 dB (1W/1m) |
| Maximum SPL | 123 dB continuous, 129 dB peak |
| Recommended amplifier | 1000W RMS |
| Crossover | 2.2 kHz |
| Recommended high-pass | 58 Hz, 12 dB/octave minimum |
| Connection | 1 x Euroblock, 1 x Speakon (+1/-1) |
| Rigging points | 12 x M8, 35 mm pole socket |
| Environmental | IP31 |
| Dimensions (W x H x D) | 403 x 565 x 380 mm |
| Weight | 23.8 kg |
| Included | 4 rubber feet, 4 screws |
| Operating temperature | -20°C to 70°C |
| Colour | Black (RAL 9005) |
