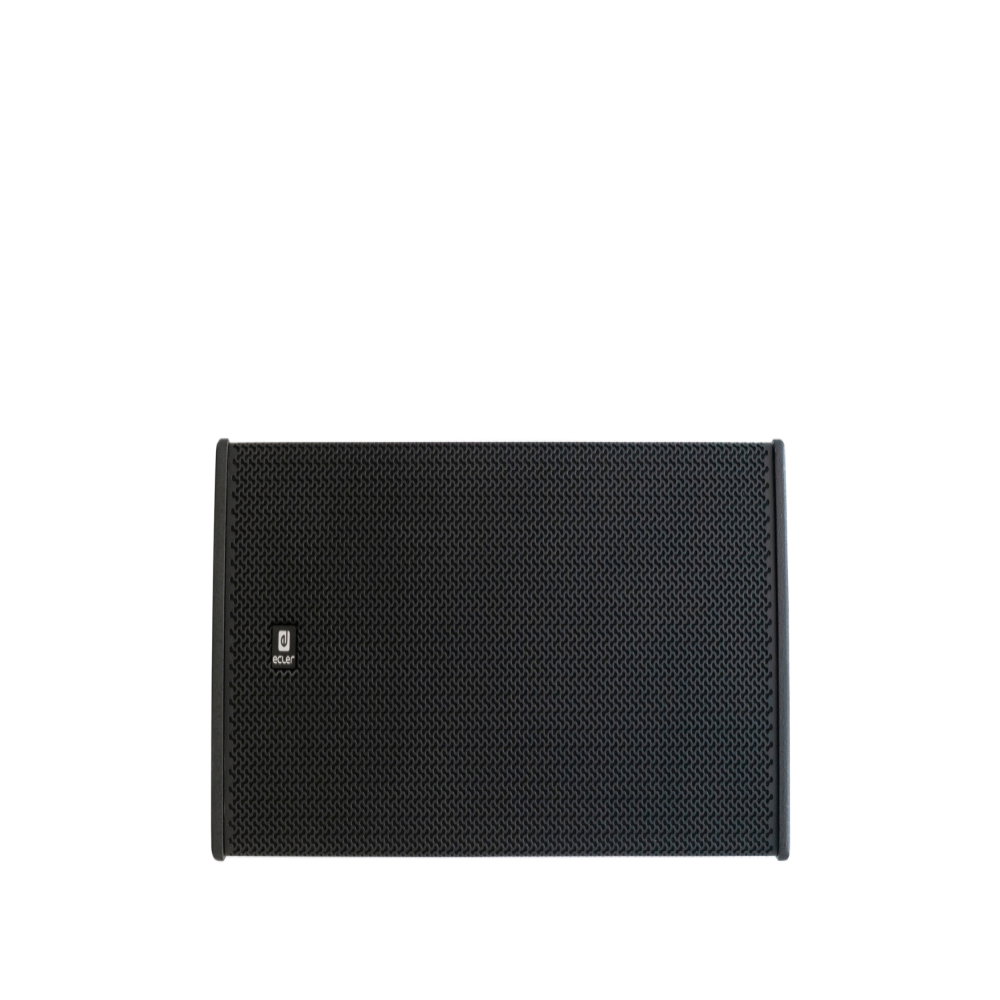

The Ecler ARQIS 208i is a horizontal 2-way passive installation speaker with two 8 inch woofers and a rotatable 1 inch compression driver, rated at 300W RMS at 8 ohms. Its 130° x 30° pattern gives wide horizontal and narrow vertical coverage, which suits mounting above a bar, screen or stage, and it comes with a U-bracket for tilt adjustment. Typical uses are bars, restaurants, meeting rooms, function rooms and retail. Sold as a single unit in black.
2x 8in
2-way
300W
RMS at 8 ohms
130° x 30°
Coverage (H x V)
U-bracket
Included
8 ohm onlyARQIS i series cabinets have no line transformer, so they need a low-impedance amplifier output and cannot go on a 100V line. Ecler recommends a high-pass protection filter on the amplifier or processor.
Features
Two 8 inch woofers with rotatable 1 inch compression driver
300W RMS, 1200W peak at 8 ohms

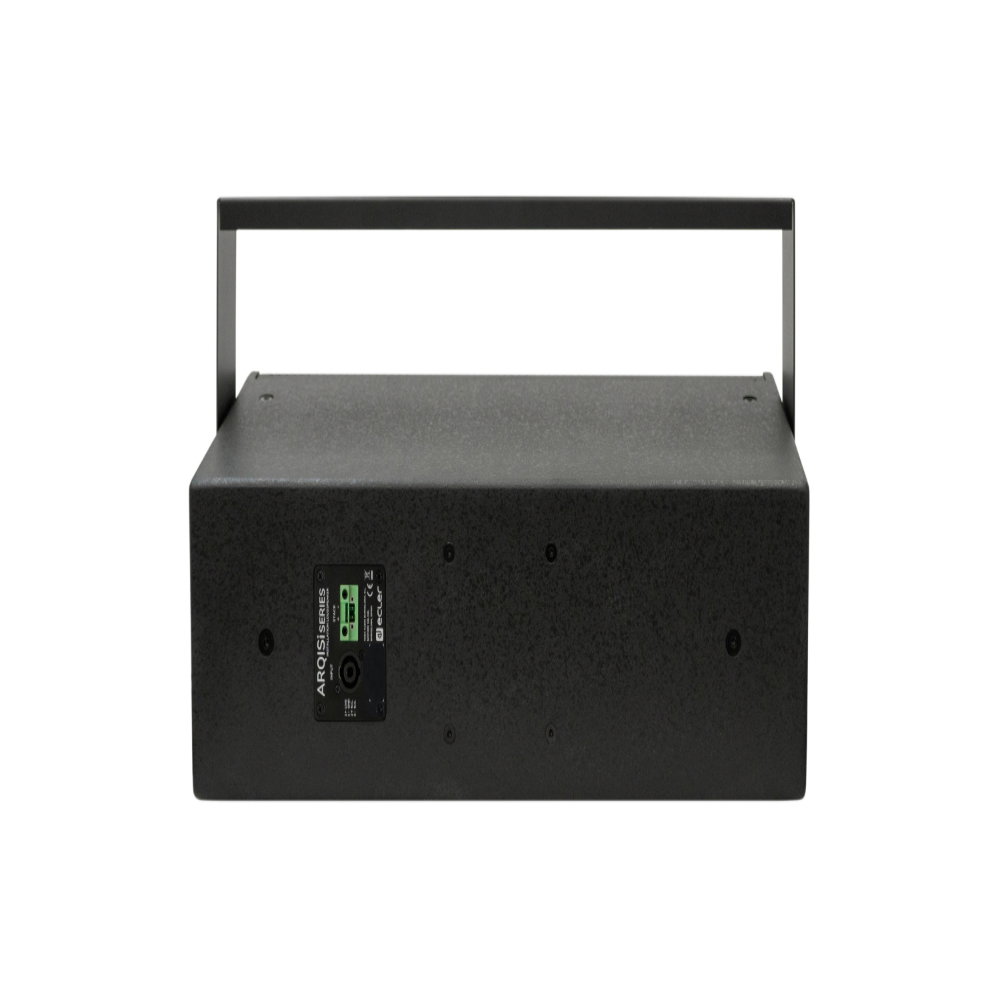

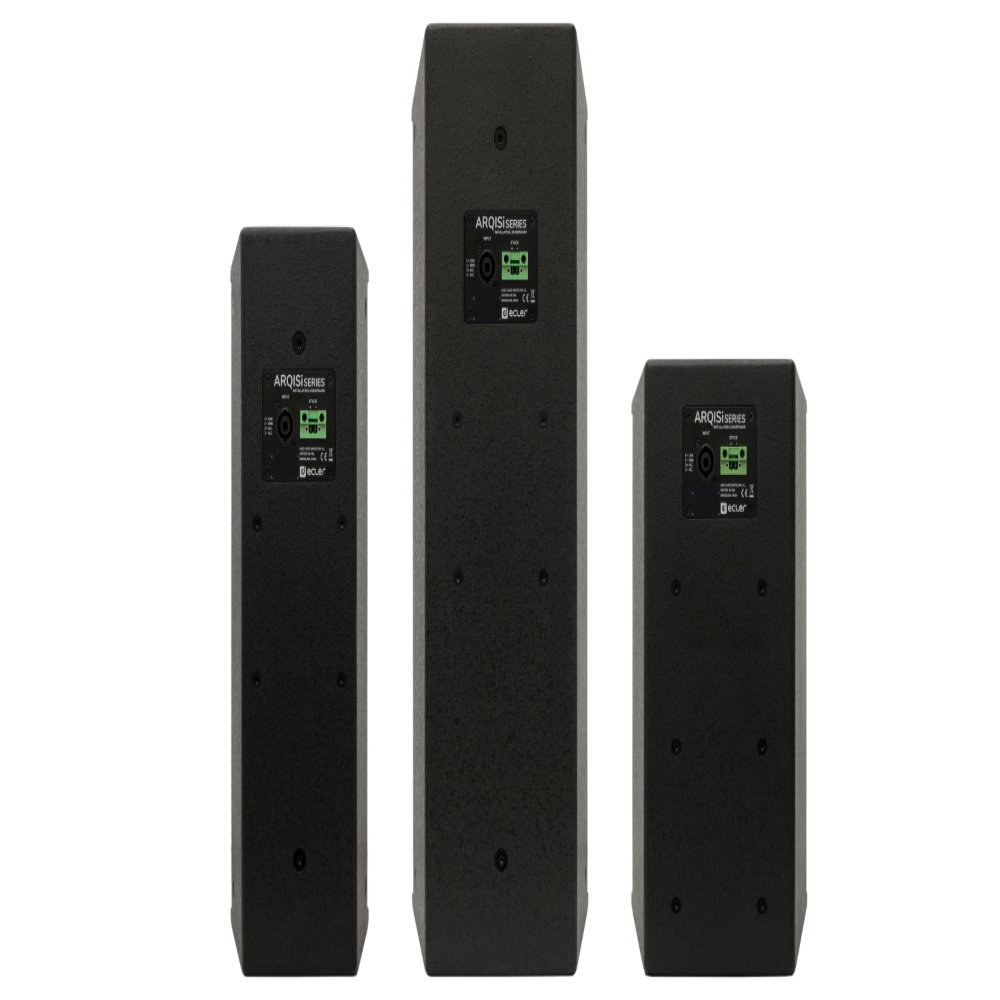

Euroblock and Speakon input/link connectors, Euroblock with locking screws

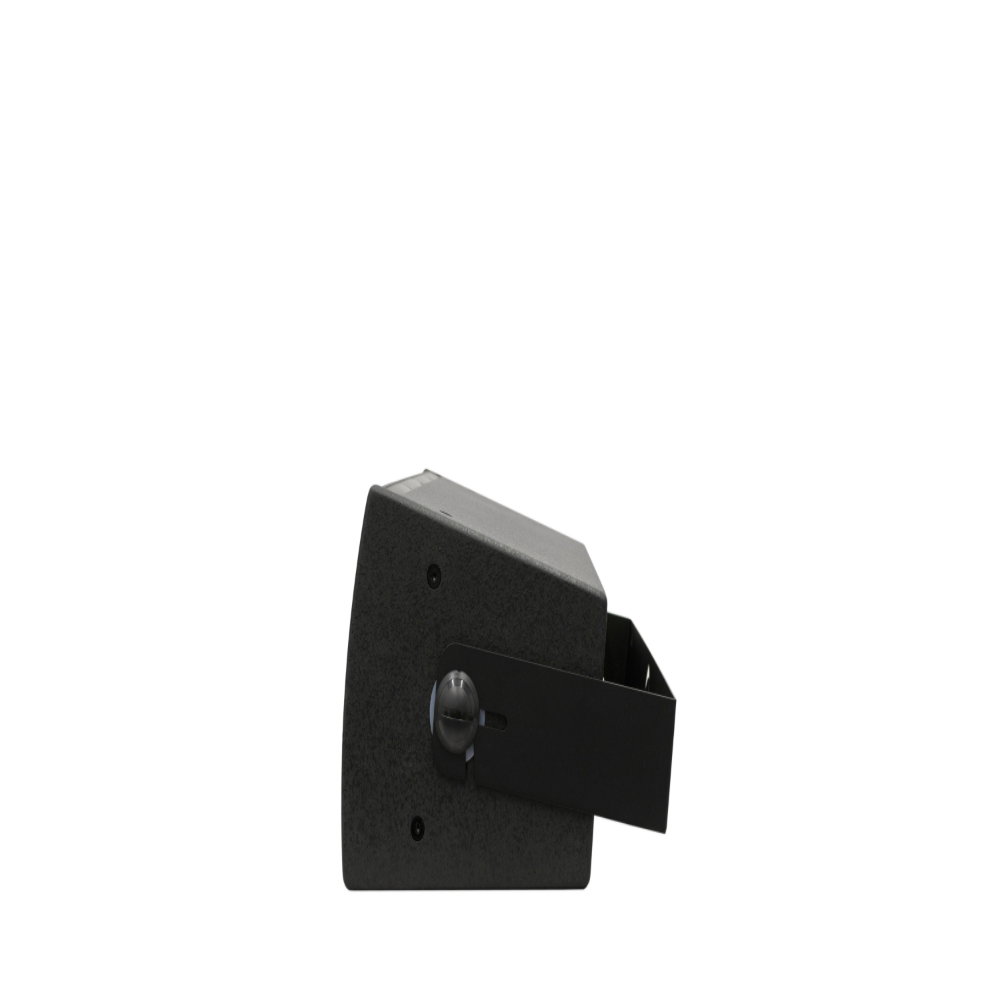

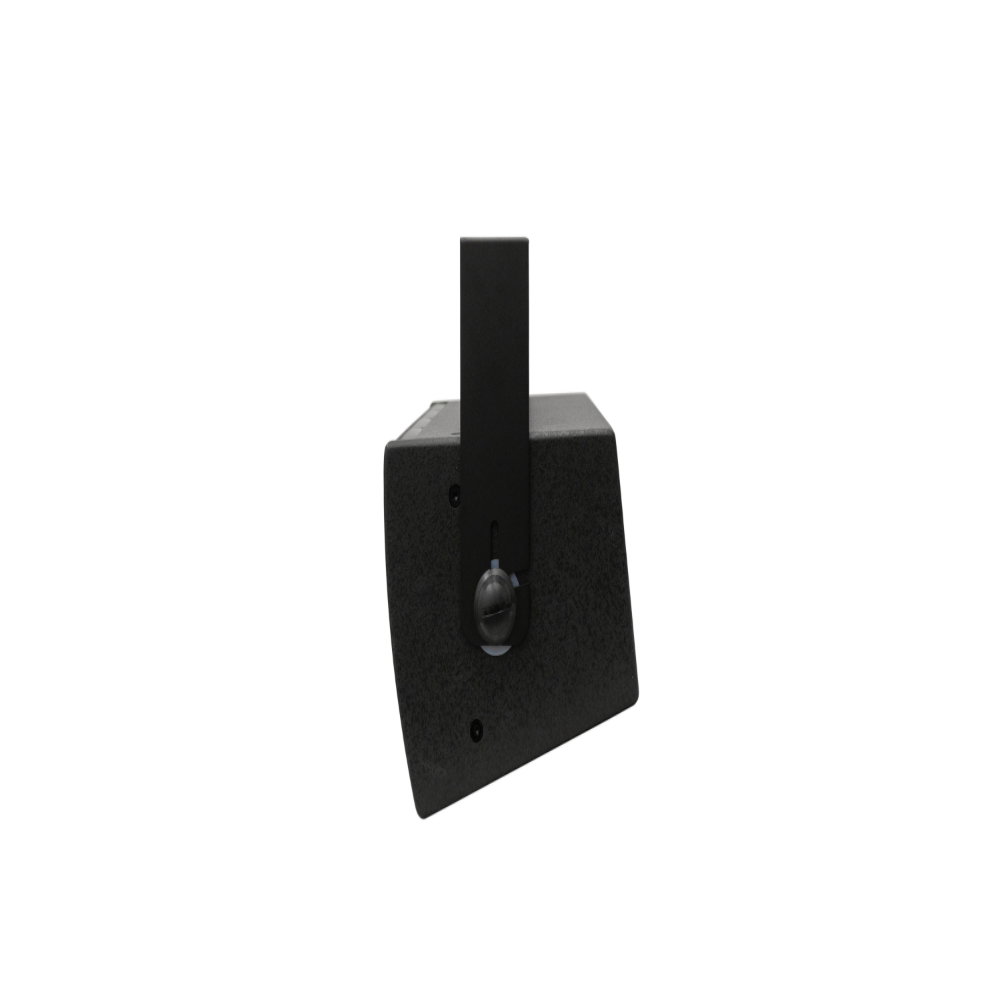

U-bracket included for tilt adjustment
Metal safety sling included
4 x M6 and 12 x M8 rigging points
MDF cabinet with steel grille
Black finish (RAL 9005)
Specifications
| Frequency range | 73 Hz to 20 kHz (-10 dB) |
| Coverage | 130° x 30° (H x V) |
| Power handling | 300W RMS, 1200W peak |
| Nominal impedance | 8 ohms |
| Sensitivity | 94 dB (1W/1m) |
| Maximum SPL | 119 dB continuous, 125 dB peak |
| Recommended amplifier | 600W RMS |
| Crossover | 2.6 kHz |
| Recommended high-pass | 70 Hz, 12 dB/octave minimum |
| Connection | 1 x Euroblock, 1 x Speakon (+1/-1) |
| Rigging points | 4 x M6, 12 x M8 |
| Environmental | IP31 |
| Dimensions (W x H x D) | 610 x 244 x 280 mm |
| Weight | 14.8 kg |
| Included | U-bracket, 5 and 6 mm Allen keys |
| Operating temperature | -20°C to 70°C |
| Colour | Black (RAL 9005) |
