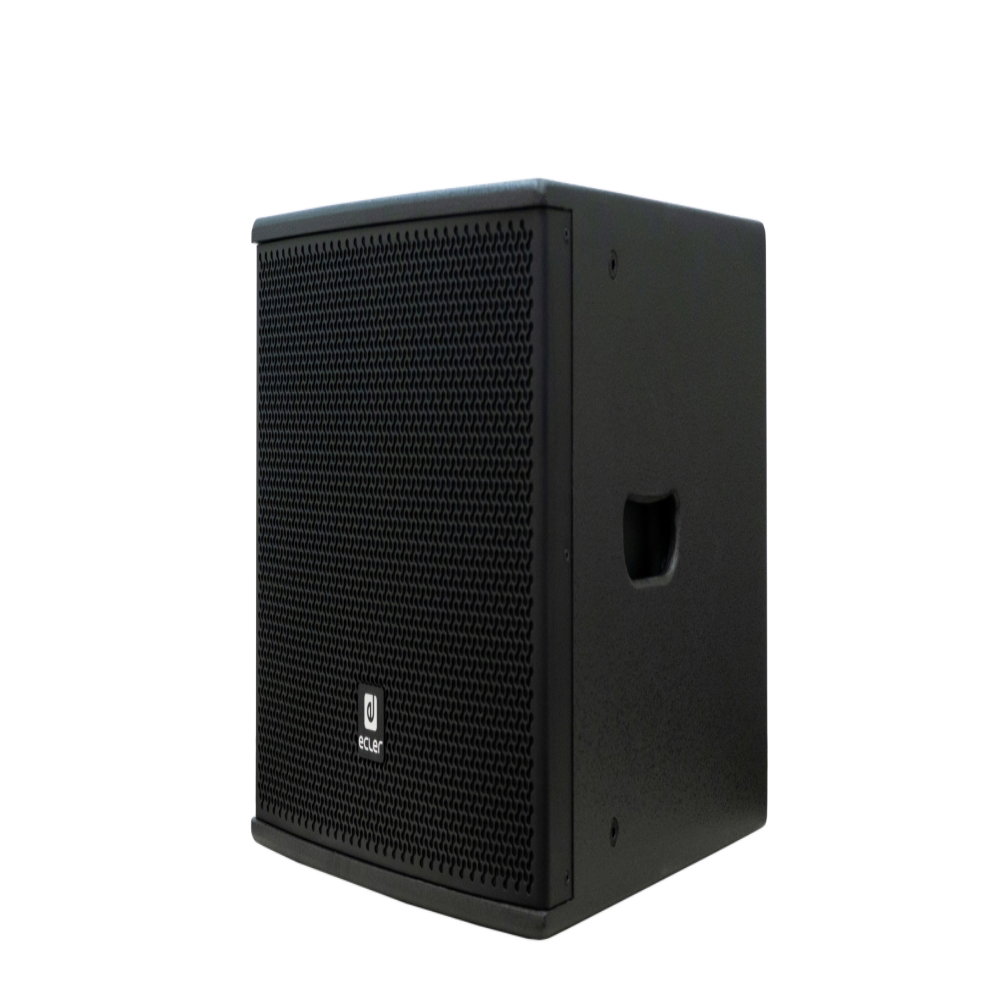

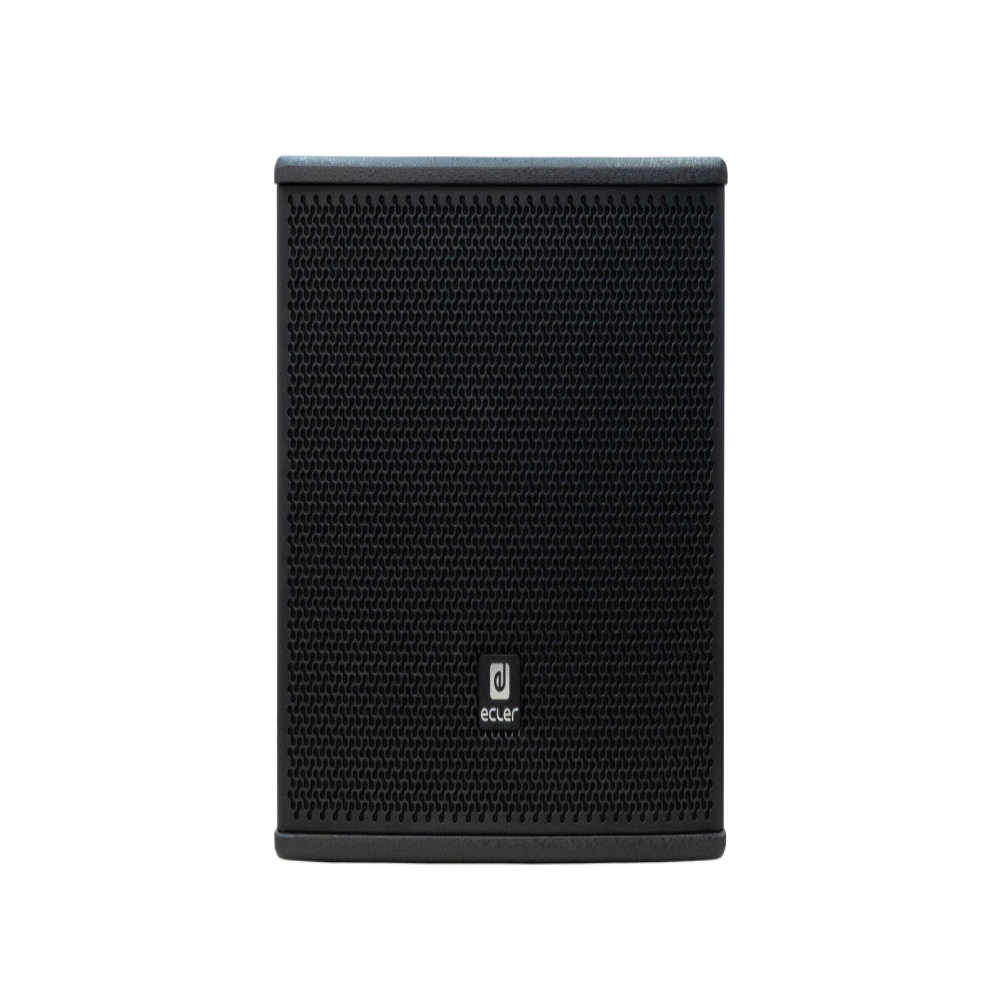

The Ecler ARQIS SB12i is a passive 12 inch installation subwoofer in a plywood cabinet, rated at 300W RMS at 8 ohms. It has twin Speakon connectors for input and link and 12 M8 rigging points. It is the low-frequency partner for ARQIS 110i and 112i speakers in bars, clubs, function rooms, gyms and live music venues. Sold as a single unit in black.
12in
Subwoofer
300W
RMS at 8 ohms
44 Hz
Low frequency
126 dB
Max SPL peak
8 ohm onlyNo line transformer: drive from a low-impedance amplifier output, preferably through a controller that provides the crossover. Ecler recommends a 45 Hz high-pass protection filter.
Features

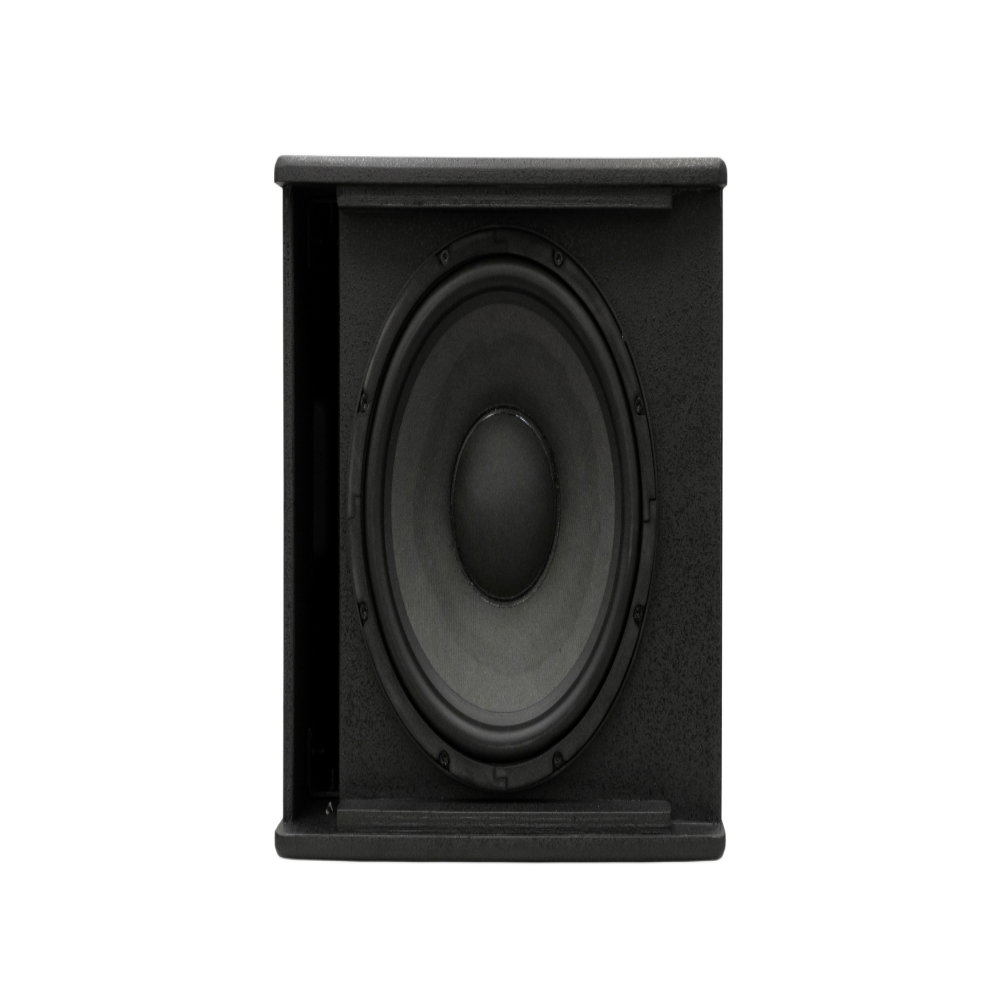

Single 12 inch woofer
300W RMS, 1200W peak at 8 ohms

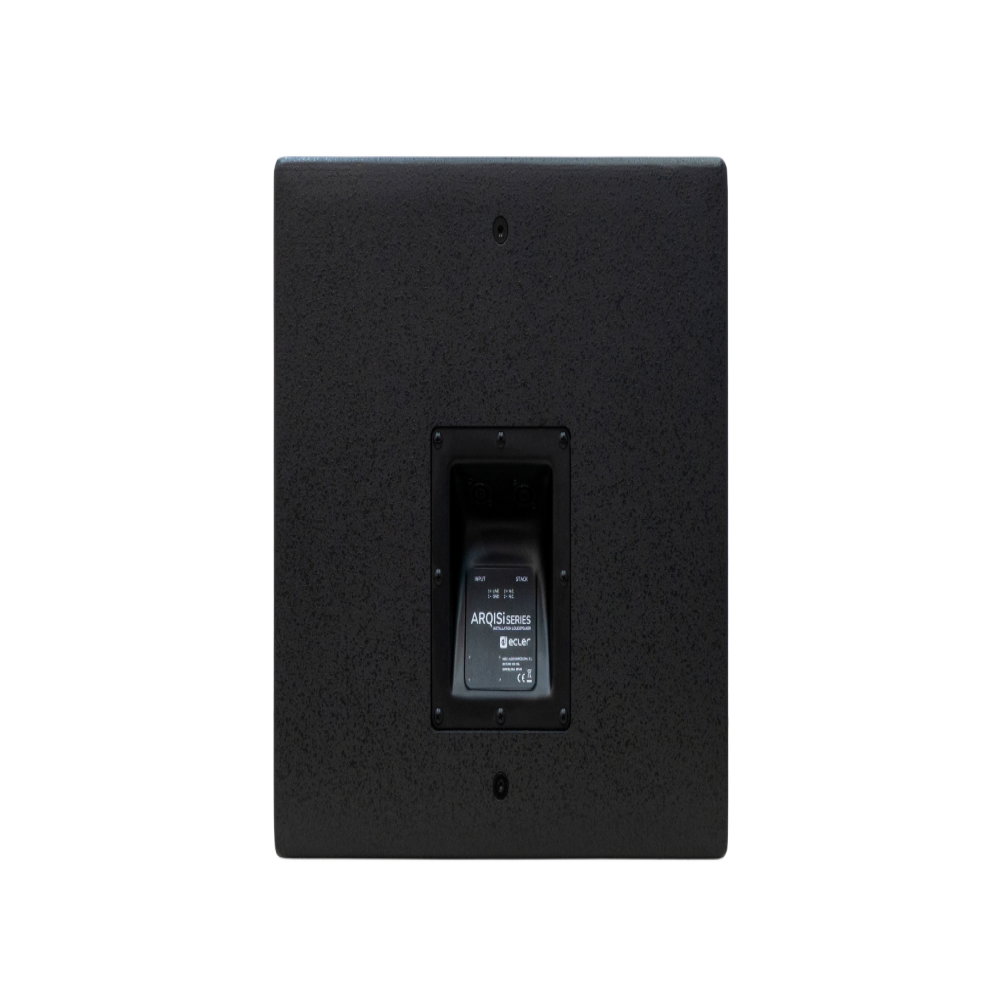

2 x Speakon input/link connectors
12 x M8 rigging points
Plywood cabinet with steel grille; rubber feet included
Black finish (RAL 9005)
Specifications
| Frequency range | 44 Hz to 4 kHz |
| Power handling | 300W RMS, 1200W peak |
| Nominal impedance | 8 ohms |
| Sensitivity | 95 dB (1W/1m) |
| Maximum SPL | 120 dB continuous, 126 dB peak |
| Recommended amplifier | 600W RMS |
| Recommended high-pass | 45 Hz, 12 dB/octave minimum |
| Connection | 2 x Speakon (+1/-1) |
| Rigging points | 12 x M8 |
| Environmental | IP31 |
| Dimensions (W x H x D) | 440 x 375 x 440 mm |
| Weight | 19.4 kg |
| Included | 4 rubber feet, 4 screws |
| Operating temperature | -20°C to 70°C |
| Colour | Black (RAL 9005) |
