Ecler AURA-4B150 Installation Amplifier 4x150W 100V

Product code: 194901

£622.00 inc VAT
£518.33 ex VAT

SKU: ECL0106

2 in stock

2 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Output: 100V line or low impedance.

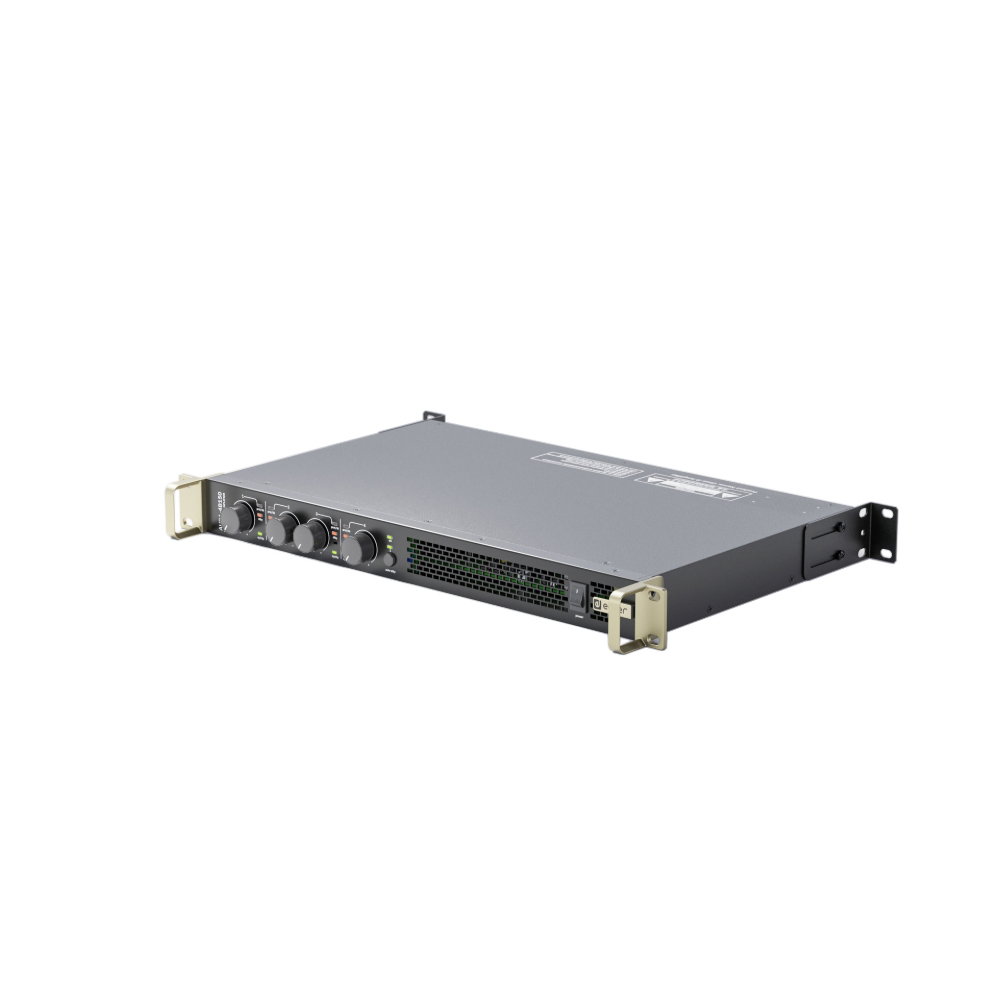

The Ecler AURA-4B150 is a four-channel Class D installation amplifier giving 150W per channel into 8, 4 or 2 ohms or onto 70V and 100V lines. Pairs of channels can also be bridged for 300W. The 1U chassis is shallower than the higher-power AURA models and can be rack or desk mounted, which suits smaller multi-zone systems in bars, restaurants, hotels, retail, gyms and schools and offices.

4x 150W
8, 4 or 2 ohms
150W
Per channel at 100V
300W
Bridged
1U
Rack height

Features

Four channels, 150W per channel into 8, 4 or 2 ohms and on 70V or 100V lines

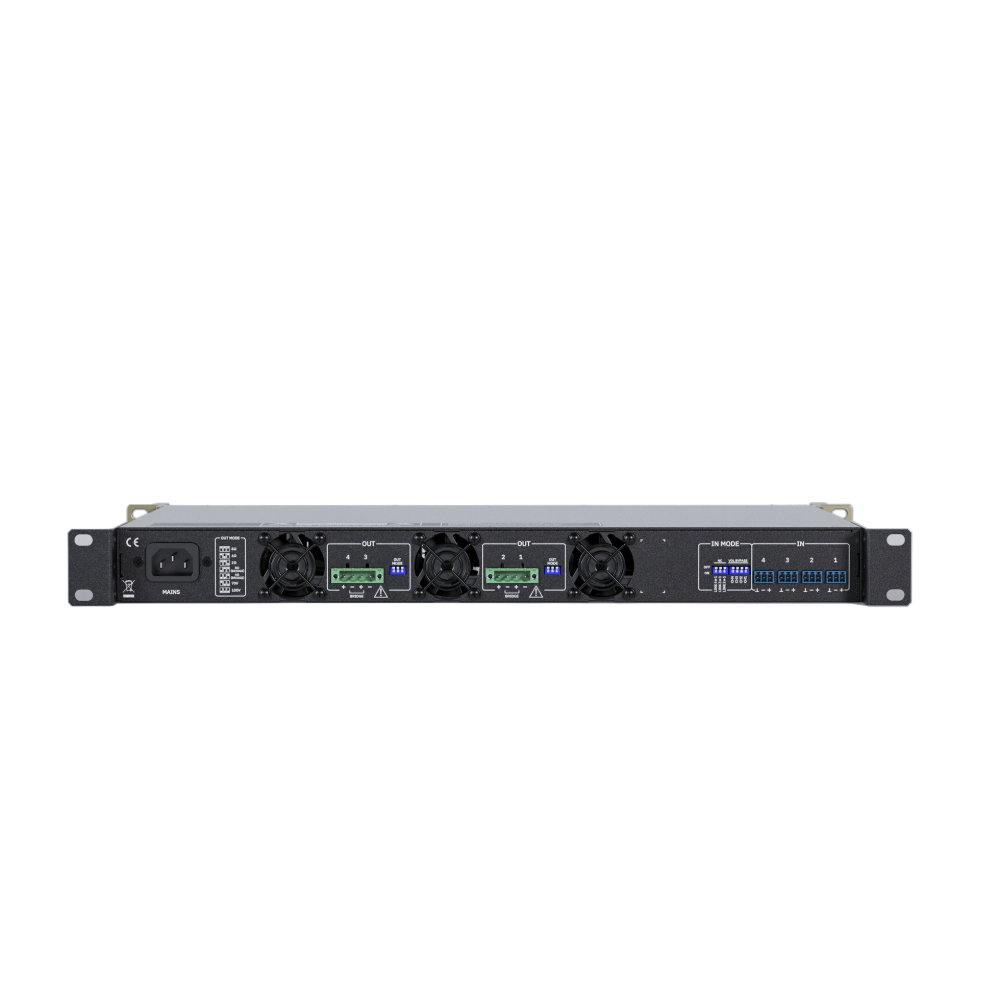

Output mode set per pair of channels by rear DIP switch: low impedance, 70V or 100V line, or bridge
Bridged output of 300W into 4 or 8 ohms
Link switch per input routes input 1 to other channels

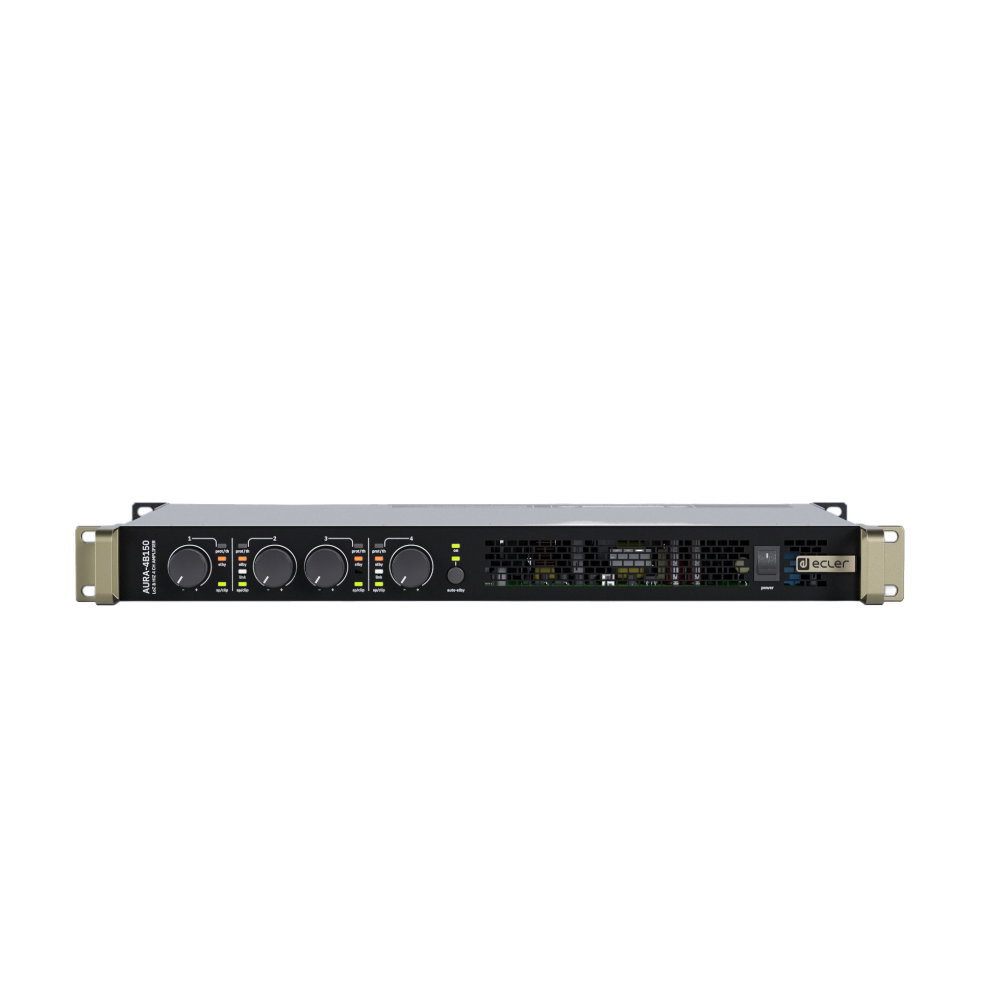

Front panel level knobs, which can be locked or bypassed from rear panel switches
Auto standby when no signal is present, plus front panel standby button
Protection against DC, HF, short circuit and over-temperature, with clip limiter
Universal mains supply with power factor correction
Locking Euroblock connectors for inputs and outputs

Specifications

Ecler AURA-4B150 Installation Amplifier 4x150W 100V specifications
Channels 4 in, 4 out
Output power, all channels driven (1% THD) 150W per channel into 8, 4 or 2 ohms, or at 100V/70V
Bridged output 300W into 4 or 8 ohms
Amplifier technology Class D
Voltage gain 34 dB
Input sensitivity 0 dBV (1 Vrms)
Input impedance 20 kohm, balanced
Maximum input level +18 dBV (+20.2 dBu)
Frequency response 15 Hz to 30 kHz (-3 dB, 1W)
THD+N <0.1% (1 kHz, 0.1W to full power)
Signal-to-noise ratio 90.6 dBA
Crosstalk >70 dB (1 kHz)
Input connectors 3-pin Euroblock, balanced, 3.5 mm pitch
Output connectors 4-pin Euroblock, 5.08 mm pitch
Mains 100 to 240V AC, 50/60 Hz, IEC C14 inlet, PFC >0.77
Efficiency 50%
Cooling 2 fans, 57 dBA maximum
Auto standby Threshold -40 dB, 90 seconds
Included EU power cord with UK, US and CN adapters, Euroblock connectors, rear rack kit, rubber feet
Operating temperature -20 to 40°C
Dimensions (W x H x D) 484 x 44 x 296.6 mm, 1U rack
Weight 5 kg

Full features

  • 4 analogue audio inputs and 4x150WRMS @4Ω powered audio outputs.
  • Low (2, 4 and 8Ω) and high impedance (70/100V) compatibility via rear panel switch.
  • Supports dual or bridge mode (@4/8Ω).
  • Euroblock input and output connectors.
  • Euroblock connectors with anti-pulling locking system.
  • Link to input 1 available.
  • The front panel volume control knobs can be locked using the rear panel switches for added security.
  • High efficiency (Class D).
  • Auto Standby function.
  • Fan cooling.
  • Thermal protection.
  • Overload protection.
  • Anti-clip system.

Channels

  • Number of output channels: 4
  • Output connection type: 4-pin Euroblock.  Pitch: 5,08mm
  • Output configuration: 2Ω, 4Ω, 8Ω, 100V, 70V and 4/8Ω in Bridge Mode
  • Number of input channels: 4
  • Input connection type: 3-pin Euroblock, balanced, pitch 3,5mm
  • Input configuration: Input link to CH1 selector per input

Output Power - All Channels Driven @1Khz @Cf9Db @ 1%Thd

  • Max output power @ 8Ω: 150W
  • Max output power @ 4Ω: 150W
  • Max output power @ 2Ω: 150W
  • Max output power @ 4Ω bridge mode: 300W
  • Max output power @ 8Ω bridge mode: 300W
  • Max output power @ 100V: 150W
  • Max output power @ 70V: 150W

Output Power - Single Channel Driven @1Khz @Cf9Db @ 1%Thd

  • Max output power @ 8Ω: 150W
  • Max output power @ 4Ω: 150W
  • Max output power @ 2Ω: 150W
  • Max output power @ 100V bridge mode: 300W
  • Max output power @ 70V bridge mode: 300W
  • Max output power @ 100V: 150W
  • Max output power @ 70V: 150W

Signal

  • Voltage gain: 34dB
  • Input sensitivity: 0 dBV
    2,21 dBu
    1 Vrms
  • Input impedance: 20kΩ balanced
  • Max input level: +18dBV
    20,21 dBu
  • Frequency response: 15Hz - 30kHz (-3dB, 1W any load)
  • THD + Noise: <0,1%  ( @1kHz, from 0,1W to Full Power)
  • SNR: 90,6 dBA
  • Crosstalk: >70dB (@1kHz)
  • CMRR: > 55 Typ (from 20Hz to 20kHz)

Electrical

  • Power supply: Universal, regulated SMPS with PFC
  • AC mains requirement: 100-240V @ 50-60Hz (±10%)
  • Power factor correction: > 0,77
  • AC mains connector: IEC C14 inlet

Power & Heat @230Vac - 1/4 Power, @ 4Ω (All Channels Driven)

  • Power: 799,2W
    859 VA
  • Current Draw: 3,75 Arms
  • Thermal Loss: 171,3 kcal/h
    679,9 BTU/h

Power & Heat @230Vac - 1/8 Power, @ 4Ω (All Channels Driven)

  • Power: 463,9W
    516 VA
  • Current Draw: 2,24 Arms
  • Thermal Loss: 141,0 kcal/h
    559,4 BTU/h

Power & Heat @230Vac - Idle

  • Power: 60W
    164,4 VA
  • Current Draw: 0,70 Arms
  • Thermal Loss: 51,6 kcal/h
    204,8 BTU/h

Power & Heat @230Vac - Standby/Sleep Mode

  • Power: 2,3W
    81,4 VA
  • Current Draw: 0,35 Arms
  • Thermal Loss: 2,0 kcal/h
    7,8 BTU/h

Power & Heat @120Vac - 1/4 Power, @ 4Ω (All Channels Driven)

  • Power: 828,5W
    844 VA
  • Current Draw: 7,50 Arms
  • Thermal Loss: 196,5 kcal/h
    779,8 BTU/h

Power & Heat @120Vac - 1/8 Power, @ 4Ω (All Channels Driven)

  • Power: 467,7W
    489 VA
  • Current Draw: 4,31 Arms
  • Thermal Loss: 152,01 kcal/h
    603,1 BTU/h

Power & Heat @120Vac - Idle

  • Power: 99,4W
    844 VA
  • Current Draw: 1,02 Arms
  • Thermal Loss: 85,5 kcal/h
    339,3 BTU/h

Power & Heat @120Vac - Standby/Sleep Mode

  • Power: 1,5W
    23,9 VA
  • Current Draw: 0,20 Arms
  • Thermal Loss: 1,3 kcal/h
    5,01 BTU/h

Technologies

  • Amplification technology: Class D
  • Energy saving: Auto standby function selectable
  • Efficiency: 50%
  • Cooling: 2 fans
  • Maximum fan noise: 57 dBA

Protections

  • AC protection: Yes
  • DC protection: Yes
  • HF protection: Yes
  • Short-circuit protection: Yes
  • Clip limiter: Yes
  • Thermal protection: Yes

Local Control

  • Attenuators: Front panel knobs per channel
    VOL (default)/BYPASS option
  • Output mode settings: Back panel Dipswitch by pairs of channels
    BRIDGE/2Ω/4Ω/8Ω/70V/100V
  • RUN/SLEEP mode: Auto standby function
    Front panel button
  • Power ON/OFF: Front panel switch

Settings

  • Attenuators: Front panel knobs per channel
  • Output settings: 2Ω/4Ω/8Ω/70V/100V/Bridge Mode output selection by pair of channels
  • Auto standby function: Front panel button
  • Auto standby threshold: -40dB
  • Auto standby time: 90 seconds
  • Power ON/OFF: Front panel switch

Monitoring

  • Signal Present: SIGNAL LED (Green) per channel
  • Cliping: CLIP LED (Red) per channel
  • Protect: TH/PROT LED (Red) per channel
  • Standby: AUTO STANDBY ON/OFF LED (Green) per unit
  • Standby / Mute: STANDBY (Orange) per channel
  • Limit: TH/PROT LED (Red)
  • Thermal: TH/PROT LED (Red) per channel
  • On: ON LED (Green) per unit
  • Link: LINK (White)

Physical

  • Operating temperature: -20⁰ to 40⁰ C
    -4⁰ to 104⁰ F
  • Operating humidity: 10-90% RH, non-condensing
  • Storage temperature: -40⁰ to 70⁰ C
    -40⁰ to 158⁰ F
  • Storage humidity: 10-95% RH, non-condensing
  • Installation options: Rack 19" installation & desktop
  • Included accessories: EU power cord, UK,US and CN power cord adapters, IEC Power Cord, x4 Euroblock 3-pin connectors (blue for Inputs), x2 Euroblock 4-pin connectors (green for Outputs), Rear Rack Kit, 3M rubber foot (4pcs)
  • Dimensions: 484 x 44 x 296.6mm / 19 x 1.73 x 11.67 in.  (WxHxD)
  • Weight: 5kg / 11,02 lb
  • Shipping dimensions: 590 x 80 x 474mm / 23.23 x 3.15 x 18.66 in.  (WxHxD)
  • Shipping weight: 7.6kg / 16.76 lb
