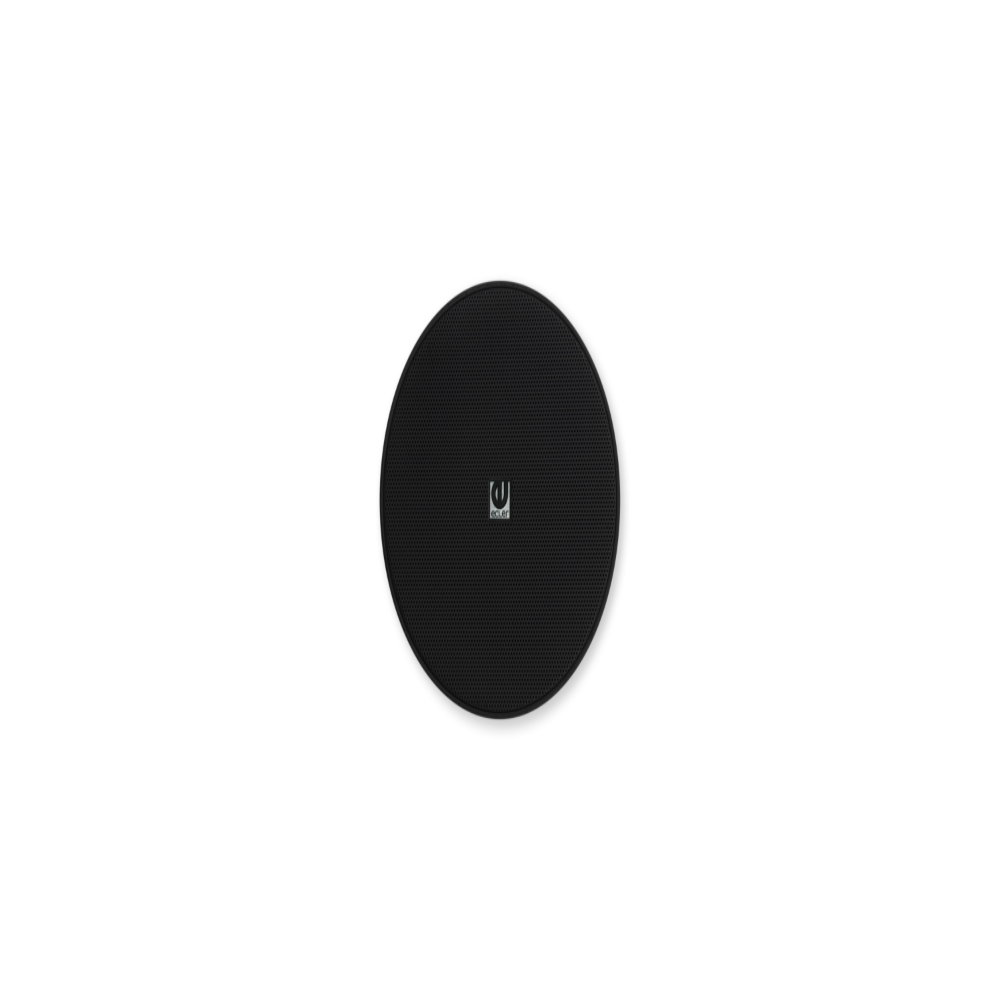

Ecler IC3 3" Ceiling Speaker 100V Black (Pair)

Product code: 195018

£84.00 inc VAT
£70.00 ex VAT

SKU: ECL0039

2 in stock

2 available online
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 6 / 3 / 1.5W) or low impedance (8Ω).

The Ecler IC3 is a small 3 inch full-range ceiling speaker shaped like a downlight, and this listing is for a pair in black. It has a built-in 100V transformer with taps up to 6W and fits an 85 mm cut-out with tool-free spring clips. It is used for low-level background music and announcements in shops, hotel corridors, toilets, receptions and offices where a small grille is wanted.

3in
Full range
85 mm
Cut-out
6W
Max 100V tap
147°
Coverage

Features

Supplied as a pair
3 inch polypropylene full-range driver
100V taps at 6W, 3W and 1.5W; 70V taps at 3W, 1.5W and 0.75W
8 ohm setting, 10W RMS
Rust-proof aluminium grille
Spring clips for tool-free fitting
Black finish (RAL 9004)

Specifications

Ecler IC3 3″ Ceiling Speaker 100V Black (Pair) specifications
Frequency range 110 Hz to 20 kHz (-10 dB)
Coverage 147° x 147° (H x V)
Power handling 10W RMS, 40W peak (8 ohms)
Sensitivity 86 dB (1W/1m)
Maximum SPL 96 dB continuous, 102 dB peak
100V taps 6W, 3W, 1.5W, 8 ohms
70V taps 3W, 1.5W, 0.75W, 8 ohms
Driver 3 in full range
Connection Terminal block
Outer diameter 100 mm
Cut-out diameter 85 mm
Depth required 95 mm
Ceiling thickness Up to 50 mm
Weight 0.5 kg
Operating temperature -20°C to 70°C
Colour Black (RAL 9004)
Quantity 2 speakers

Full features

  • 1 way speaker for false ceilings
  • 3” polypropylene woofer
  • Power: 10W RMS @ 8 ohm
  • Sensitivity (1W/1m): 86dB SPL
  • Built-in transformer
  • External diameter: 105mm
  • Cut out diameter: 90mm

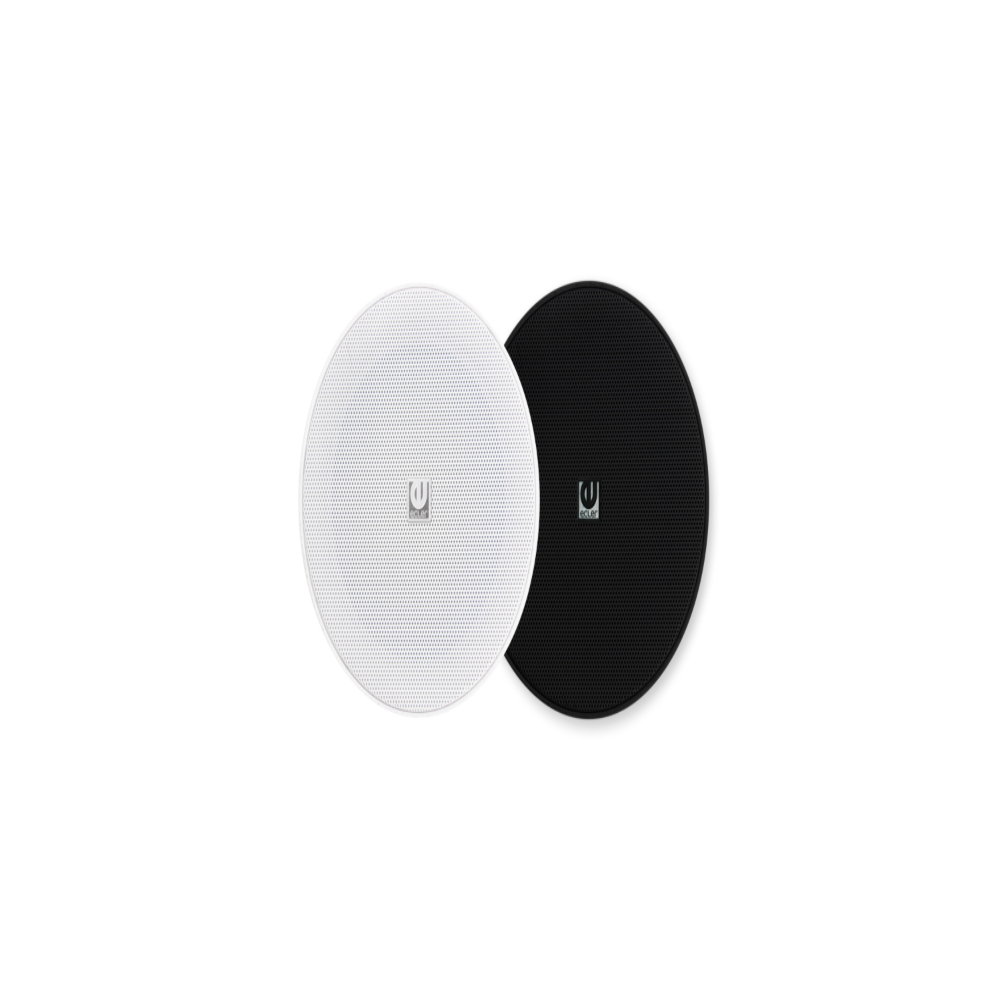

  • Available in black (RAL9004) or white (RAL9003) finish
  • Installation system: spring clips (installation without tools)

System

  • Effective Freq. Range: 110Hz-20kHz (-10dB)
  • Coverage angle / Dispersion: 147°x147° (HxV)
  • Power handling: 10W RMS / 40W Peak
  • Sensitivity: 86dB (1W/1m)
  • Maximum SPL: 96dB continuous / 102dB peak
  • Power options (Hi Z Multi-tap): 100V: 6W / 3W / 1,5W / 8Ω
    70V: 3W / 1,5W / 0,75W / 8Ω
  • Recommended amplifier power: 20W RMS

Transducers

  • Ways: 1-way
  • Driver: 3" woofer
  • Nominal impedance: 8Ω

Physical

  • Connection type: Terminal block
  • Power type selector: Built-in selector
  • Installation options: Ceiling, wall
  • Enclosure material: ABS
  • Grille material: Aluminium rust proof
  • Mounting system: Spring clips (installation without tools)
  • Operating temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Storage humidity: <90% HR
  • External diameter: 100mm / 3.94"
  • Internal diameter: 85mm / 3.35"
  • Recommended cut out diameter: 85mm / 3.35"
  • Required depth: 95mm / 3.74"
  • Ceiling thickness: No limit min
    50mm / 1.96” max
  • Finished colour: White (RAL 9003) or black (RAL 9004)
  • Weight: 0.5kg / 1.10 lb
  • Pieces per box: 2 units
  • Shipping dimensions: 120 x 130 x 230mm / 4.7 x 5.1 x 9.0 in. (WxHxD)
  • Shipping weight: 0.6kg. / 4.18 lb
