The Ecler IC8i is a 2-way in-ceiling speaker with an 8 inch polypropylene woofer and 1 inch dome tweeter, and this listing is for a pair in black. It has a built-in transformer with 100V taps up to 30W and an 8 ohm setting rated at 60W RMS, with extended low end compared with 6 inch models. It suits restaurants, bars, hotel function rooms, retail, gyms and open-plan offices with higher ceilings.
8in + 1in
2-way
152°
Conical coverage
30W
Max 100V tap
222 mm
Cut-out
Features
Supplied as a pair

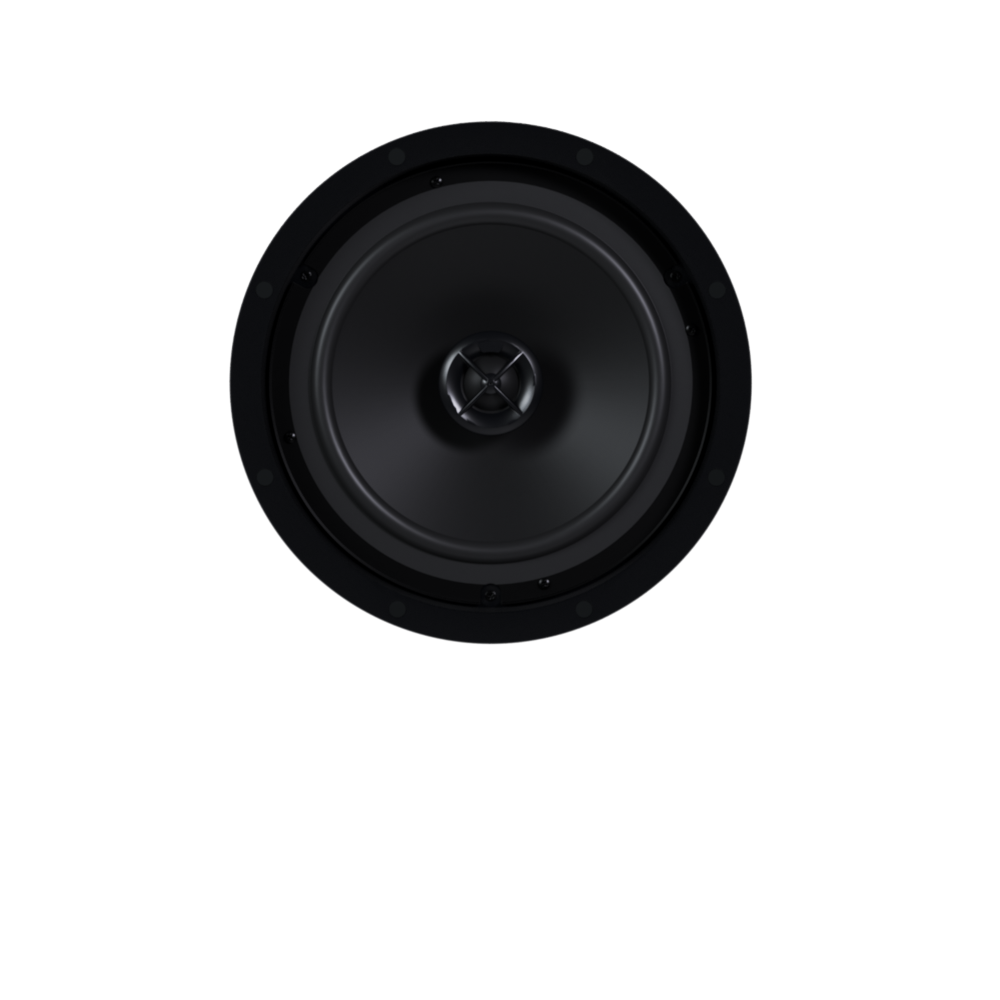

2-way design: 8 inch polypropylene woofer (heat and humidity resistant) with 1 inch dome tweeter
100V taps at 30W, 15W, 7.5W and 5W; 70V taps at 15W, 7.5W, 3.75W and 2.5W
8 ohm low-impedance setting, 60W RMS

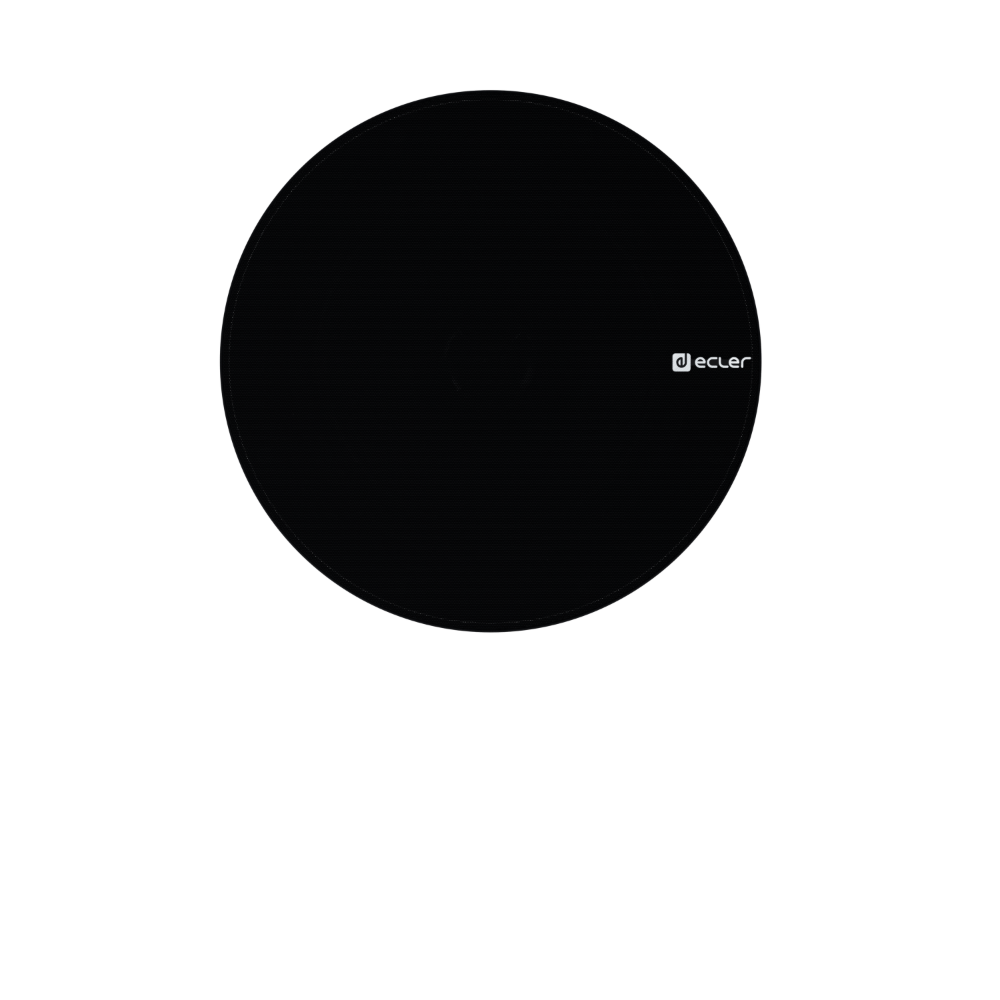

Frameless magnetic grille, removable for painting; Ecler logo can be removed

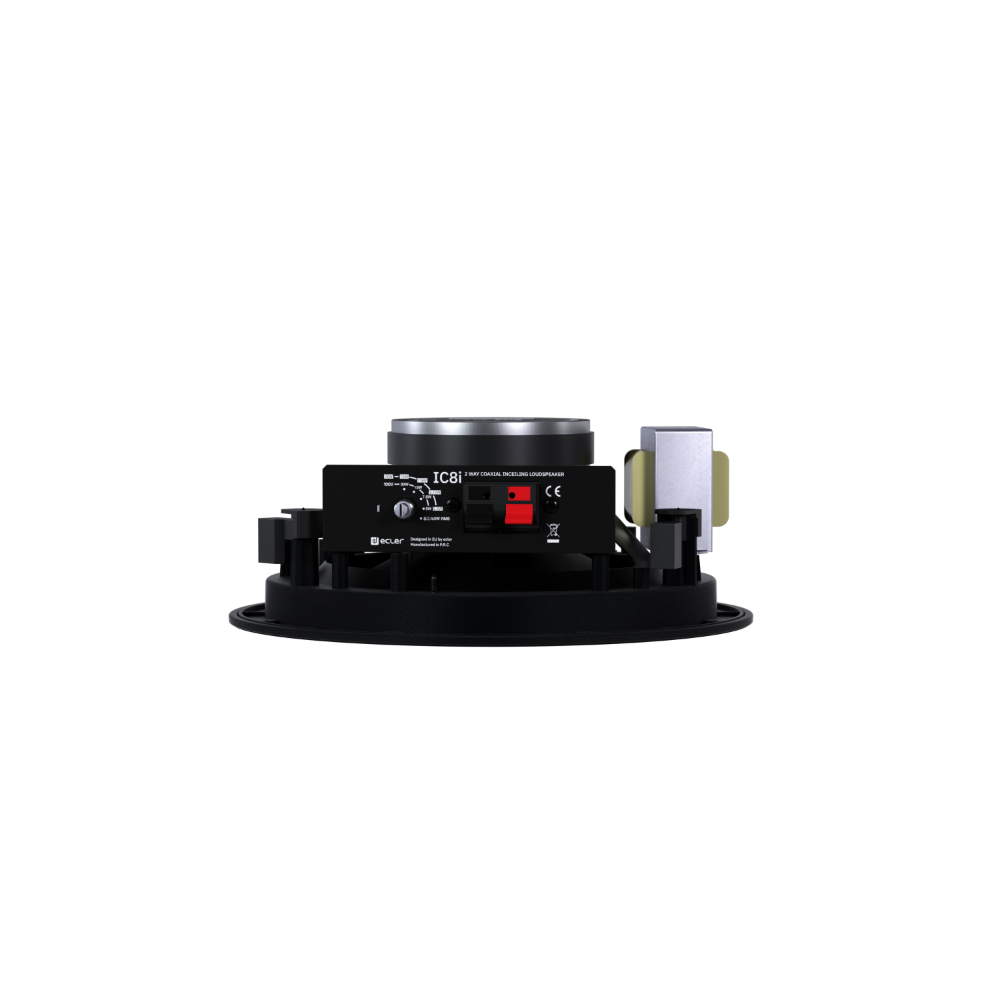

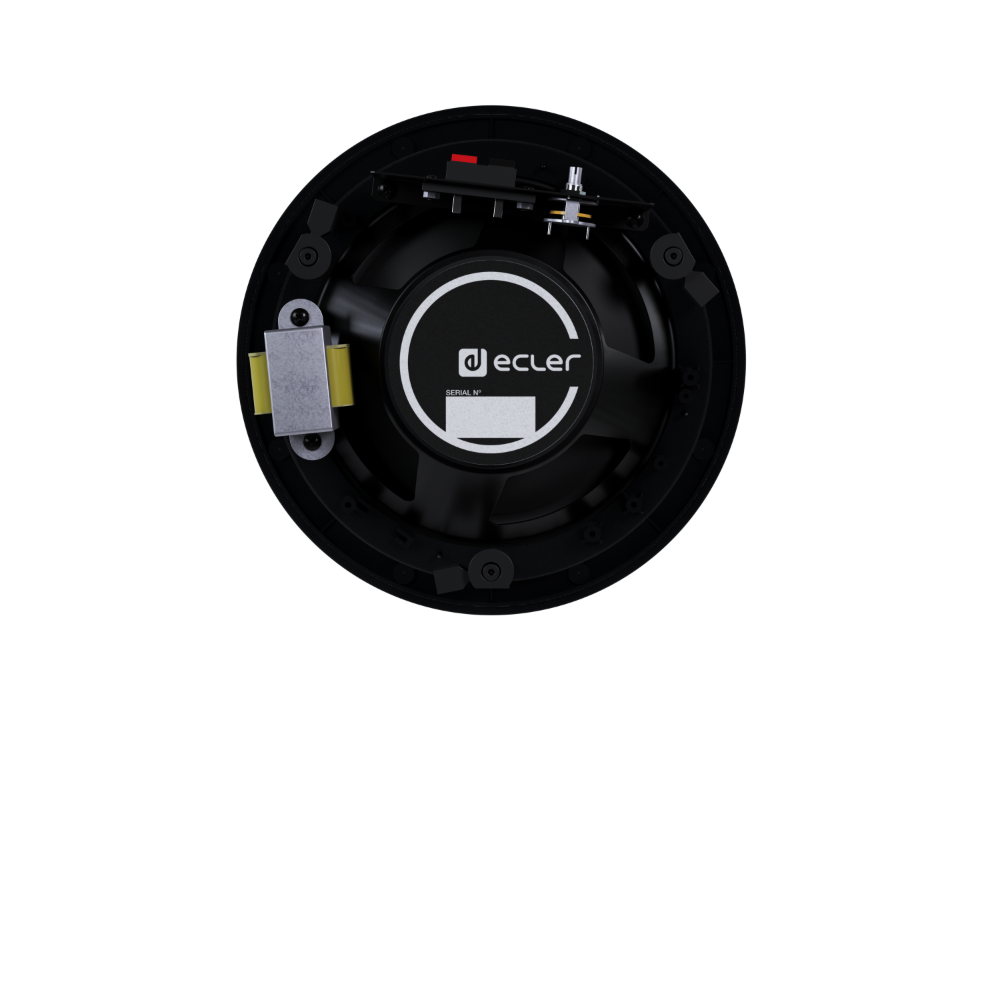

Clip-type terminals with high/low impedance tap selector
Three rotating clamp tabs; cutting template included
Optional IC-TB8 tile bridge for suspended ceilings
Black finish (RAL 9005)
Specifications
| Frequency range | 65 Hz to 20 kHz (-10 dB) |
| Coverage | 152° conical |
| Power handling | 60W RMS, 240W peak (8 ohms) |
| Sensitivity | 94 dB (1W/1m) |
| Maximum SPL | 112 dB continuous, 118 dB peak |
| 100V taps | 30W, 15W, 7.5W, 5W |
| 70V taps | 15W, 7.5W, 3.75W, 2.5W |
| Recommended amplifier | 120W RMS (8 ohm use) |
| Drivers | 8 in woofer, 1 in dome tweeter |
| Connection | Clip-type terminals |
| Outer diameter | 254 mm |
| Cut-out diameter | 222 mm |
| Depth required | >94 mm |
| Weight | 2.35 kg |
| Operating temperature | -20°C to 70°C |
| Colour | Black (RAL 9005) |
| Quantity | 2 speakers |
