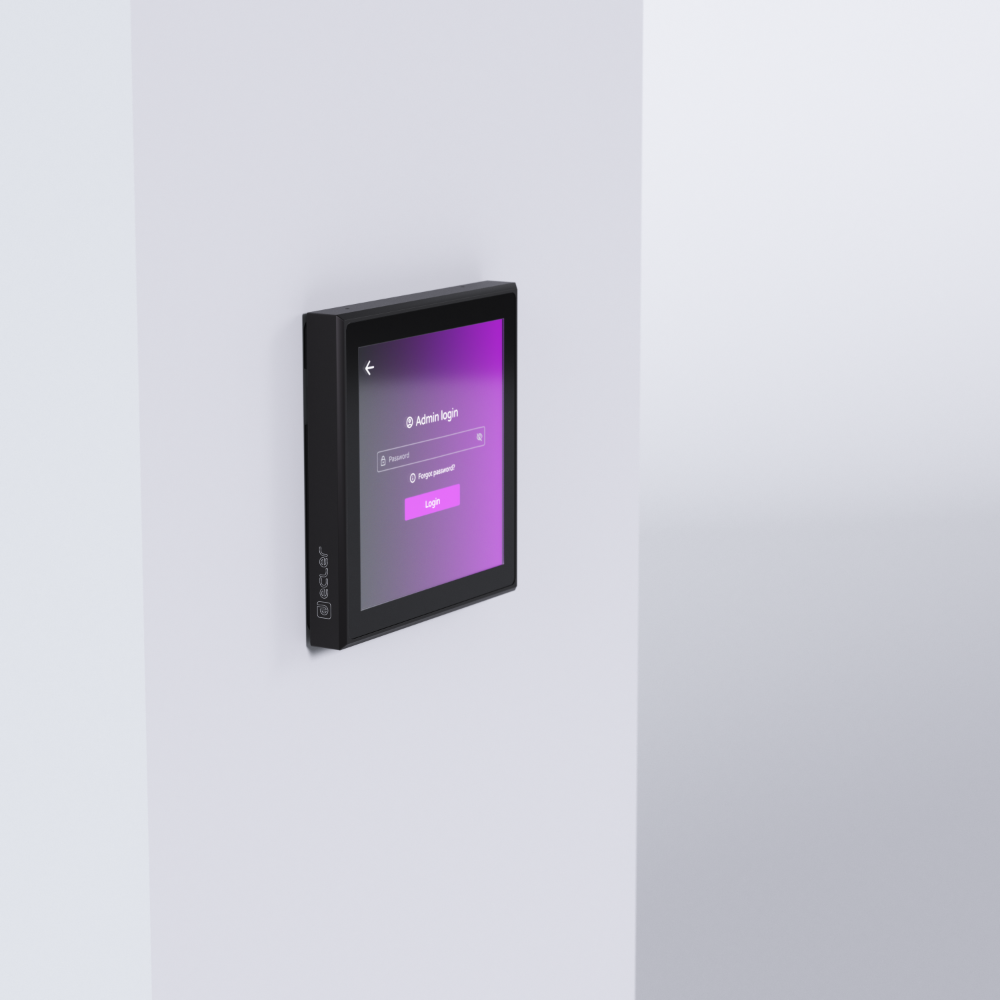

The Ecler PULSO-4 is a 4 inch square touchscreen wall panel for controlling Ecler audio systems, including VIDA amplifiers and HUB zone mixers. It fits a standard EU flush box, runs on PoE and shows custom user panels for volume, source and preset control. It is used for end-user control in bars, restaurants, hotel rooms, meeting rooms and retail.
4″
IPS touchscreen
480 x 480
Pixels
PoE
Powered
6W
Max consumption
Compatibility and powerEcler lists PULSO as compatible with VIDA, HALO, HUB (via the Ecler Pilot app), EclerNet Manager UCP panels and EclerPLEX. Power by PoE (802.3af) or a 12V DC 2A supply, which is not included.
Features

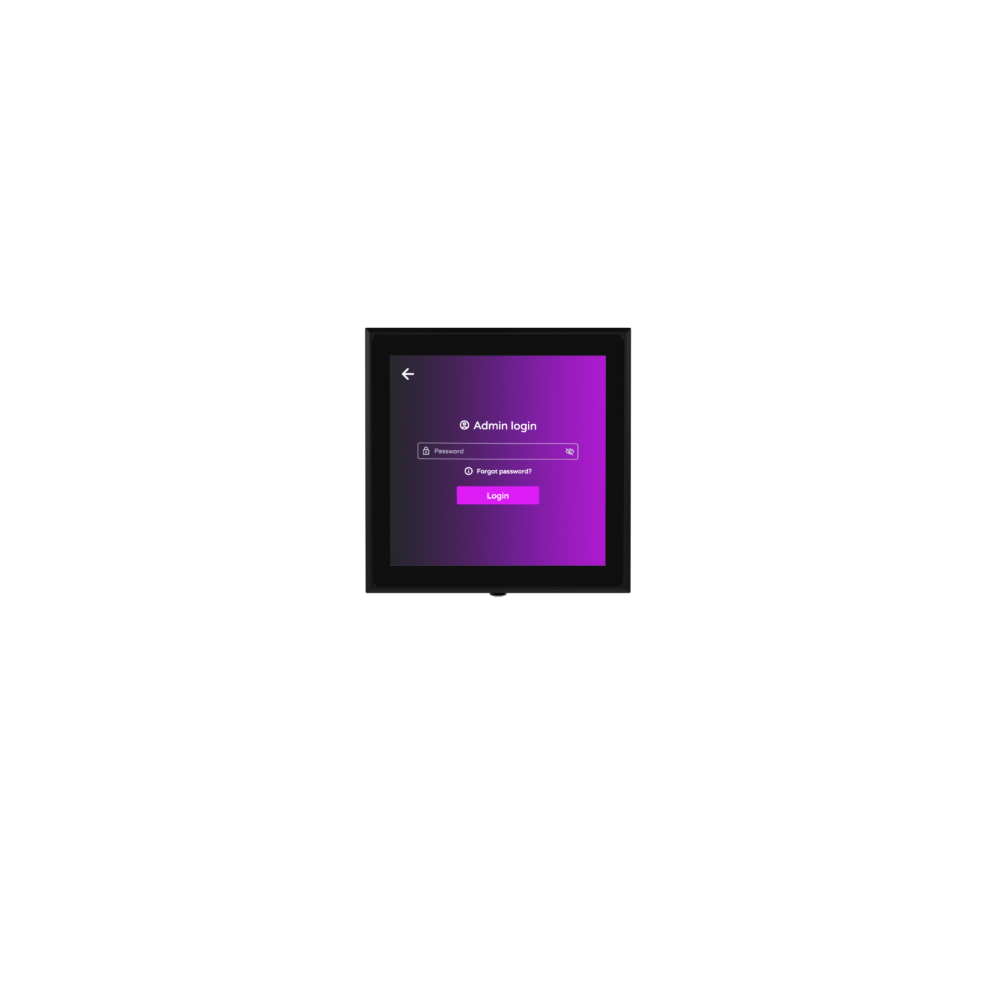

4″ IPS touchscreen, 480 x 480 pixels, 5-point capacitive
User panels customised to the installation
Web interface for setup and maintenance
PoE powered (802.3af class 0), or 12V DC external supply

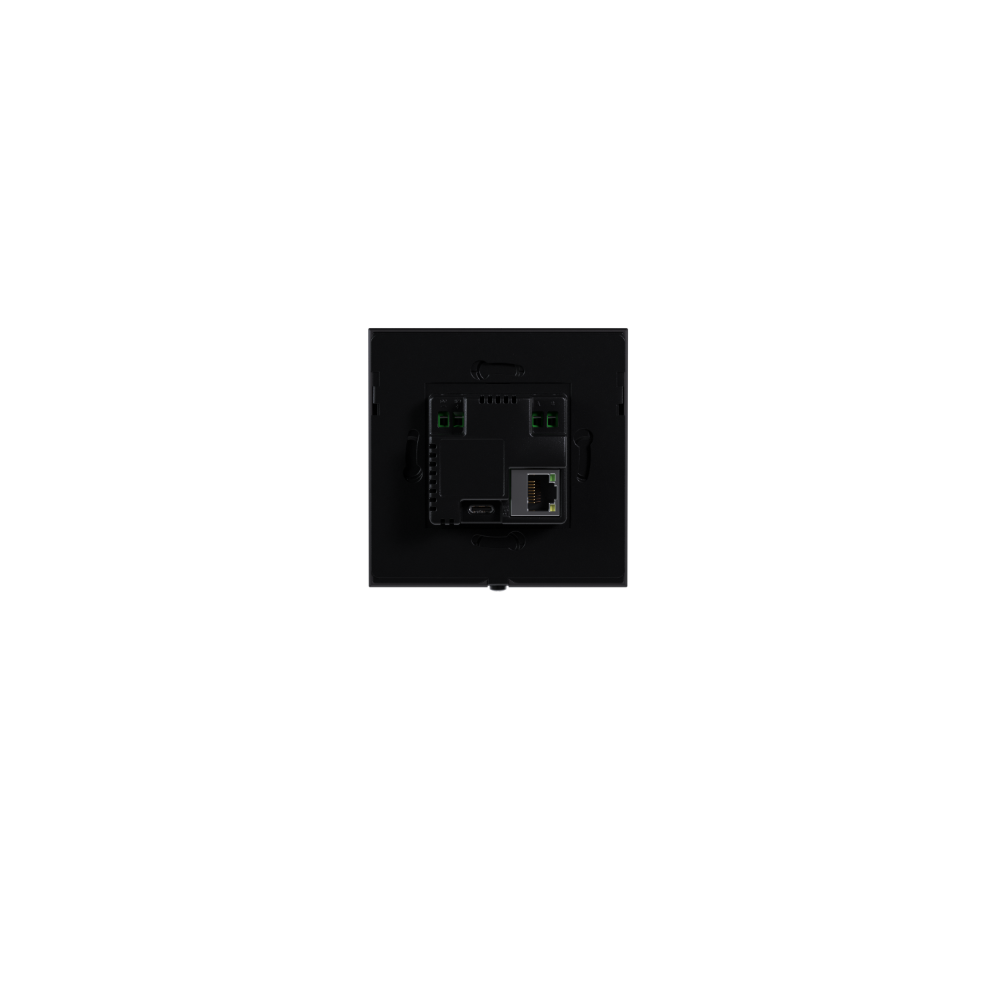

RS-232 on Euroblock and Ethernet RJ-45

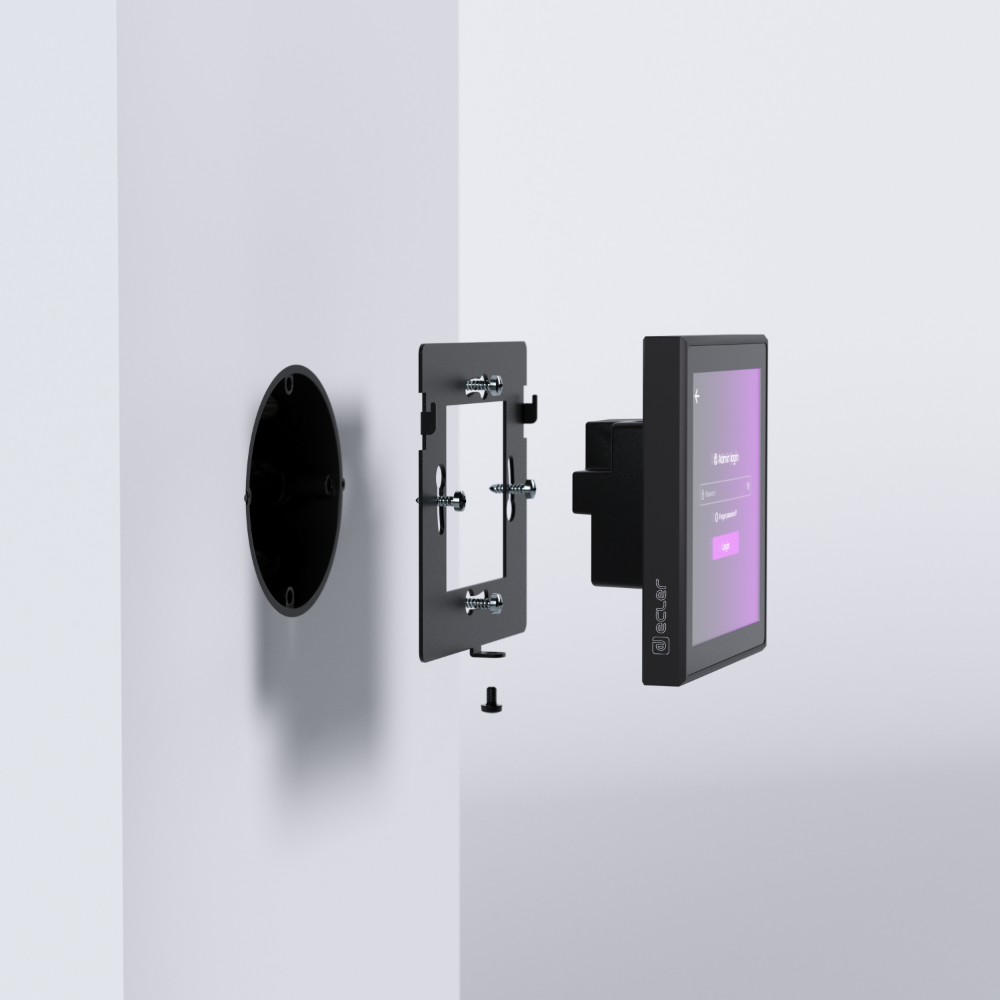

Fits a standard EU round flush box
Specifications
| Display | 4″ IPS, 480 x 480, LED backlight, 350 cd/m² |
| Touch | 5-point capacitive |
| Processor | Quad-core ARM, up to 1.8 GHz |
| Connectivity | RJ-45 Ethernet (Cat-5e), RS-232 Euroblock |
| Power | PoE 802.3af class 0, or 12V DC 2A (not included); 6W max |
| Mounting | In-wall, EU round flush box |
| Operating temperature | -10 to 60°C |
| Dimensions (W x H x D) | 89.34 x 89.34 x 37 mm |
| Weight | 0.15 kg |
| Included | Security screw |
