Ecler IC8i 8" Ceiling Speaker 100V White (Pair)

Product code: 194437

£160.00 inc VAT
£133.33 ex VAT

SKU: ECL0036

6 in stock

6 available online
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 30 / 15 / 7.5 / 5W) or low impedance (8Ω).

The Ecler IC8i is a 2-way in-ceiling speaker with an 8 inch polypropylene woofer and 1 inch dome tweeter, and this listing is for a pair in white. It has a built-in transformer with 100V taps up to 30W and an 8 ohm setting rated at 60W RMS, with extended low end compared with 6 inch models. It suits restaurants, bars, hotel function rooms, retail, gyms and open-plan offices with higher ceilings.

8in + 1in
2-way
152°
Conical coverage
30W
Max 100V tap
222 mm
Cut-out

Features

Supplied as a pair

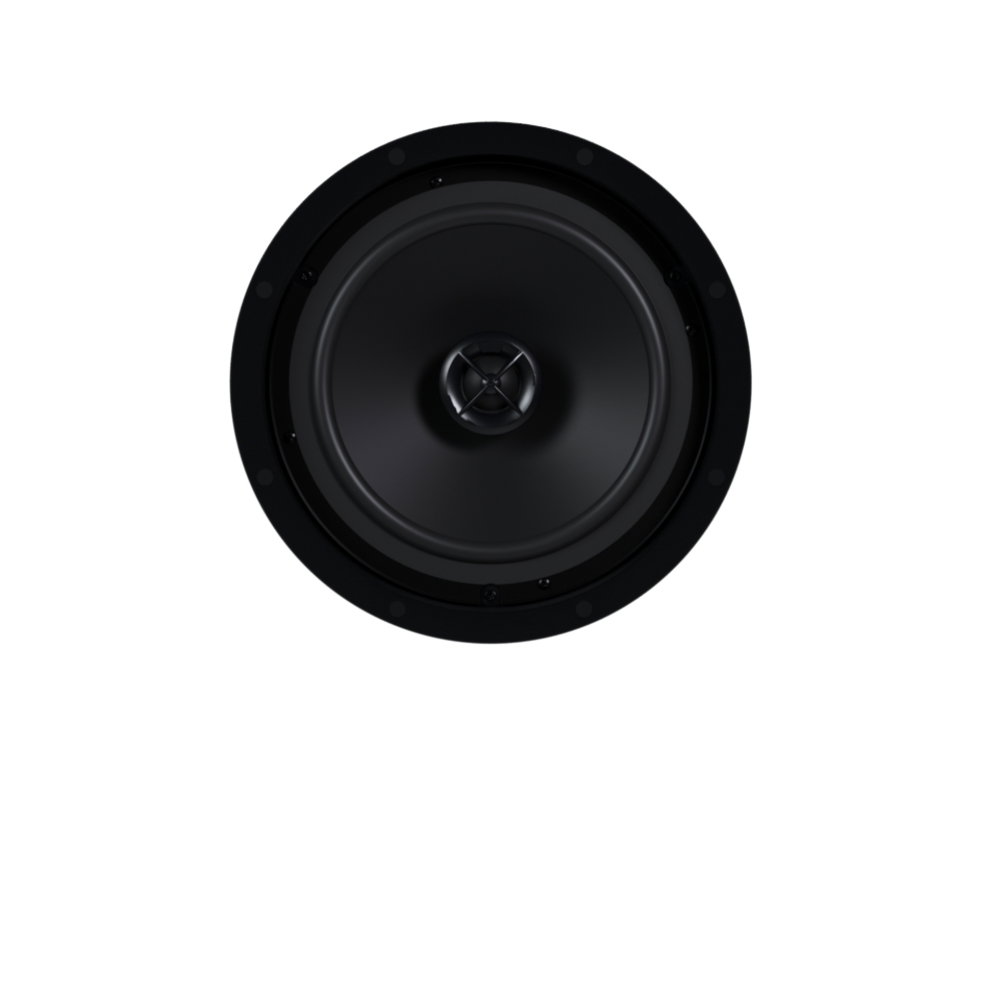

2-way design: 8 inch polypropylene woofer (heat and humidity resistant) with 1 inch dome tweeter
100V taps at 30W, 15W, 7.5W and 5W; 70V taps at 15W, 7.5W, 3.75W and 2.5W
8 ohm low-impedance setting, 60W RMS

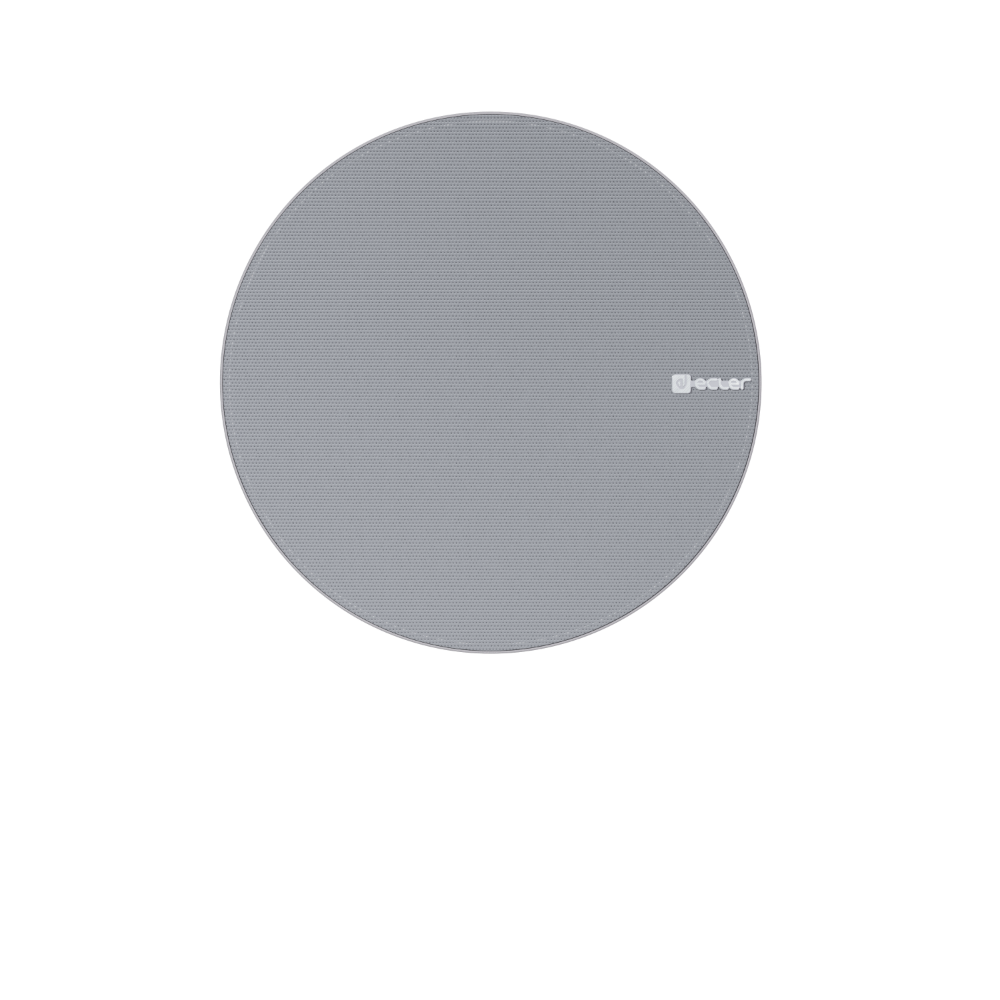

Frameless magnetic grille, removable for painting; Ecler logo can be removed

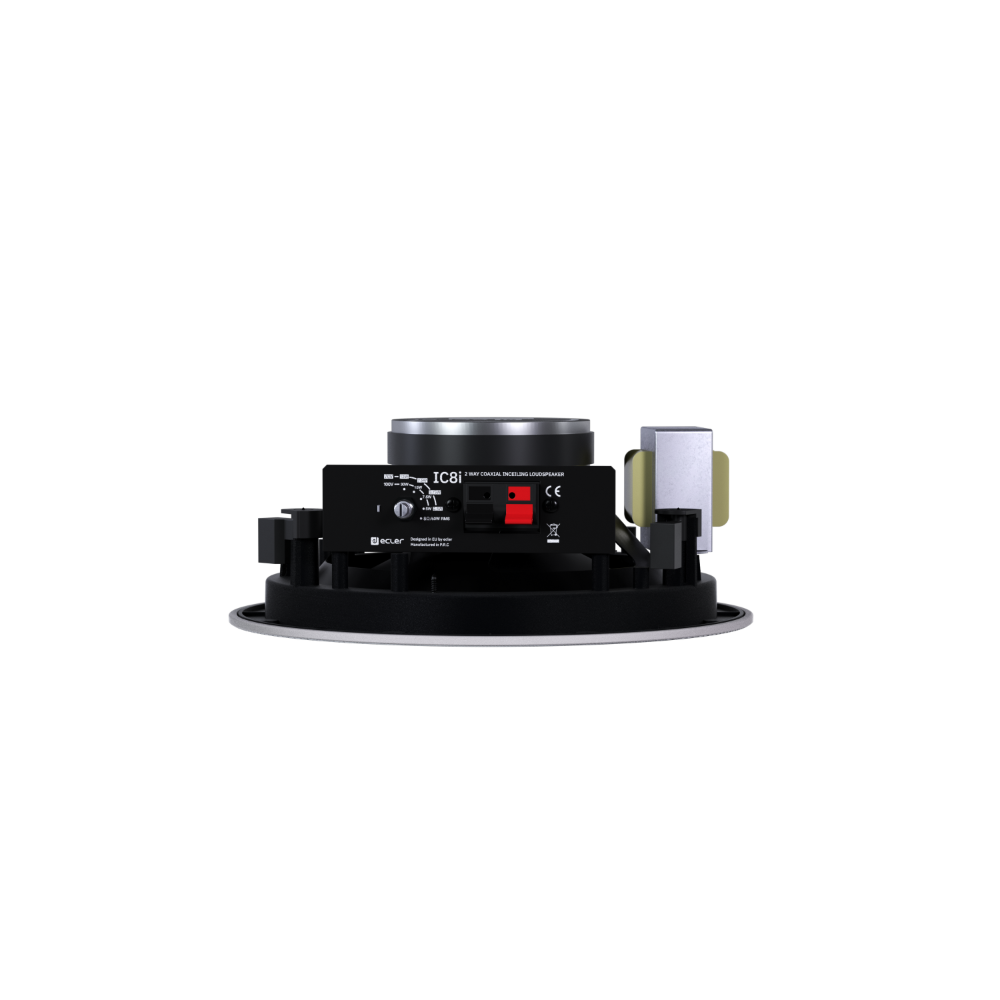

Clip-type terminals with high/low impedance tap selector
Three rotating clamp tabs; cutting template included
Optional IC-TB8 tile bridge for suspended ceilings
White finish (RAL 9003)

Specifications

Ecler IC8i 8″ Ceiling Speaker 100V White (Pair) specifications
Frequency range 65 Hz to 20 kHz (-10 dB)
Coverage 152° conical
Power handling 60W RMS, 240W peak (8 ohms)
Sensitivity 94 dB (1W/1m)
Maximum SPL 112 dB continuous, 118 dB peak
100V taps 30W, 15W, 7.5W, 5W
70V taps 15W, 7.5W, 3.75W, 2.5W
Recommended amplifier 120W RMS (8 ohm use)
Drivers 8 in woofer, 1 in dome tweeter
Connection Clip-type terminals
Outer diameter 254 mm
Cut-out diameter 222 mm
Depth required >94 mm
Weight 2.35 kg
Operating temperature -20°C to 70°C
Colour White (RAL 9003)
Quantity 2 speakers

Full features

  • Two-way ABS speaker, 60WRMS.
  • 8" woofer / 1" dome tweeter.
  • Built-in audio transformer for 70/100V use.
  • Polypropylene woofer that resists heat and humidity.
  • Frameless Magnetic grill.
  • Front grill may be removed for painting.
  • The Ecler logo is removable.
  • Clip-type input terminals and low impedance / high impedance power tap selector.
  • Cutting template included.
  • Support system with 3 rotating tabs.
  • Available in black (RAL9005) or white (RAL9003) finish.
  • EASE files available.

System

  • Effective Freq. Range: 65Hz-20kHz (-10dB)
  • Coverage angle / Dispersion: 152° conical
  • Power handling: 60W RMS / 240W Peak
  • Sensitivity: 94dB (1W/1m)
  • Maximum SPL: 112dB continuous / 118dB peak
  • Power options (Hi Z Multi-tap): 100V: 5 / 7.5 / 15 / 30W
    70V: 2.5 / 3.75 / 7.5 / 15W
  • Recommended amplifier power: 120W RMS

Transducers

  • Ways: 2-ways full range
  • Low frequency driver: 8" Woofer
  • High frequency driver: 1" Dome Tweeter
  • Nominal impedance: 8Ω

Physical

  • Connection type: Clip-Type input terminals
  • Installation options: In-ceiling / In-wall
  • Enclosure material: ABS plastic
  • Grille material: Iron
  • Grille fixing system: Magnets
  • Mounting system: 3 rotating tabs
  • Operating temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -20°C ; -4°F
    Max: 70°C ; 158°F
  • Storage humidity: <90% HR
  • External diameter: 254mm  /  10 in.
  • Internal diameter: 219mm / 8.62 in.
  • Recommended cut out diameter: 222mm  /  8.74 in.
  • Required depth: >94mm  /  >3.70 in.
  • Included accessories: Cutting template
  • Optional accessories: Ecler IC-TB8
  • Finished colour: White (RAL 9003) / Black (RAL 9005)
  • Dimensions: 254 x 254 x 93mm. / 10 x 10 x 3.66 in. (WxHxD)
  • Weight: 2.35 Kg / 5.18 lb
  • Pieces per box: 2
  • Shipping dimensions: 305 x 300 x 295mm. / 12.01 x 11.81 x 11.61 in.  (WxHxD)
  • Shipping weight: 4.75kg / 10.47 lb
