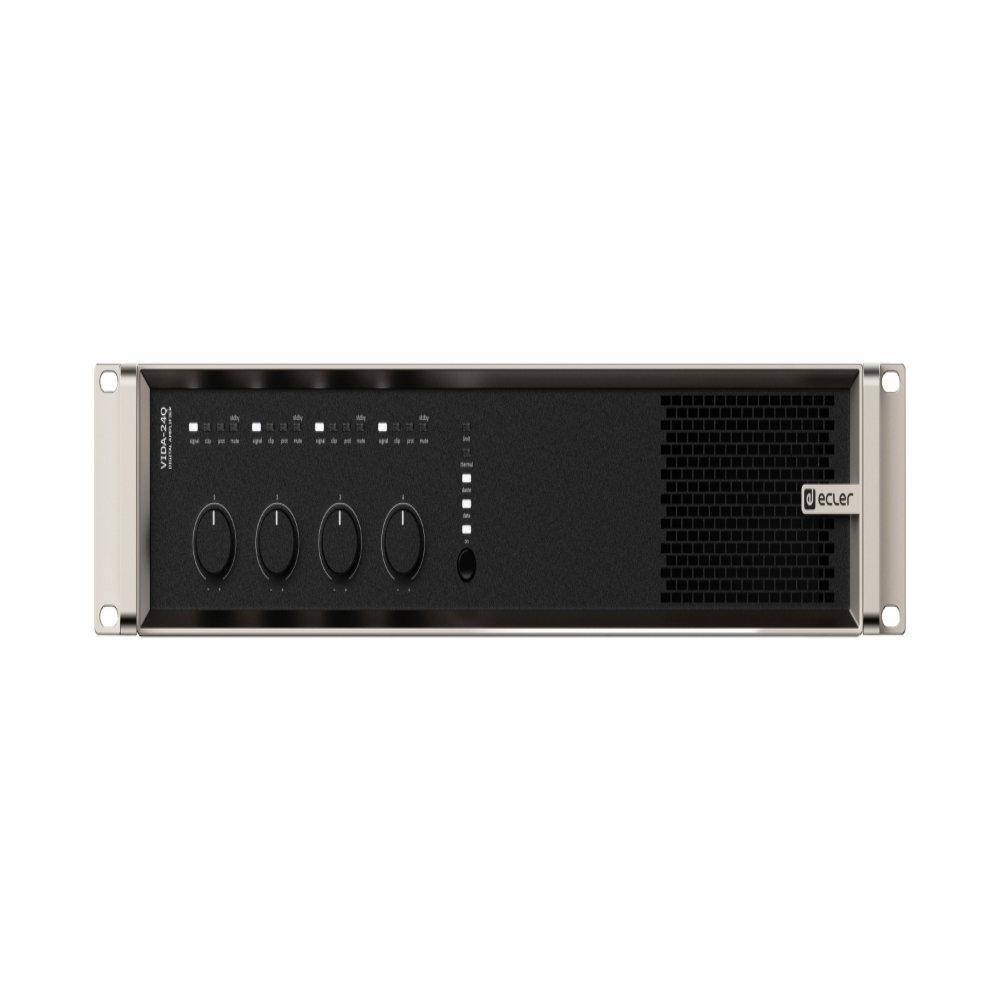

Ecler VIDA24Q Smart DSP Amplifier 2400W with Dante

Product code: 195488

£2,560.00 inc VAT
£2,133.33 ex VAT

SKU: ECL0127

1 in stock

1 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Output: 100V line or low impedance.

The Ecler VIDA24Q is a four-channel Class D amplifier with a total of 2400W that can be shared unevenly between outputs, giving 4x 600W with all channels driven or up to 2400W on one channel. Each output is set to 2, 4 or 8 ohms or to a 70V or 100V line, and the unit adds Dante/AES67, a DSP matrix, a microSD player and scheduling, all set from a web browser. It suits larger zoned systems in bars, hotels, retail, gyms, offices, schools and places of worship.

2400W
Total, shared
4x 600W
All channels driven
4 x 4
Dante/AES67 I/O
2U
Rack height
Power sharing2400W is the total for the unit. With all four channels driven equally each output gives 600W; a single channel can take up to 2400W into 4 ohms or at 100V.
Dante/AES67 inputsEcler states that Dante/AES67 input support requires firmware v1.02 or later.

Features

Four amplified outputs sharing 2400W through Ecler VersaPower, so power can be split unevenly between channels
Each output set independently to 2, 4 or 8 ohms, 70V or 100V
4 balanced analogue inputs and 4 Dante/AES67 network inputs
2 balanced auxiliary line outputs and 4 Dante/AES67 network outputs
Built-in microSD audio player and signal generator
Internal matrix with input and output DSP: noise gate, high-pass filter, frequency shifter, compressor, delay, parametric and graphic EQ, limiters
Priority and backup signal handling, presets, scheduled calendar events
4 GPI (0 to 10V), 4 GPO relay contacts and external mute

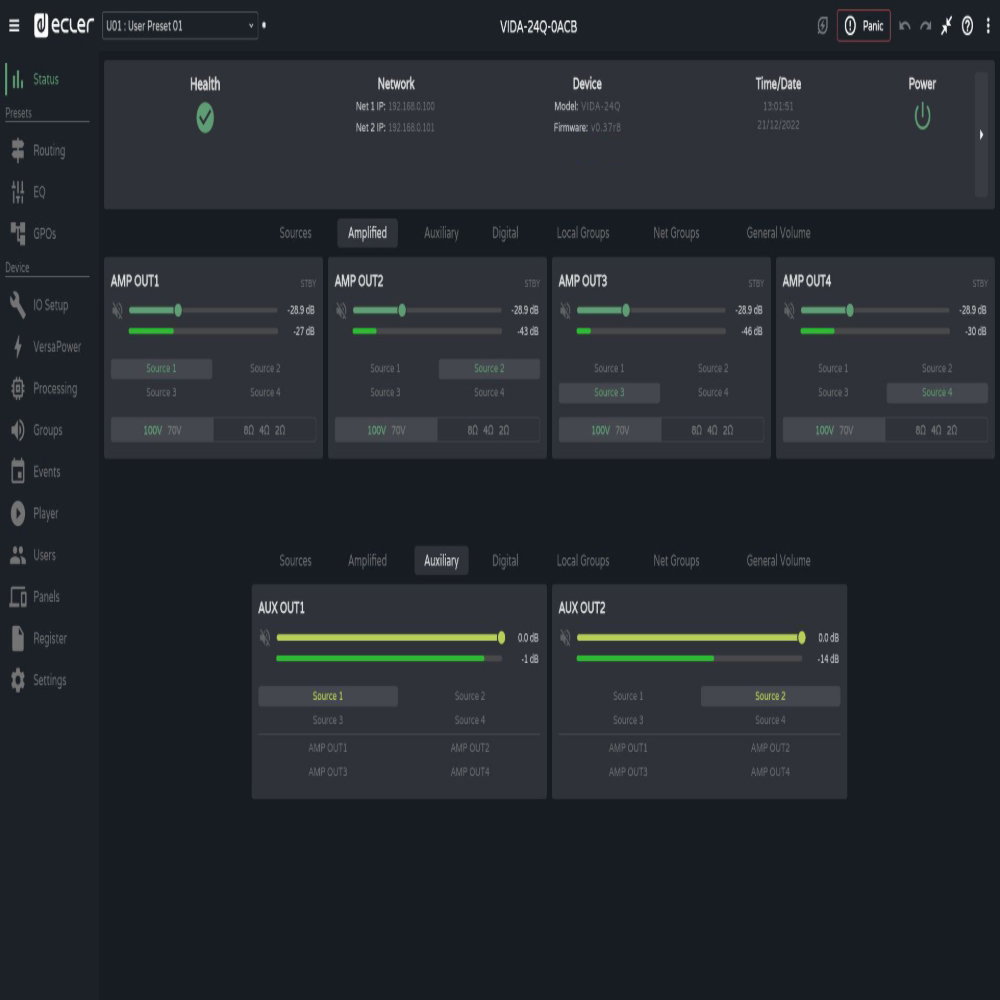

Configured from the embedded web application; end-user control from iOS, Android and web apps
Per-channel auto standby and low-consumption sleep mode; works with EclerCLOUD remote monitoring

Specifications

Ecler VIDA24Q Smart DSP Amplifier 2400W with Dante specifications
Inputs 4 analogue (3-pin Euroblock, balanced), 4 Dante/AES67, microSD player, signal generator
Outputs 4 amplified, 2 auxiliary line (3-pin Euroblock, balanced), 4 Dante/AES67
Output power, all channels driven 600W per channel into 8, 4 or 2 ohms, or at 100V/70V
Output power, single channel (VersaPower) Up to 2400W into 4 ohms or at 100V; 2000W at 70V; 1600W into 2 ohms; 1400W into 8 ohms
Amplifier technology Class D
Voltage gain 28 to 40 dB
Input sensitivity -6 to +6 dBV (0.5 to 2 Vrms)
Input impedance >24 kohm
Maximum input level +18 dBV (+20.2 dBu)
Frequency response 15 Hz to 25 kHz
THD+N <0.1% (0.015% typical)
Signal-to-noise ratio 95 dBA
Damping factor >500
DSP latency 2.8 ms
Network Gigabit Ethernet; Dante/AES67 4 Tx / 4 Rx, 2x RJ-45 (Net1 control; Net2 control + Dante/AES67)
Local storage microSD (SDXC) up to 2 TB; mp3, ogg, WAV, FLAC, AIFF
Control I/O 4x GPI (0 to 10V), 4x GPO (NO/NC), external mute
Mains 100 to 240V AC, 50/60 Hz, IEC C14 inlet, PFC >0.96
Power draw at 230V 1/8 power into 4 ohms: 498W; idle: 72W; standby/sleep: 4.1W
Efficiency 72%
Cooling Fan, 53 dB maximum
Operating temperature -10 to 50°C
Dimensions (W x H x D) 482.6 x 88 x 410 mm, 2U rack
Weight 9.3 kg

Full features

  • 4 amplified outputs VersaPower asymmetrical 2400W power management
  • 4 Dante outputs and 4 Dante/AES67* (*supported from firmware version v1.02 or higher)
  • 2 auxiliary outputs
  • 4 analogue inputs
  • MicroSD/SDHC audio player
  • Internal matrix and signal processing
  • Web application for device configuration
  • Smart power management VersaPower
  • Control and scheduled events for automation
  • Customized User Panels

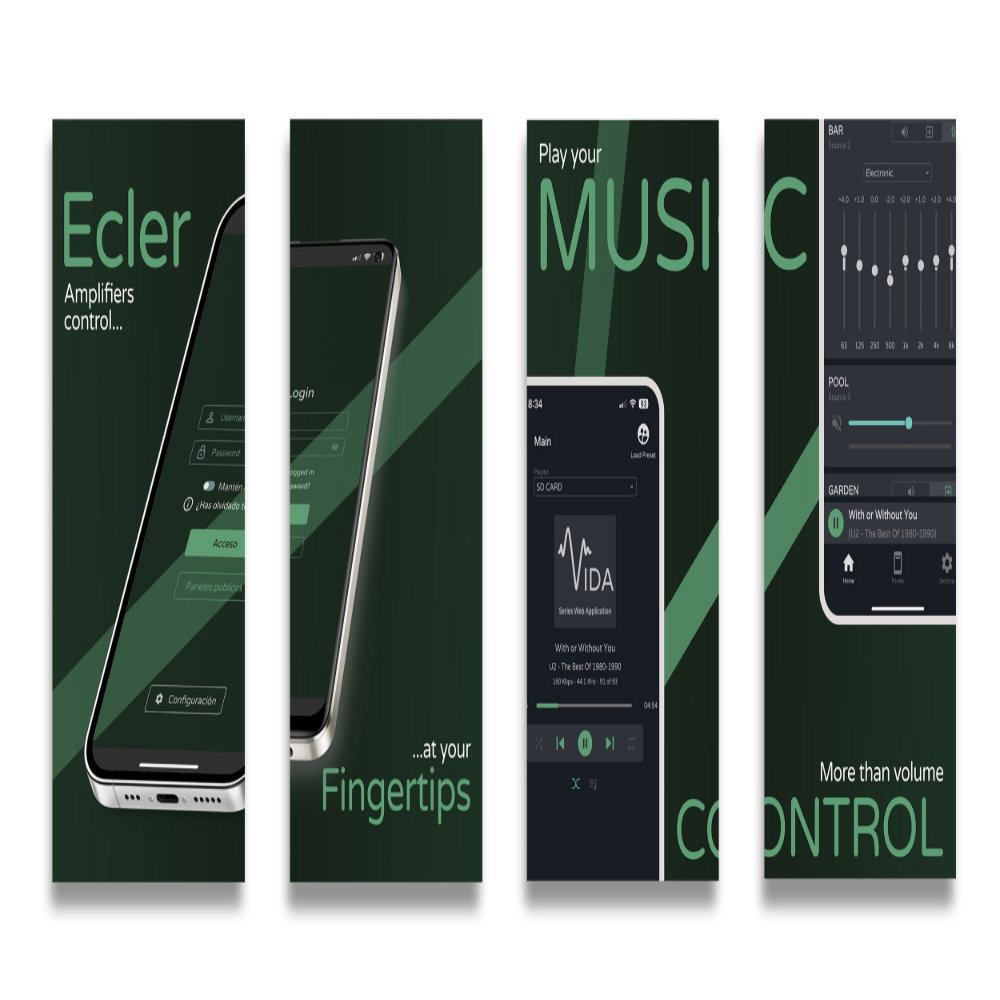

  • Remote control user application for iOS/Android/Web
  • Ultra low power consumption mode "Sleep Mode"

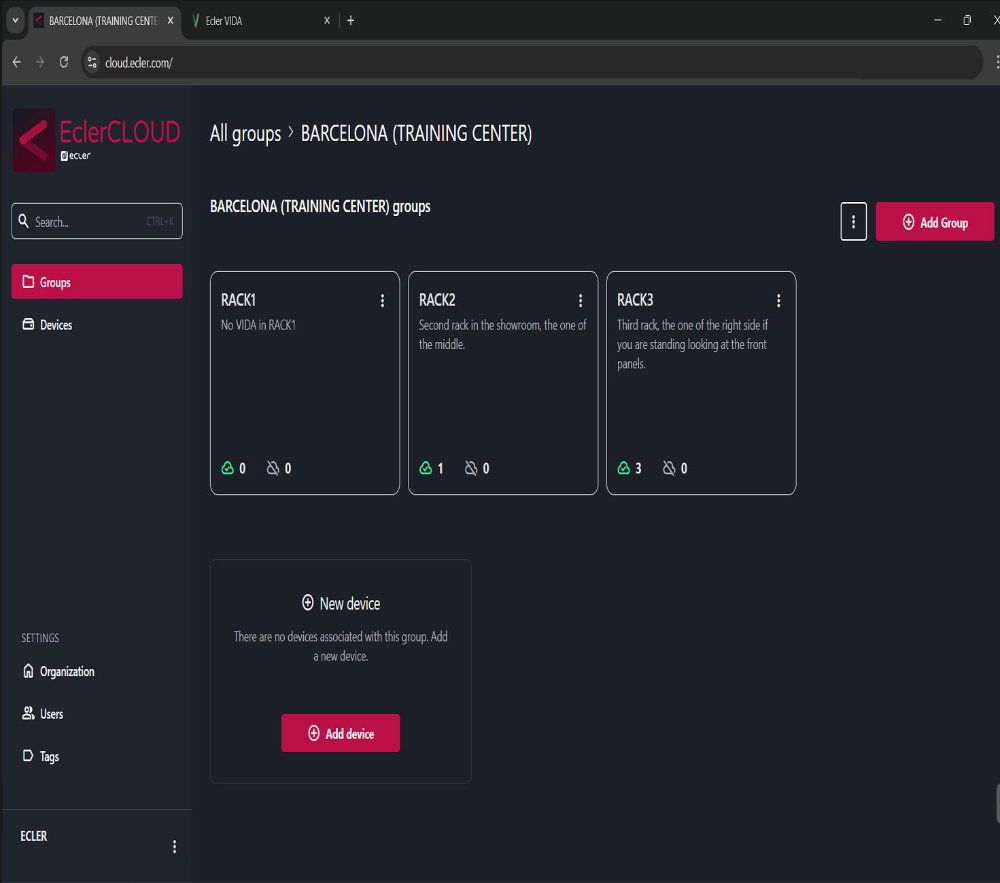

  • Compatible with the Remote Monitoring & Control Platform EclerCLOUD.

Channels

  • Number of output channels: 4
  • Output connection type: 2-pin Euroblock. Pitch: 7,62mm
    Ref: DEGSON 5EDGRC-7.62
  • Output configuration: Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω.
    Output mode selection per channel.
    Rear panel DIP SWITCH selectors
  • Number of input channels: 4 analogue input channels.
    4 DANTE/AES67 Network Rx channels.
    1 embedded player, 1 embedded signal generator
  • Input connection type: Digital: Ethernet, managed via Dante/AES67 Controller
    Analogue: IN1-4: 3-pin Euroblock, balanced, pitch 3,5mm
  • Input configuration: Digital matrix 4 in x 6 out

Auxiliar Outputs

  • Number of auxiliar outputs: 2
  • Auxiliar output connection type: AUX1-2: 3-pin Euroblock, balanced

Digital Outputs

  • Number of digital outputs: 4
  • Digital output connection type: Ethernet, managed via Dante/AES67 Controller

Versapower - Symmetrical All Channels Driven @1Khz @Cf9Db @ 1%Thd

  • Max output power @ 8Ω: 600W
  • Max output power @ 4Ω: 600W
  • Max output power @ 2Ω: 600W
  • Max output power @ 100V: 600W
  • Max output power @ 70V: 600W

Versapower - Asymmetrical Single Channel Driven @1Khz @Cf9Db @ 1%Thd

  • Max output power @ 8Ω: 1400W
  • Max output power @ 4Ω: 2400W
  • Max output power @ 2Ω: 1600W
  • Max output power @ 100V: 2400W
  • Max output power @ 70V: 2000W

Signal

  • Voltage gain: 28 to 40 dBV
    30,2 to 42,2 dBu
  • Input sensitivity: -6 to +6 dBV
    -3,78 to 8,2 dBu
    0,5 to 2 Vrms
  • Input impedance: >24kΩ
  • Max input level: +18 dBV
    +20,2 dBu
  • Frequency response: 15Hz-25kHz
  • THD + Noise: < 0,1%
    0,015 Typ
  • SNR: 95 dBA
  • Crosstalk: >80dB
  • CMRR: >65 Typ
  • Damping factor: >500

Electrical

  • Power supply: Universal, regulated SMPS with PFC
  • AC mains requirement: 100-240V @ 50-60Hz (±10%)
  • Power factor correction: > 0,96
  • AC mains connector: IEC C14 inlet

Power & Heat @230Vac - 1/4 Power, @ 4Ω (All Channels Driven)

  • Power: 848W
    888 VA
  • Current Draw: 3,88 Arms
  • Thermal Loss: 214,1 kcal/h
    849,8 BTU/h

Power & Heat @230Vac - 1/8 Power, @ 4Ω (All Channels Driven)

  • Power: 498W
    536 VA
  • Current Draw: 2,33 Arms
  • Thermal Loss: 170,3 kcal/h
    675,8 BTU/h

Power & Heat @230Vac - Idle

  • Power: 72W
    122 VA
  • Current Draw: 0,52 Arms
  • Thermal Loss: 61,9 kcal/h
    245,7 BTU/h

Power & Heat @230Vac - Standby/Sleep Mode

  • Power: 4,1W
    23,8 VA
  • Current Draw: 0,1 Arms
  • Thermal Loss: 3,5 kcal/h
    14 BTU/h

Power & Heat @120Vac - 1/4 Power, @ 4Ω (All Channels Driven)

  • Power: 855W
    865 VA
  • Current Draw: 7,37 Arms
  • Thermal Loss: 219,3 kcal/h
    870,3 BTU/h

Power & Heat @120Vac - 1/8 Power, @ 4Ω (All Channels Driven)

  • Power: 483W
    493 VA
  • Current Draw: 4,16 Arms
  • Thermal Loss: 157,4 kcal/h
    624,6 BTU/h

Power & Heat @120Vac - Idle

  • Power: 68W
    89 VA
  • Current Draw: 0,75 Arms
  • Thermal Loss: 58,5 kcal/h
    232,1 BTU/h

Power & Heat @120Vac - Standby/Sleep Mode

  • Power: 3,6W
    10,2 VA
  • Current Draw: 0,09 Arms
  • Thermal Loss: 3,1 kcal/h
    12,3 BTU/h

Technologies

  • Amplification technology: Class D
  • Energy saving: Auto standby function programmable per channel
    Sleep Mode function selectable
  • Efficiency: 72%
  • Cooling: Fan
  • Maximum fan noise: 53dB

Dsp

  • Latency: 2,8 ms
  • Digital processing: 32/64 bit
  • Inputs processing: Noise gate, HPF, Freq. Shifter, compressor/limiter
  • Outputs processing: Delay, Parametric EQ, Graphic EQ independent for every amp out and aux out
    Limiters independent for every amp out
    Smart VersaPower management
  • Others: Preset management, Internal matrix, priority & backup signals managemnet, local & network groups, events management incl. calendar

Protections

  • AC protection: N/A
  • DC protection: Yes
  • HF protection: Yes
  • Short-circuit protection: Yes
  • Clip limiter: Yes
  • Long term limiter: Yes
  • Thermal protection: Yes

Remote Control Connections

  • ON / OFF: No
  • GPIs: x4 GPIs (0-10V)
  • GPOs: x4 NC / NO contacts
  • External MUTE: Yes, contact

Local Control

  • Attenuators: Programmable Front panel knobs
  • Output mode settings: Lo-Z/Hi-Z, 70V/100V, 4Ω/8Ω/2Ω
    Output mode selection per channel
  • RUN/SLEEP mode: Yes, front panel push-button
  • Power ON/OFF: Yes, back panel switch

Connectivity

  • Ethernet: Ethernet Base-Tx 10/100/1000Mb Auto X-Over
  • DANTE Protocol: Dante/AES67 4x Tx / 4x Rx channels (2/2 flows)
    Primary and secondary capability. RJ-45 ports
    (Settings by embedded web application)
  • Programing and control: Embedded web application

Monitoring

  • Signal Present: SP LED (White) per channel
  • Cliping: CLIP LED (Red) per channel
  • Protect: PROT LED (Red) per channel
  • Standby: N/A
  • Standby / Mute: STBY/MUTE LED (White) per channel
  • Limit: LIMIT LED (Red) per unit
  • Thermal: THERMAL LED (Red) per unit
  • Dante: DANTE/AES67 LED (White) per unit
  • Data: DATA LED (White) per unit
  • On: ON LED (White) per unit

Digital Engine

  • Processor: Quad core 64bits 1,5GHz

Audio Converters

  • Sampling rate: 48kHz
  • Resolution: 24 bit
  • Dynamic range: 114dB

Real-Time Clock

  • Retention time: > 5 years
  • Accuracy: ±1 minute / month
  • Battery: VARTA CR2032 3V, 230mAh

Local Storage

  • Micro SD: SDXC
  • Capacity: Up to 2TB
  • File system: FAT16, FAT 32, VFAT (read/wirte)
    NTFS (read)
    Multi-partition up to 1
  • Playable audio files: mp3, ogg, WAV, FLAC, AIFF
  • Files analysis: 65354 playable folders
    65354 playable folders within each folder
    65354 playable files within each folder
  • Folder hierarchy: Up to 8 containing the root directory
  • Sorting: UNICODE, in alphabetical order
    Up to 100 folders / files by folder
    Folders/files over 100 sorted in the FAT order

Physical

  • Operating temperature: Min: -10⁰C ; 14⁰F
    Max: 50⁰C ; 122⁰F
  • Operating humidity: 5 - 85% RH, non-condensing
  • Storage temperature: Min: -10⁰C ; 14⁰F
    Max: 50⁰C ; 122⁰F
  • Storage humidity: 5 - 85% RH, non-condensing
  • Installation options: Rack 19" installation & desktop
  • Included accessories: Mains cords, Euroblock Connectors (inputs /outputs), Desktop feet, rack 19" installation hardware
  • Dimensions: 482.6 x 88 x 410mm / 19 x 3.46 x 16.14 in. (WxHxD)
  • Weight: 9.3kg / 20.5 lb
  • Shipping dimensions: 650 x 125 x 600mm / 25.59 x 4.92 x 23.62 in. (WxHxD)
  • Shipping weight: 12.3kg / 27.1 lb
