Ecler WPaH-AT40 100V Volume Attenuator 40W with Priority Relay

SKU: ECL0093
Ecler WPaH-AT40 100V Volume Attenuator 40W with Priority Relay - Image 1
Ecler WPaH-AT40 100V Volume Attenuator 40W with Priority Relay - Image 2
Click to enlarge

    £94.00 inc VAT
    £78.33 ex VAT

    1 in stock

    1 available online
    Delivered by MondayOrder by 3pm
    Click & Collect tomorrow ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Ecler WPaH-AT40 is a single-gang wall-mounted volume attenuator for 70V and 100V speaker lines, rated at 40W, with a built-in 24V DC priority relay. It sets the level of a small local group of speakers, and the relay allows a paging or alarm system to bypass the local setting. Typical uses are hotel rooms, meeting rooms, offices, shops and classrooms on a 100V system.

    40W
    Max load
    70/100V
    Line
    24V DC
    Priority relay
    UseFor 70V or 100V speaker lines only. Do not exceed the rated power of the speakers connected after the attenuator.
    Features
    Volume attenuator for 70V and 100V lines, 40W maximum
    Integrated 24V DC priority relay
    Single-gang EU size, surface or in-wall; surface box included
    White, RAL 9016
    Specifications
    Maximum power 40W
    Line voltage 70V / 100V
    Priority relay 24V DC
    Mounting Surface or in-wall
    Dimensions (W x H x D) 86 x 86 x 50 mm with surface box
    Weight 0.5 kg

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

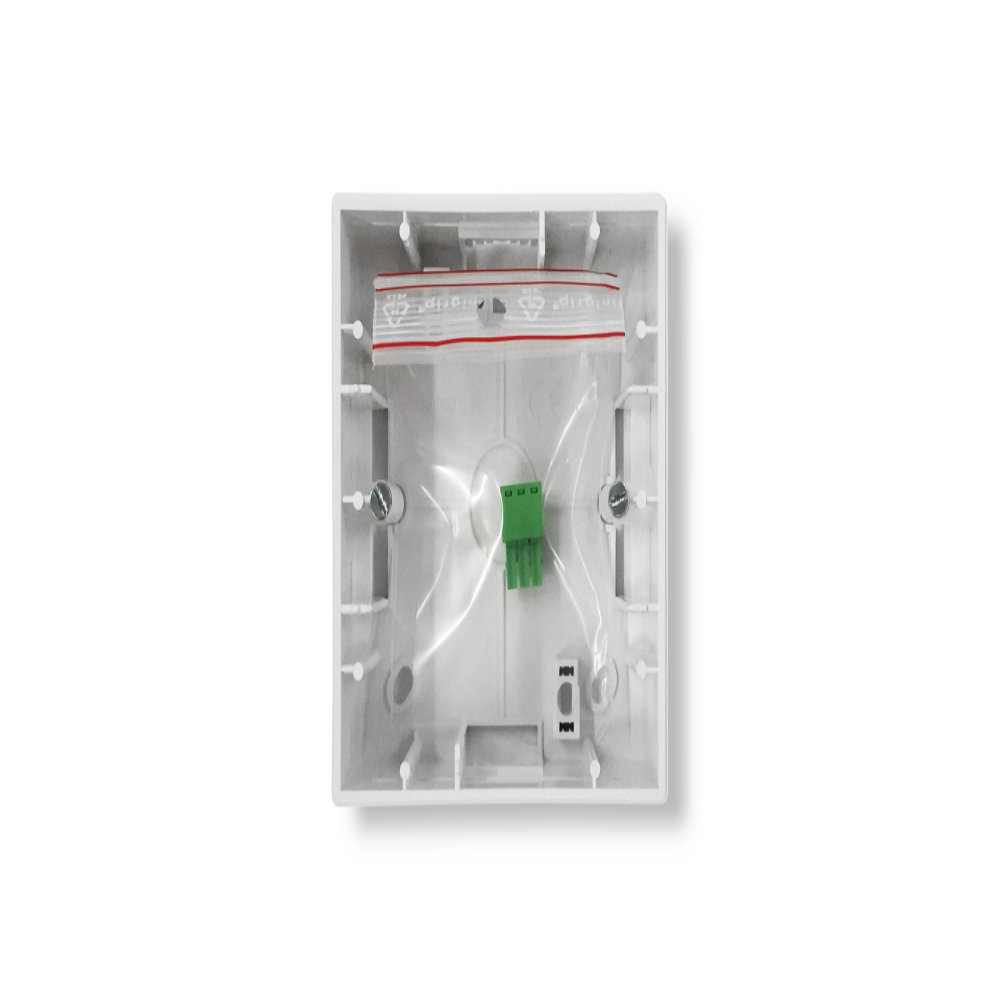

    WPaH-AT40 is a 70 / 100V line attenuator with integrated 24 VDC priority relay.40W maximum output power. Surface-mount installation box included (WxHxD = 86 x 86 x 38mm).
    WPa is a series of remote control wall panels for systems and interconnecting audio signals, with a modern, elegant, discrete aesthetic, designed in collaboration with Italdesign Giugiaro.

    Manuals & Downloads

    PDFManuals & Instructions: wpavol-sr-j_Ecler_WPa_Series_User_Manual_EN.pdfPDF
    PDFManuals & Instructions: wpah-at40_Ecler_WPaH-AT40_Data_Sheet.pdfPDF
    PDFManuals & Instructions: wpah-at40_Ecler_WPaH-AT40_CE_Declaration_of_Conformity.pdfPDF
    ZIPManuals & Instructions: wpah-at40_Ecler_WPaH-AT40_Mechanical_Diagram.zipZIP
    ZIPManuals & Instructions: wpavol-sr-j_Ecler_Peripheral_Device_Calculator.zipZIP
