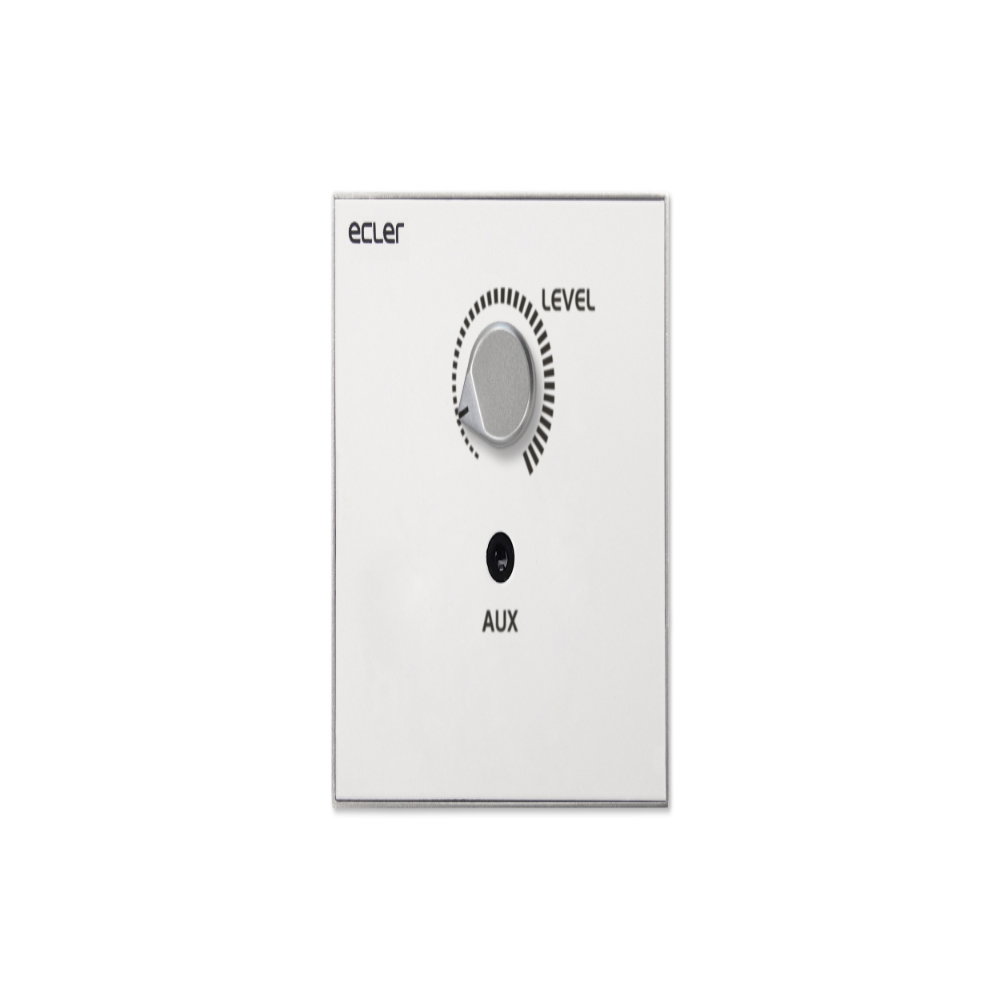

The Ecler WPaVOL-J is a single-gang wall panel combining a remote volume knob for Ecler 0 to 10V DC REMOTE ports with a front stereo minijack input. The minijack is wired out on a terminal block, so a laptop or phone can be patched to a line input in the rack. It suits meeting rooms, classrooms, bars and cafés where a local input is needed next to the volume control.
0-10V
Remote volume
3.5 mm
Stereo input
86 x 86
mm
CompatibilityEcler lists it for 0 to 10V DC REMOTE ports such as the MIMO, NXA, CA and GPA series. The minijack is a passive connection and needs its own cable run to a line input.
Features
Remote volume control over an RJ-45 connection
Front stereo 3.5 mm minijack, wired to a rear terminal block (tip, ring, sleeve)
Single-gang EU size, white RAL 9016

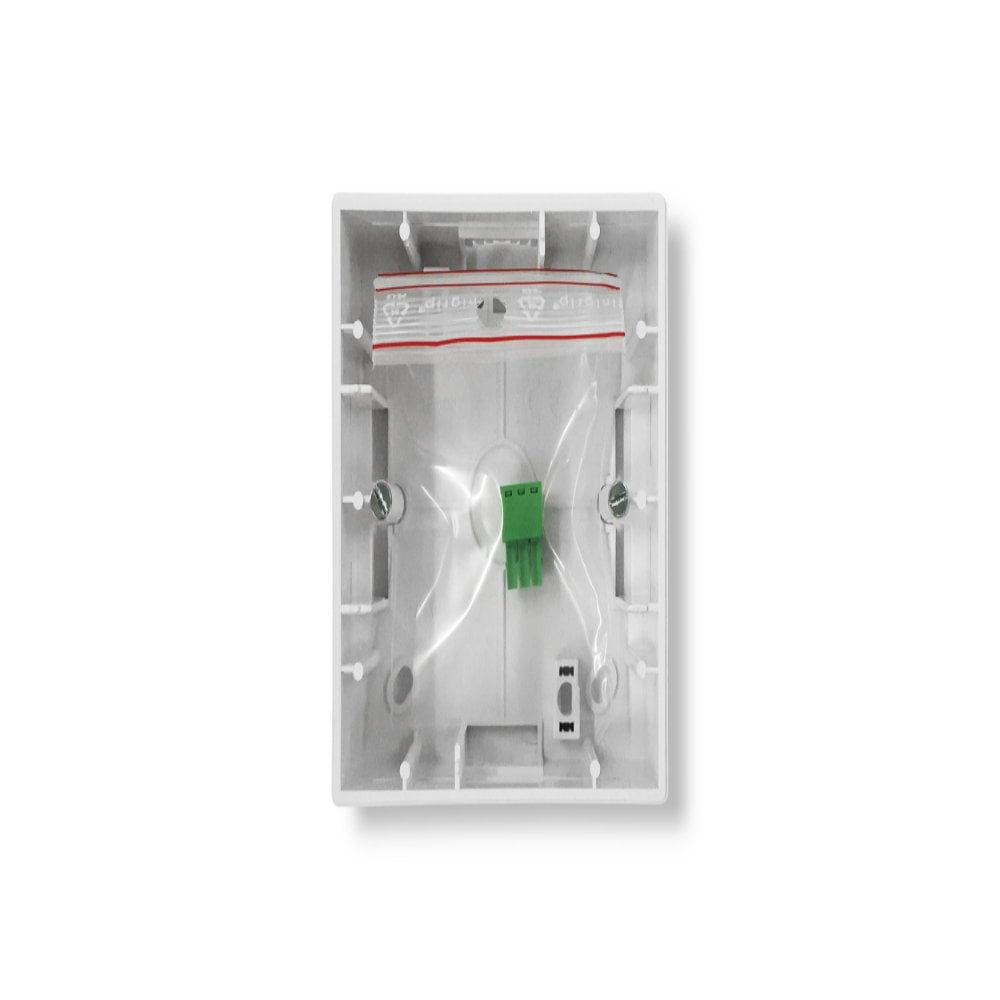

Surface-mount box included
Specifications
| Function | Volume, 0 to 10V DC remote; stereo minijack input |
| Control connection | RJ-45 |
| Audio connection | 3-pin terminal block |
| Finish | White, RAL 9016 |
| Dimensions (W x H x D) | 86 x 86 x 38 mm with surface box |
| Weight | 0.13 kg |
