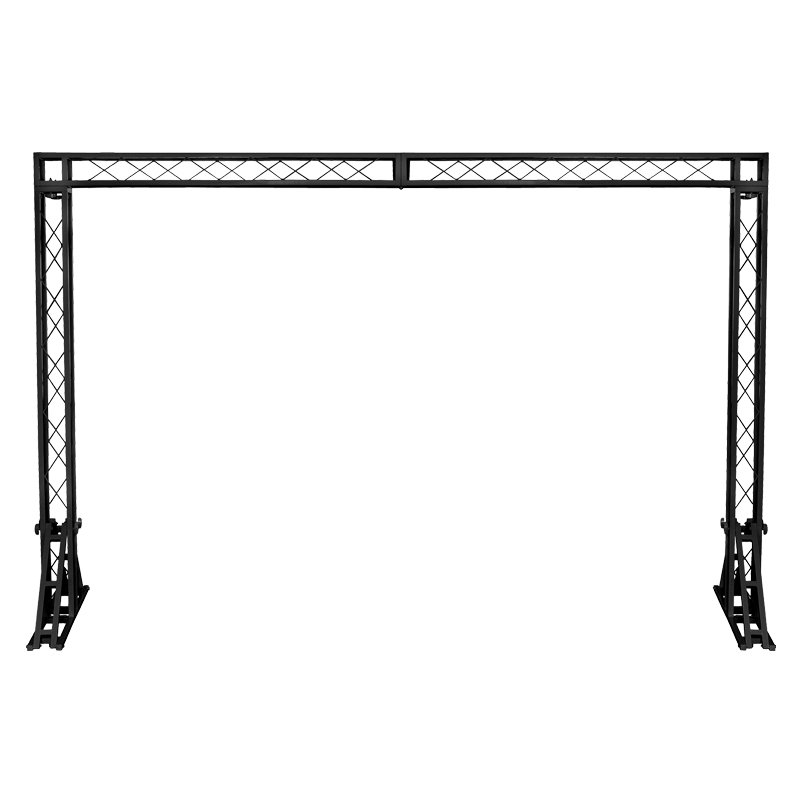

A complete 3 x 2m truss goalpost that ships as three pieces: two uprights and one horizontal bar hinged in the middle. The horizontal folds in half and the feet and leg supports fold flat against the uprights, so a rig with a 3.3m assembled span packs down to something one person can load a piece at a time. All-metal construction in 150 x 150mm quad truss, black powder coated, supplied complete with fixings.
3 x 2m
Inner span · W x H
100kg
Max load · distributed
43kg
Total weight · 3 pieces
150 x 150mm
Quad truss section
The 100kg figure is an evenly distributed loadEquinox rates the system at 100kg spread across the horizontal. Concentrating that weight at one point, or hanging it outboard of the uprights, is a different load case entirely. Work out the total weight of fixtures, clamps, safety bonds and cabling before you build, and keep heavy fixtures away from mid-span.
Extension legs are optional0.5m extension legs are available separately under order code STAN90B if you need more height than the standard uprights give.
Features
Three-piece system: two uprights and one horizontal
Horizontal is hinged and folds in half for transport

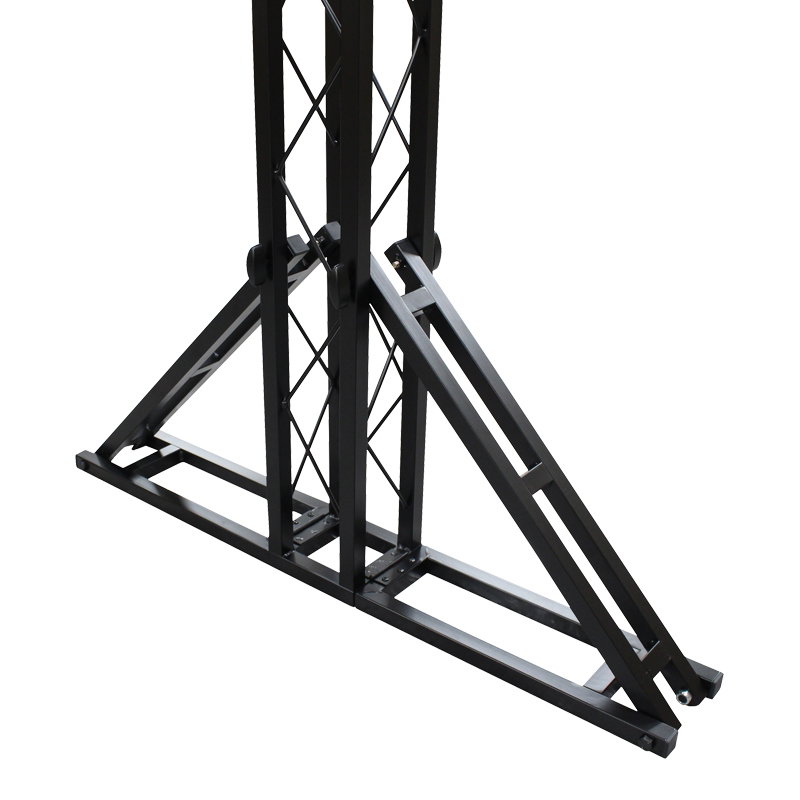

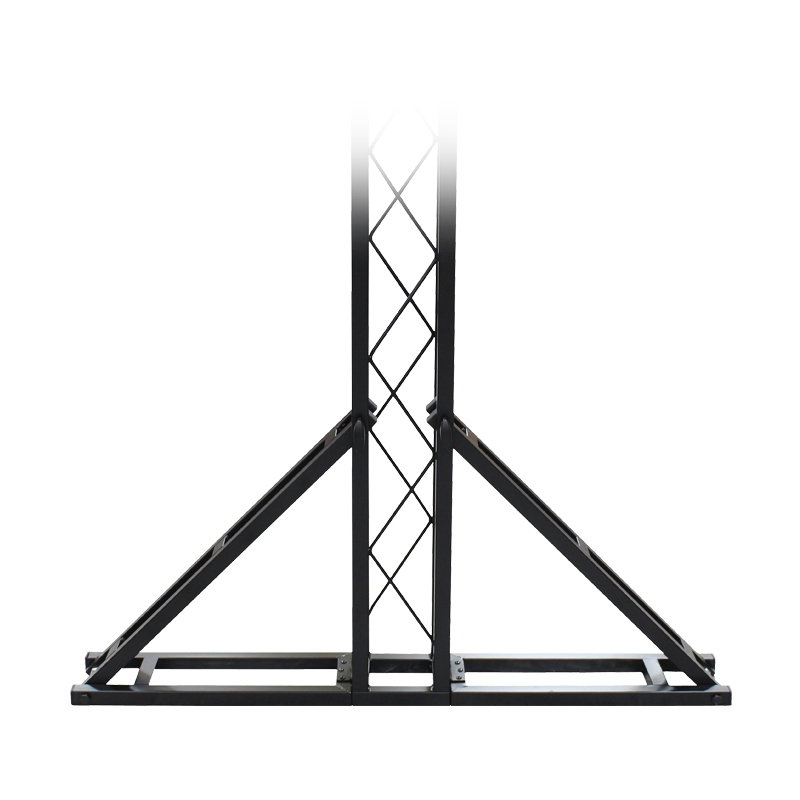

Feet and leg supports fold flat against the uprights
All-metal construction in 150 x 150mm quad truss
Black powder coated finish
Supplied complete with fixings
100kg maximum evenly distributed load
Heaviest single piece is 17kg, so it loads a part at a time
Optional 0.5m extension legs, order code STAN90B
Small assembled footprint suits mobile entertainers and bands
Specifications
| Order code | STAN90 |
| Maximum load | 100kg (evenly distributed) |
| Inner assembled dimensions (H x W x D) | 2000 x 3000 x 150mm |
| Outer assembled dimensions (H x W x D) | 2150 x 3300 x 1000mm |
| Truss section (W x D) | 150 x 150mm |
| Footprint of each upright (H x W x D) | 1000 x 150 x 150mm |
| Weight | 43kg total: 2 x upright at 13kg, 1 x horizontal at 17kg |
| Construction | All metal, black powder coated |
| Supplied with | Fixings |
| Warranty | 1 year |
