Rated 4.9 (120 reviews)

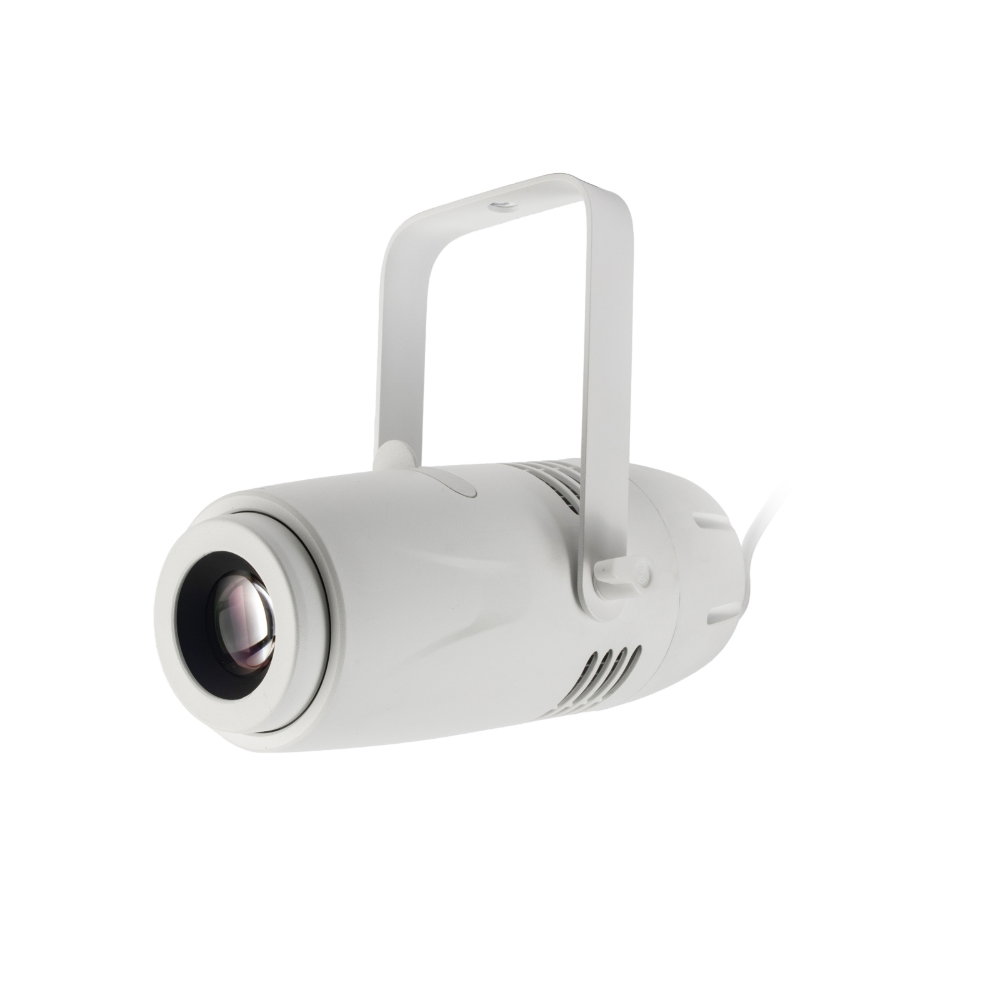

A compact gobo projector for events, hire and installations, with a 40W 8000K white LED and manual focus. It is optimised for throws of 1m to 6m, so it suits logos on dance floors, walls and stage fronts. Rotation is set on the rear panel, and the white housing is also available in black.
40W
LED
8000K
Colour temperature
1 to 6m
Projection distance
IP20
Rating
Indoor useThe Motif is rated IP20, so it is for indoor use only. It takes 26.4mm gobos with a 21mm image area, so order custom logo gobos to that size. Our gobo projection guide explains how to plan a logo projection.
Features
40W 8000K white LED
Manual focus
Optimised for projection distances of 1m to 6m
Rear panel gobo rotation: static or four speeds, clockwise or anticlockwise
3m captive power cable for a tidy installation
White housing
Specifications
| Brand | Equinox |
| Stock code | EQLED501 |
| Light source | 40W LED, 8000K |
| Focus | Manual |
| Projection distance | 1m to 6m |
| Gobo size | 26.4mm |
| Gobo image size | 21mm |
| Rotation | Static or 4 speeds, clockwise or anticlockwise |
| Power cable | 3m captive |
| Power supply | 100 to 240V AC, 50/60Hz |
| Power consumption | 41W |
| IP rating | IP20 |
| Operating temperature | -20°C to +45°C |
| Dimensions (body only) | 110 x 148 x 270mm |
| Weight | 1.54kg |
| Housing | White |
