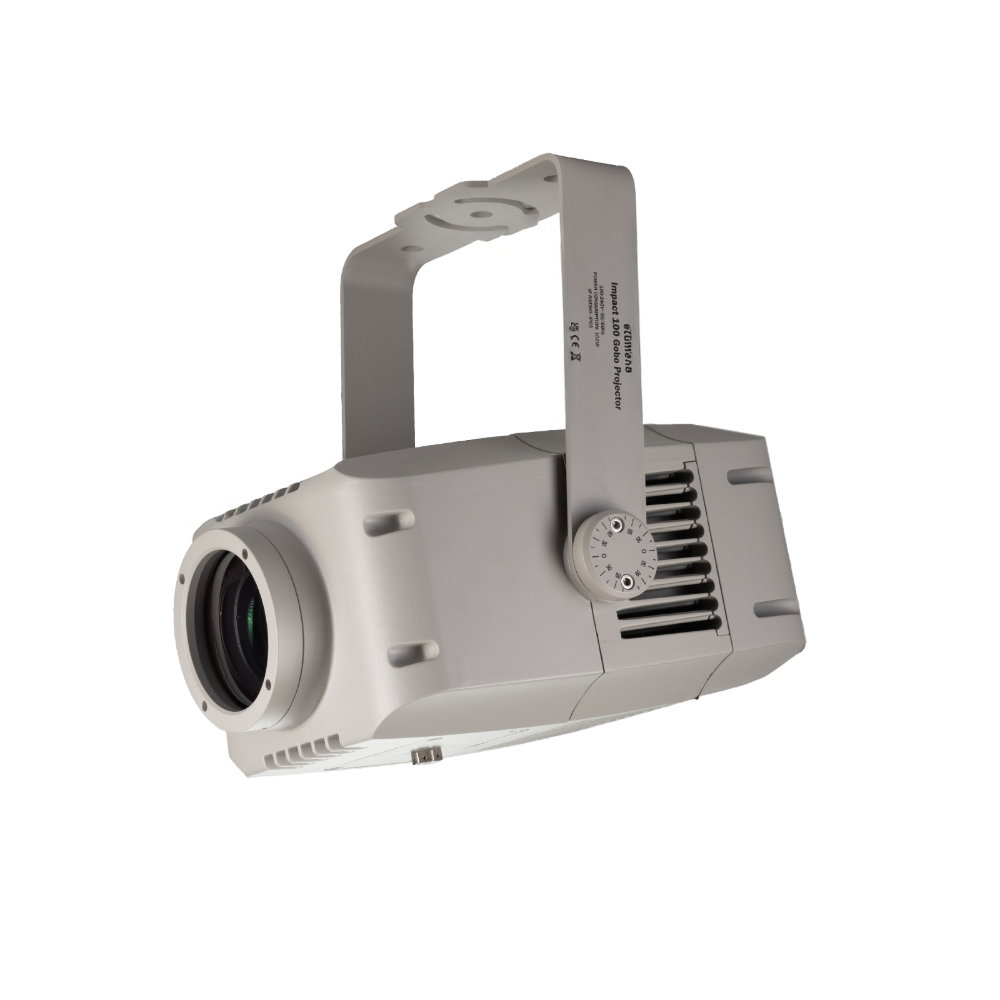

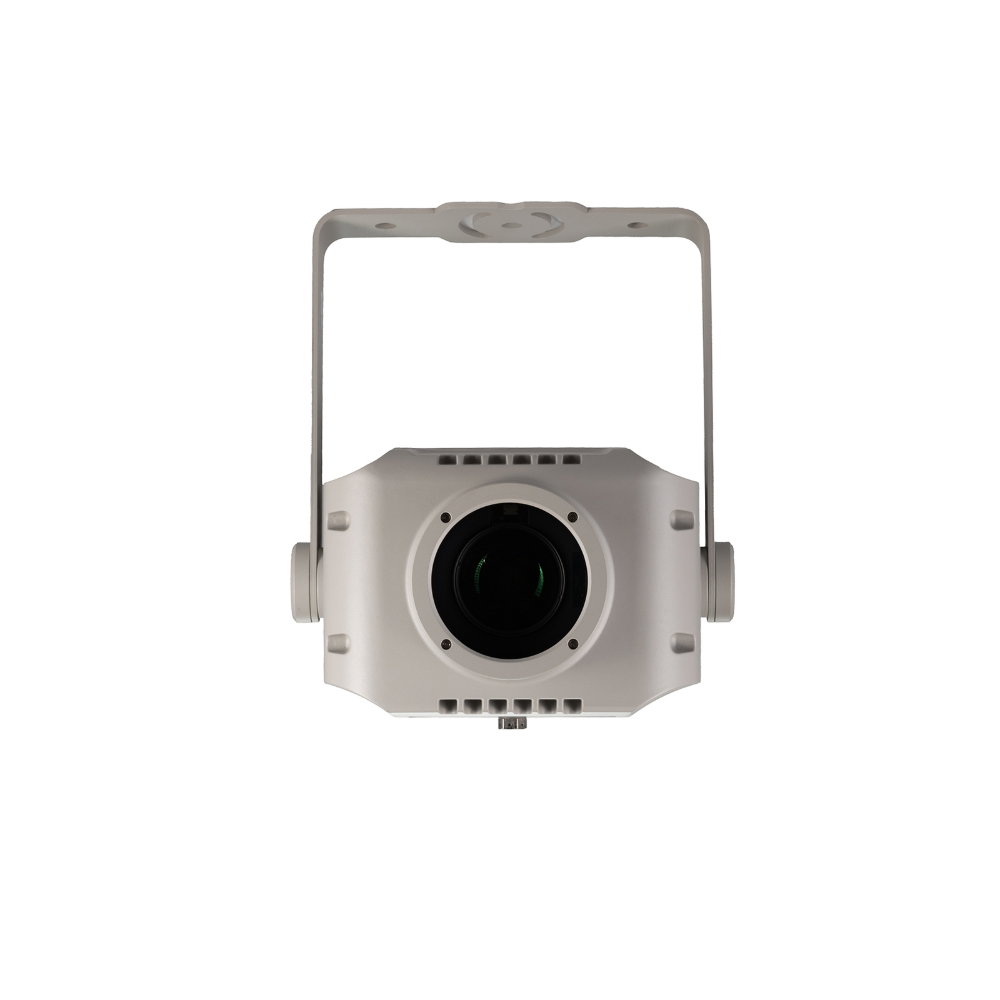

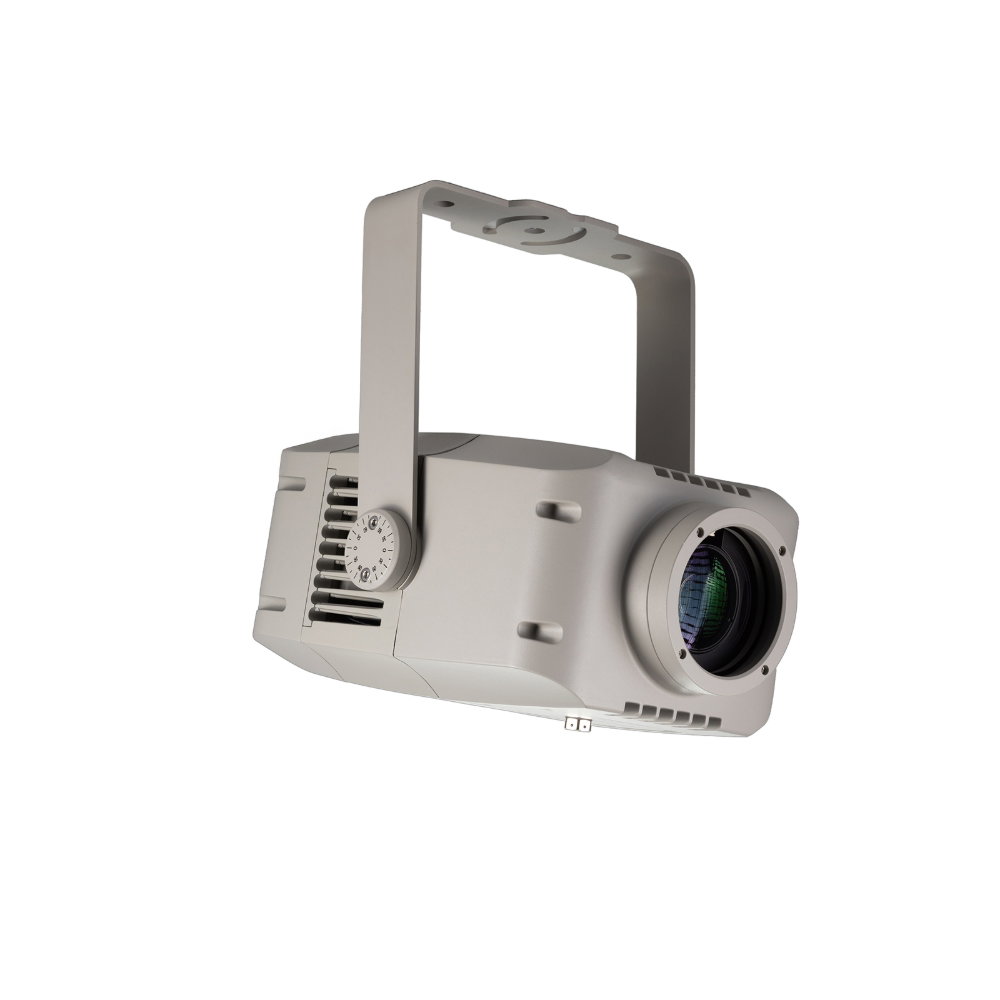

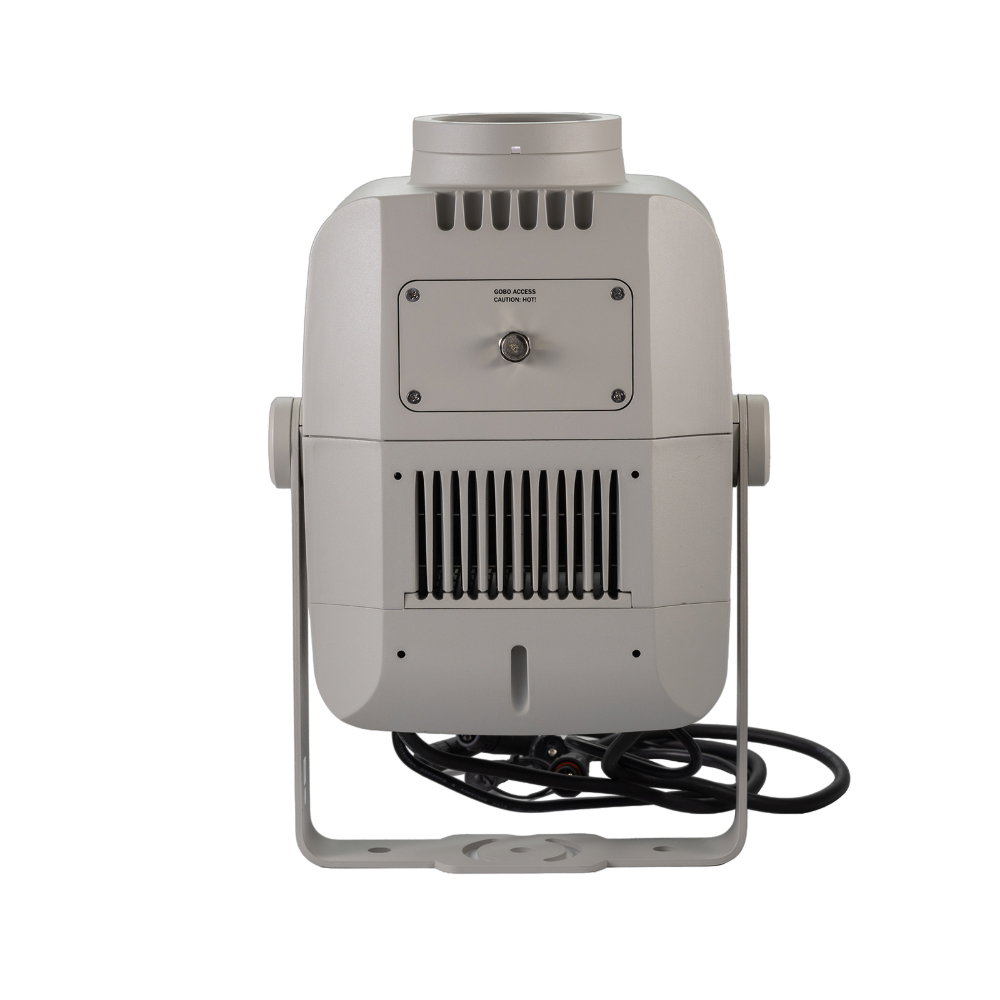

The Elumen8 Impact 100 Install is an IP65-rated gobo and logo projector for use indoors or outdoors, letting designers throw custom gobos and effects onto buildings, walkways and facades. A 100W white LED behind motorised zoom and focus, a rotating gobo wheel, colour wheel, prism and ripple wheel delivers sharp images across almost any throw distance.
LED
100W
white 9350K
Zoom
15-30°
motorised
IP Rating
IP65
indoor + outdoor
Weight
11.4kg
per unit
Features
✓1 x 100W white LED at 9350K
✓Motorised zoom and focus, 15° to 30° adjustable beam

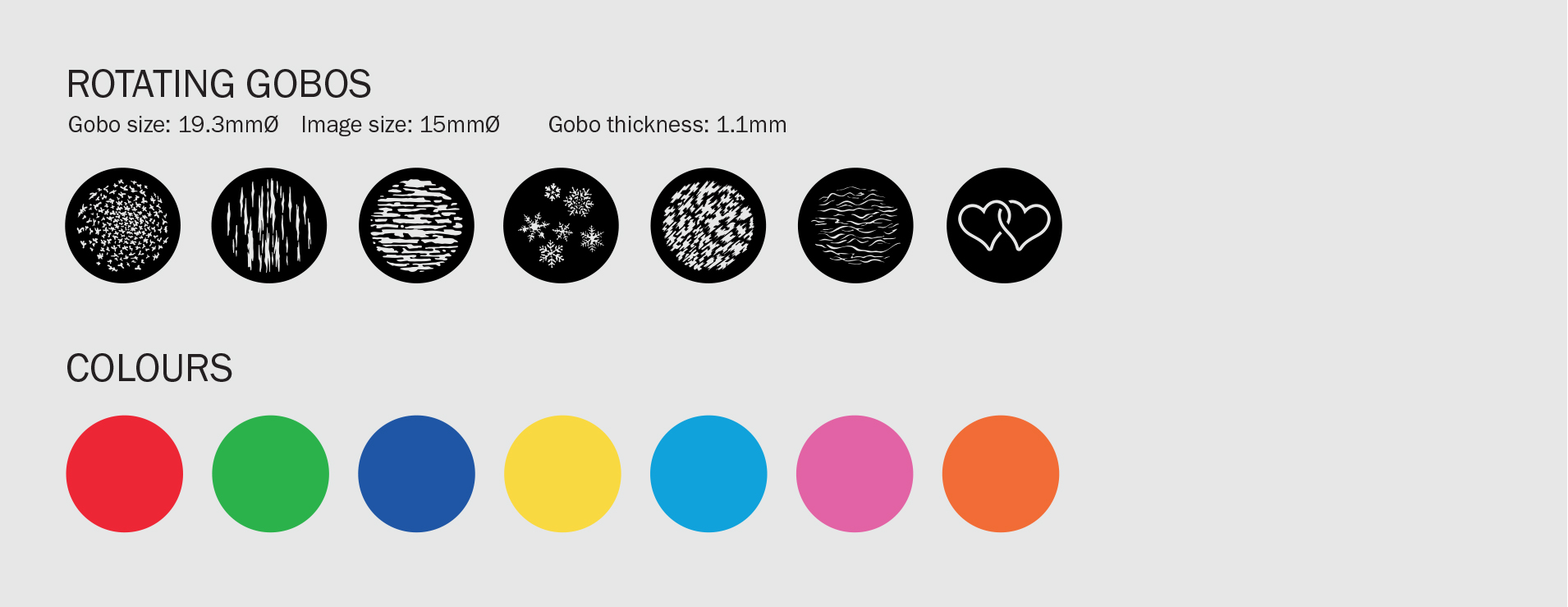

✓Rotating, indexable gobo wheel: 7 replaceable gobos plus open
✓Colour wheel: 7 colours plus open
✓3-facet rotating circular prism and ripple effect wheel
✓13-channel DMX plus auto, sound-active, manual and master/slave modes
✓Selectable 1/3/6/12kHz refresh for flicker-free camera work
✓0-100% dimming with variable strobe

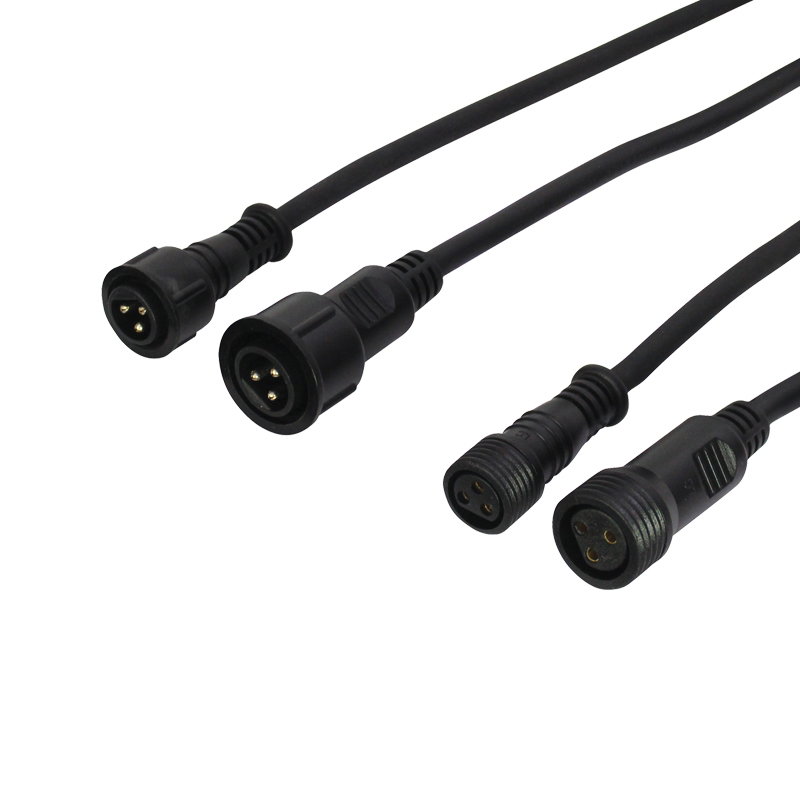

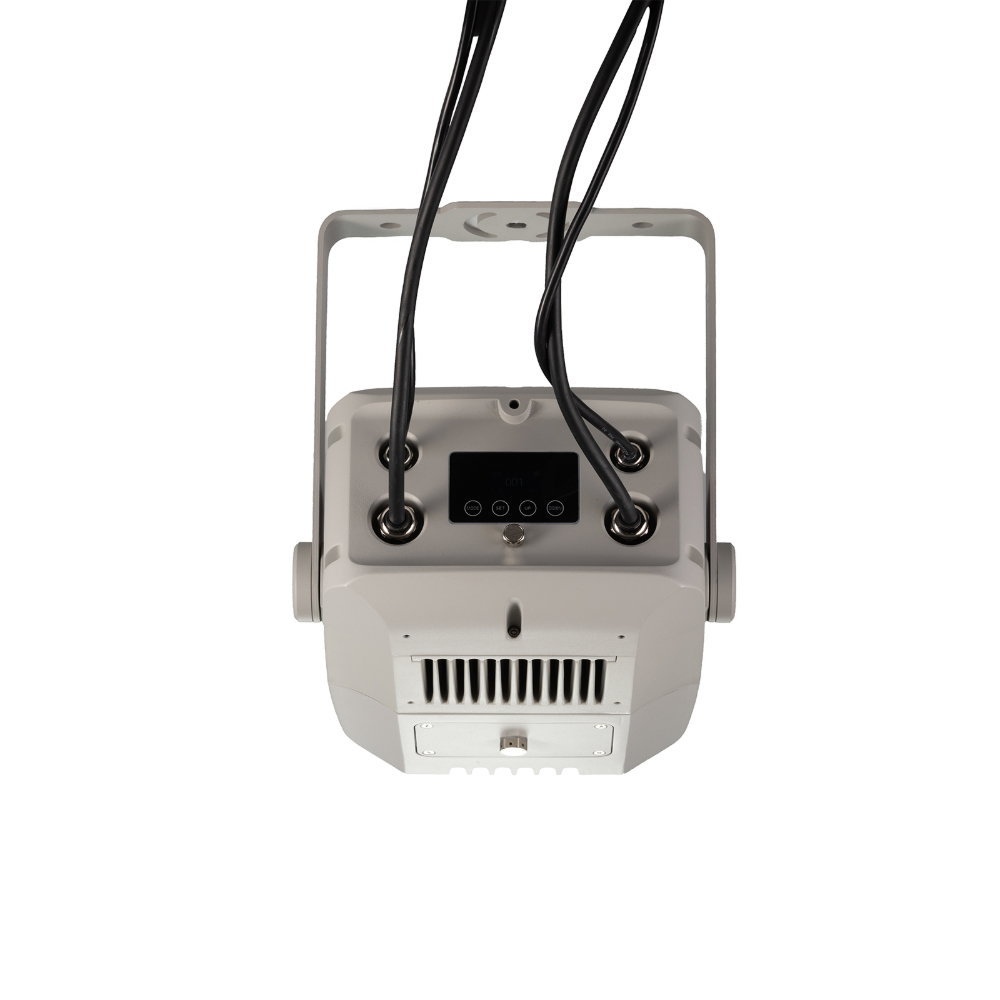

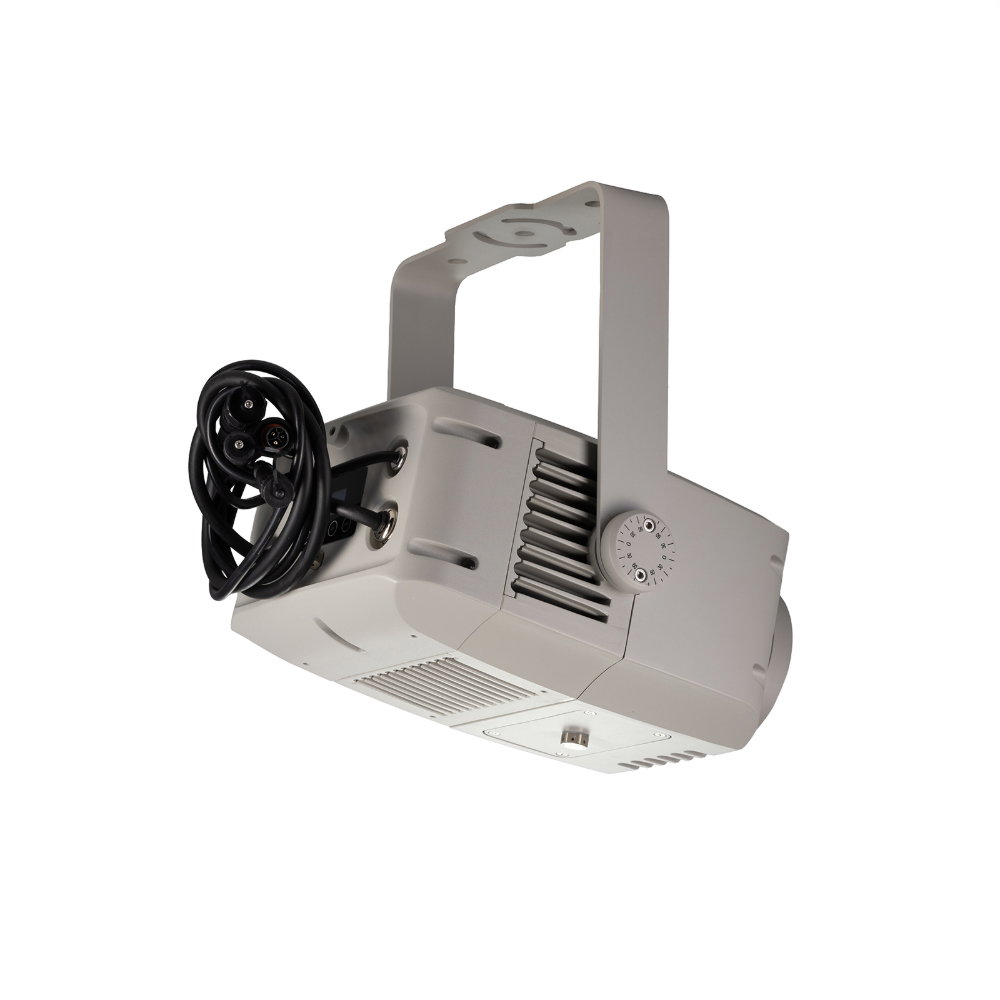

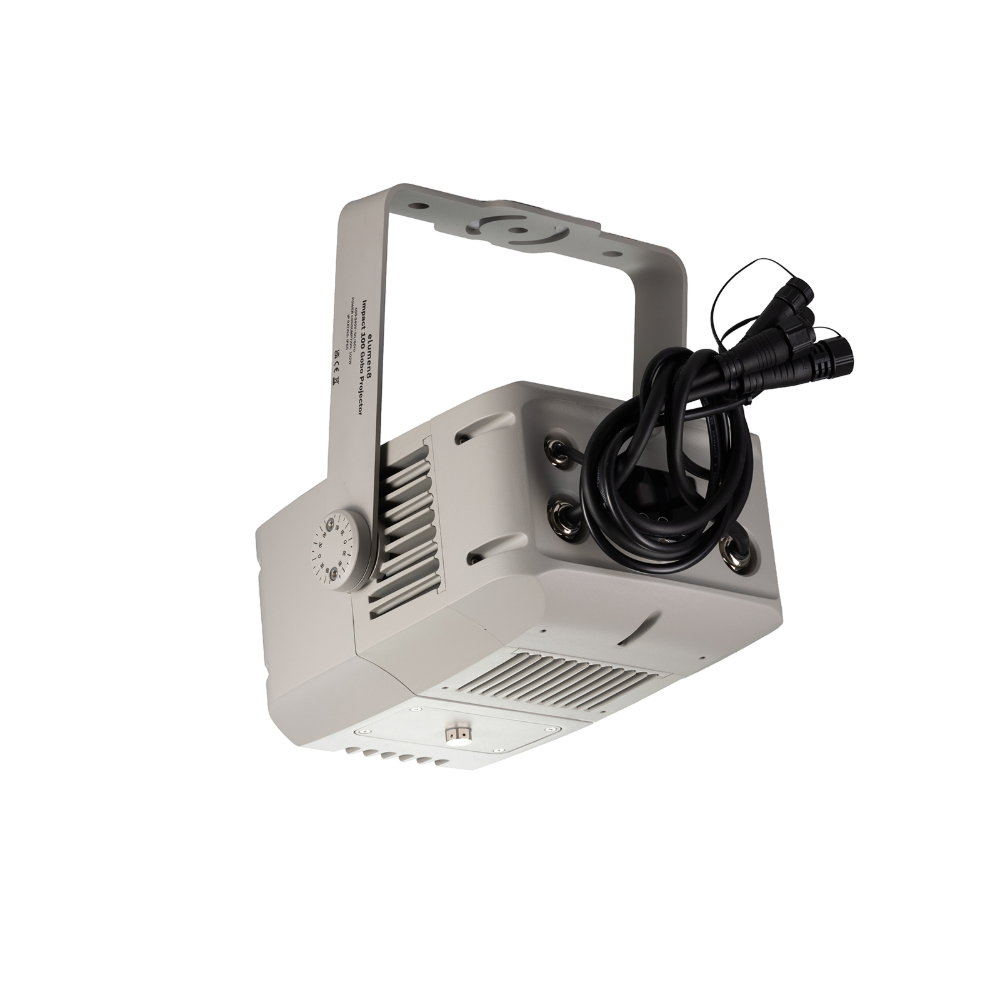

✓Hydralock PRO power and DMX trailing in/out connectors

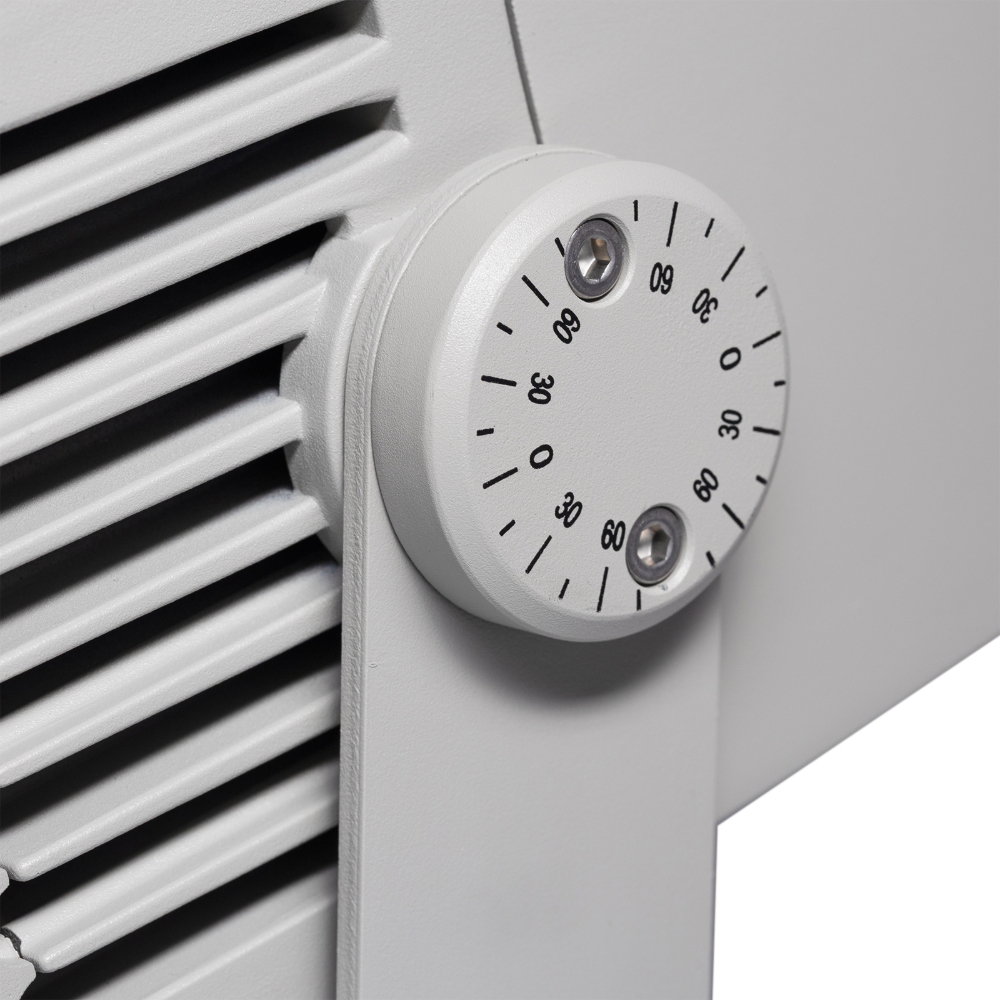

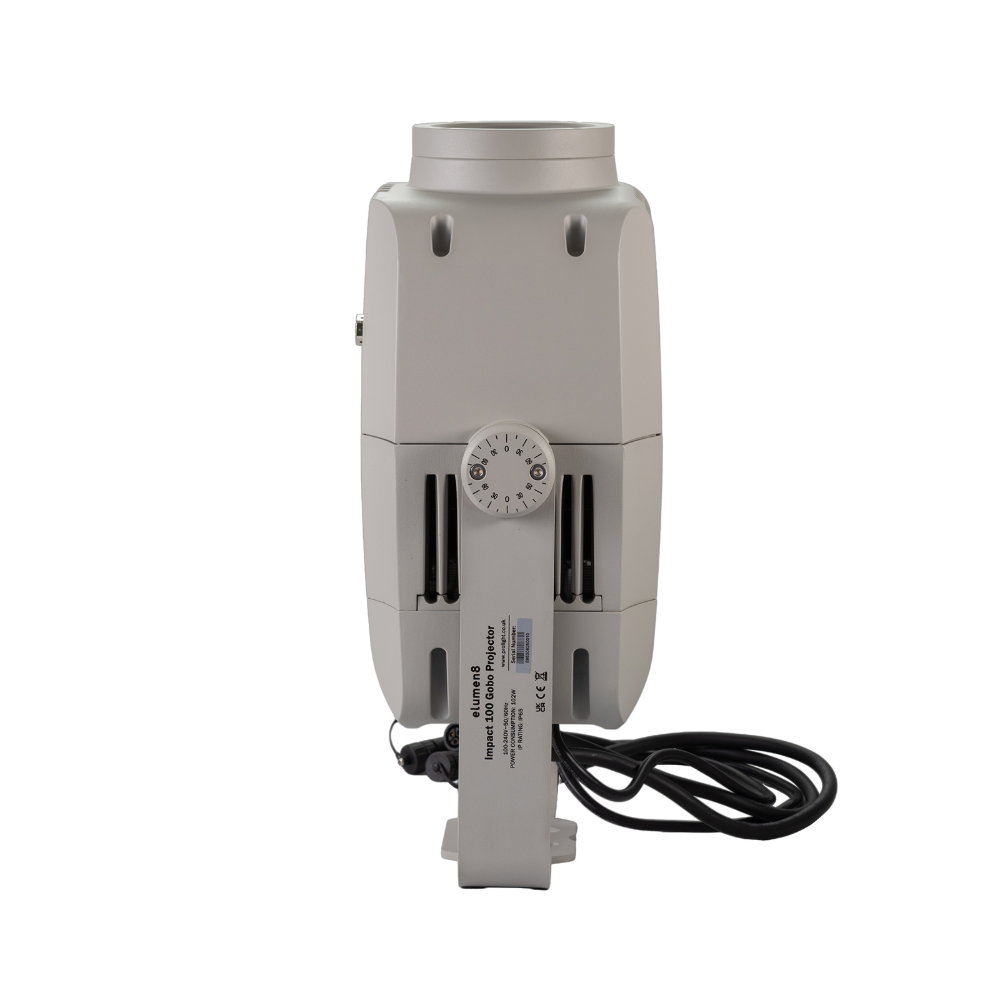

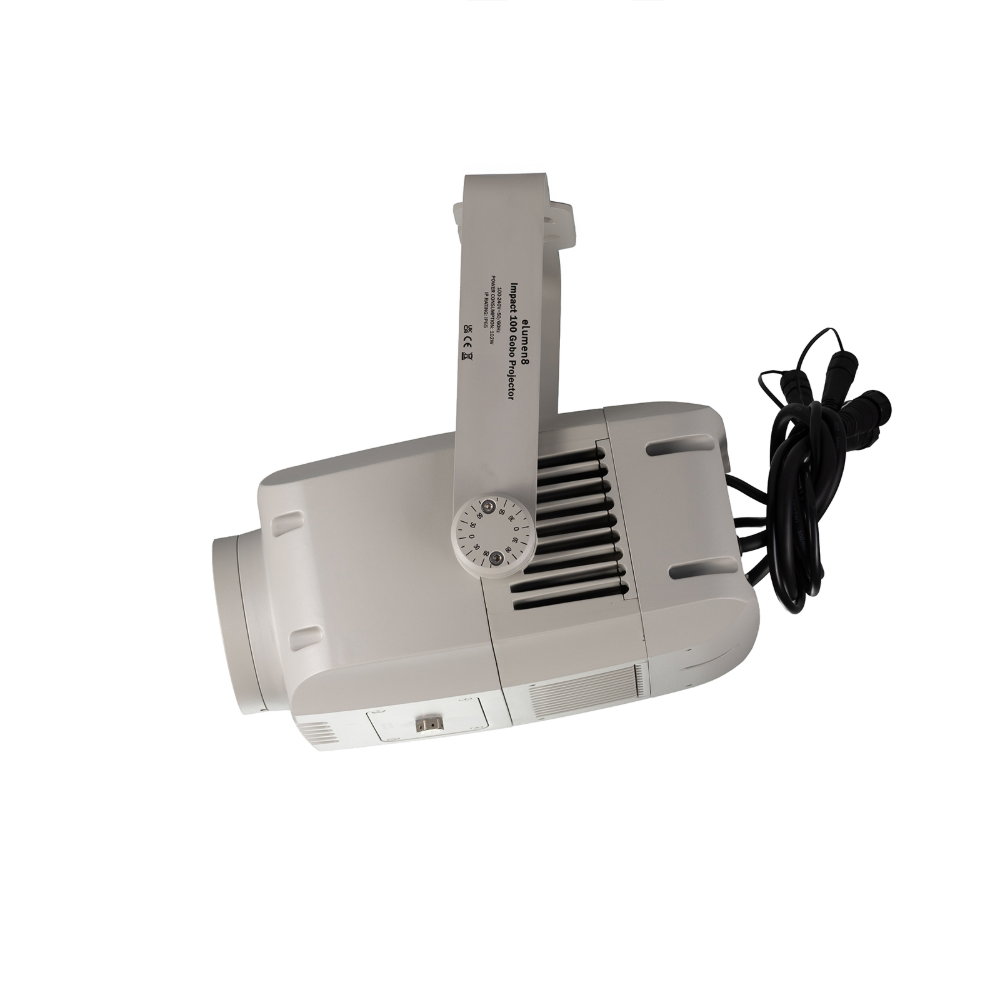

✓IP65 housing, fan cooled, supplied with hanging bracket
Specifications
| Brand | Elumen8 |
| LED | 1 x 100W white (9350K) |

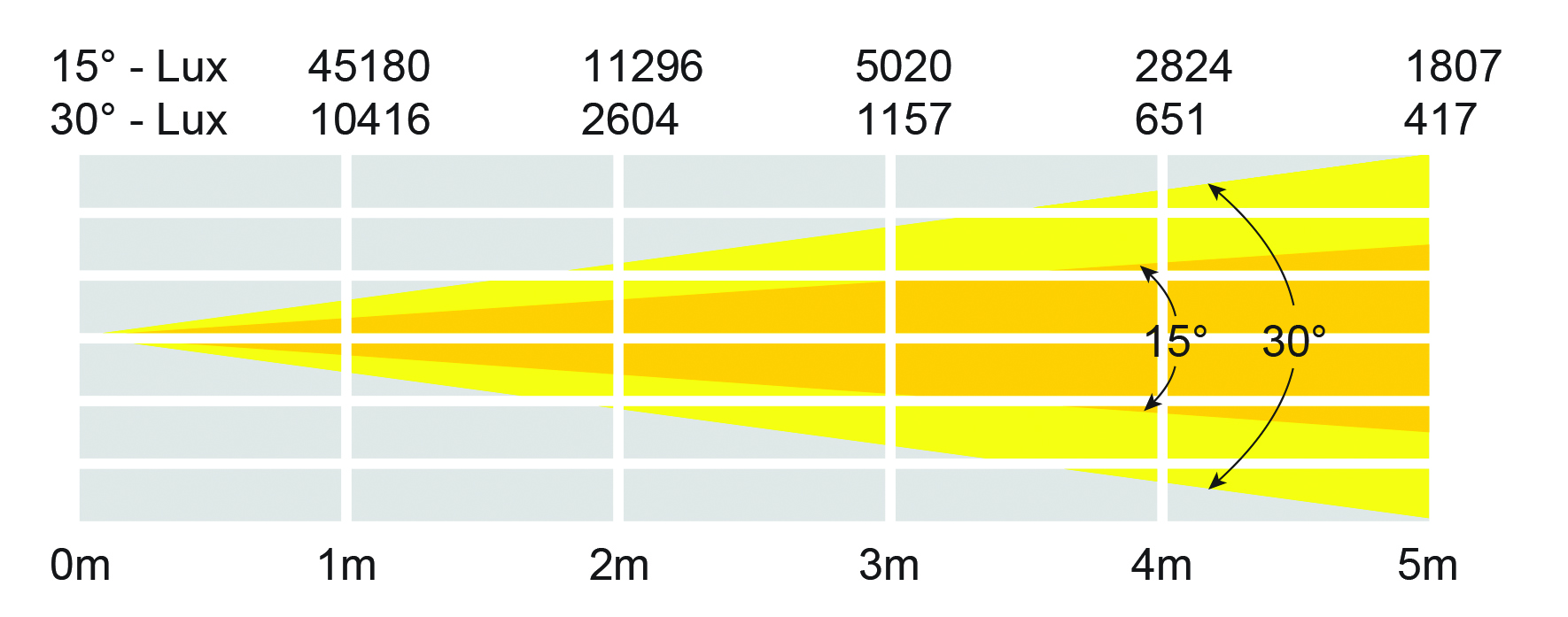

| Beam angle | 15° to 30° (motorised zoom) |
| Gobo wheel | 7 rotating, indexable, replaceable + open |
| Colour wheel | 7 colours + open |
| Prism | 3-facet rotating circular |
| DMX channels | 13 |
| Control modes | DMX, auto, sound-active, manual, master/slave |
| Housing finish | Architectural grey |
| Power consumption | 150W |
| Power supply | 100-240V, 50/60Hz |
| IP rating | IP65 |
| Dimensions (H x W x D) | 165 x 273 x 340mm |
| Weight | 11.4kg |
| Warranty | 2 years |
