The AVC2 is the alternative to a cut-off limiter: instead of killing the power when the room gets too loud, it quietly turns the system down. It sits in the line between the mixer and the amplifiers; below the threshold it does nothing, and above it, it fades the output down in steps so the level in the room barely changes however hard the DJ pushes. Because it works on the average level rather than peaks, the dynamics of the music are left alone, and at full attenuation it takes off more than the extra input, so there is no reward for driving the mixer into the red.
8 steps
Attenuation · to -30 dB
Stereo
Channels · XLR balanced
2 levels
Thresholds · Switchable
1U
Rack · 19 inch
Secure the amplifiersThe AVC2 controls the level it sends to the amplifiers, so the amps need to be locked away or their controls set and secured, otherwise the limit can be undone downstream. A tamper-proof rear cover and snap rivets are supplied to seal the settings. For control by a microphone in the room, see the AVC2D.
Features
Transparent level control on average level, not a compressor or peak limiter
Fades between 8 attenuation steps from -3 dB to -30 dB, almost undetectable in use
Takes off more than the added input at maximum attenuation, so overdriving is pointless

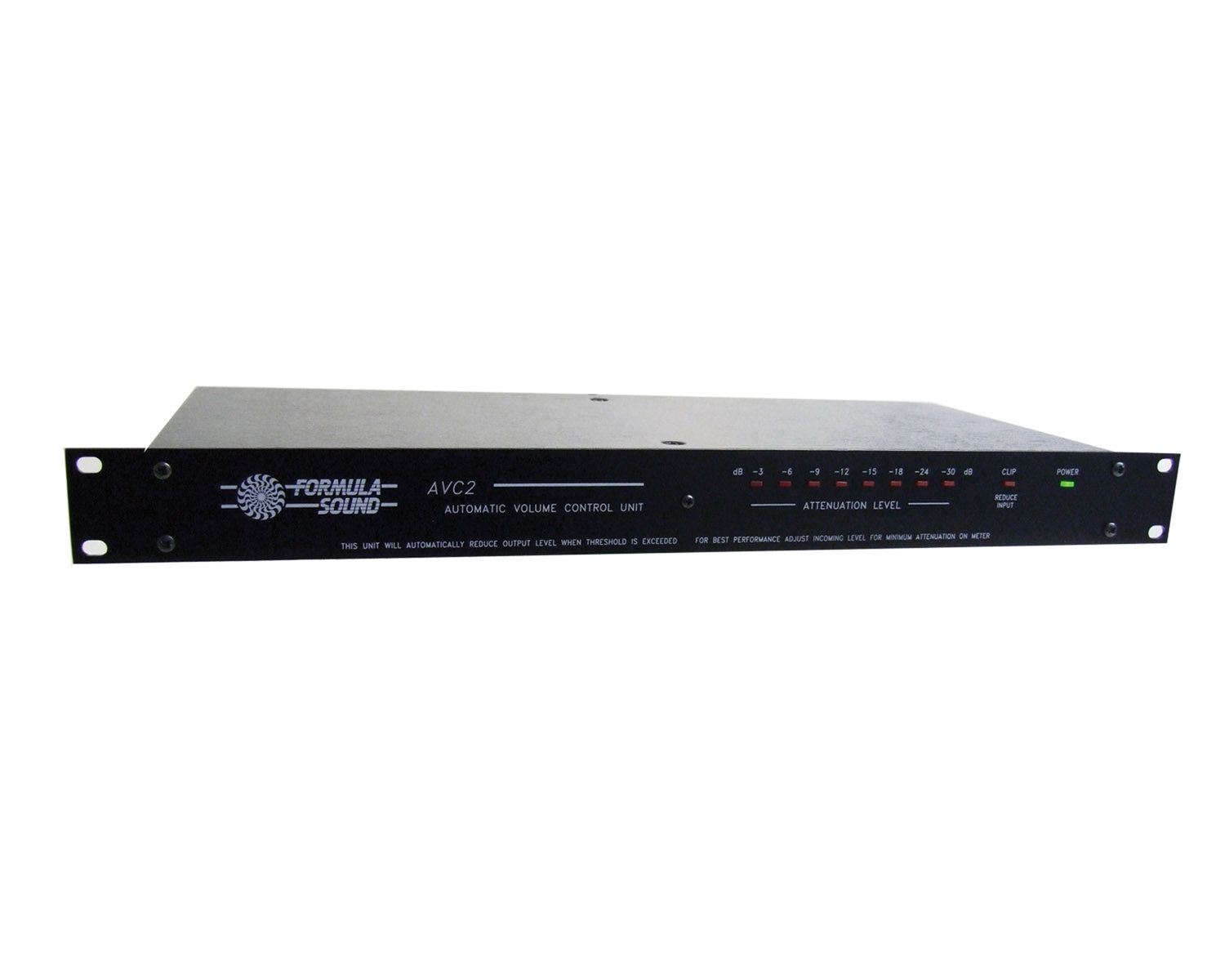

8-LED bar graph shows attenuation, with a clip LED for the input stage
Two output levels, e.g. a lower limit late at night, selected by switch or time switch
Linear, A-weighted or combined control chain
Security link input mutes the output, for fire alarm connection
Dim input drops the level by 20 dB
Warning output lights a lamp 3 dB before the unit starts to control
Remote display output for the 075R
Tamper-proof rear cover supplied as standard
Specifications
| Type | Automatic volume control, analogue, stereo |
| Attenuation | -3, -6, -9, -12, -15, -18, -24, -30 dB steps |
| Threshold | High range +5 to -2 dBu, low range -8 to -14 dBu (factory 0 VU, +4 dBu) |
| Control weighting | Linear, A or both |
| Audio connectors | XLR in and out, electronically balanced |
| Input impedance | 20 kOhm balanced, 10 kOhm unbalanced |
| Maximum input | +22 dBu (clip LED at +20 dBu) |
| Output | 100 Ohm source, 600 Ohm minimum load |
| Frequency response | 20 Hz to 30 kHz, +/-0.5 dB |
| THD | Below 0.01% at 0 dB attenuation, 0.05% at 30 dB |
| Noise (EIN) | Below -90 dBu |

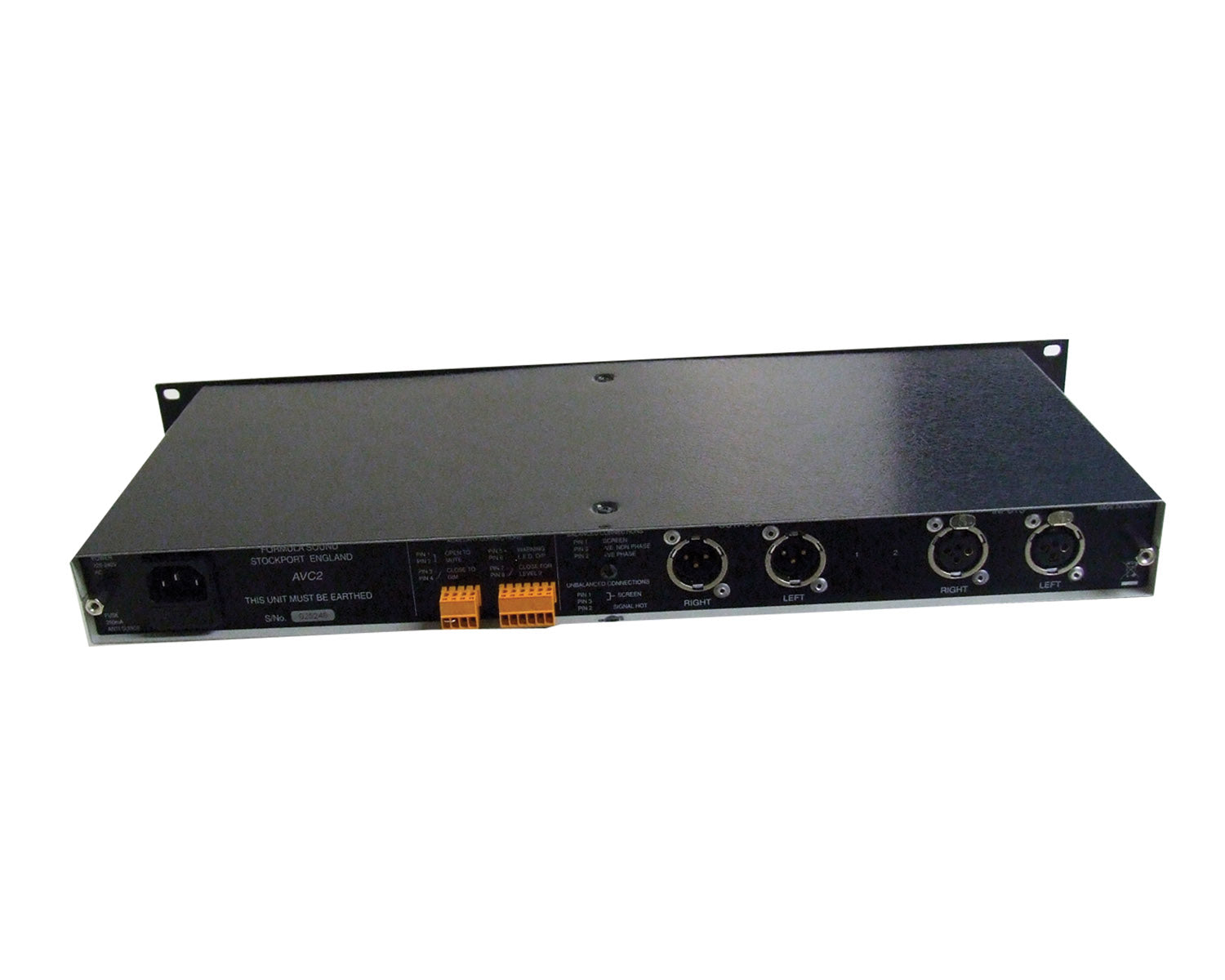

| Control connections | Plug-in terminal blocks (mating halves supplied): security/mute, dim, warning, level 2, remote display |
| Power | 220-240 V AC, IEC inlet (110 V to order) |
| Dimensions (W x D x H) | 482 x 200 x 44 mm, 1U |
| In the box | AVC2, tamper-proof rear cover, terminal block connectors, snap rivets |
| Part number | 075 |
