Global Truss 8 x 6m Round Arch Stage Roof System (Standard F34)

SKU: GT-RBB8X6
Sold out
Global Truss 8 x 6m Round Arch Stage Roof System (Standard F34)
Global Truss 8 x 6m Round Arch Stage Roof System (Standard F34)
Global Truss 8 x 6m Round Arch Stage Roof System (Standard F34)
Global Truss 8 x 6m Round Arch Stage Roof System (Standard F34)
Global Truss 8 x 6m Round Arch Stage Roof System (Standard F34)
Global Truss 8 x 6m Round Arch Stage Roof System (Standard F34)
Global Truss 8 x 6m Round Arch Stage Roof System (Standard F34)
Click to enlarge

    £38,212.00 inc VAT
    £31,843.33 ex VAT

    Out of stock

    Out of Stock
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

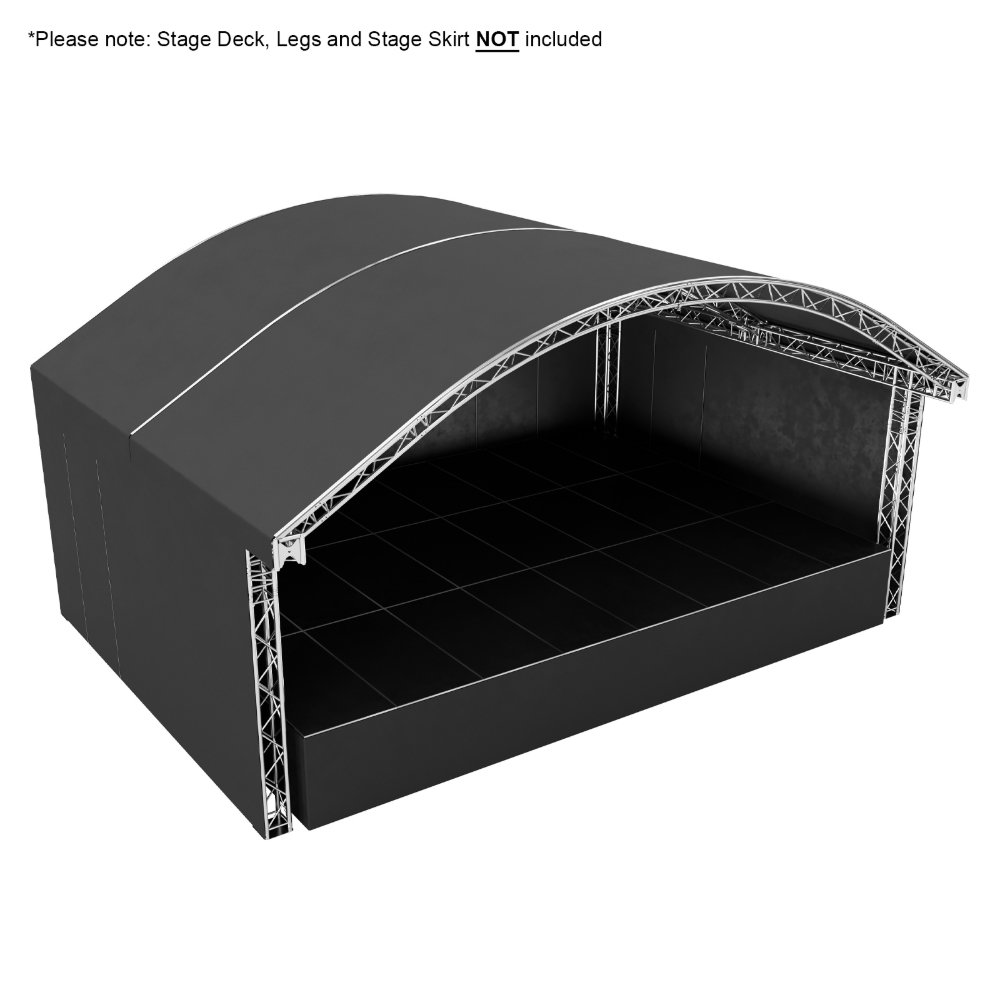

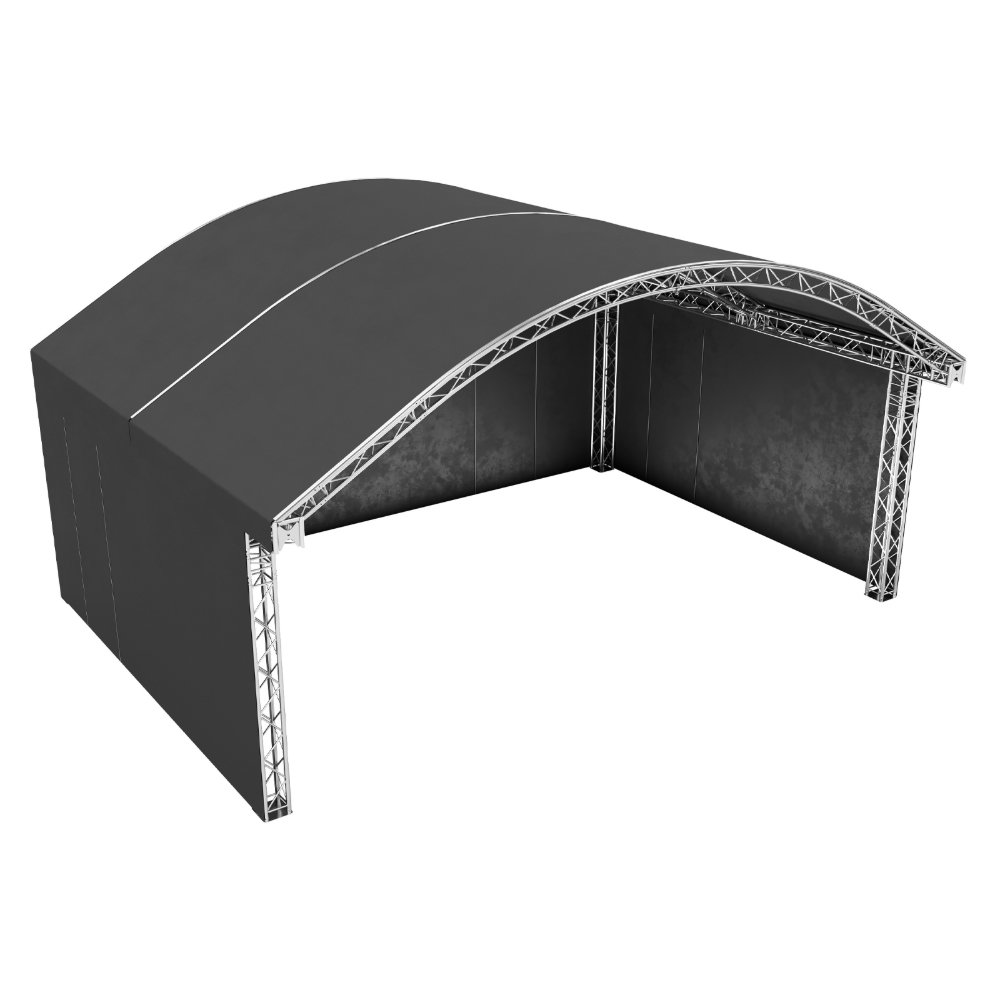

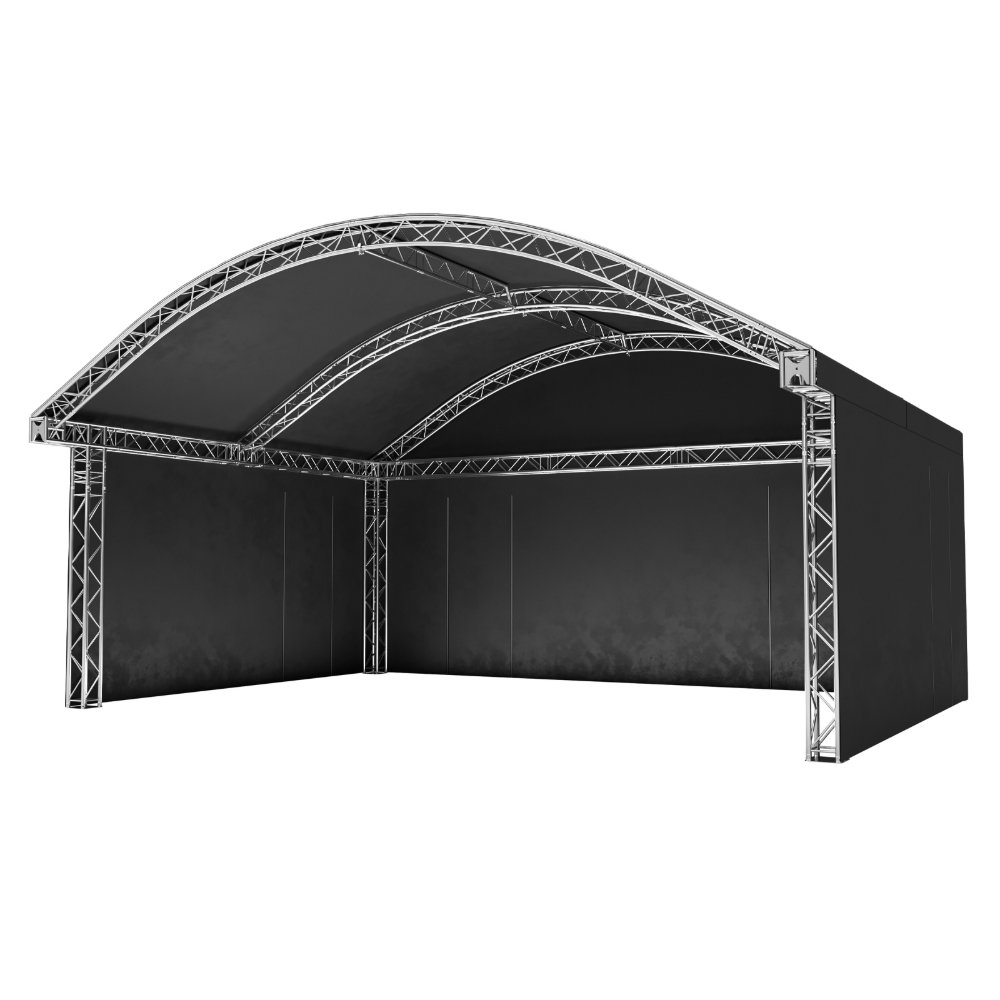

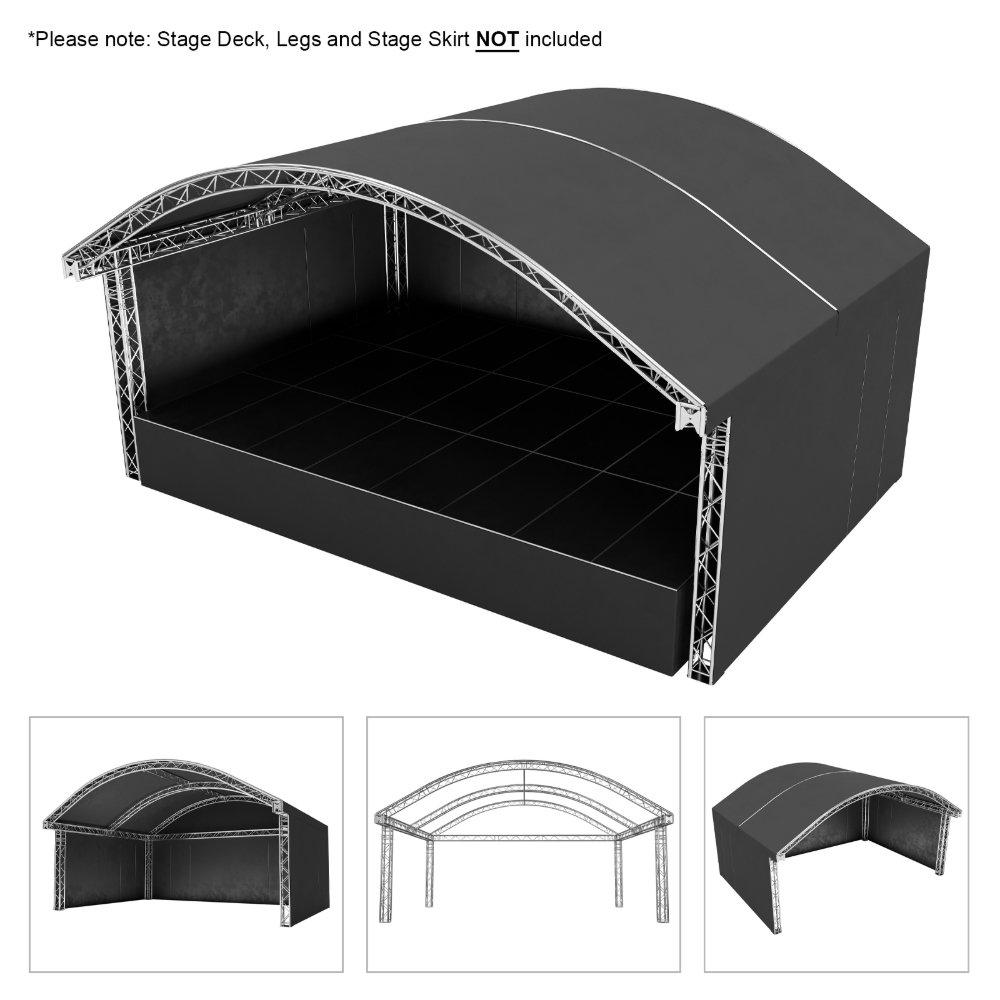

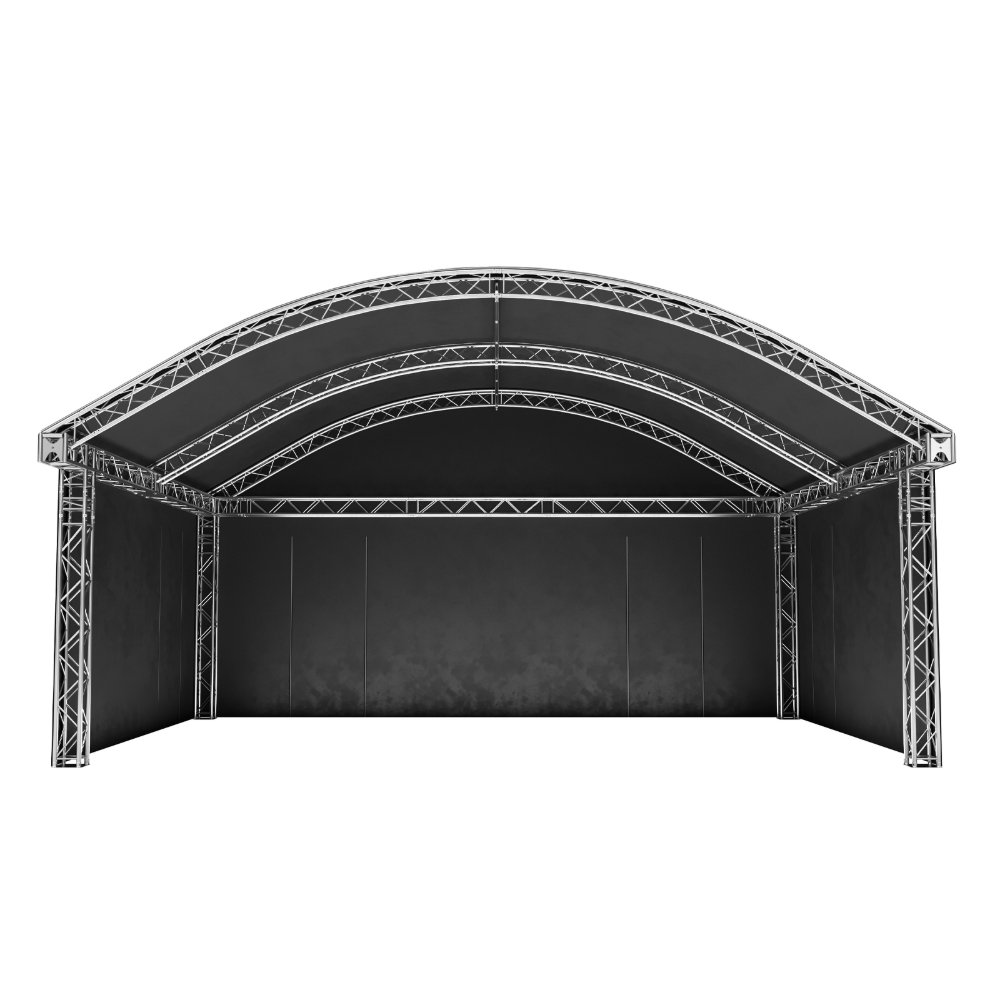

    The Global Truss GT-RBB 8 x 6m round arch stage roof is a complete, quick-to-erect covered stage solution for small to medium sized events. Its specially developed corner pieces allow the roof to be assembled without additional corner bracing or steel wires, and additional ballast options can be implemented on site – making it a dependable choice for production companies, festivals and dry-hire fleets.

    Footprint
    8 x 6m
    Width x depth

    Total Load
    1400kg
    Evenly distributed

    PA Points
    250kg
    Per front corner

    Truss System
    F34
    Standard

    Rigging & Loading

    Each front corner carries a dedicated load-bearing point rated for PA systems up to 250kg per side, with total system loading of up to 1400kg to be evenly distributed. Additional ballast options can be implemented. A competent rigger and site-specific structural sign-off are required, and all loadings should be verified against the manufacturer’s load tables for your configuration.

    Features
    ✓

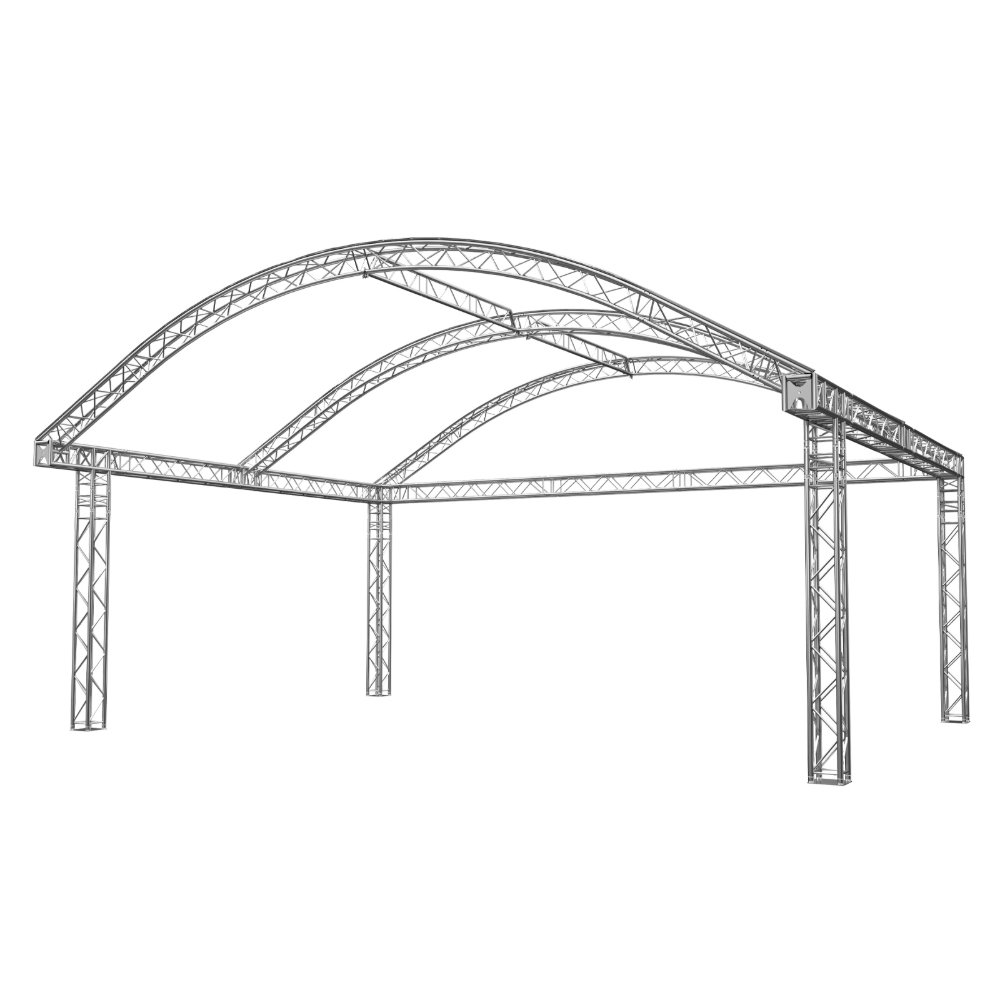

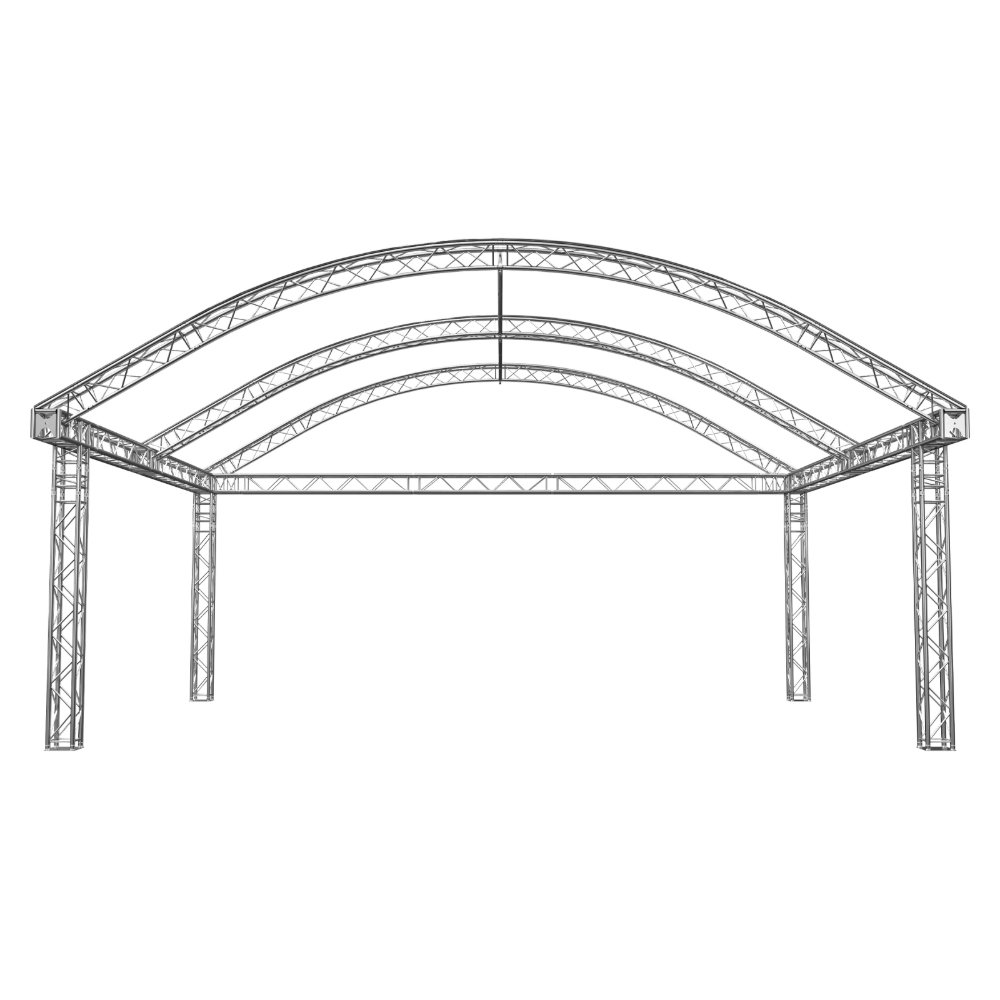

    Complete round arch stage roof on the Global Truss F34 system
    ✓
    Purpose-made corner pieces erect without extra bracing or steel wires
    ✓
    Load-bearing front corners rated 250kg per side for PA hangs
    ✓
    Up to 1400kg total evenly distributed system loading
    ✓
    Keder rail on all arch parts for easy roof tarpaulin insertion
    ✓
    Gauze side panels with 4 door cutouts
    ✓
    Side panels can be removed or rolled up and secured in high winds
    ✓
    Additional ballast options can be implemented

    Specifications
    Model GT-RBB 8 x 6 (Standard F34)
    Truss system Global Truss F34
    Footprint 8m wide x 6m deep
    PA load point 250kg per front corner
    Total system load Up to 1400kg, evenly distributed
    Roof Keder-rail tarpaulin
    Side panels Gauze, 4 door cutouts, removable/roll-up

    More Information

    • Structural report provided with system
    • The arched stage can also be built as a 6 x 4m variant (additional truss and tarpaulins are required)
    • All straight runs can be built using standard F34 trusses
    • Additional ballast options can be implemented, the minimum ballast is 4000kg
    • Maximum roof load: up to 1.9 tons (1400kg + 500kg audio)
    • Truss system: F34

    Manuals & Downloads

    PDFDatasheets & Technical Docs: GT-RBB8X6_PartsListPDF
    PDFDatasheets & Technical Docs: GT-RBB8X6_TDPDF
    PDFDatasheets & Technical Docs: GlobalTruss_Standard_P_PLPDF
