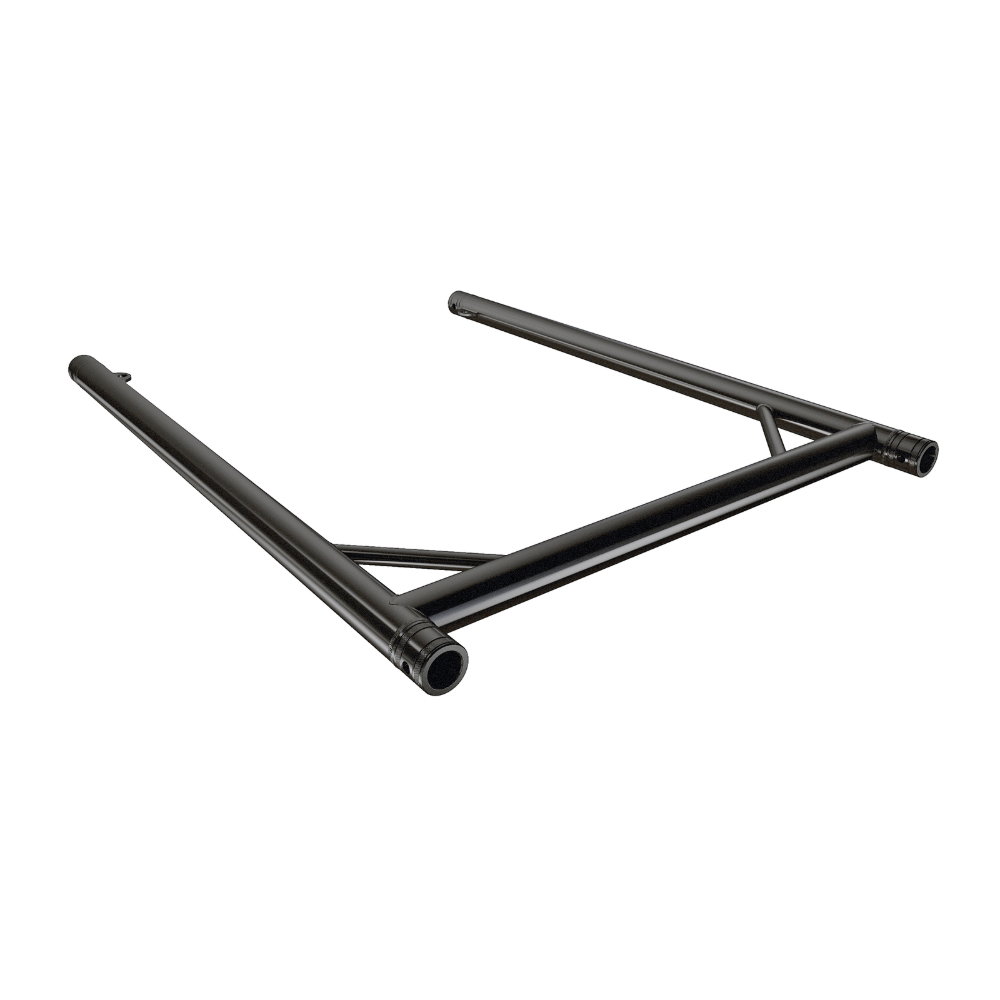

The Global Truss F31 PL modular U frame (U-Frame 70) is part of the modular F31 rigging system, giving a flexible building block for creative stage and event design. With a 70cm inner width and safety mounting points on both sides, it is built for suspended and standing configurations across touring productions, exhibitions and permanent installations. Finished in Stage Black.
Inner Width
70cm
U-Frame 70
Point Load
94kg
With U-Top 70
Stackable
Up to 10
Ladder setups
System
F31 PL
Stage Black
Loading & Fixtures
Point load capacity is up to 94kg when the frame is combined with the U-Top 70. Safety mounting points on both sides allow secure installation of various spotlight types. Always verify loadings against the manufacturer’s load tables for your rigging configuration.
Features
✓
Modular U frame for the Global Truss F31 PL system
Modular U frame for the Global Truss F31 PL system
✓
70cm inner width for flexible stage and event design
70cm inner width for flexible stage and event design
✓
Point load up to 94kg when combined with the U-Top 70
Point load up to 94kg when combined with the U-Top 70
✓
Safety mounting points on both sides for spotlight fixing
Safety mounting points on both sides for spotlight fixing
✓
Suits suspended and standing configurations
Suits suspended and standing configurations
✓

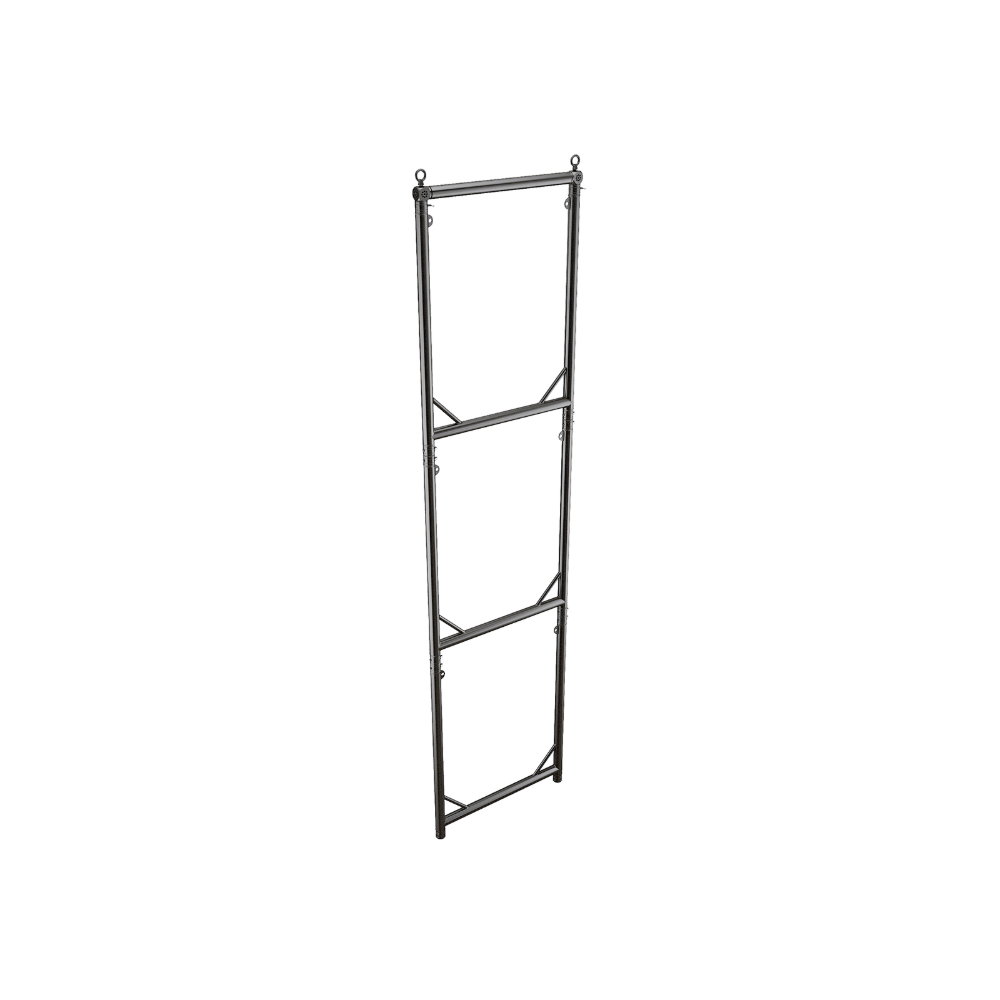

Up to 10 modules vertically connected for ladder setups
Up to 10 modules vertically connected for ladder setups
✓
Stage Black finish for a discreet stage look
Stage Black finish for a discreet stage look
✓
Ideal for touring, exhibitions and permanent installs
Ideal for touring, exhibitions and permanent installs
Specifications
| Model | F31 PL U-Frame 70 (F62105JPL / GLF62076FPLB) |
| System | Global Truss modular F31 PL |
| Inner width | 70cm |
| Point load | Up to 94kg (with U-Top 70) |
| Vertical stacking | Up to 10 modules |
| Finish | Stage Black |
