The Global Truss F34 Standard four-way cross (C41) carries two truss lines straight through each other in a flat X, the heart of any truss grid. A fully welded junction in the 290mm F34 four-point profile with 50mm main tubes and 20mm diagonals, it connects with the conical connector system of the F34 Standard range.
Features
50mm x 2mm main tubes with 20mm x 2mm diagonals
EN AW-6082 T6 aluminium alloy
Conical connector system with pins and R-clips
Fully welded aluminium construction, no bolted joints in the node
290mm x 290mm F34 four-point profile
TÜV-certified truss system
Natural aluminium and Stage Black options across the range
NoteF34 Standard and F34 PL junctions use different tube gauges and connectors and are not interchangeable at the joint, match this piece to the same F34 sub-range as your straight lengths. Load capacity is governed by the span tables for the assembled run, not a per-piece rating.
Specifications
| Series | Global Truss F34 Standard |
| Type | Four-way cross |
| SKU | GLF34C41 |

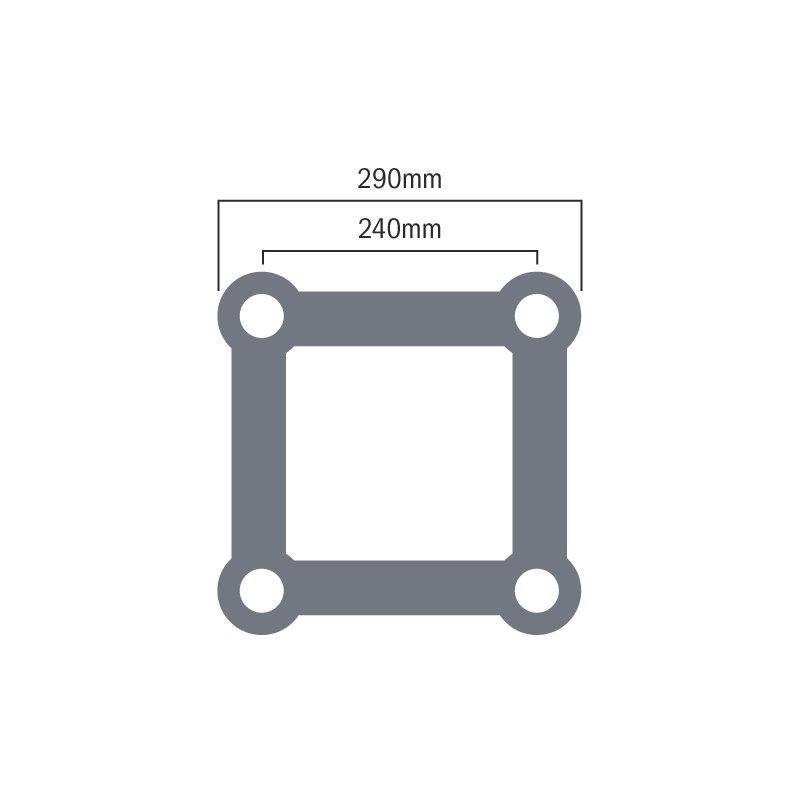

| Profile | 290mm four-point |
| Main tube | 50mm diameter, 2mm wall |
| Diagonals | 20mm diameter, 2mm wall |
| Material | Aluminium EN AW-6082 T6 |
| Weight | 8.8kg |
| Dimensions (L x W x H) | 500 x 500 x 290mm |
| Angle | 90° |

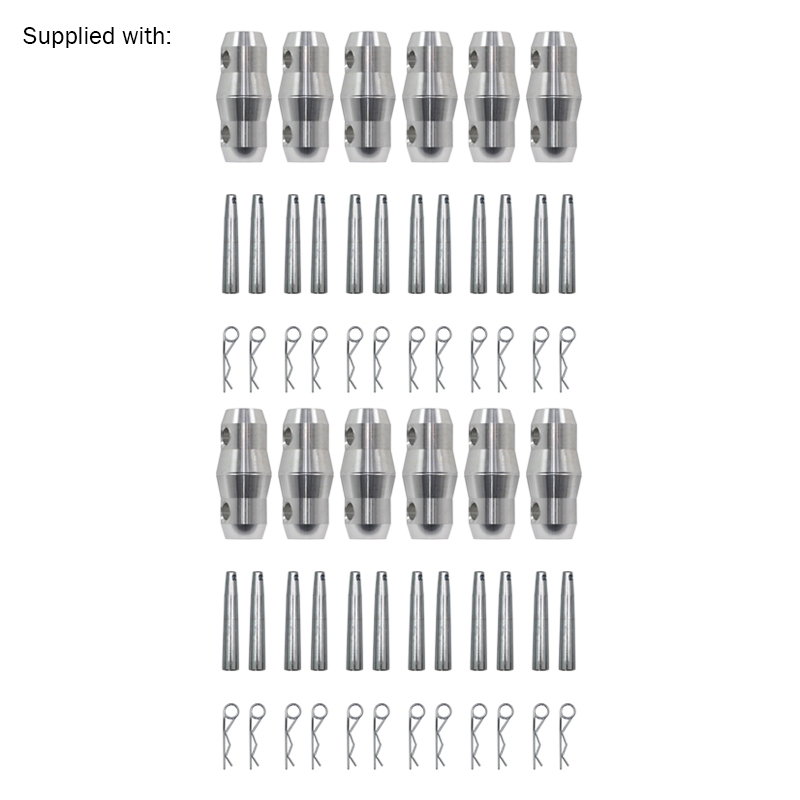

| In the box | Conical connectors included |
| Finish | Natural aluminium |
