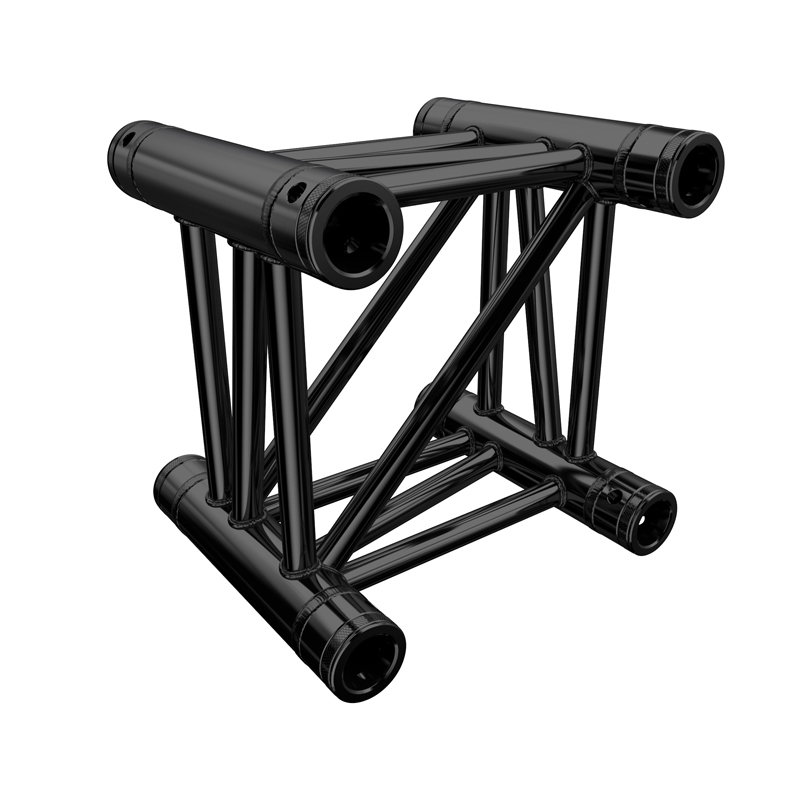

The Global Truss F34 PL 25cm straight section in Stage Black powder-coat finish is a 25cm length of 290mm four-point box truss with heavier 3mm-wall 48mm main chords in 6082-T6 aluminium. It uses the PL conical quick-connect system, tapered steel coupler pins and R-clips, assembled tool-free, which makes it the choice for touring and dry-hire stock where rig and de-rig speed matters. Short lengths like this are the make-up pieces that let a run land on an exact site dimension.
LoadingCapacity depends on span: the manufacturer’s F34 load table rates a 6m span at roughly 1,300kg UDL, falling to around 610kg at 12m (self-weight already accounted for). Apply loads at panel points only, and work from the current Global Truss load span table when planning any structure.
Features

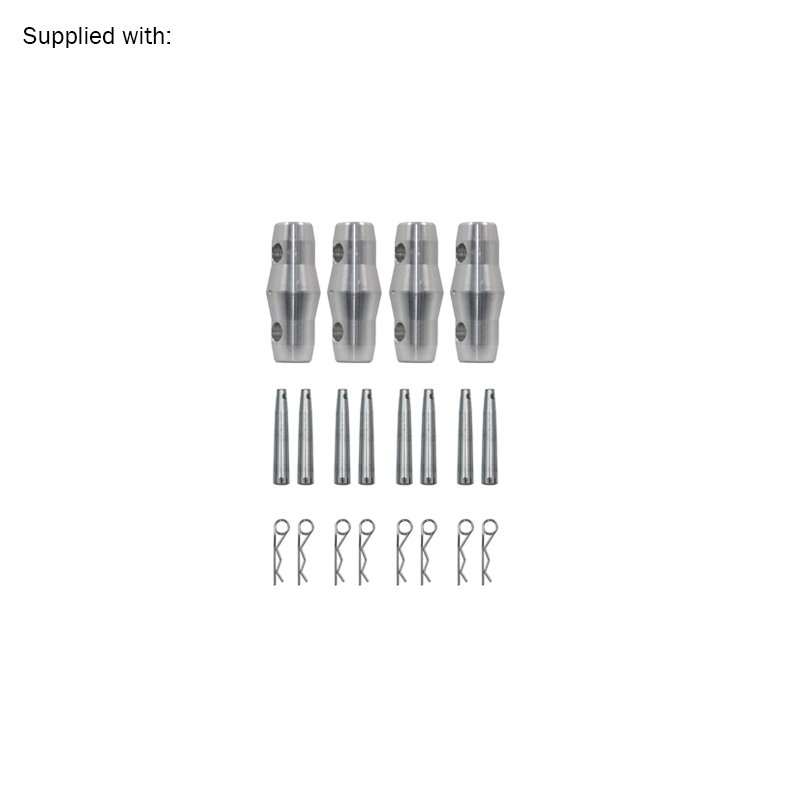

Tool-free PL conical quick-connect with steel coupler pins and R-clips
48mm main chords with heavier 3mm wall for dry-hire and touring duty

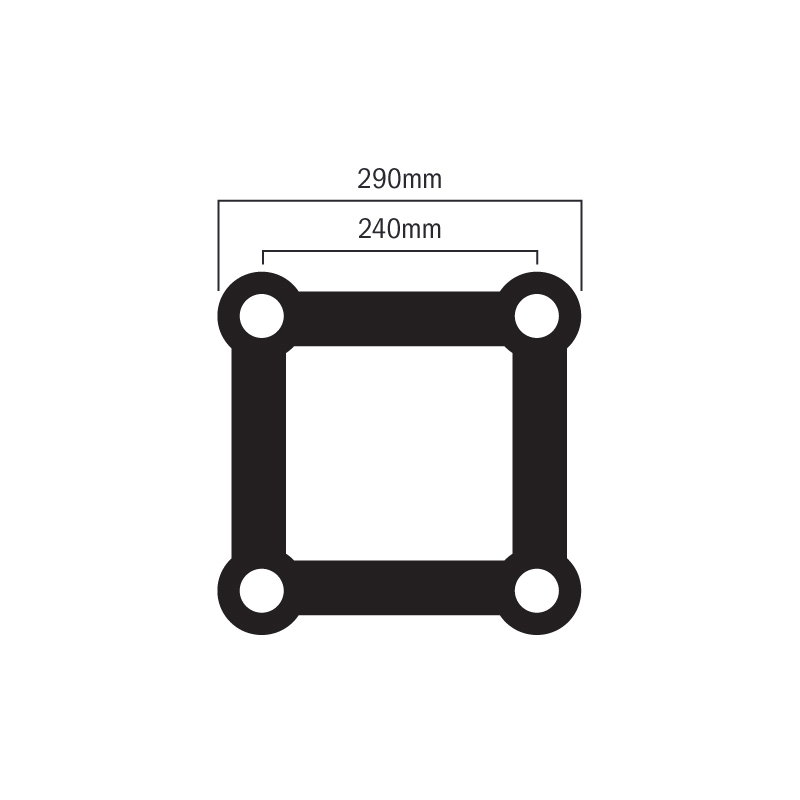

290mm x 290mm four-point box-truss cross-section
Fully welded 6082-T6 aluminium construction
TÜV-tested truss system with published load span tables
Full range of matching corners, bases and ground-support hardware
Silver and Stage Black finishes across the range
NoteF34 PL (conical) and F34 Standard (bolted) share the same 290mm profile and accessory range, but the two connection systems do not join directly to each other, keep to one system per run, or use an adapter.
Specifications
| Series | Global Truss F34 PL |
| Length | 25cm |
| SKU | GL3400B |
| Cross-section | 290mm x 290mm (four-point) |
| Main chords | 48mm diameter, 3mm wall |
| Material | Aluminium 6082-T6 |
| Connection | PL conical quick-connect |
| Finish | Stage Black |
