Global Truss Ground Support F34 PL BS0-75 Steel Outrigger 0.75m

SKU: GLF34BS075PL
Global Truss Ground Support F34 PL BS0-75 Steel Outrigger 0.75m
Global Truss Ground Support F34 PL BS0-75 Steel Outrigger 0.75m
Global Truss Ground Support F34 PL BS0-75 Steel Outrigger 0.75m
Click to enlarge

    £122.00 inc VAT
    £101.67 ex VAT

    28 available online
    Delivered by WednesdayOrder by 3pm Monday
    Click & Collect Tuesday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    Available lengths
    0.75m1.5m
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp
    Optional Add-Ons
    Global Truss Ground Support F34 PL BS Steel Base Unit Global Truss Ground Support F34 PL BS Steel Base Unit
    £602.00 inc VAT
    £501.67 ex VAT
    Add to basket

    About this Product

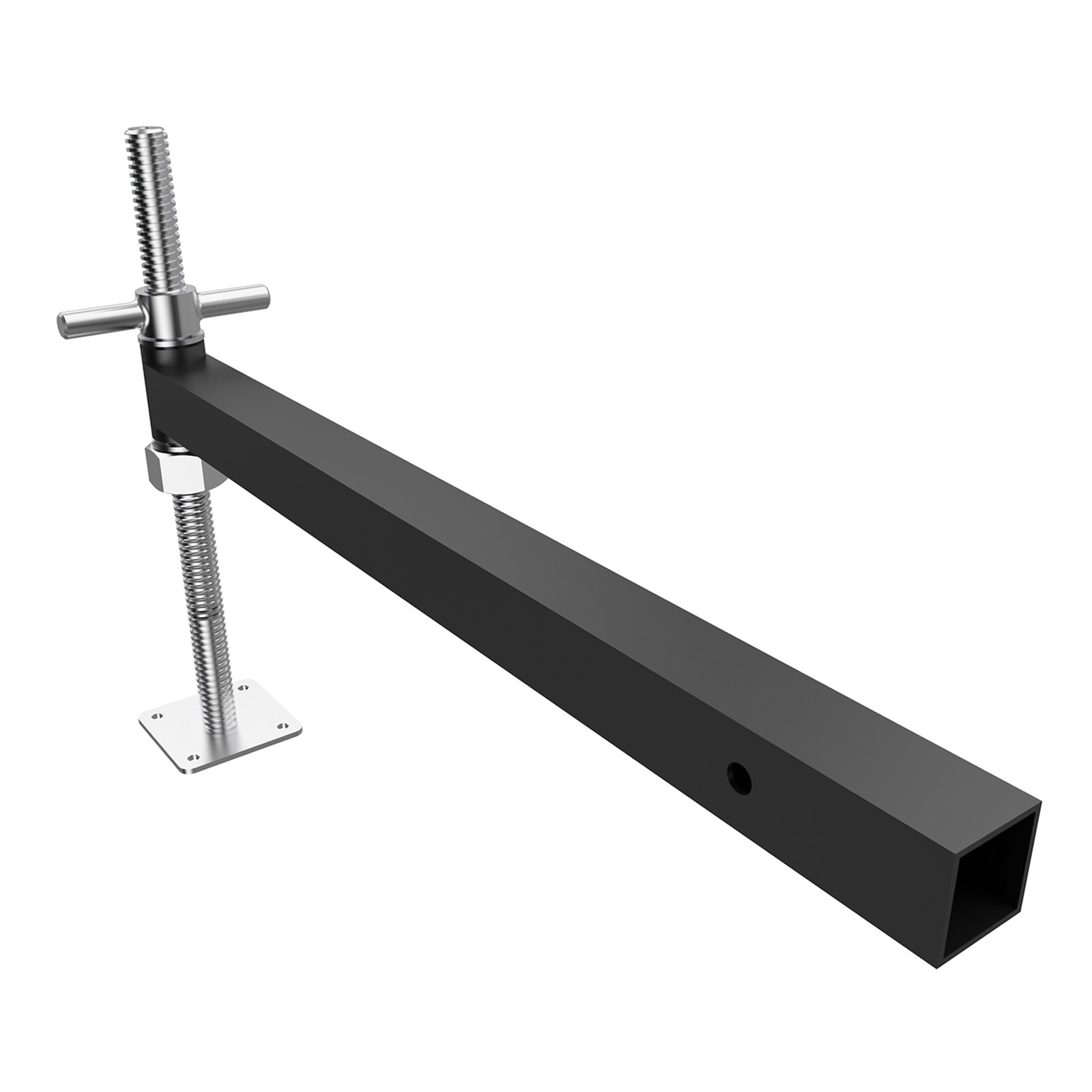

    The Global Truss BS0-75 steel outrigger bolts to the base of an F34 PL ground-support tower to widen its footprint and stabilise the lift. The 0.75m arm suits tighter footprints where the full 1.5m spread won’t fit. With the CA-3 box sleeve and pulley top it completes a lifting tower rated at 1,450kg with one outrigger in use, or 3,360kg with all four fitted.

    Features
    Steel stabilising outrigger for F34 PL ground-support towers
    System rated 1,450kg (one side) / 3,360kg (all four sides)
    Adjustable screwjack feet for levelling
    Compatible with F34, F44 and F45 systems
    Conical connection points for Global Truss hardware
    Specifications
    System Global Truss F34 PL ground support
    Type Bs0-75 steel outrigger, 0.75m
    SKU GLF34BS075PL
    Material Steel
    System lift rating 1,450kg one side / 3,360kg all four

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    Manuals & Downloads

    PDFTechnical Drawings: GLF34BS075PL_TD01PDF
    PDFTechnical Drawings: GLF34BS075PL_TD02PDF
