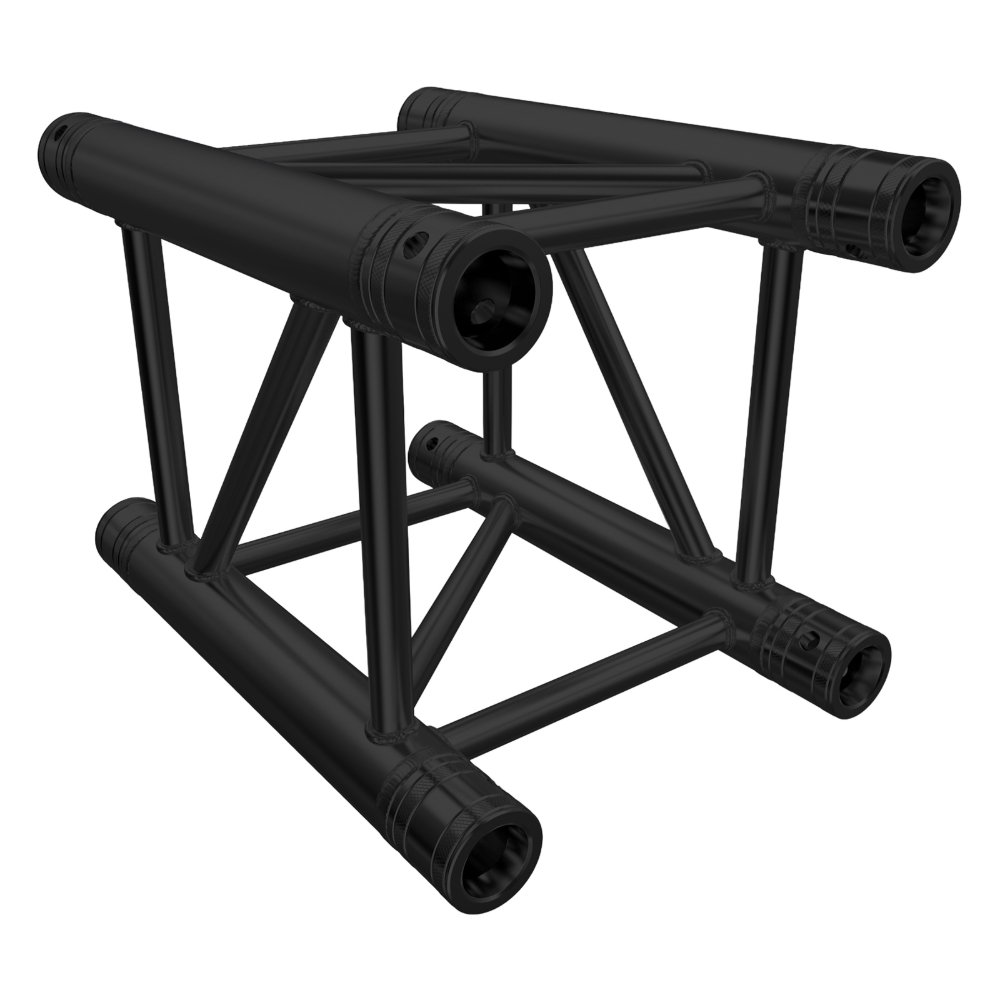

The Global Truss F34 Standard is a four-point (square) truss system with a 29cm external dimension, one of the most widely used profiles in the industry thanks to its high load capacity relative to weight and size. This 0.40m section is a short straight length, ideal for closing out spans, building compact structures and making fine adjustments in exhibition stands, shop fittings, stage roofs and outdoor builds. Supplied in a black powder-coated finish for a clean stage and event appearance.
Length
0.40m
400mm
Profile
290mm
4-point square
Main Tube
50 × 2mm
Aluminium
Finish
Black
Powder-coated
Certification
The 0.40m length is not TÜV certified. For load-critical spans requiring documented certification, specify a TÜV-certified length. This short section is intended for closing runs and structural infill.
Features
✓
Four-point (square) F34 truss, 29cm external dimension
Four-point (square) F34 truss, 29cm external dimension
✓
0.40m (400mm) short straight section
0.40m (400mm) short straight section
✓
50 × 2mm main tubes with 20 × 2mm diagonal braces
50 × 2mm main tubes with 20 × 2mm diagonal braces
✓
Supplied with conical connectors for secure assembly
Supplied with conical connectors for secure assembly
✓
High load capacity relative to weight and size
High load capacity relative to weight and size
✓
Black powder-coated finish for stage and event use
Black powder-coated finish for stage and event use
✓
Suits exhibition stands, shop fittings, stage roofs and outdoor structures
Suits exhibition stands, shop fittings, stage roofs and outdoor structures
✓
Powder coating available in any RAL colour on request
Powder coating available in any RAL colour on request
Note
This is the Standard F34 series (bolt-together conical connection), not the PL plug-in variant. The 0.40m length is not TÜV certified.
Specifications
| Brand | Global Truss |
| Series | F34 Standard (4-point / square) |
| External dimension | 290mm (29cm) |
| Length | 0.40m (400mm) |
| Main tubes | 50 × 2mm aluminium |
| Diagonal braces | 20 × 2mm aluminium |
| Connection | Conical connectors (supplied) |
| Finish | Black powder-coated (any RAL on request) |
| Certification | 0.40m length not TÜV certified |
| SKU | GLF34040B |
