The Global Truss F34 Standard 1.0m straight section is a 1.0m length of 290mm four-point box truss with 2mm-wall 50mm main chords in 6082-T6 aluminium. It uses the Standard conical connection, with conical connectors, pins and R-clips supplied, the economical choice for installations and structures that stay up once built.
LoadingCapacity depends on span: the manufacturer’s F34 load table rates a 6m span at roughly 1,300kg UDL, falling to around 610kg at 12m (self-weight already accounted for). Apply loads at panel points only, and work from the current Global Truss load span table when planning any structure.
Features

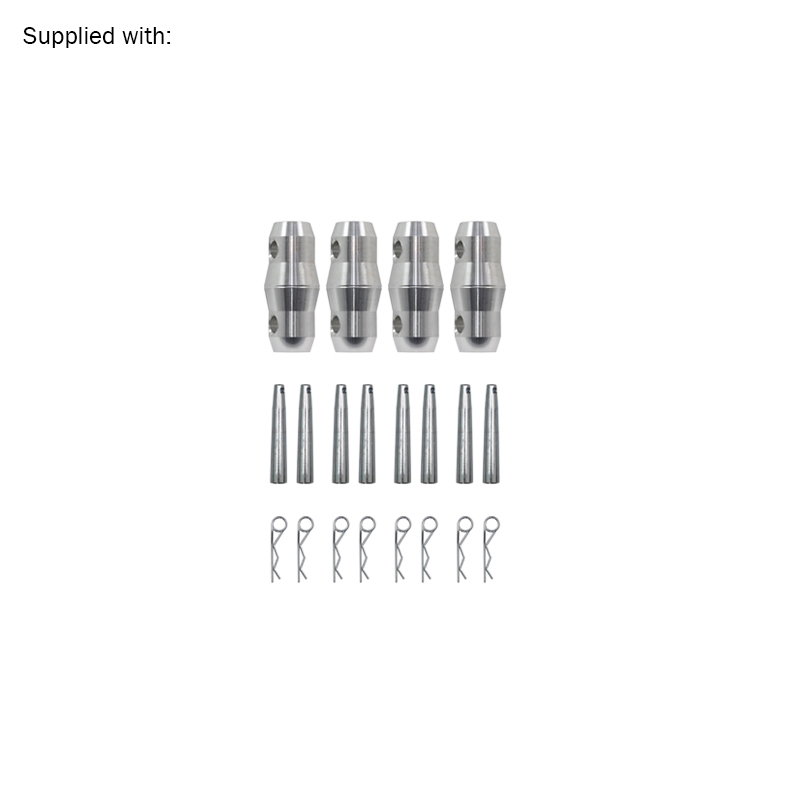

Conical connectors, pins and R-clips supplied
50mm main chords with 2mm wall, economical for fixed installations

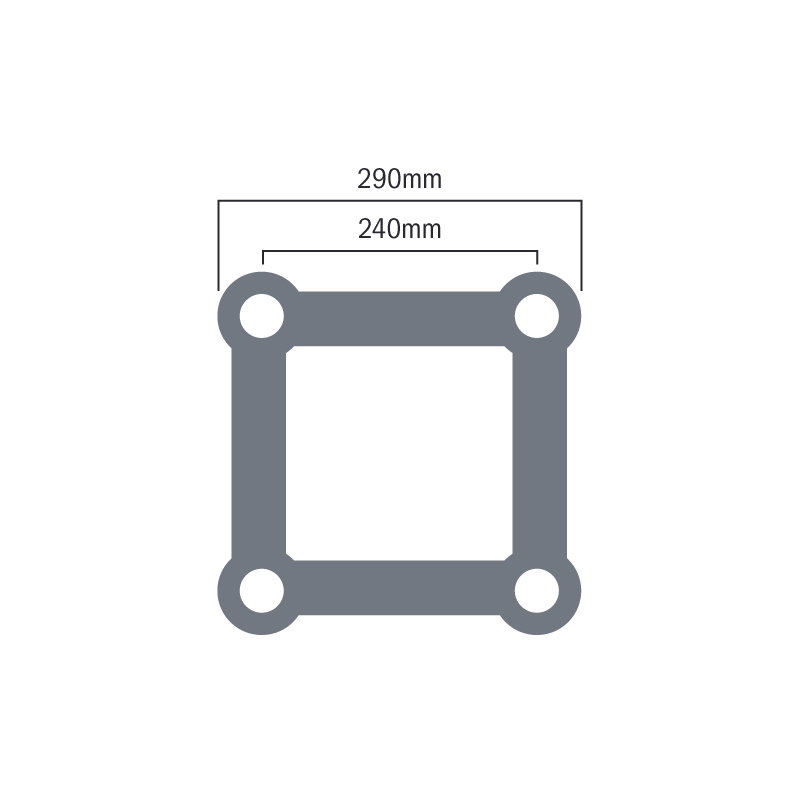

290mm x 290mm four-point box-truss cross-section
Fully welded 6082-T6 aluminium construction
TÜV-tested truss system with published load span tables
Full range of matching corners, bases and ground-support hardware
Silver and Stage Black finishes across the range
NoteF34 PL and F34 Standard share the same 290mm profile and accessory range, and both use conical connectors, but the two conical systems do not join directly: keep to one system per run, or use the Global Truss PL to Standard conical adaptor.
Specifications
| Series | Global Truss F34 Standard |
| Length | 1.0m |
| SKU | GLF34100 |
| Cross-section | 290mm x 290mm (four-point) |
| Main chords | 50mm diameter, 2mm wall |
| Diagonals | 20mm diameter, 2mm wall |
| Material | Aluminium 6082-T6 |
| Connection | Conical connectors with pins and R-clips (supplied) |
| Finish | Natural aluminium |
