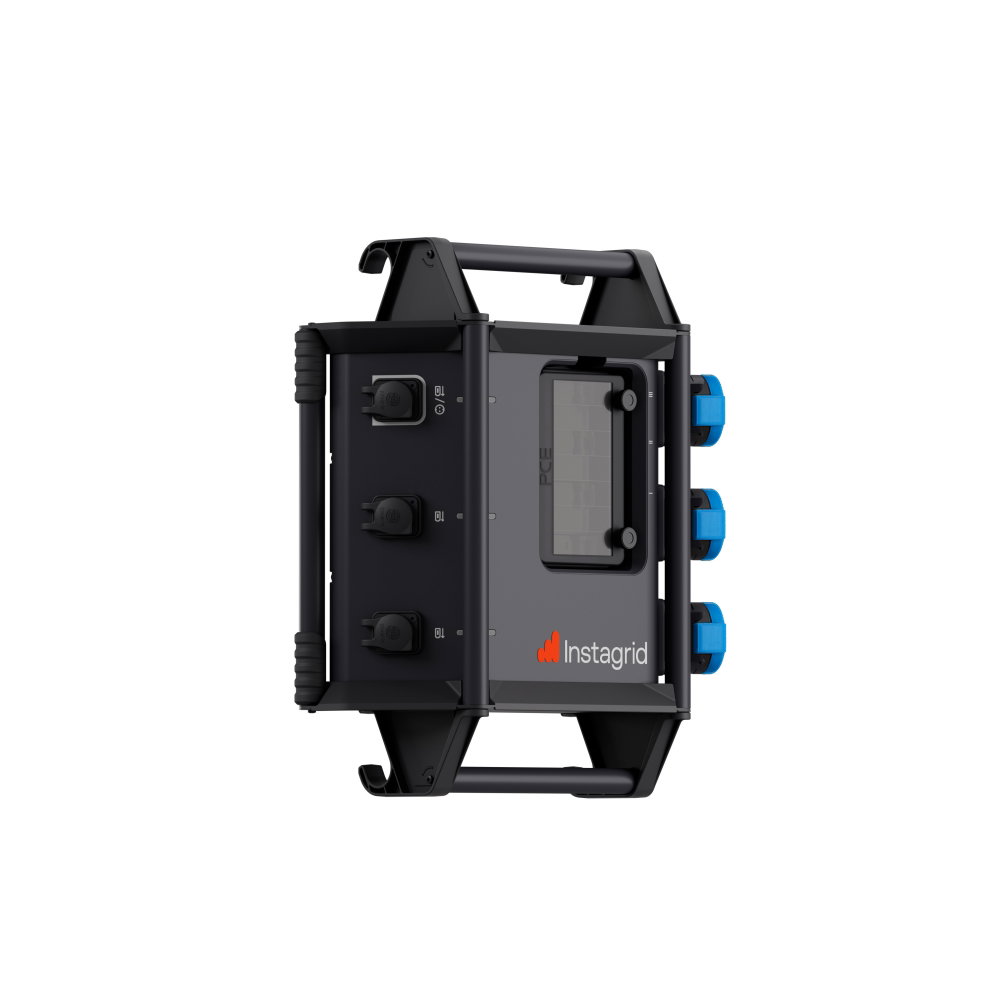

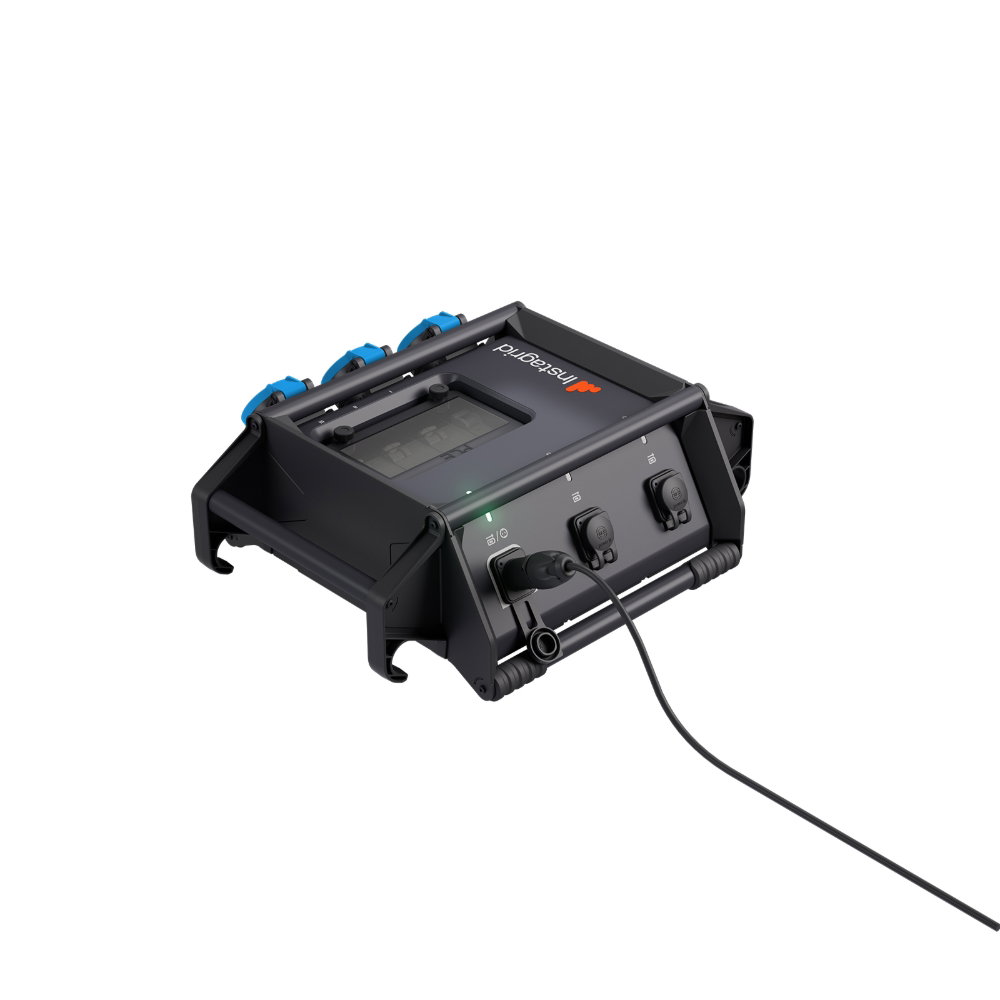

The Instagrid LINK 36 is a distribution and automatic changeover box for the Instagrid ONE. It takes up to three 230 V sources on Neutrik powerCON TRUE1 TOP inputs and feeds three RCD-protected 16 A CEE outputs. With ONEs on the inputs it runs one unit until it is empty before moving to the next, so a flat ONE can be unplugged and recharged while the others carry on, giving an all-day supply without a generator. With mains on the primary input and ONEs behind it, it becomes an uninterruptible supply, switching to battery in under 20 ms if the mains drops, which keeps sensitive kit such as consoles and media servers running.

3 inputs
powerCON TRUE1 TOP
3 x 16A
CEE outputs, RCD
<20ms
Changeover
4.5kg
IP54
3.6 kW in total, not per sourceThe LINK 36 draws from one input at a time, so extra ONEs add runtime, not power: the total across all three outputs is 16 A, 3,600 W. The outputs are blue 16 A CEE (IEC 60309) sockets, so equipment on 13 A plugs needs CEE to 13 A adaptors. For 400 V three-phase from three ONEs, see the Instagrid LINK MAX.

Features

Three inputs: one primary and two secondary, Neutrik powerCON TRUE1 TOP
Primary input always takes priority when live, e.g. mains
Switches from primary to secondary in under 20 ms
Return to the primary is delayed so a restored source is not loaded abruptly
Secondary inputs run one ONE flat before starting the next, so units can be hot-swapped

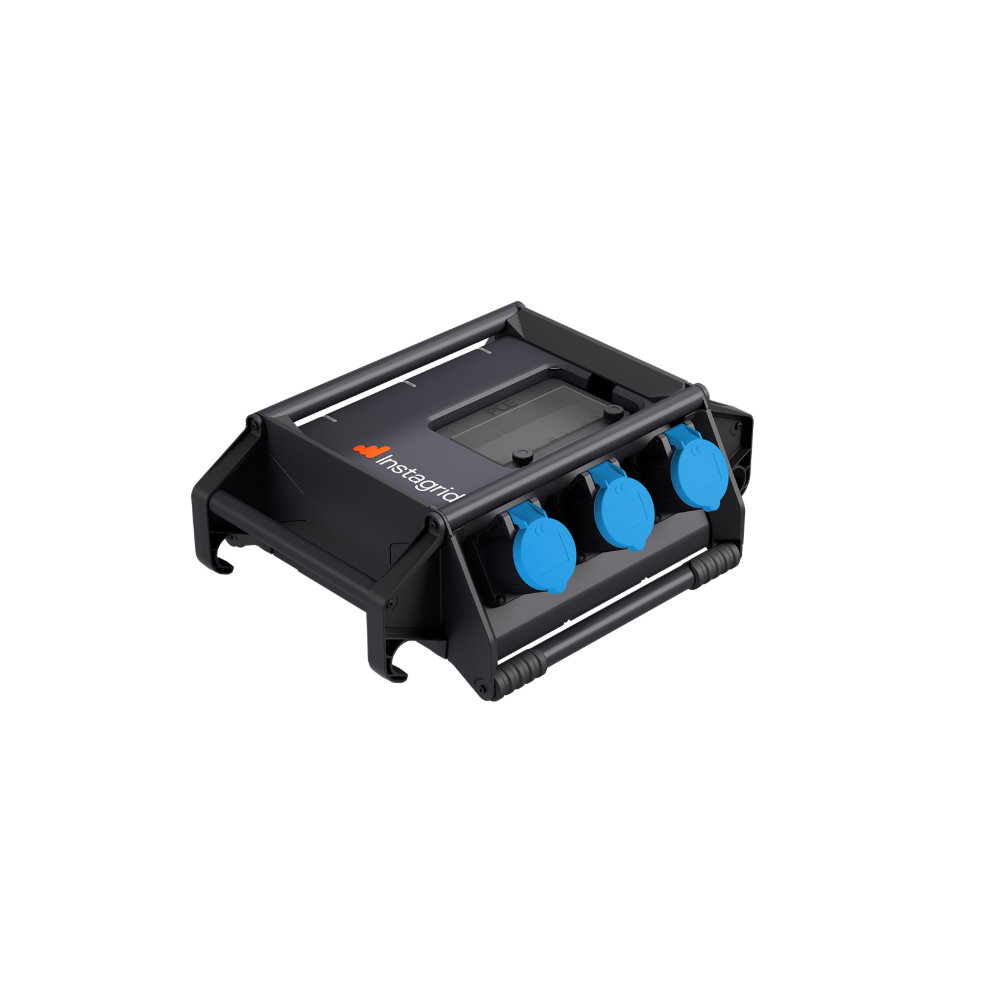

Three 16 A CEE outputs, each with its own 30 mA Type A RCD
16 A circuit breaker on the output line

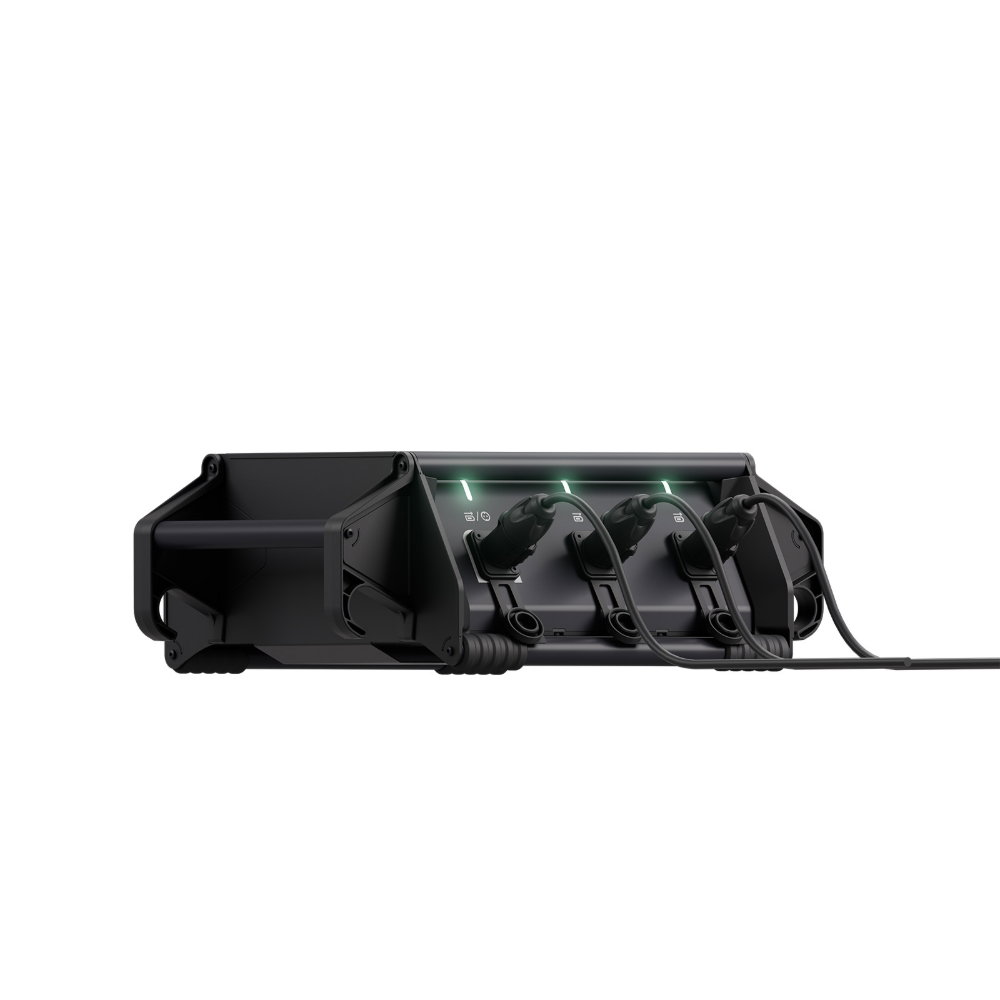

Status LED per input: active, standby, inactive or service

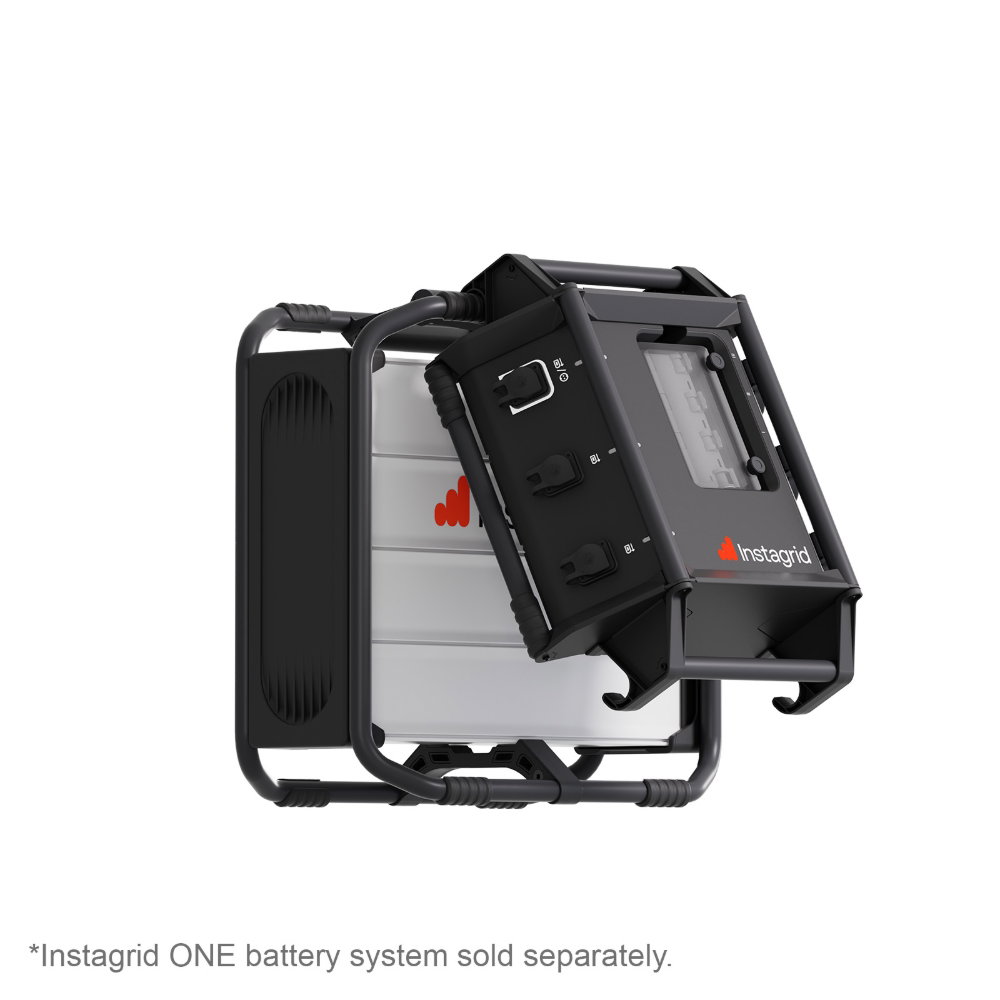

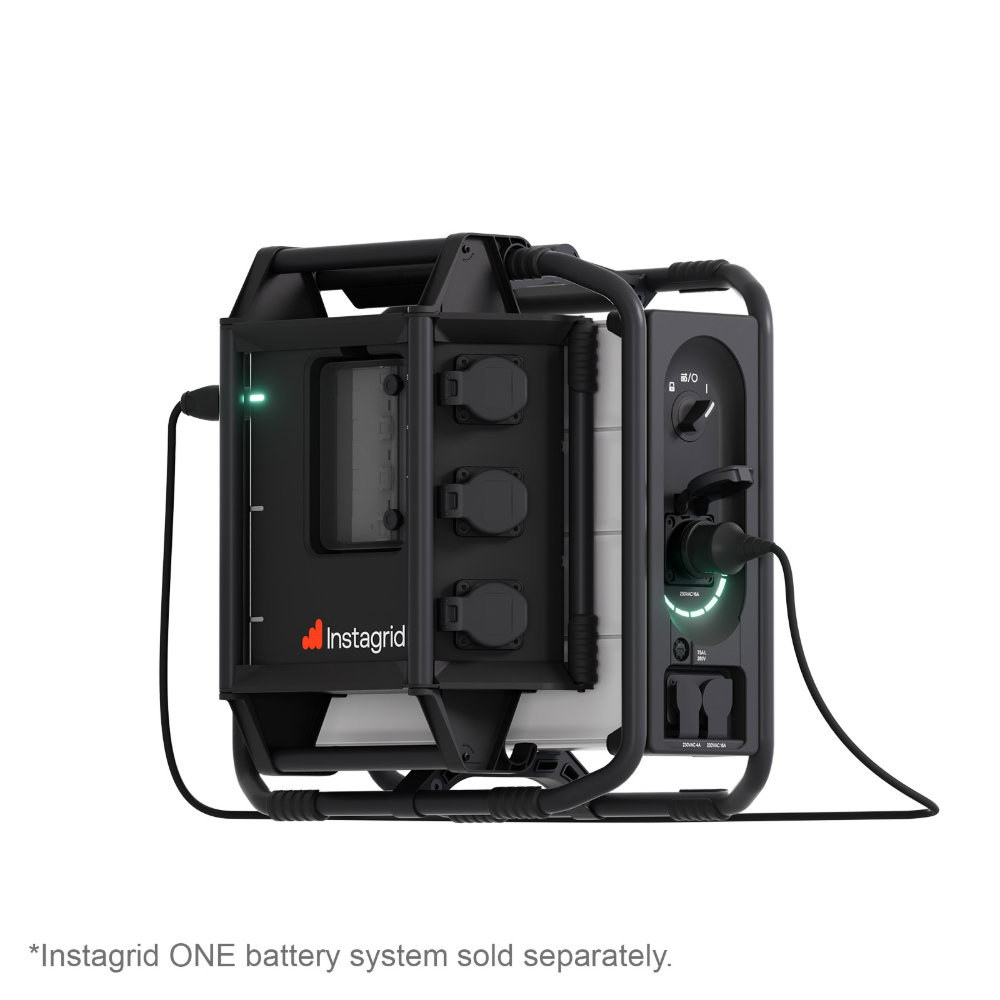

Handle and hook, shaped to sit on top of an Instagrid ONE
Feet, screw fixing or strap mounting for custom installs
Works with Instagrid ONE or any 230 V AC source, including mains

Specifications

Instagrid LINK 36 Power Distributor and Changeover, 3x 16A CEE, IP54 specifications
Type Power distributor with automatic changeover (ATS)
Compatible with Instagrid ONE, or any 230 V AC source
Inputs 3 x Neutrik powerCON TRUE1 TOP (1 primary, 2 secondary)
Outputs 3 x CEE (IEC 60309) 230 V, 16 A, 3-pin 6h
Rated voltage 230 V AC, 50 Hz
Maximum output 16 A, 3,600 W in total
Switching time Under 20 ms
Residual current protection 3 x 1P+N RCD Type A, 30 mA (one per socket)
Line protection 1P 16 A circuit breaker
Rating IP54
Operating temperature -15 °C to 40 °C
Dimensions 400 x 310 x 140 mm
Weight 4.5 kg
Part number 990-00002 (LINK 36, Type CEE, 230 V, 16 A, IP54)

Full features

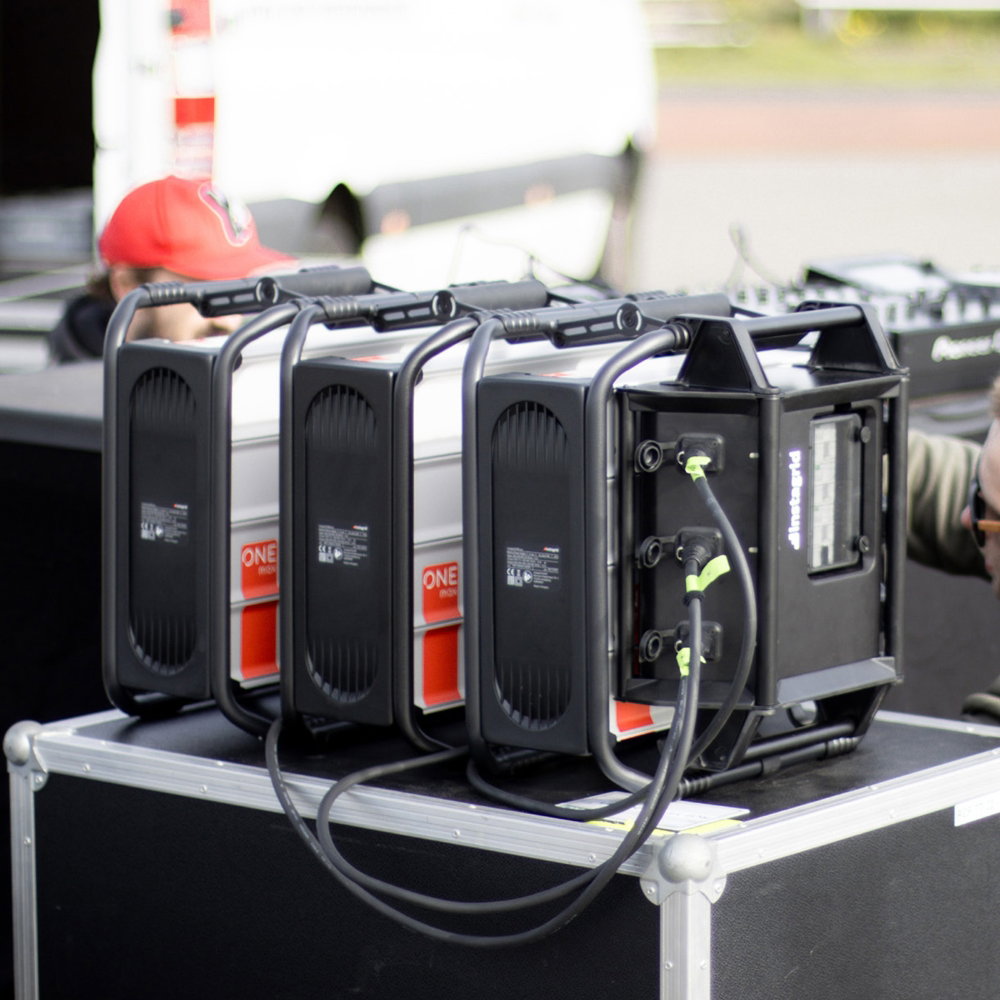

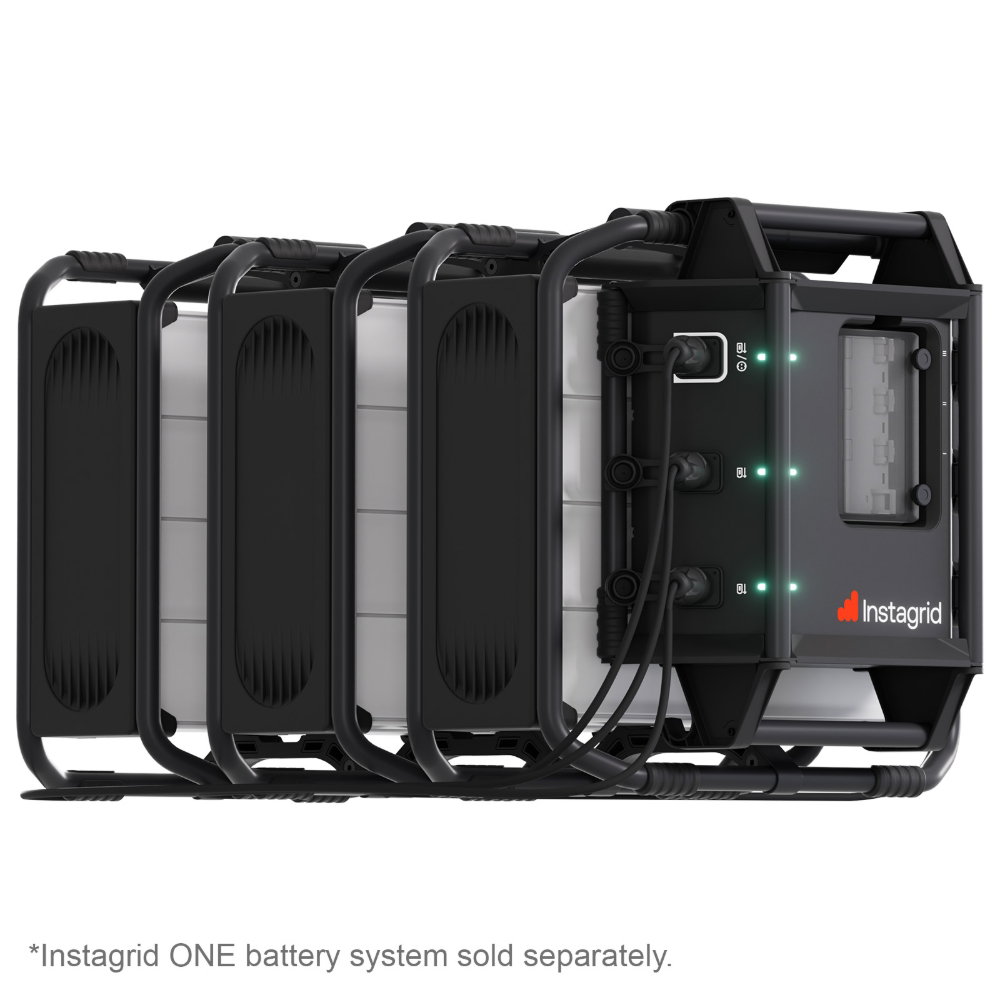

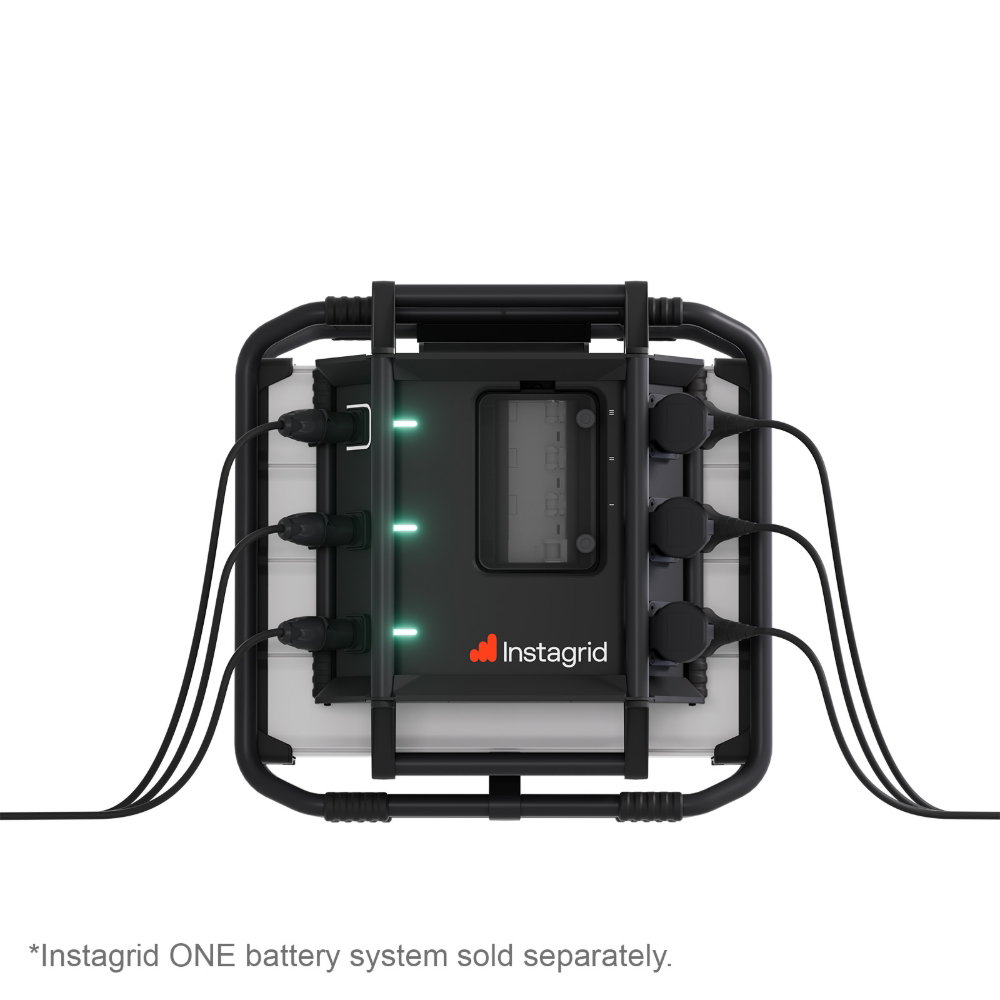

  • Connect up to 3 Instagrid ONE units for expanded energy capacity
  • Hot-swappable batteries for virtually unlimited runtime
  • 3x individually RCD-protected 230V outputs (CEE-Form IEC 60309)
  • Seamless switch from mains to battery in under 20ms
  • Compact, rugged steel frame weighing only 4.5kg
  • IP54 rated for indoor and outdoor use

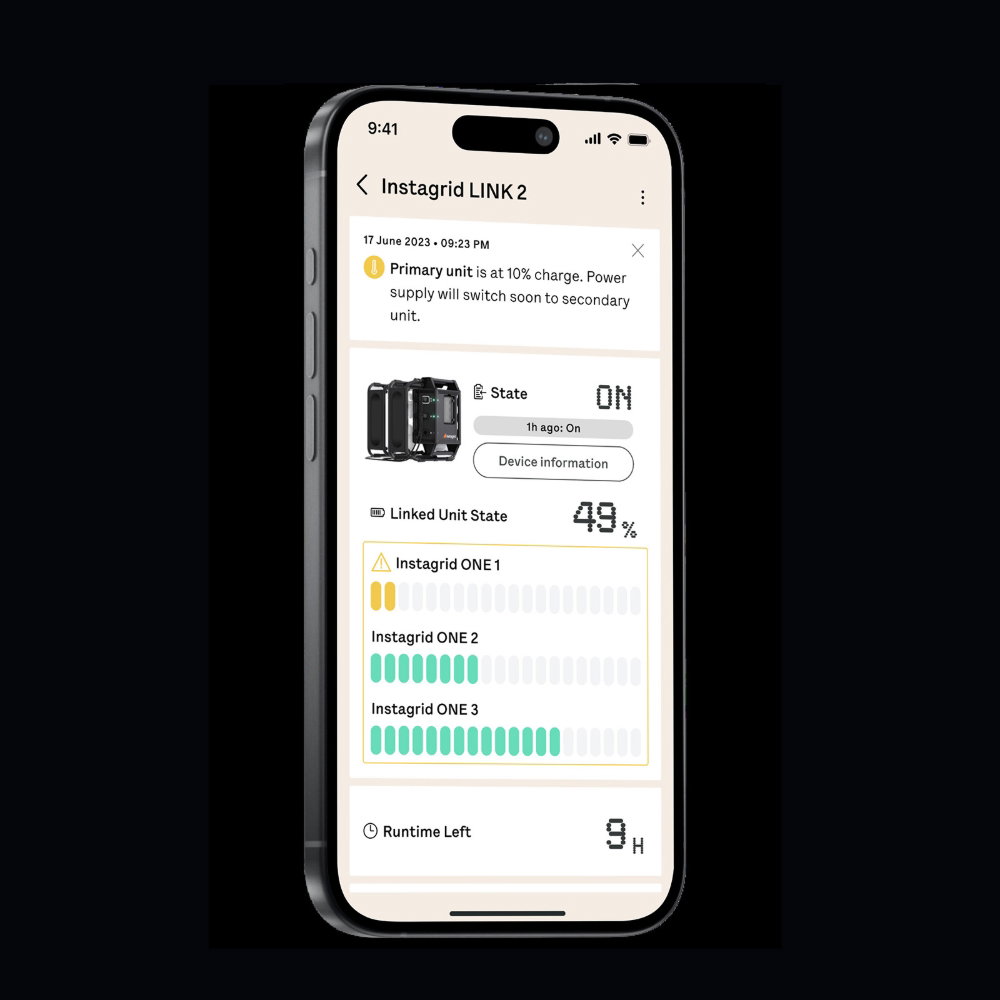

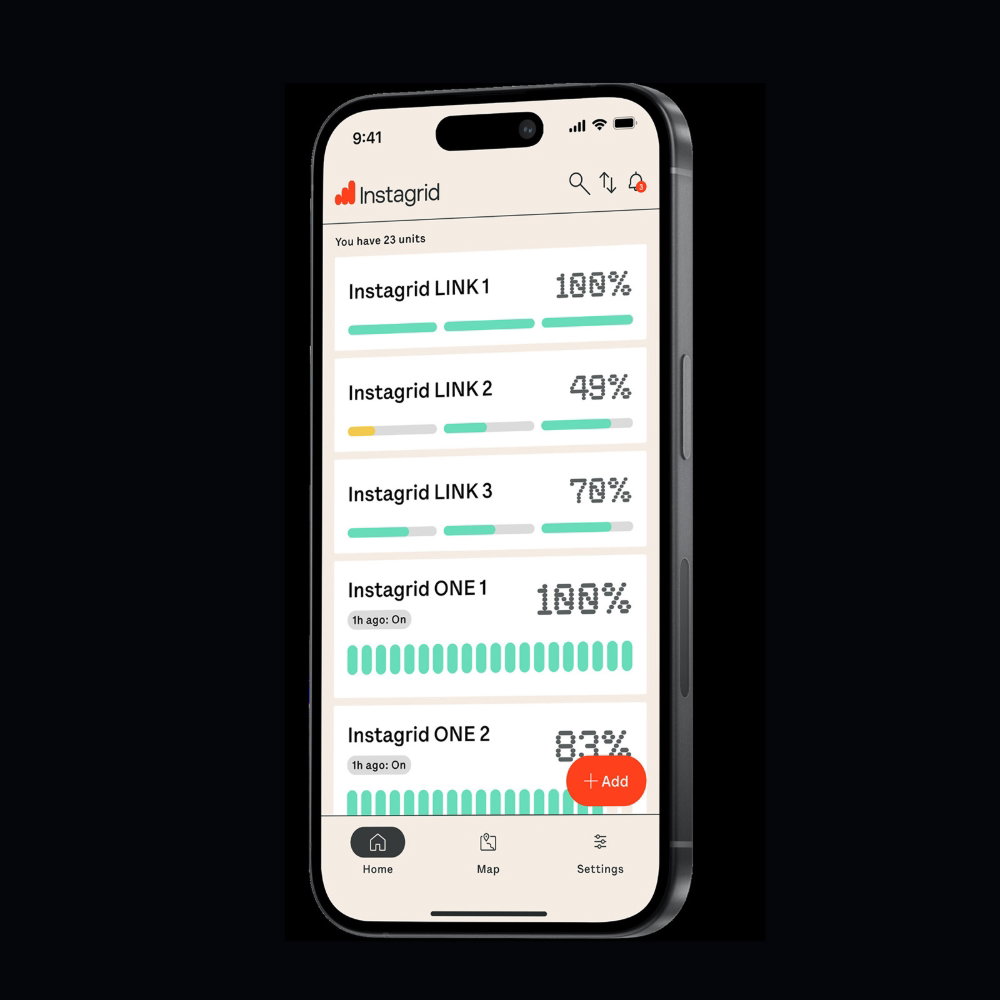

  • Compatible with Instagrid App for monitoring location, runtime, and charge
  • Supplied with 2 x 2m TRUE1 Link Cables
  • Example use cases:

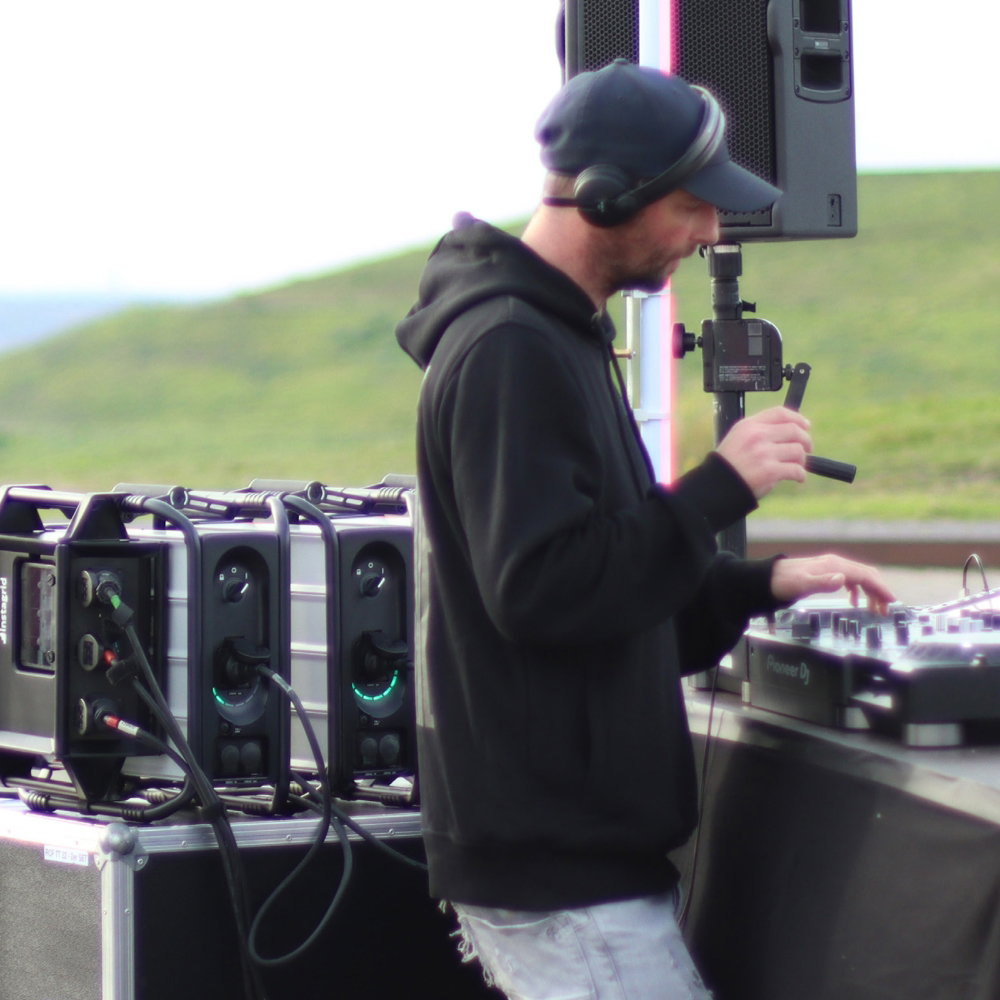

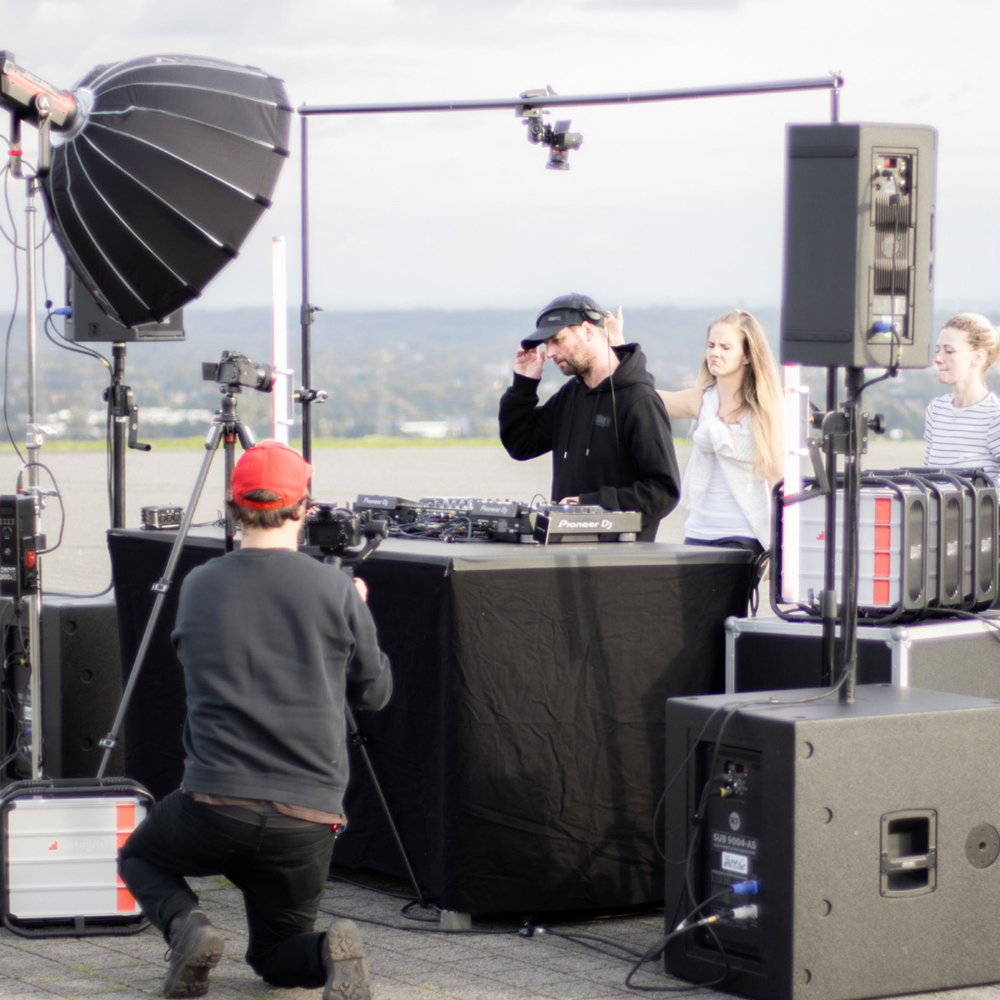

    • Power DJ controller, LED lights, and haze machine simultaneously
    • Keep camera cranes and coffee machines running all day
    • Avoid unsafe extension cables and noisy petrol generators on-site
  • Compatible With: Instagrid ONE or any 230V AC power source
  • Output Voltage: 230V AC / 50Hz
  • Output Current: 16A
  • Switching Time: < 20ms (mains to battery switchover)
  • Rated Outputs: 3x CEE-Form (IEC 60309) 16A / 230V
  • RCD Protection: 3x 1P+N RCD Type A (30mA), one per socket
  • Line Protection: 1P B16 circuit breaker
  • Input Connections: 3x Neutrik PowerCON TRUE1 TOP® (1x primary, 2x secondary)
  • Mounting Options: Hook & release, screw, feet, velcro straps
  • Weight: 4.5kg
  • Dimensions: 400 x 310 x 140mm
  • IP Rating: IP54 – dust and splash resistant
  • Protection Class: Class II / Double-insulated
  • Operating Temperature: –15°C to +40°C
  • Delivery Scope: 1x LINK unit, 1x connection cable (Neutrik to output)
