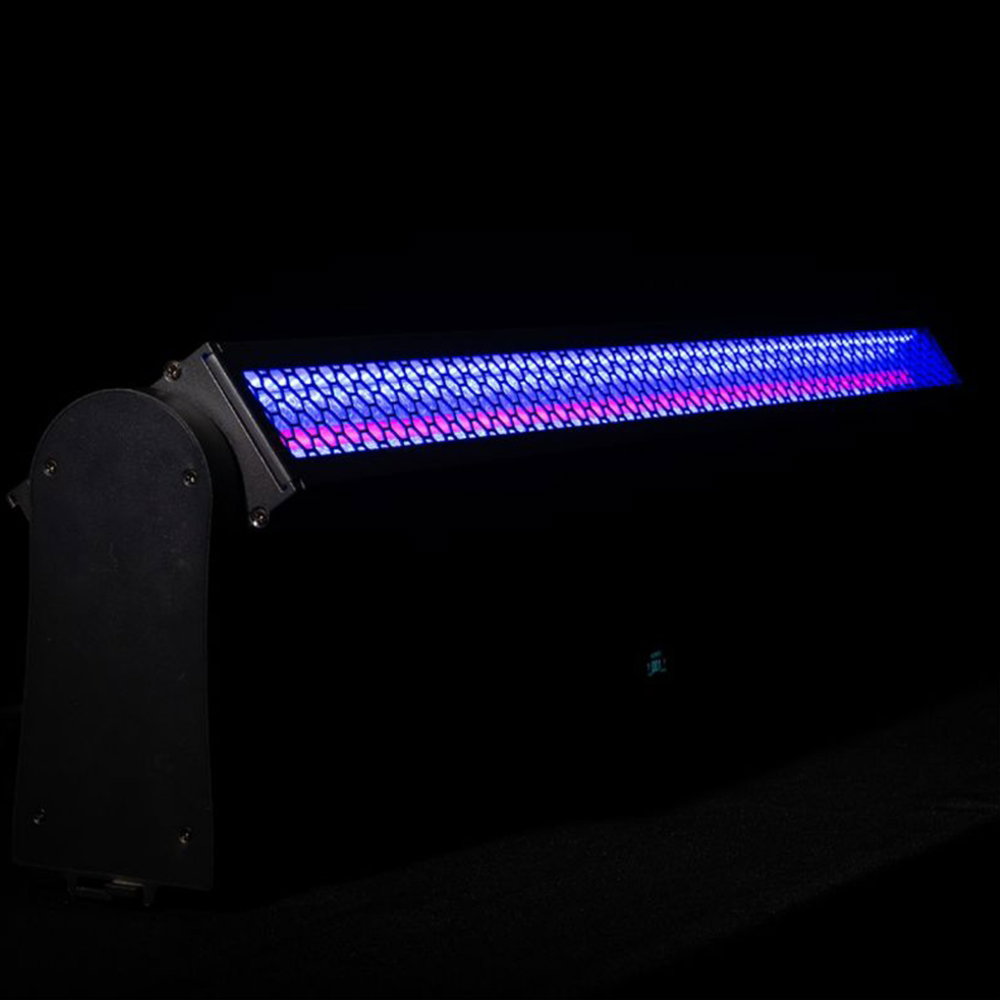

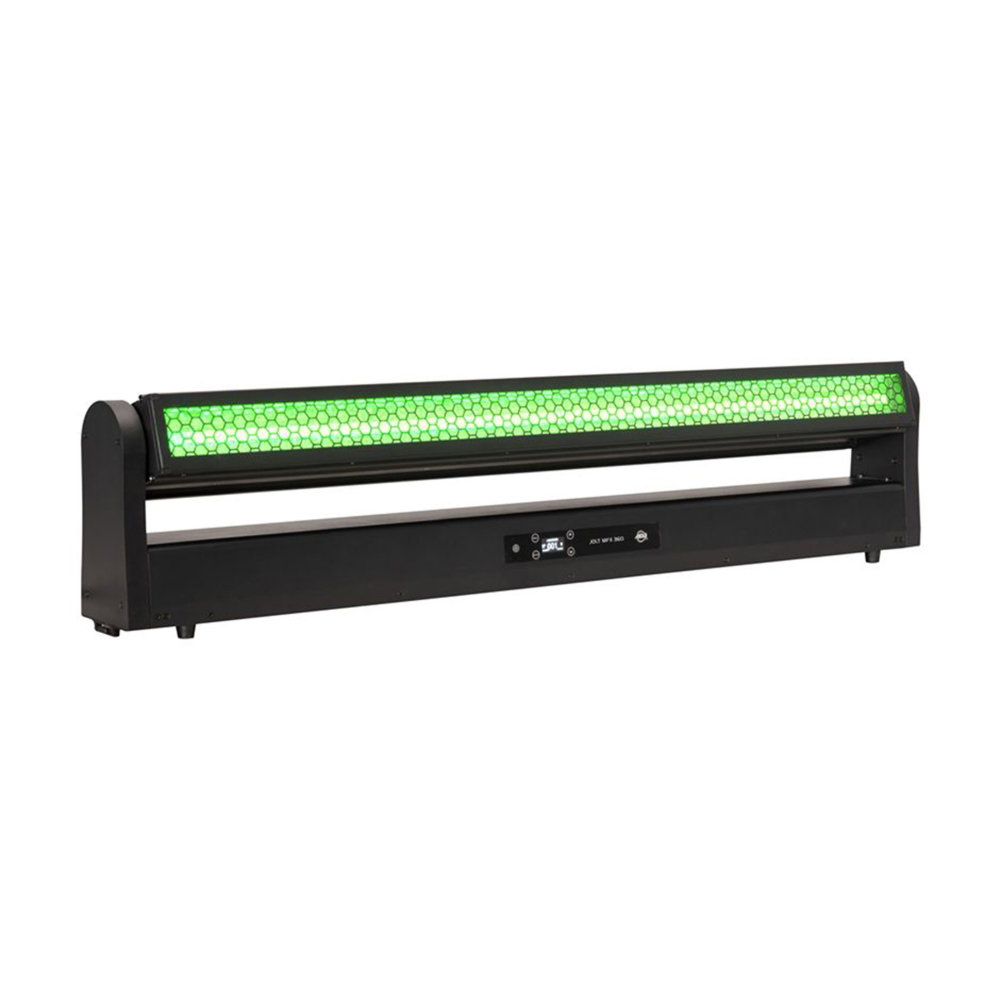

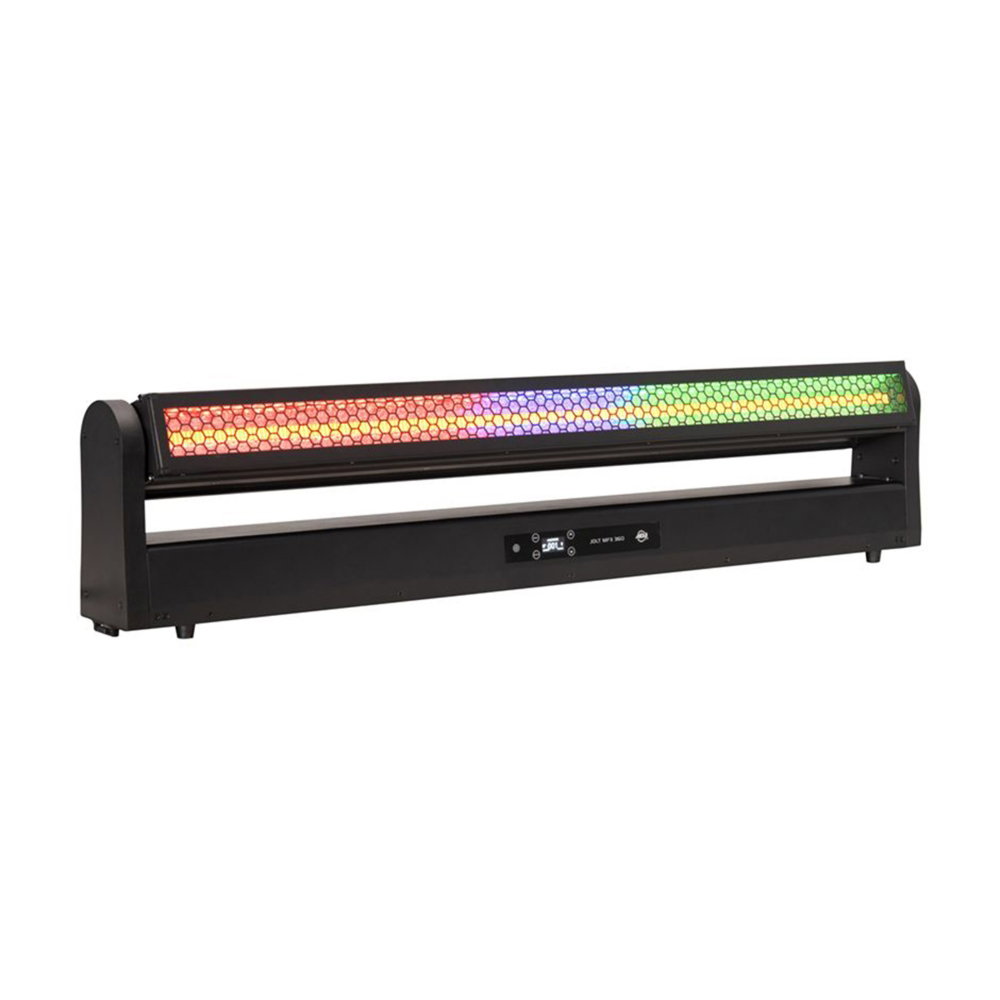

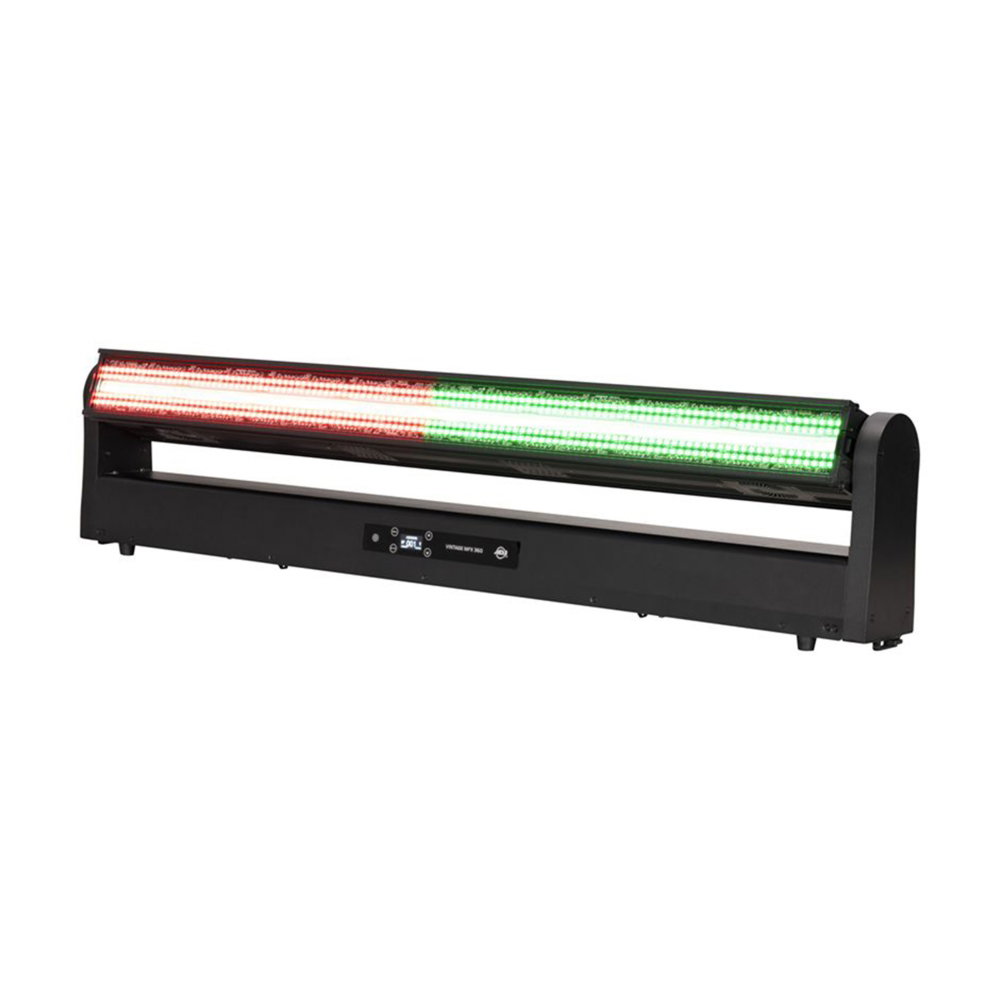

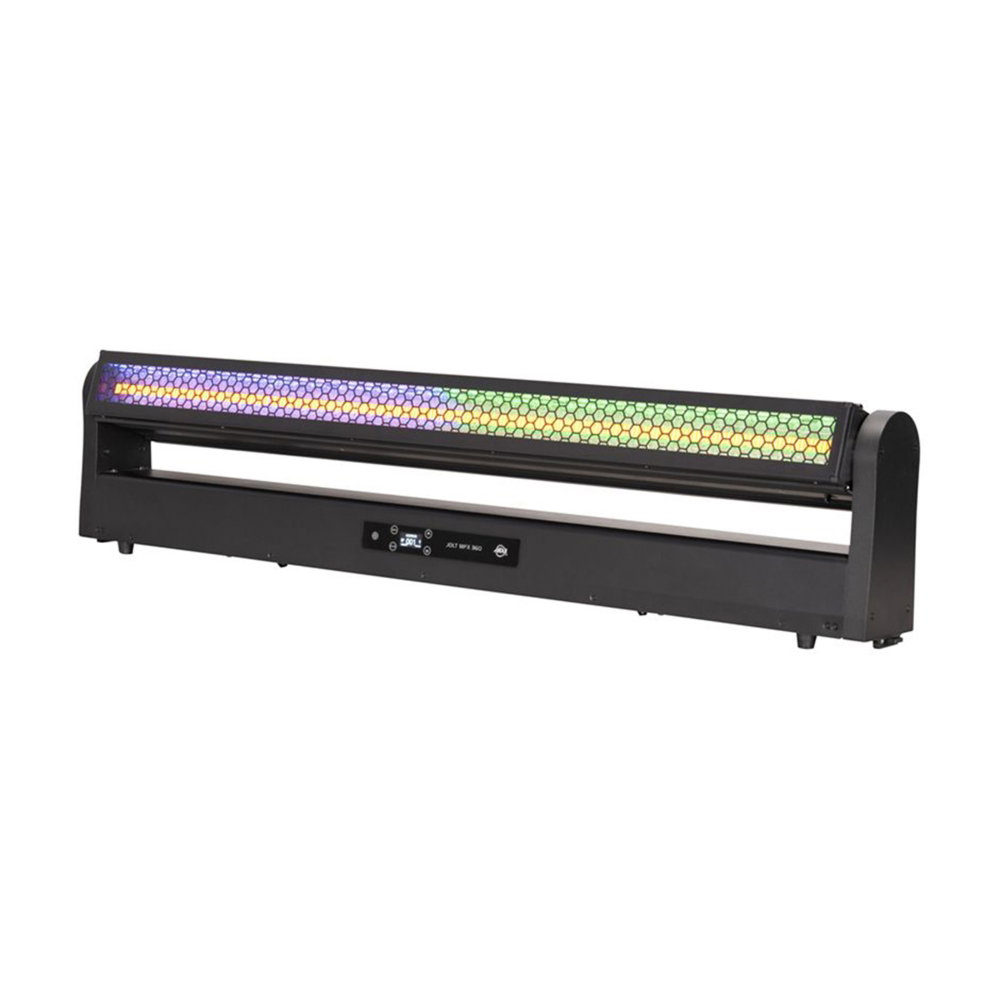

The Jolt MFX 360 puts two ADJ fixtures back to back on a motorised tilt that turns continuously through 360°. One face is a Vintage Bar: four 100W amber COB LEDs at 1800K that read like filament blinders, set in a textured reflector lit by 140 RGBL LEDs. The other face is a Jolt Bar: a strip of 448 cool white strobe LEDs surrounded by 448 RGB wash LEDs. Tilting flips the look from warm and retro to full-power strobe almost instantly, and continuous rotation turns the whole bar into a moving effect. Pixel zones on both faces, built-in macros and control by DMX, Art-Net, sACN or Aria X2 wireless suit it to touring and club installs alike.
360°
Continuous tilt
2 in 1
Jolt Bar + Vintage Bar
4 x 100W
Amber COB, 1800K
896
LEDs, Jolt face
Indoor fixtureThe Jolt MFX 360 is rated IP20, so it is for indoor use or covered stages only; the Jolt Bar FXIP is the outdoor alternative. Up to 4 units can be power-linked at 220-240V. Black, 1×60° and 60×1° linear filters for the Jolt Bar face are available as options.
Features

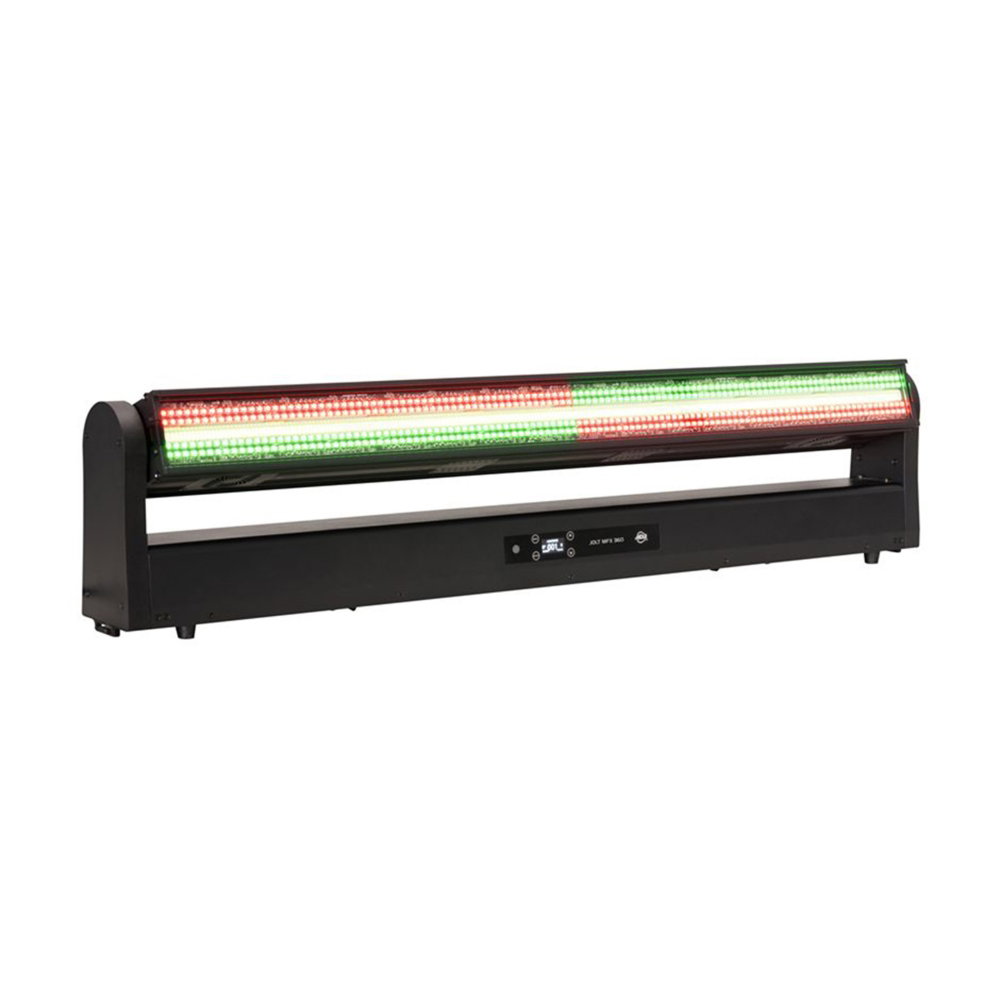

Jolt Bar face: 448 x 1W cool white (6500K) strobe LEDs with 448 x 0.5W RGB wash LEDs
Vintage Bar face: 4 x 100W amber (1800K) COB LEDs with 140 x 0.8W RGBL LEDs

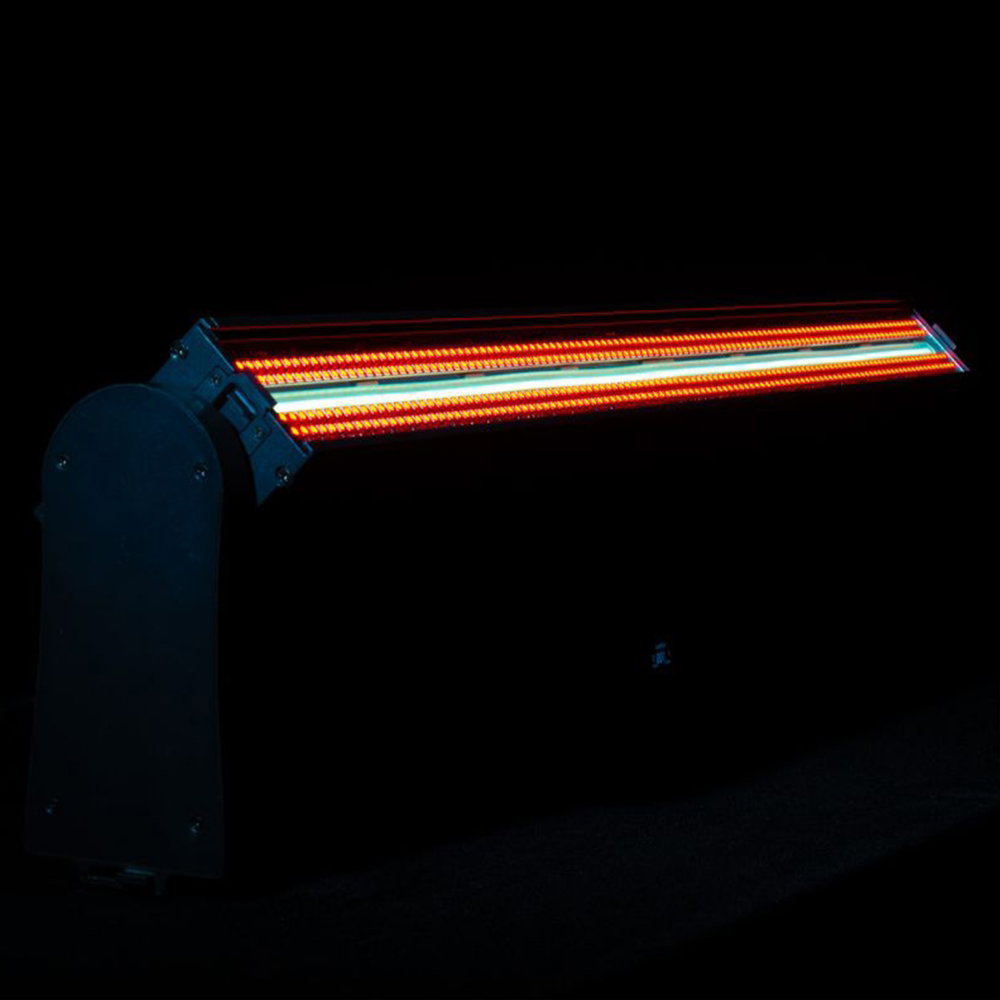

Motorised tilt with 360° continuous rotation in both directions, plus tilt lock
Pixel control: 16 white and 32 RGB zones on the Jolt face, 4 amber and 20 RGBL on the Vintage face
128 built-in background macros, plus programme macros with speed and fade on each face
Strobe from 0.35 Hz to 25 Hz: linear, pulse and random
6 dim modes and 4 dim curves, 900 Hz to 25 kHz refresh rate
DMX with RDM, Art-Net and sACN, with 12 channel modes from 16 to 229
Built-in Aria X2 wireless management and NFC configuration
Lens slot on the Jolt face for optional frost and linear filters
Magnetic end caps to align bars end to end
Locking 5-pin DMX, locking RJ45 and IP65 locking power in/thru
Specifications
| Type | Dual-face LED strobe / scenic effect bar, continuous tilt |
| Jolt Bar face | 448 x 1W cool white 6500K; 448 x 0.5W RGB; 60° beam, 80° field |
| Vintage Bar face | 4 x 100W amber COB 1800K; 140 x 0.8W RGBL; 120° beam, 140° field |
| LED life | 50,000 hours (average) |
| Movement | 360° continuous tilt, both directions; tilt lock |
| Control | DMX, RDM, Art-Net, sACN, Aria X2 wireless, NFC; primary / secondary |
| DMX modes | 12 modes: 16, 31, 36, 42, 79, 96, 99, 105, 203, 220, 223, 229 channels |
| Dimming | 6 dim modes, 4 dim curves, 0-100% |
| Strobe | 0.35 to 25 Hz; linear, pulse, random |

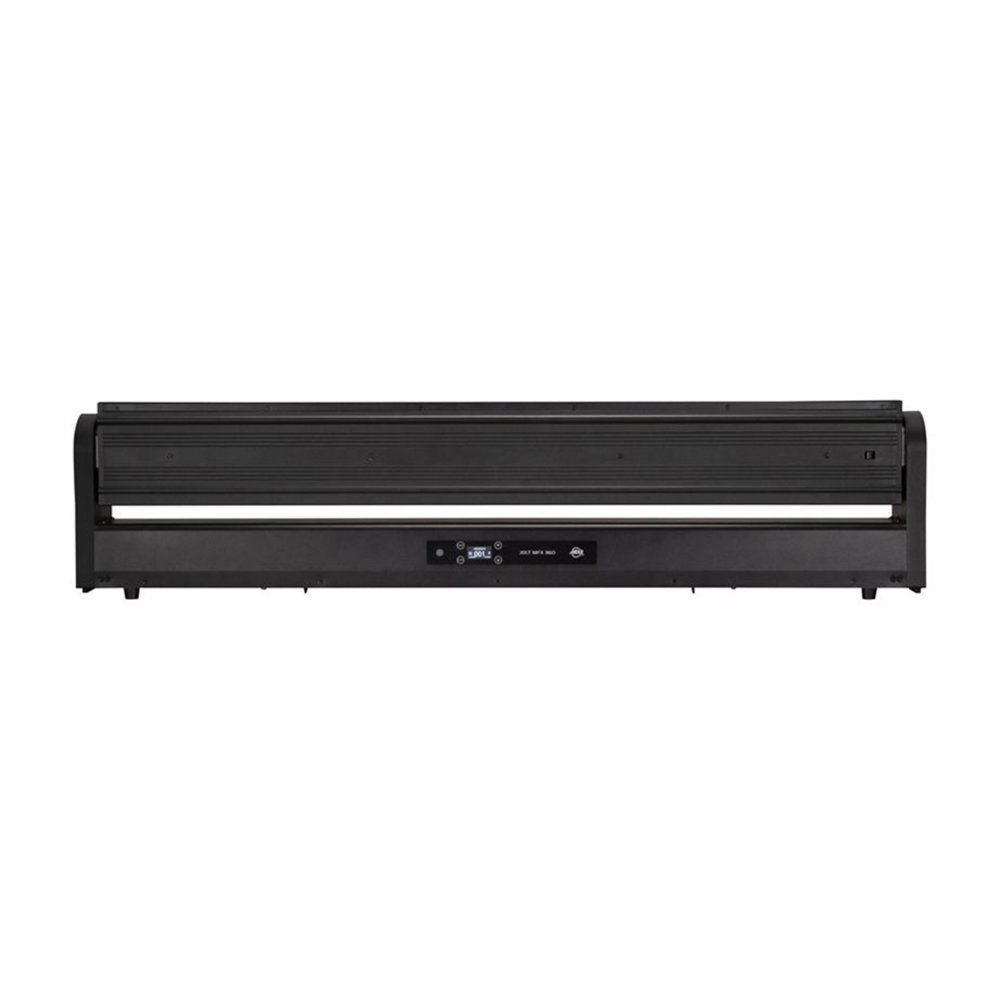

| Display | OLED with 4 touch buttons |

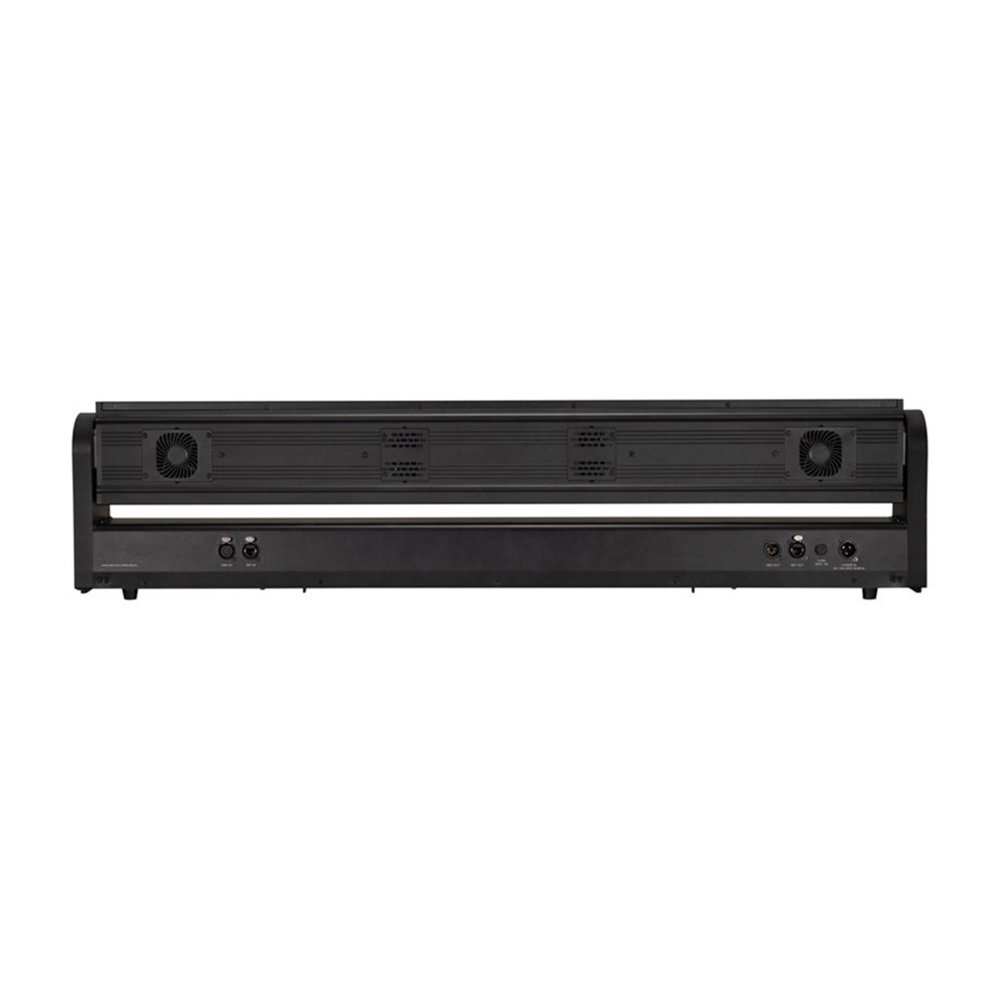

| Connections | Seetronic locking 5-pin DMX in/thru; locking RJ45 in/thru; IP65 locking power in/thru |
| Power | 100-240V, 50/60Hz auto-sensing; 780W max (3.55A at 220V); T6.3A fuse |
| Power link | 4 units at 220-240V |
| Dimensions | 1078.2 mm long x 129.2 mm wide x 280 mm high |
| Weight | 18.3 kg |
| Rating | IP20 (indoor) |
| In the box | 2 m locking power cable, safety cable, 2 x omega brackets |
| Part number | 1226200082 |
