JBL CBT 50LA-1 Line Array Column Speaker 8x2" Black

Product code: 191960

£593.00 inc VAT
£494.17 ex VAT

SKU: CBT 50LA-1

6 in stock (more available subject to additional lead time)

6 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 60 / 30 / 15W) or low impedance (8Ω).

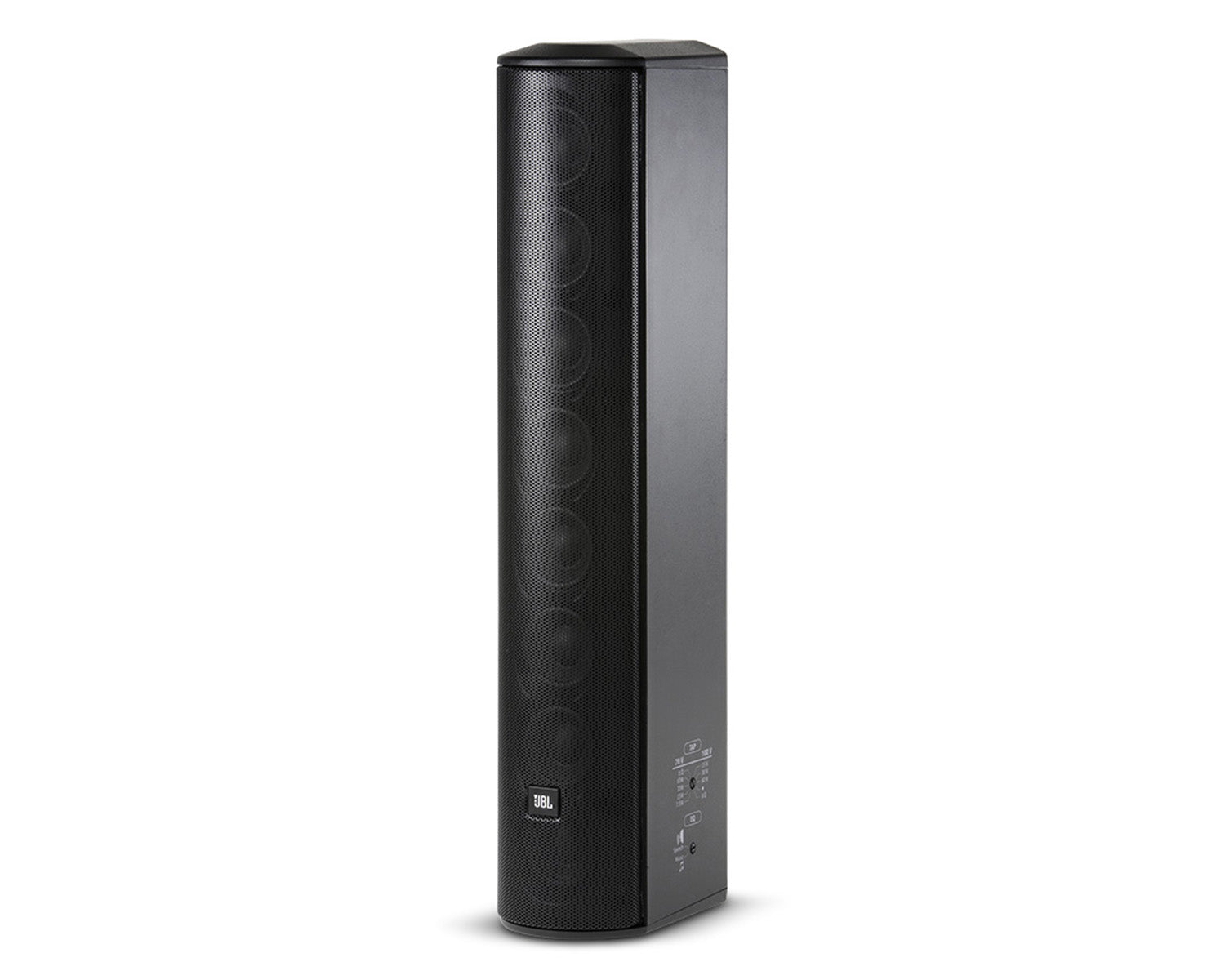

The JBL CBT 50LA-1 is a slim passive column speaker with eight 2in full-range drivers, using Constant Beamwidth Technology to hold a 20° vertical pattern with 150° horizontal coverage. It has a built-in 60W transformer for 100V and 70V lines plus an 8 ohm setting. It suits houses of worship, lecture halls, transport areas and reverberant rooms where speech clarity matters.

8x 2in
Full-range
20°
Vertical
150°
Horizontal
60W
Max 100V tap

Features

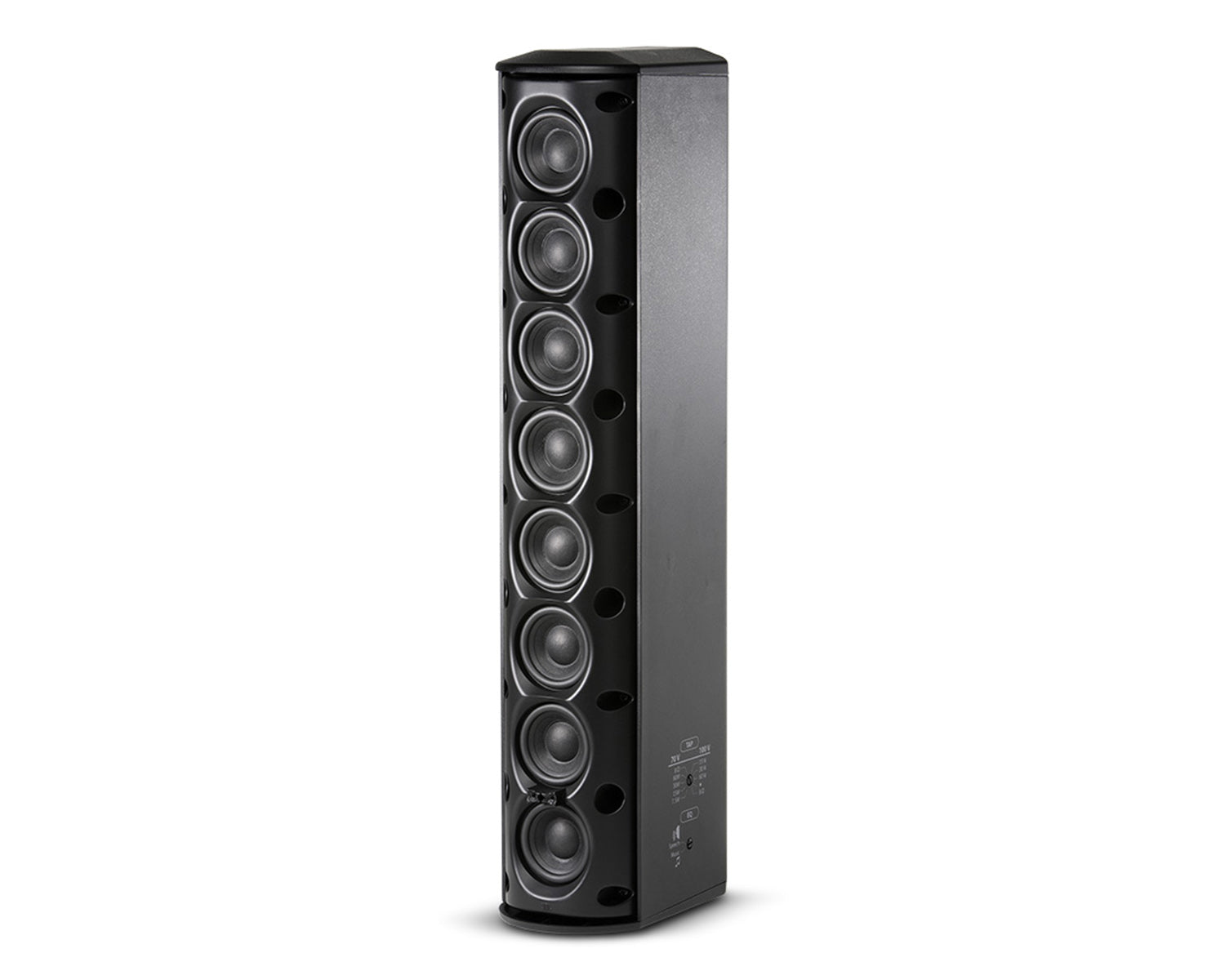

Eight 50 mm (2 in) full-range drivers
Constant Beamwidth Technology for consistent vertical coverage
20° vertical and 150° horizontal coverage
Switchable music (flat) or speech (presence peak) voicing
Taps at 60W, 30W and 15W on 100V and 70V, plus 7.5W on 70V only
8 ohm direct setting, 150W (2 hrs)
Dynamic SonicGuard overload protection
IP55 with optional MTC-PC2 panel cover
Pan and tilt wall bracket included (±80° pan, ±15° tilt)
Sold individually

Specifications

JBL CBT 50LA-1 Line Array Column Speaker 8×2″ Black specifications
Frequency range (-10 dB) 80 Hz to 20 kHz
Vertical coverage 20°
Horizontal coverage 150°
Sensitivity (2.83V, 1 m) 93 dB speech mode, 89 dB music mode
Maximum SPL 115 dB continuous (121 dB peak) speech mode
Power capacity (8 ohm) 150W (600W peak) 2 hrs, 100W (400W peak) 100 hrs
100V taps 60W, 30W, 15W
70V taps 60W, 30W, 15W, 7.5W
Low-impedance setting 8 ohms
Enclosure Fibreglass reinforced ABS, painted aluminium grille
Environmental IP55 with optional MTC-PC2
Dimensions (H x W x D) 528 x 99 x 153 mm
Weight 4.1 kg

Full features

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.
  • Swivel (pan) / tilt wall bracket included.

Full specifications

General

  • Components:
    • Eight 50 mm
    • (2 in) Full-Range
  • Frequency Range (-10 dB): 80 Hz – 20 kHz
  • Coverage Pattern:
    • Vertical 20° (1.5 kHz - 16 kHz, ±10°)
    • Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
  • Sensitivity (2.83V@ 1m):
    • 93 dB (speech mode, 2 kHz - 14 kHz)
    • 89 dB (music mode, 300 Hz - 18 kHz)
  • Nominal Impedance: 8 ohms
  • Power Capacity (8 ohm setting):
    • 150W (600W peak), 2 hrs
    • 100 W (400W peak), 100 hrs
  • Max SPL:
    • Speech mode: 115 dB cont ave (121 peak)
    • Music mode: 111 dB cont ave (117 peak)

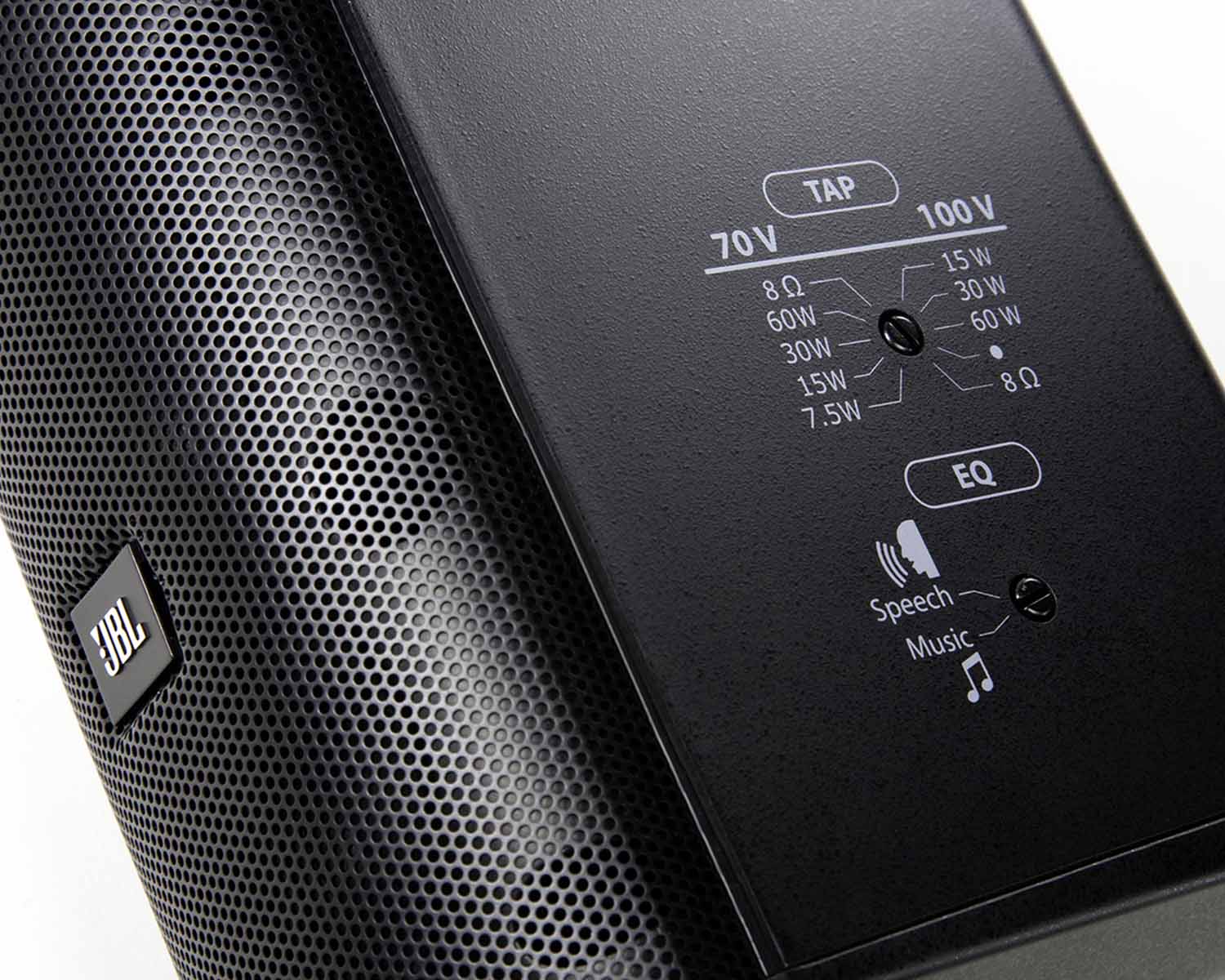

  • 70V/100V Transformer Taps: 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch
  • Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
  • Outdoor Capability:
    • IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover.
    • UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
  • Insert Points: Ten M6 insert points on back panel.
  • Mounting:
    • Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range.
    • Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.

Physical & Dimensions

  • Height: 528mm
  • Width: 99mm
  • Depth: 153mm
  • Weight: 4.1kg
