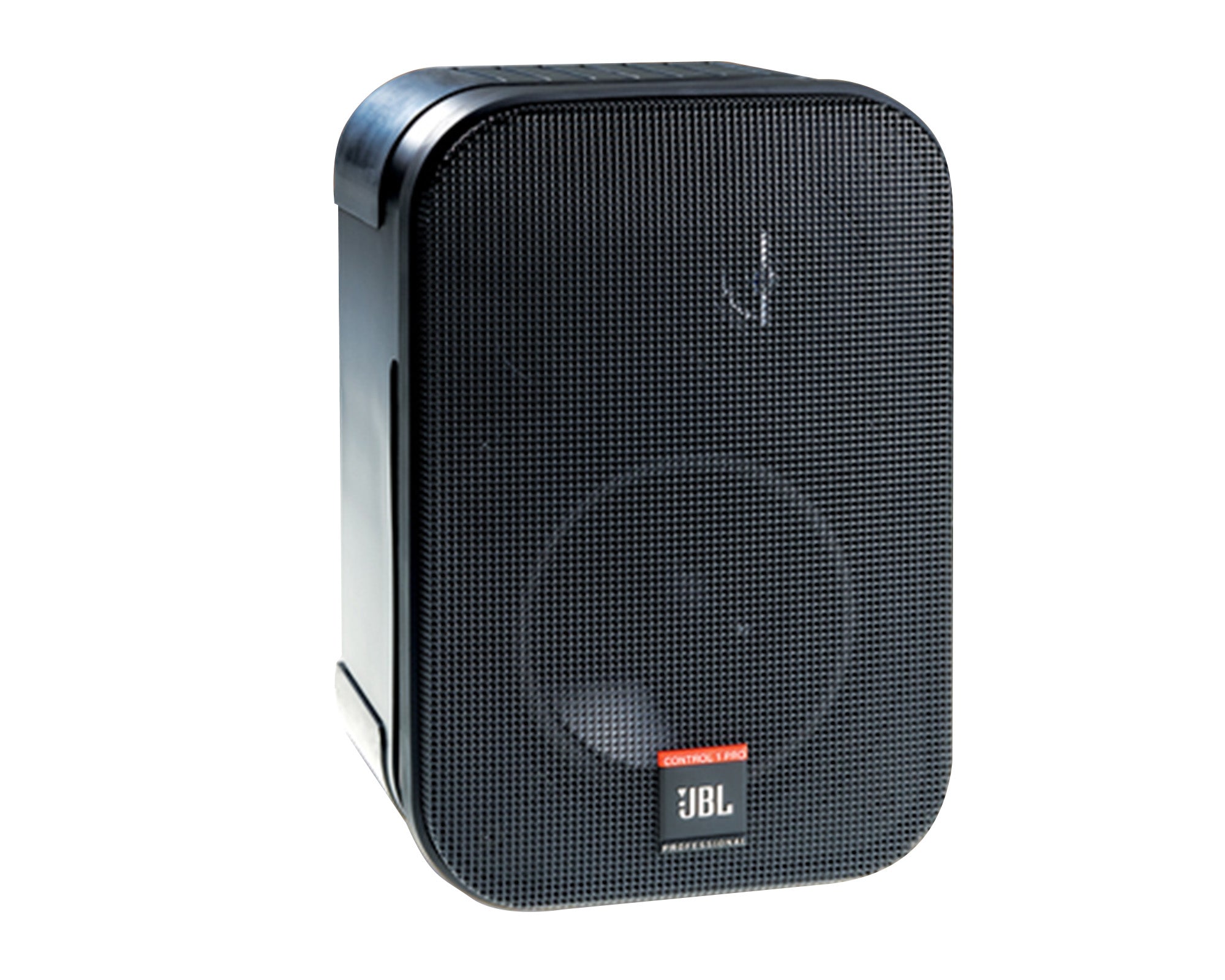

The JBL Control 1 Pro is a compact two-way loudspeaker with a 5.25in woofer and 19 mm dome tweeter, rated at 150W into 4 ohms. It comes with a wall bracket and suits bars, cafes, small venues, meeting rooms and AV installs where a small low-impedance speaker is needed. This is the black version.
5.25in
2-way
150W
Power capacity
4 ohm
Impedance
1.8 kg
Weight
Low impedance onlyThe Control 1 Pro is a 4 ohm speaker with no 100V/70V transformer. It needs a low-impedance amplifier output and cannot be connected directly to a 100V line.
Features
135 mm (5.25 in) low-frequency driver and 19 mm (0.75 in) polycarbonate dome tweeter
150W power capacity at 4 ohms
SonicGuard full-range power limiting to protect the crossover and drivers
Magnetically shielded drivers
Polypropylene structural foam enclosure
Spring-loaded input terminals
Mounting bracket included
Black finish
Sold individually
Specifications
| Frequency range (-10 dB) | 80 Hz to 20 kHz |
| Frequency response (±3 dB) | 100 Hz to 18 kHz |
| Power capacity | 150W |
| Sensitivity | 87 dB SPL (1W, 1 m) |
| Maximum SPL | 108 dB continuous, 114 dB peak |
| Nominal impedance | 4 ohms |
| Crossover frequency | 4.2 kHz |
| Directivity index | 7.8 dB |
| LF driver | 135 mm (5.25 in) |
| HF driver | 19 mm (0.75 in) polycarbonate dome |
| Connectors | Spring-loaded terminals |
| Enclosure | Polypropylene structural foam |
| Dimensions (H x W x D) | 235 x 159 x 143 mm |
| Weight | 1.8 kg |
