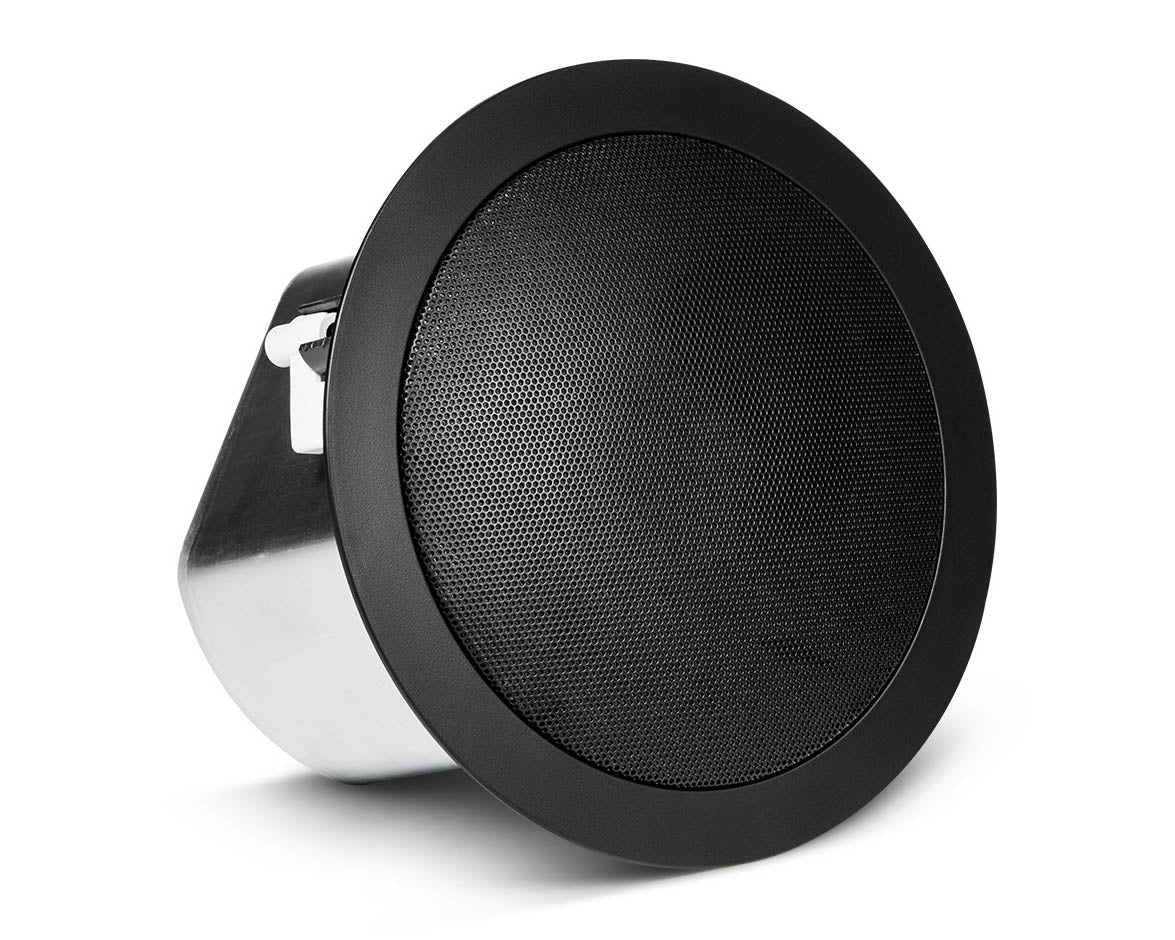

JBL Control 12C/T 3" Ceiling Speaker 100V Black

Product code: 191969

£45.00 inc VAT
£37.50 ex VAT

SKU: CONTROL 12C/T-BK

5 in stock (more available subject to additional lead time)

5 available online
More available from supplier in 1–3 weeks
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 15 / 7.5 / 3.8W) or low impedance (8Ω).

The JBL Control 12C/T is a 3in full-range ceiling speaker for background music and paging. It has a 15W transformer for 100V and 70V lines plus an 8 ohm setting, 130° coverage and a pre-attached back can for blind mounting. Typical uses are shops, offices, corridors, classrooms and hotel areas. This is the black version.

3in
Full-range
130°
Conical coverage
15W
Max 100V tap
138 mm
Depth
Not EN54 certifiedThis model is not EN 54-24 certified and should not be used where an EN54 voice alarm speaker is required.

Features

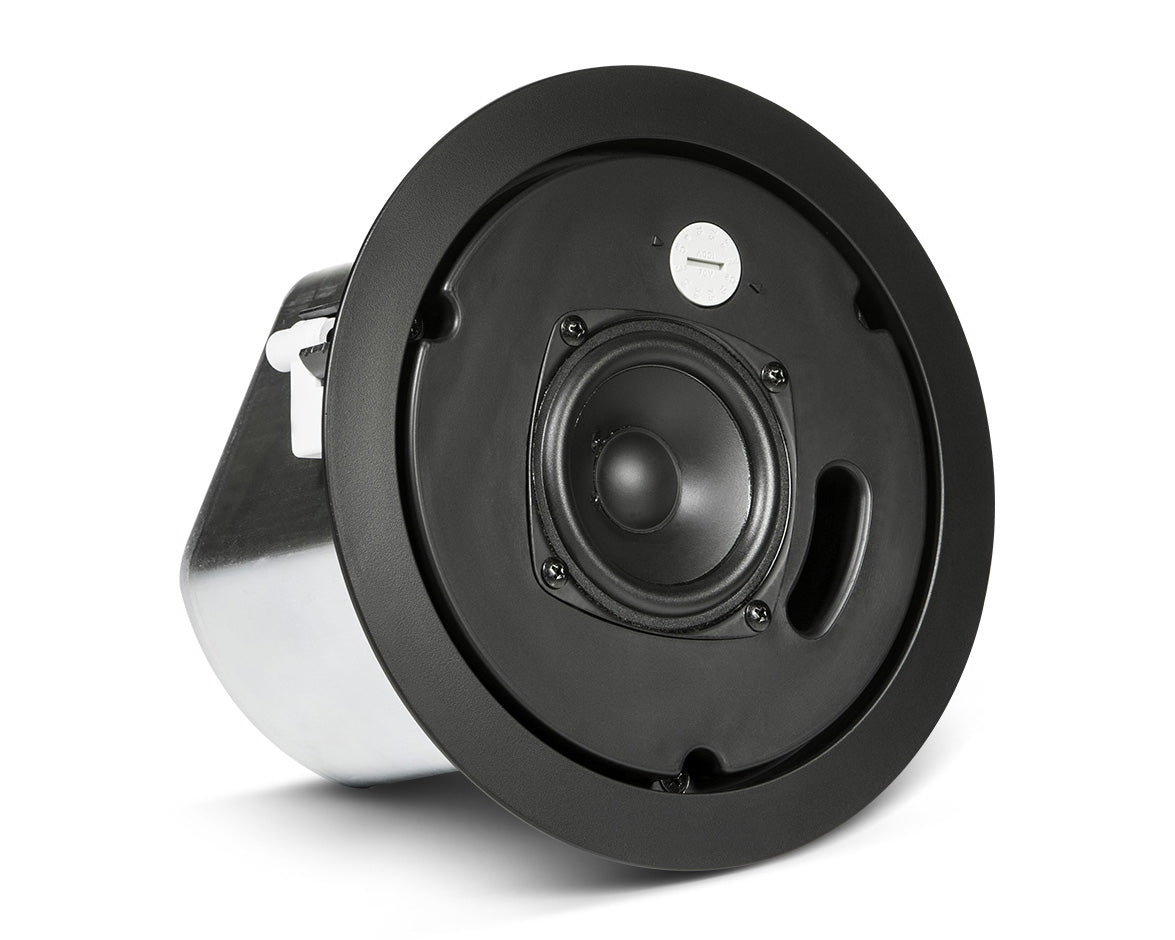

76 mm (3 in) polypropylene cone full-range driver
Taps at 15W, 7.5W and 3.8W on 100V and 70V, plus 1.9W on 70V only
8 ohm direct setting, 20W continuous pink noise
130° conical coverage

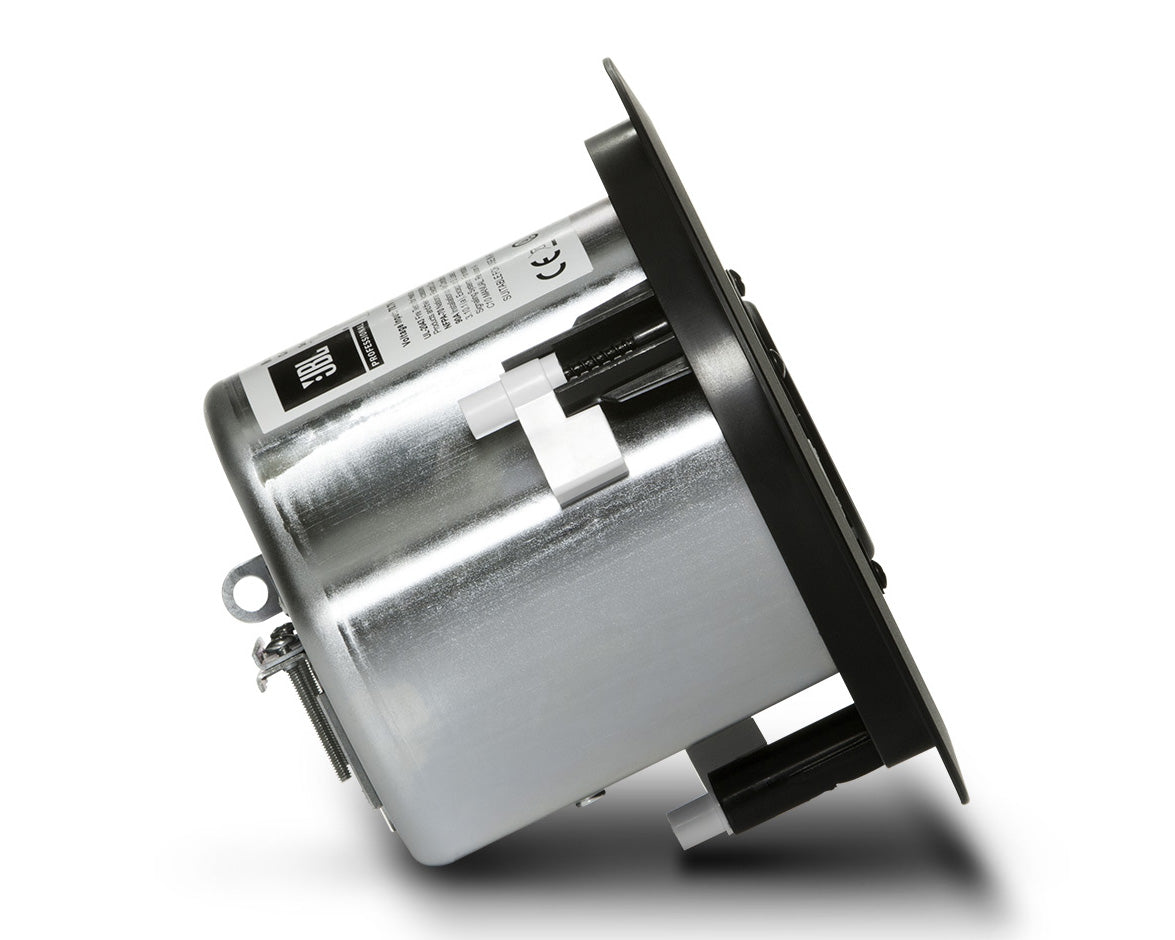

Pre-attached zinc-plated steel back can for blind mounting
Removable 4-pin locking connector with loop-thru, wire up to 2.5 mm²
Clamp for two cables or flexible conduits
Paintable ABS baffle rated UL94-V0 and UL94-5VB
Cardboard cutout template included
Sold individually

Specifications

JBL Control 12C/T 3″ Ceiling Speaker 100V Black specifications
Frequency range (-10 dB) 68 Hz to 17 kHz
Frequency response (±3 dB) 95 Hz to 15 kHz
Power capacity (low-Z) 40W continuous programme, 20W continuous pink noise
100V taps 15W, 7.5W, 3.8W
70V taps 15W, 7.5W, 3.8W, 1.9W
Low-impedance setting 8 ohms
Sensitivity 84 dB
Maximum SPL 97 dB average, 103 dB peak at 1 m
Coverage 130° conical
Diameter 196 mm
Depth 138 mm behind baffle
Ceiling cutout 170 mm diameter
Ceiling thickness Up to 35 mm (55 mm with MTC-TCD)
Weight 1.6 kg

Full features

  • 76mm (3 in) full-range driver
  • Blind-mount backcan for quick and easy install
  • Combined 70V/100V and low impedance direct operation
    • 20 Watts at 8Ω nominal setting
    • 15W multi-tap at 70V/100V
  • 68 Hz – 17 kHz bandwidth with wide 130° coverage

Full specifications

General

  • Frequency Range (-10 dB): 68 Hz – 17 kHz
  • Power Capacity (at low-Z):
    • 40 Watts Continuous Program Power
    • 20 Watts Continuous Pink Noise
  • Transformer Taps: 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
  • Frequency Response (±3 dB): 95 Hz – 15 kHz
  • Nominal Sensitivity: 84 dB
  • Nominal Coverage Angle: 130° conical coverage
  • Directivity Factor (Q): 9.8
  • Directivity Index (DI): 7.4 dB
  • Rated Maximum SPL: 97 dB @ 1 m (3.3 ft) average, 103 dB peak
  • Nominal Impedance: 8 ohms (in direct/bypass 8Ω setting)
  • Full-Range Driver: 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
  • Input Connectors:
    • Removable locking 4-pin connector with screw-down terminals.
    • Max wire size 12 AWG (2.5 mm2)
  • Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
  • Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
  • Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
  • Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
  • Safety Seismic Attachment: One point, top surface

Physical & Dimensions

  • Diameter: 196mm
  • Depth from back of baffle: 138mm
  • Ceiling Cutout Size: Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
  • Ceiling Thickness Range: Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm 2.2 in) ceiling thicknesses.
  • Net Weight: 1.6kg
  • Shipping Weight: 6.7kg
