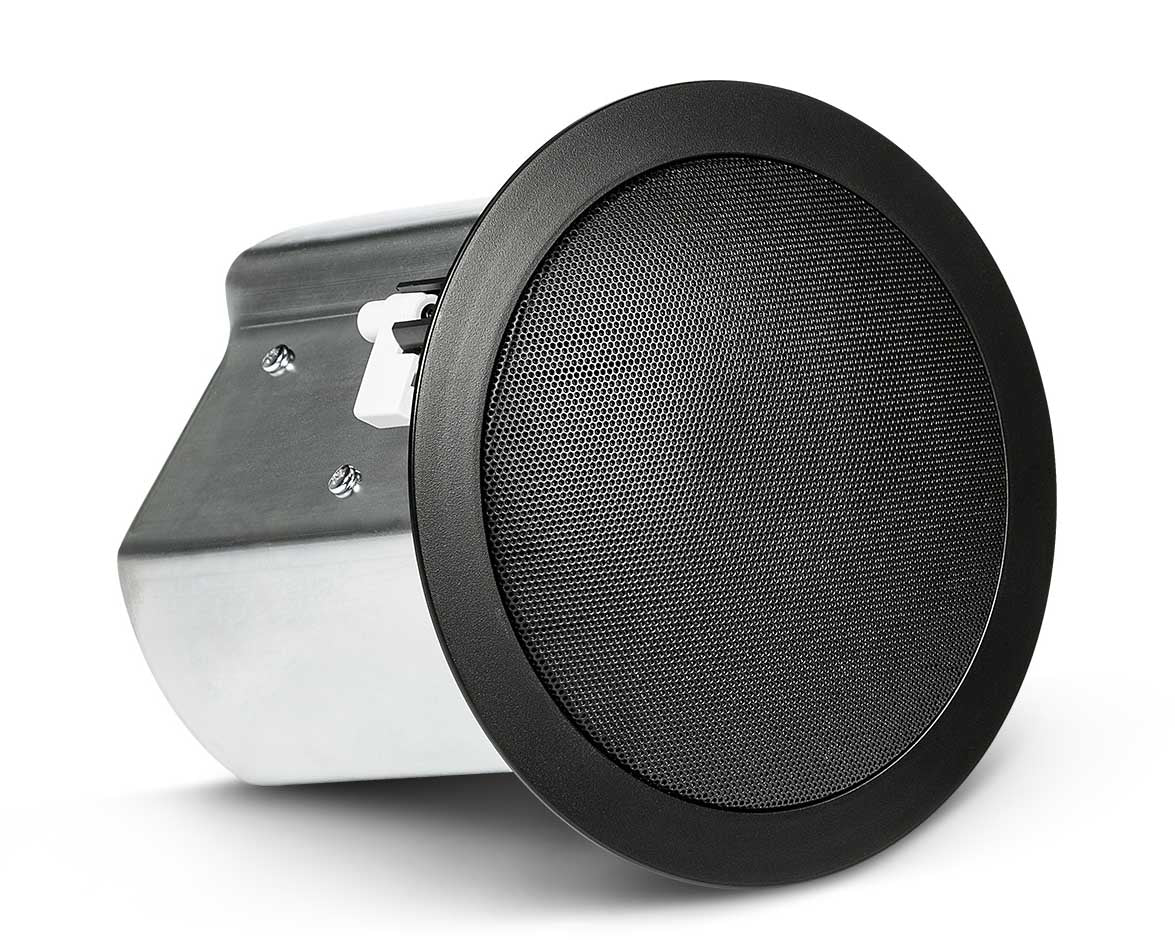

The JBL Control 14C/T is a 4in two-way coaxial ceiling speaker for background music and paging. It has a 25W transformer for 100V and 70V lines plus an 8 ohm setting, 120° coverage and a pre-attached back can for blind mounting. Typical uses are shops, restaurants, offices, schools and hotels. This is the black version.
4in
2-way coaxial
120°
Conical coverage
25W
Max 100V tap
8 ohm
Low-Z option
Not EN54 certifiedFor voice alarm systems that need EN 54-24 speakers, use the Control 14C/VA instead.
Features

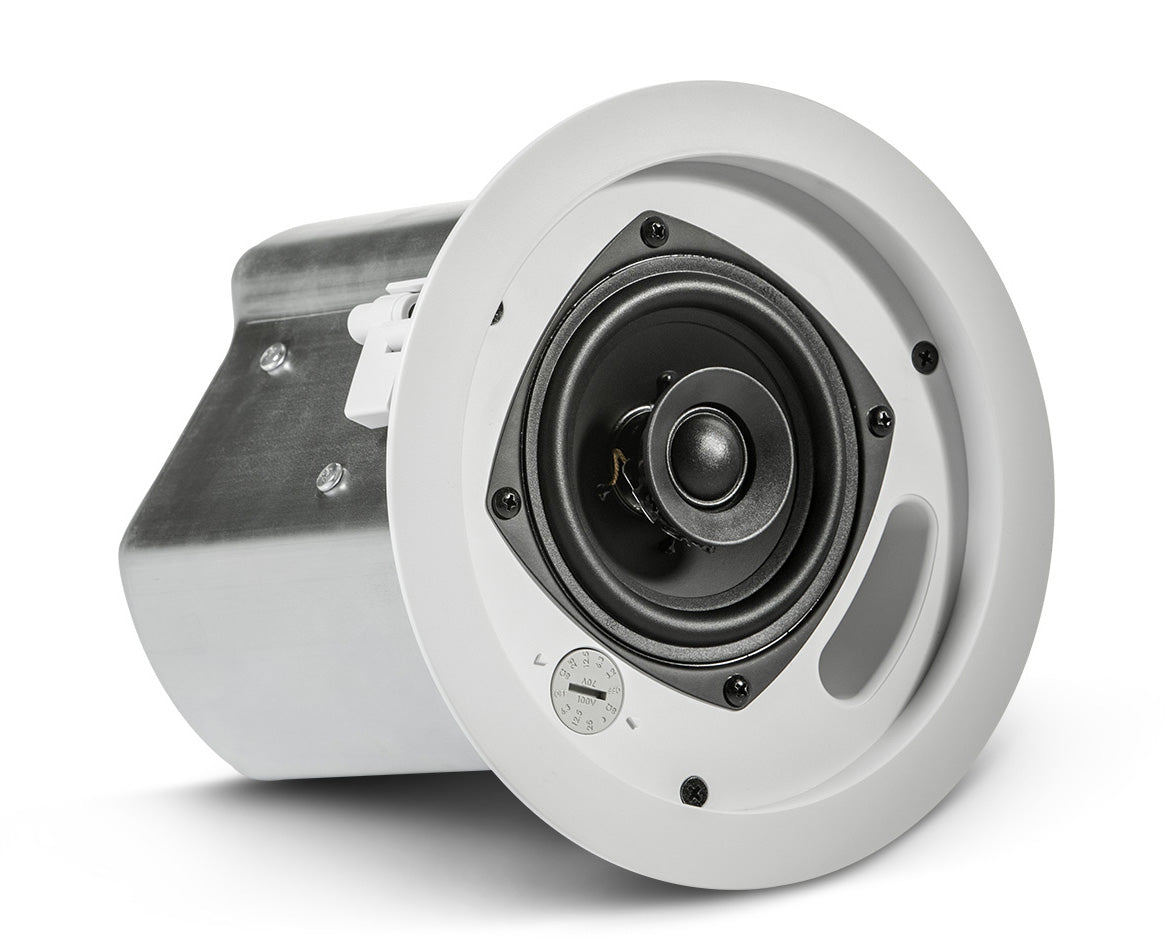

100 mm (4 in) polypropylene cone driver with butyl rubber surround and 19 mm (0.75 in) liquid-cooled silk dome tweeter
Taps at 25W, 12.5W and 6.3W on 100V and 70V, plus 3.2W on 70V only
8 ohm direct setting, 30W continuous pink noise
120° conical coverage

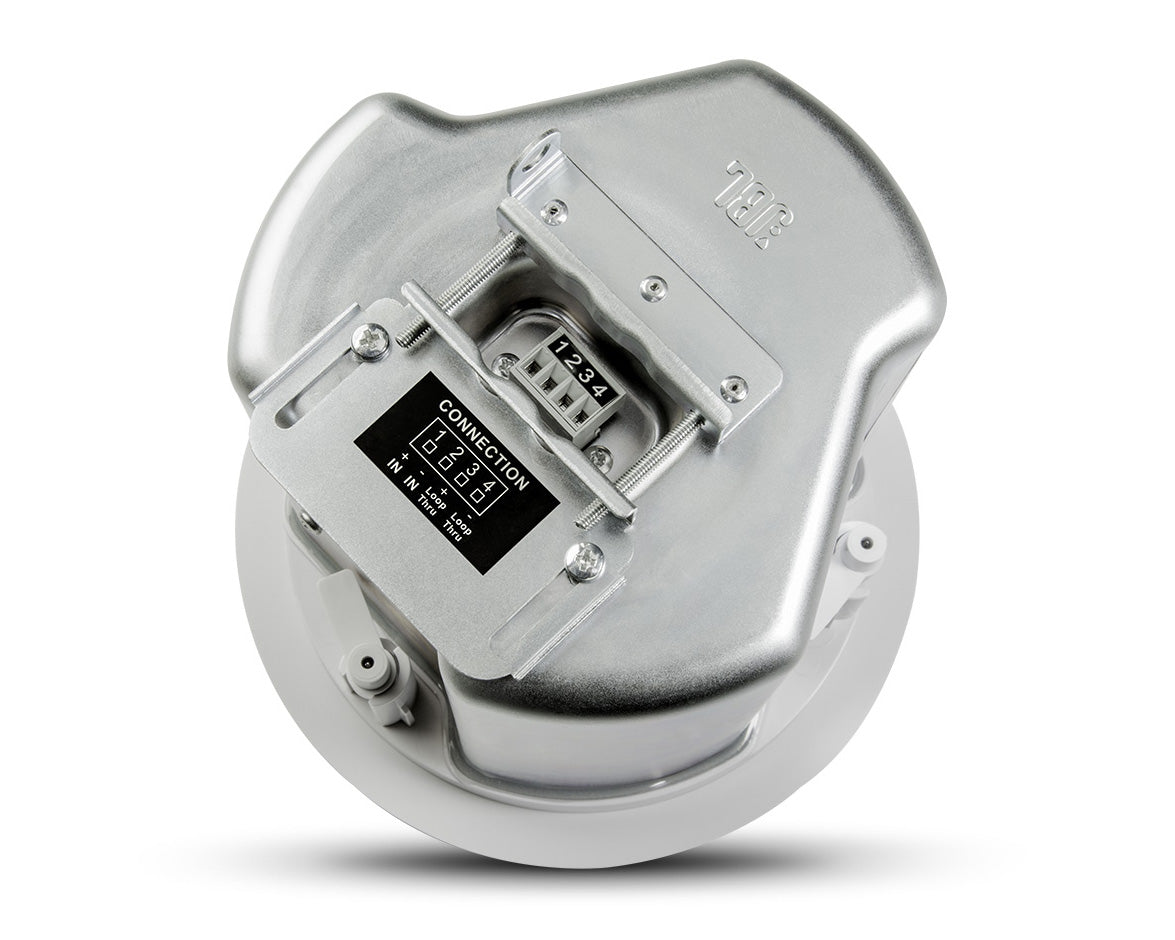

Pre-attached zinc-plated steel back can for blind mounting
Removable 4-pin locking connector with loop-thru, wire up to 2.5 mm²
Clamp for two cables or flexible conduits
Paintable ABS baffle rated UL94-V0 and UL94-5VB
Cardboard cutout template included
Sold individually
Specifications
| Frequency range (-10 dB) | 74 Hz to 20 kHz |
| Frequency response (±3 dB) | 100 Hz to 20 kHz |
| Power capacity (low-Z) | 60W continuous programme, 30W continuous pink noise |
| 100V taps | 25W, 12.5W, 6.3W |
| 70V taps | 25W, 12.5W, 6.3W, 3.2W |
| Low-impedance setting | 8 ohms |
| Sensitivity | 87 dB |
| Maximum SPL | 102 dB average, 108 dB peak at 1 m |
| Coverage | 120° conical |
| Directivity index | 8.1 dB |
| Diameter | 196 mm |
| Depth | 181 mm behind baffle |
| Ceiling cutout | 170 mm diameter |
| Ceiling thickness | Up to 35 mm (55 mm with MTC-TCD) |
| Weight | 2.2 kg |
