Rated 4.9 (120 reviews)

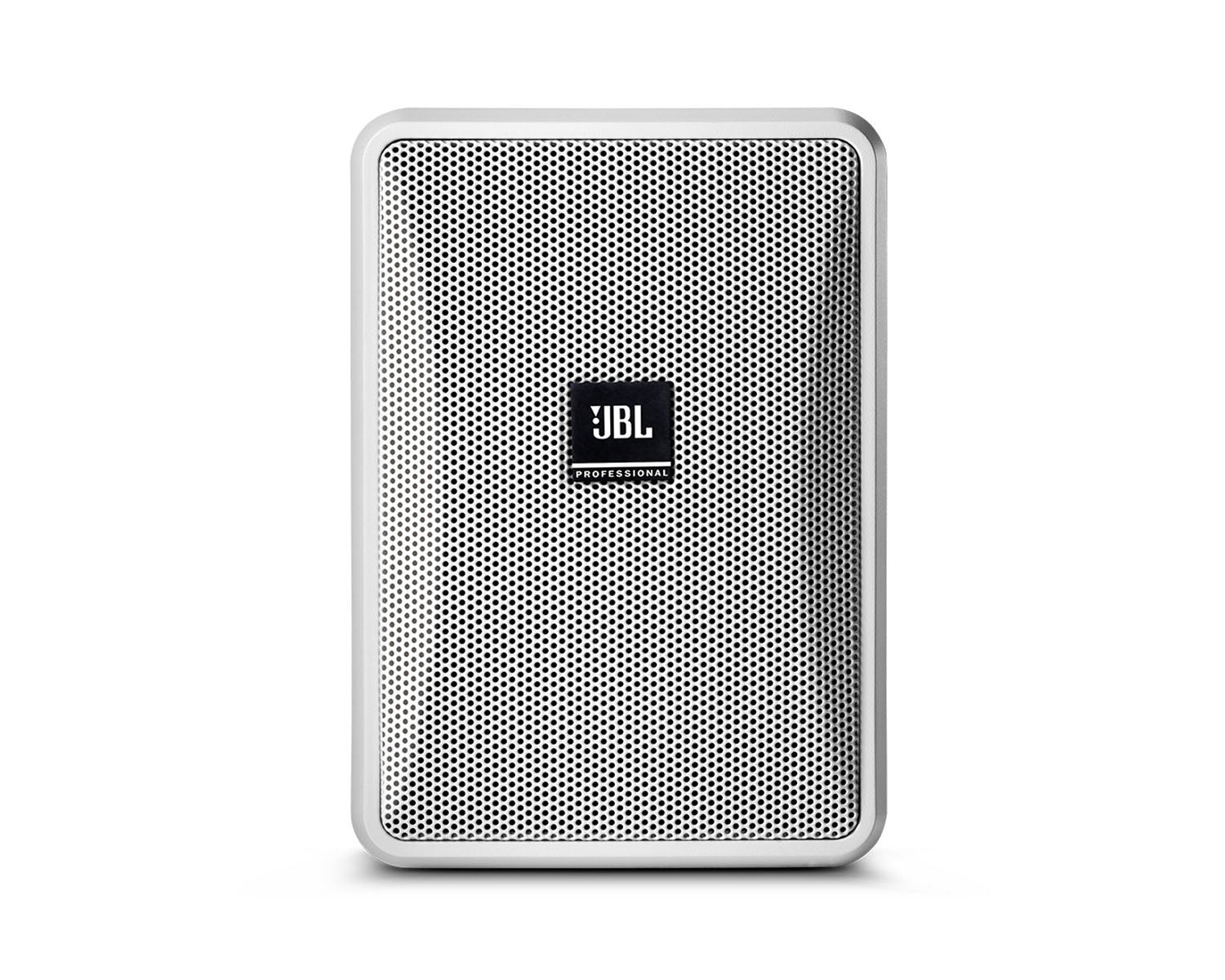

The JBL Control 23-1L is a compact two-way surface-mount speaker with a 3in woofer and 0.5in tweeter, for indoor and covered outdoor use. It is the low-impedance version, rated at 50W continuous into 8 ohms with 100° x 100° coverage. It suits cafes, retail, bars and meeting rooms run from a low-impedance amplifier.
3in
2-way
100° x 100°
Coverage
8 ohm
Low-Z only
IP44
Weather rating
Low impedance onlyThe L version has no 100V/70V transformer. For 100V line systems use the Control 23-1.
Features
76 mm (3 in) woven fibreglass cone woofer and 13 mm (0.5 in) PEI diaphragm tweeter with fluid cooling
50W continuous pink noise, 100W continuous programme, 8 ohms
100° x 100° coverage
IP44 as standard, IP55 with optional MTC-23WMG-1 WeatherMax grille and MTC-PC2 or MTC-PC3 panel cover
InvisiBall wall mount included, optional U-bracket available
UV-resistant paint on the white enclosure
White finish
Sold individually
Specifications
| Frequency response (-10 dB) | 70 Hz to 20 kHz |
| Frequency response (±3 dB) | 95 Hz to 19 kHz |
| Power rating | 100W continuous programme (2 hrs) |
| Sensitivity | 86 dB (1W, 1 m) |
| Maximum SPL | 103 dB continuous, 109 dB peak |
| Coverage | 100° x 100° |
| Impedance | 8 ohms |
| Recommended high-pass | 70 Hz, 24 dB/oct |
| Environmental | IP44 (IP55 with optional grille and panel cover) |
| Colour | White, RAL 9016 |
| Dimensions (H x W x D) | 200 x 141 x 111 mm, 141 mm deep on InvisiBall mount |
| Weight | 1.6 kg |
