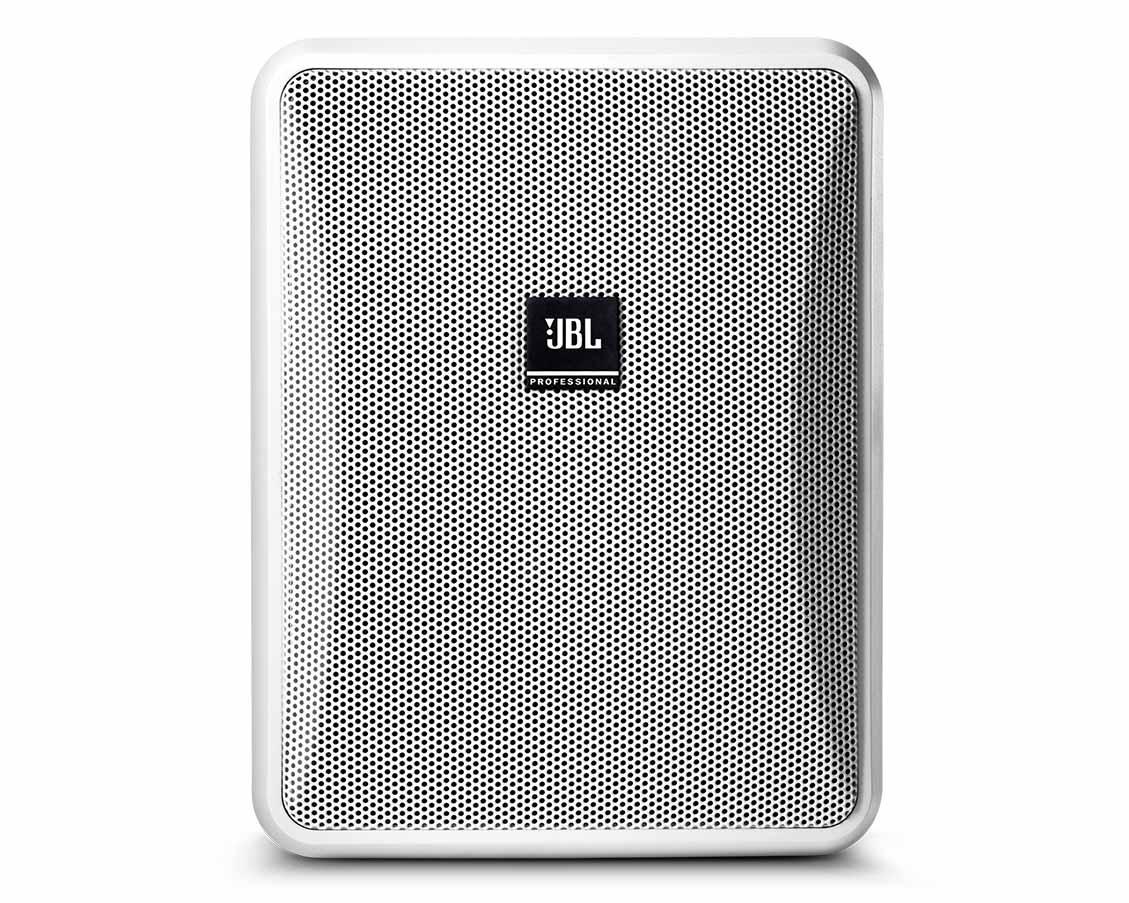

The JBL Control 25-1 is a 5.25in two-way surface-mount speaker for indoor and covered outdoor use. A built-in 30W transformer runs it on 100V or 70V lines, and an 8 ohm setting takes up to 100W continuous pink noise. It suits retail, restaurants, bars, gyms, schools and hospitality foreground or background music and paging.
5.25in
2-way
100° x 100°
Coverage
30W
Max 100V tap
IP44
Weather rating
Features
135 mm (5.25 in) woven fibreglass cone woofer and 19 mm (0.75 in) PEI diaphragm tweeter with fluid cooling

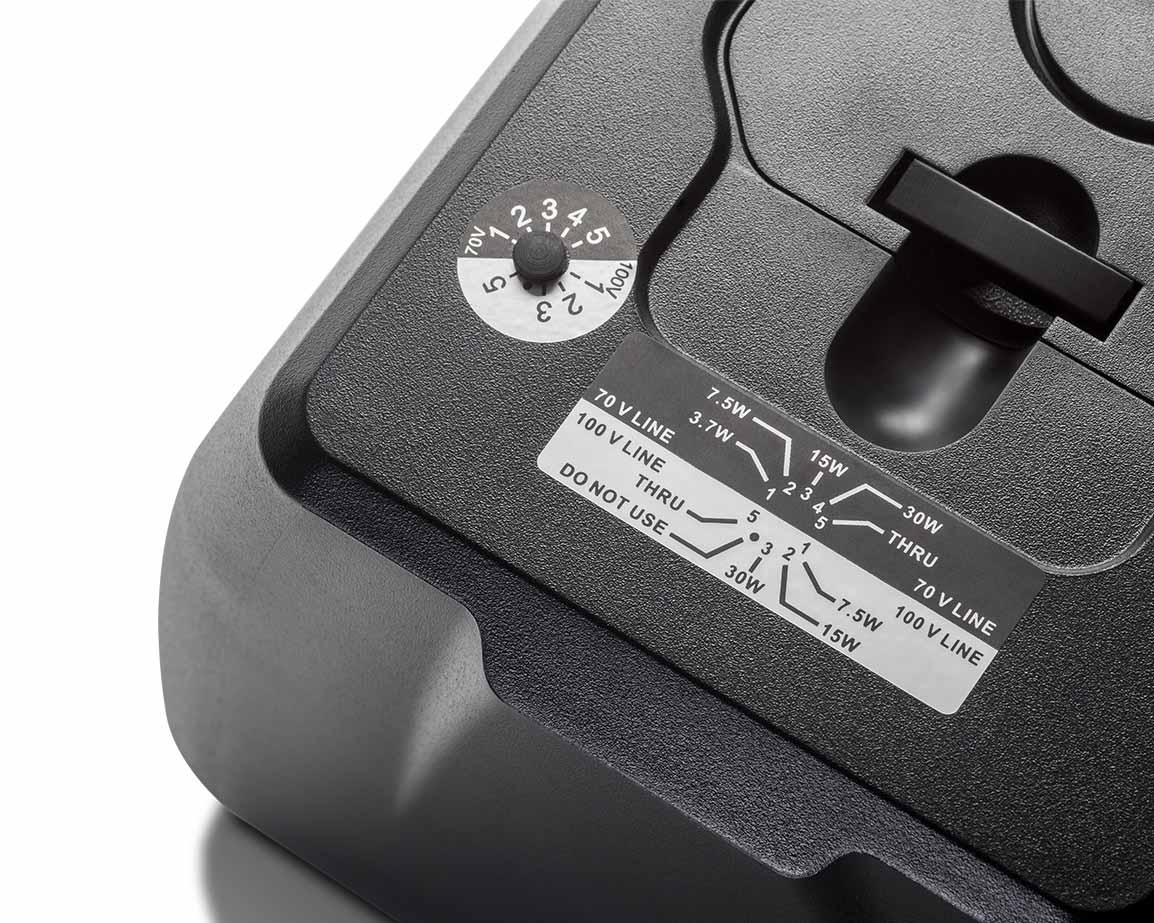

100V taps at 30W, 15W and 7.5W; 70V taps at 30W, 15W, 7.5W and 3.7W
8 ohm thru setting, 100W continuous pink noise
100° x 100° coverage
IP44 as standard, IP55 with optional MTC-25WMG-1 WeatherMax grille and MTC-PC2 or MTC-PC3 panel cover
InvisiBall wall mount included, attachment points for the optional MTC-25UB-1 U-bracket
Screw-down terminal strip accepting bare wire up to 2.5 mm² or open lugs
UV-resistant paint on the white enclosure
White finish
Sold individually
Specifications
| Frequency range (-10 dB) | 60 Hz to 20 kHz |
| Frequency response (±3 dB) | 85 Hz to 17 kHz |
| Power rating | 200W continuous programme, 100W continuous pink noise (2 hrs) |
| Sensitivity | 90 dB (1W, 1 m) |
| Maximum SPL | 110 dB continuous, 116 dB peak |
| Coverage | 100° x 100° |
| 100V taps | 30W, 15W, 7.5W |
| 70V taps | 30W, 15W, 7.5W, 3.7W |
| Low-impedance setting | 8 ohms |
| Recommended high-pass | 60 Hz, 24 dB/oct |
| Enclosure | High impact polystyrene (HIPS) |
| Environmental | IP44 (IP55 with optional grille and panel cover) |
| Dimensions (H x W x D) | 243 x 188 x 145 mm, 203 mm deep on InvisiBall mount |
| Weight | 3.4 kg |
