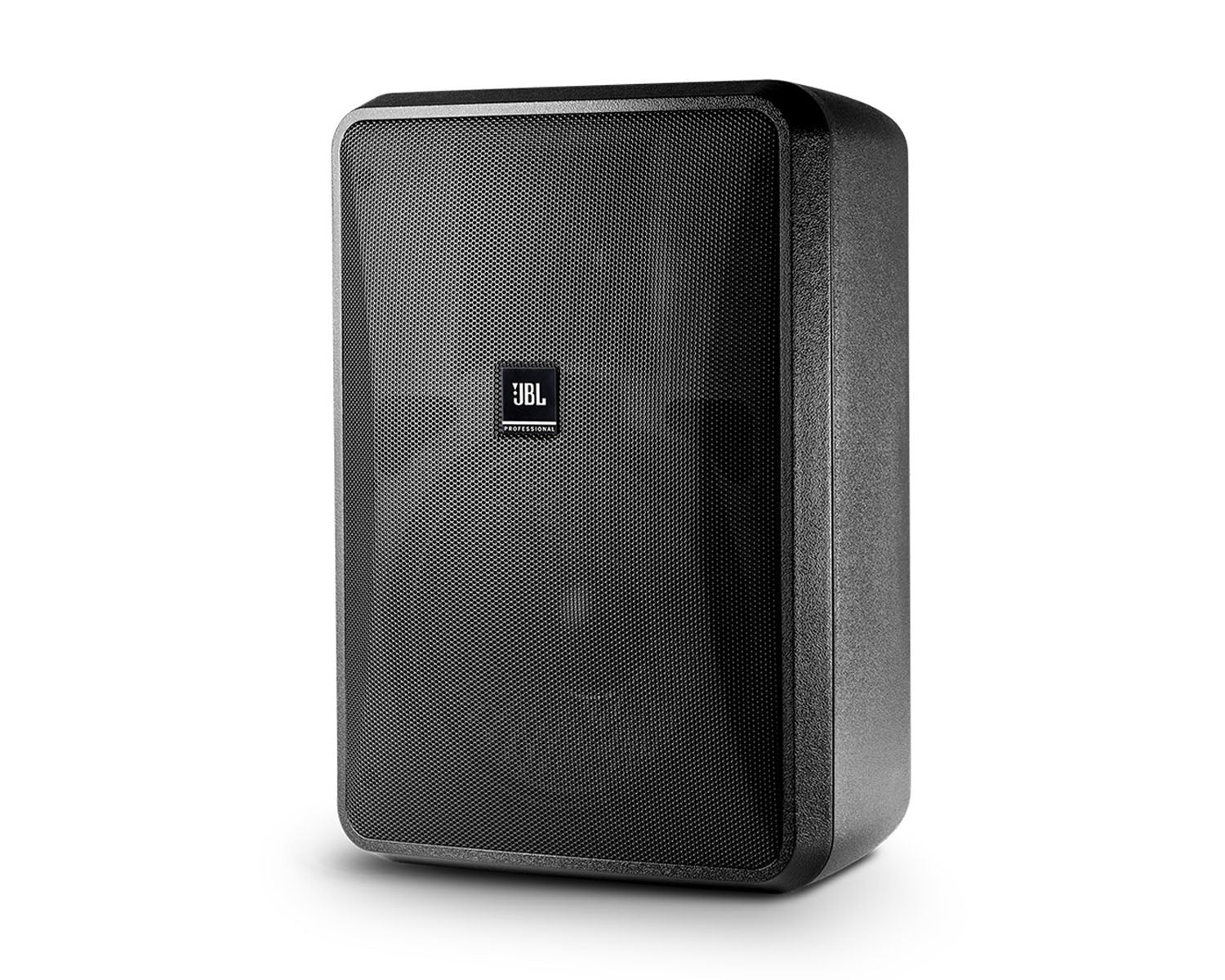

JBL Control 28-1L 8" High-Output 2-Way Speaker Black

Product code: 192015

£367.00 inc VAT
£305.83 ex VAT

SKU: CONTROL 28-1L

1 in stock (more available subject to additional lead time)

1 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: Low impedance (8Ω).

The JBL Control 28-1L is an 8in two-way surface-mount speaker for higher-output foreground music in indoor and covered outdoor spaces. It is the low-impedance version, rated at 120W continuous into 8 ohms with 100° x 100° coverage. It suits bars, restaurants, gyms, retail and leisure venues run from a low-impedance amplifier. This is the black version.

8in
2-way
120W
Continuous
8 ohm
Low-Z only
IP44
Weather rating
Low impedance onlyThe L version has no 100V/70V transformer. It needs a low-impedance amplifier output and cannot be connected directly to a 100V line.

Features

200 mm (8 in) woven fibreglass cone woofer and 25 mm (1 in) PEI diaphragm tweeter with fluid cooling
120W continuous pink noise, 240W continuous programme, 8 ohms
100° x 100° coverage
IP44 as standard, IP55 with optional MTC-28WMG-1 WeatherMax grille and MTC-PC2 or MTC-PC3 panel cover
InvisiBall wall mount included, optional U-bracket available
Glass-filled HIPS enclosure with powder-coated zinc-plated grille
Black finish
Sold individually

Specifications

JBL Control 28-1L 8″ High-Output 2-Way Speaker Black specifications
Frequency response (-10 dB) 45 Hz to 20 kHz
Frequency response (±3 dB) 62 Hz to 16 kHz
Power rating 240W continuous programme (2 hrs)
Sensitivity 91 dB (1W, 1 m)
Maximum SPL 112 dB continuous, 118 dB peak
Coverage 100° x 100°
Impedance 8 ohms
Recommended high-pass 45 Hz, 24 dB/oct
Environmental IP44 (IP55 with optional grille and panel cover)
Colour Black, RAL 9004
Dimensions (H x W x D) 386 x 282 x 219 mm, 277 mm deep on InvisiBall mount
Weight 6.2 kg

Full features

  • 8” woofer with woven fiberglass cone
  • 1” PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall® mounting hardware, plus available U-bracket
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • 120 Watt power handling (240 Watt program)
  • High fidelity sound character with broad frequency response of 45 Hz – 20 kHz.

Full specifications

General

  • Frequency Response (-10dB): 45 Hz to 20 kHz
  • Frequency Response (±3 dB): 62Hz - 16 kHz
  • Power Rating: 240 W Continuous Program (2 hrs)
  • Maximum Input Voltage: 27.5 V RMS (2 hrs), 55.0 V peak
  • Maximum SPL (1m): 112 dB ave. Continuous Pink Noise (118 dB peak)
  • Sensitivity (1W, 1m): 91 dB, 1W/1m (ave. 100 Hz – 10 kHz) *Half-space (on-wall) averaged 100 Hz – 10 kHz, 2.83V.
  • Coverage Angle: 100° x 100° *Coverage angle (-6 dB) average between 600 Hz and 12 kHz.
  • Directivity Factor (Q): 7.3 (averaged 1kHz – 16kHz)
  • Impedance: 8 ohms
  • Crossover Type: 2nd order low-pass, 1st order high-pass, plus conjugate shaping
  • Recommended Protective High-Pass: 45 Hz high-pass (24 dB/oct)
  • Drivers:
    • LF: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
    • HF: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
  • Enclosure: High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
  • Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
  • Outdoor Capability: IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.)
  • Safety Agency: ROHS-compliant

Physical

  • Colors: Black (RAL9004) or white (-WH, RAL9016)
  • Dimensions (H x W x D): 386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket.
  • Net Weight (each): 6.2 kg (13.5 lbs)
  • Shipping Weight: 13.4 kg (29.5 lbs) pair-packed (for 2 speakers)
