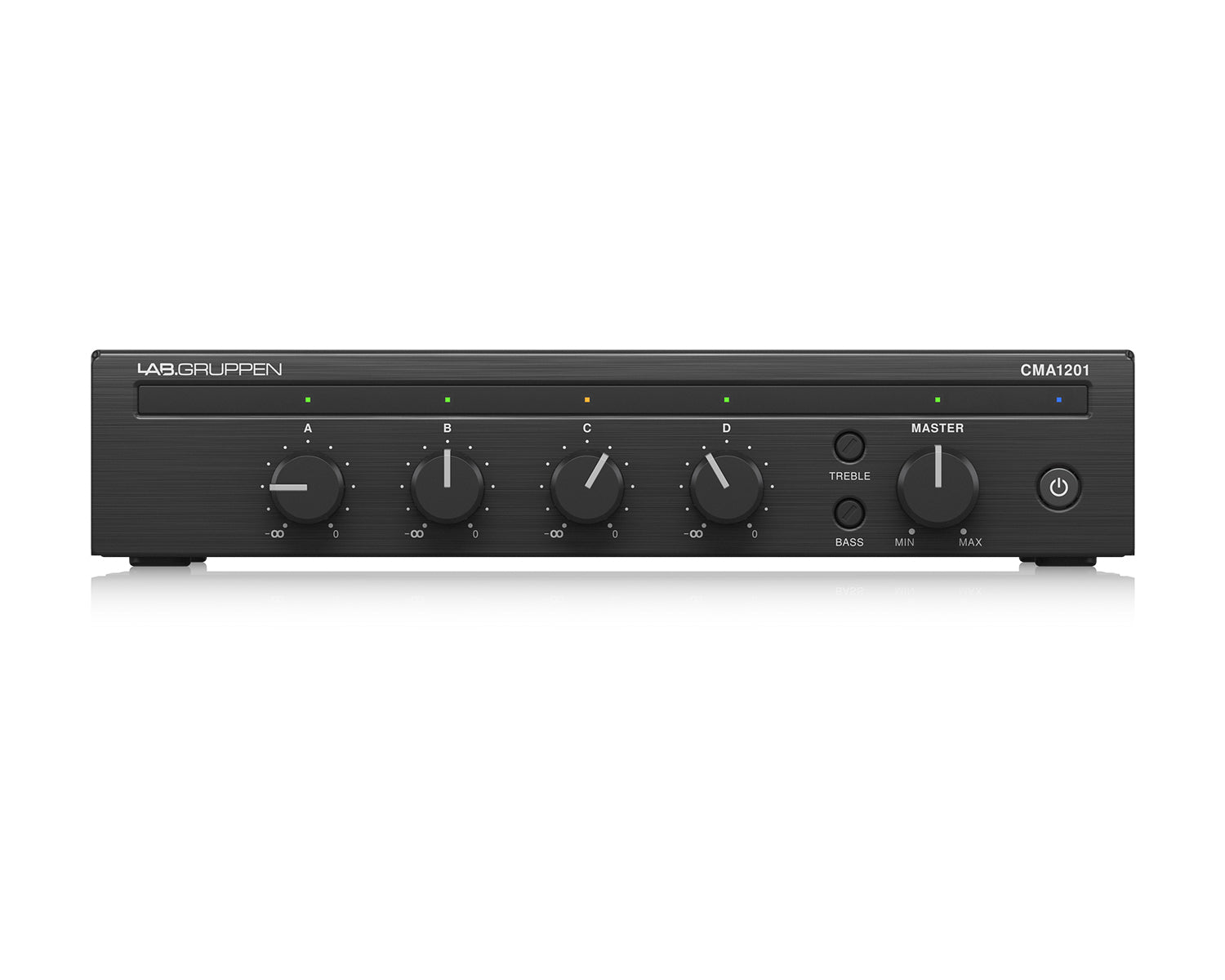

The Lab Gruppen CMA1201 is a 120 W single-channel commercial mixer amplifier that switches between Lo-Z (4/8 Ω) and Hi-Z (70/100 V) operation, so one half-rack unit covers both conventional loudspeaker pairs and distributed constant-voltage lines. Four mic/line inputs with individual level controls, configurable priority ducking and GPI remote volume make it a straightforward head end for background music and paging in bars, restaurants, retail and hotel spaces. Convection cooling means no fan noise, and joining brackets allow rack, table or wall mounting.
120 W
Output power
4
Mic/line inputs
70/100 V
Plus 4/8 Ω Lo-Z
Fanless
Convection cooled
100 V line operationIn 70 V or 100 V mode the CMA1201 drives distributed loudspeaker lines: multiple tapped ceiling or wall speakers wired in parallel on a single run, the standard approach for background music and paging across larger or multi-room spaces. Minimum load impedance is 41 Ω in 70 V mode and 82 Ω in 100 V mode, so keep the total tap wattage on the line within the amplifier’s 120 W rating.
Features
Low-Z (4/8 Ω) and High-Z (70/100 V) operation with switchable 80 Hz high-pass filter
4 mic/line inputs with individual volume controls
Configurable priority muting for paging over background music
Direct drive, constant power technology for reliable audio performance
GPI remote volume control over a standard RJ45 connector and Ethernet cable
Auto Ramp circuitry for quiet, fast power up and down

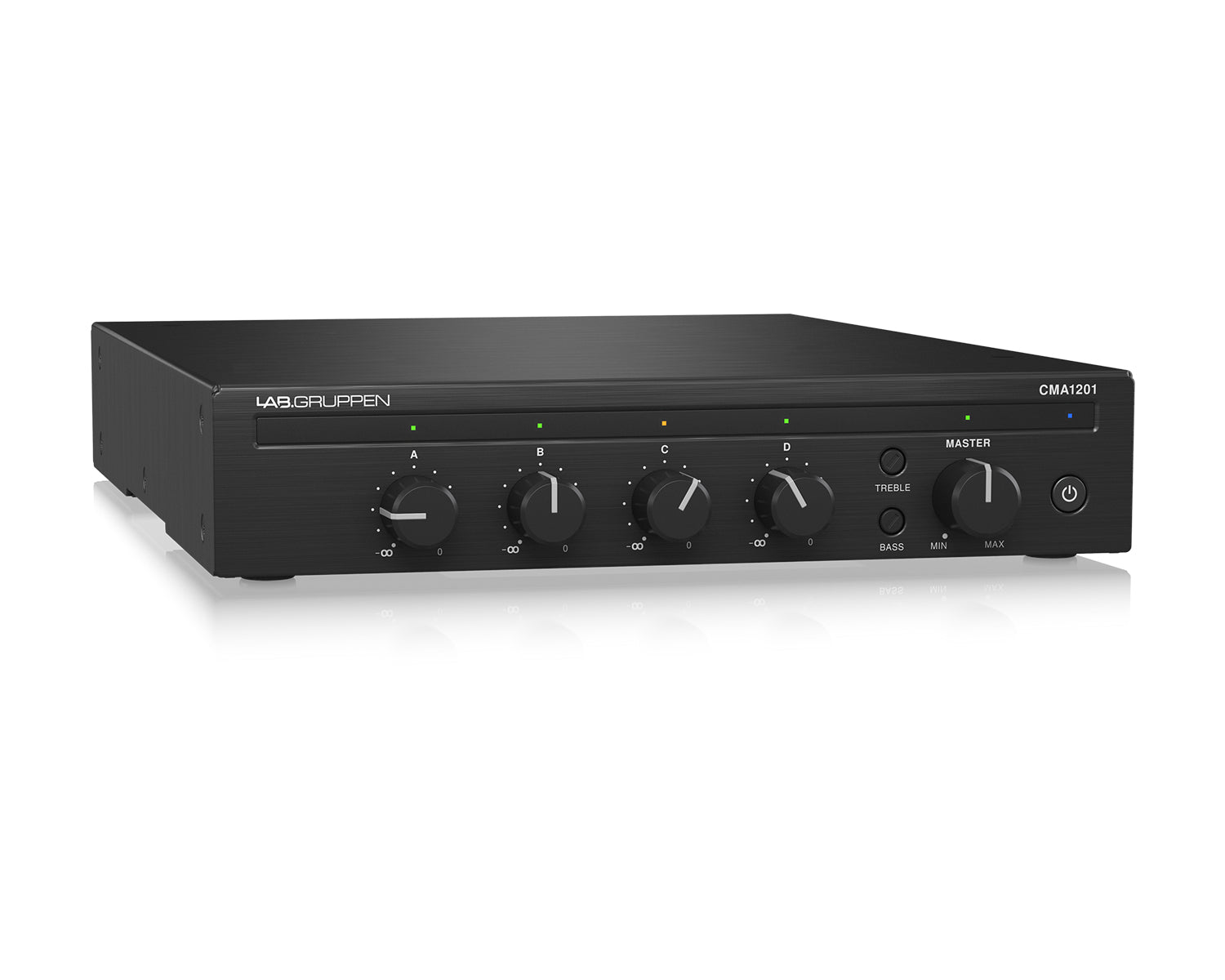

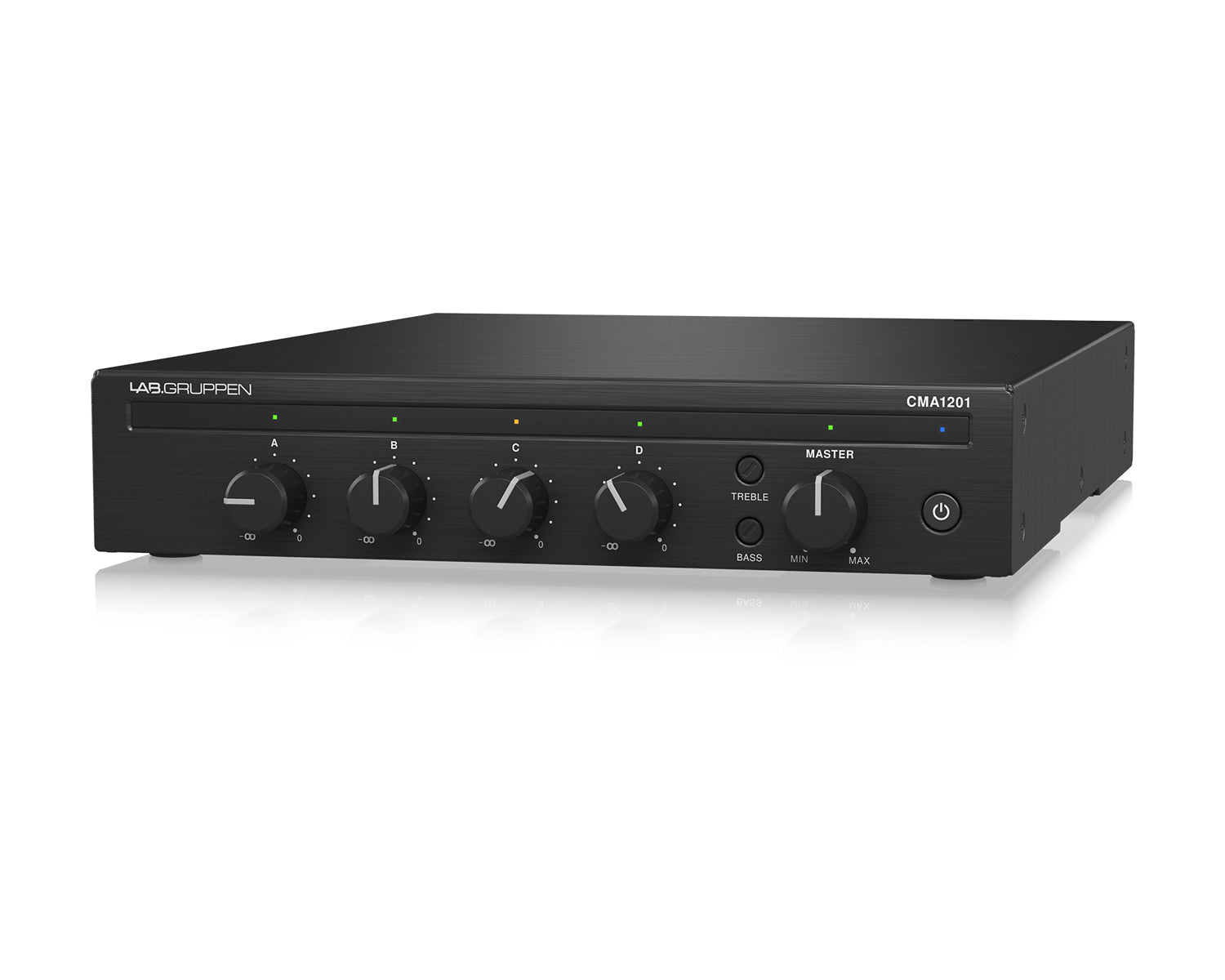

Front panel master volume with bass and treble tone controls
Aux output for expansion to additional amplifiers
48 V phantom power for the priority mic input
Euroblock mic/line input and output connectors
Energy efficient Class D design with front panel power control
1U half-rack chassis with joining brackets for rack, table and wall mounting
Specifications
| Output power | 120 W (4 or 8 Ω) |
| Amplifier channels | 1 |
| Minimum load impedance | 4 Ω (4 Ω mode), 8 Ω (8 Ω mode), 41 Ω (70 V mode), 82 Ω (100 V mode) |

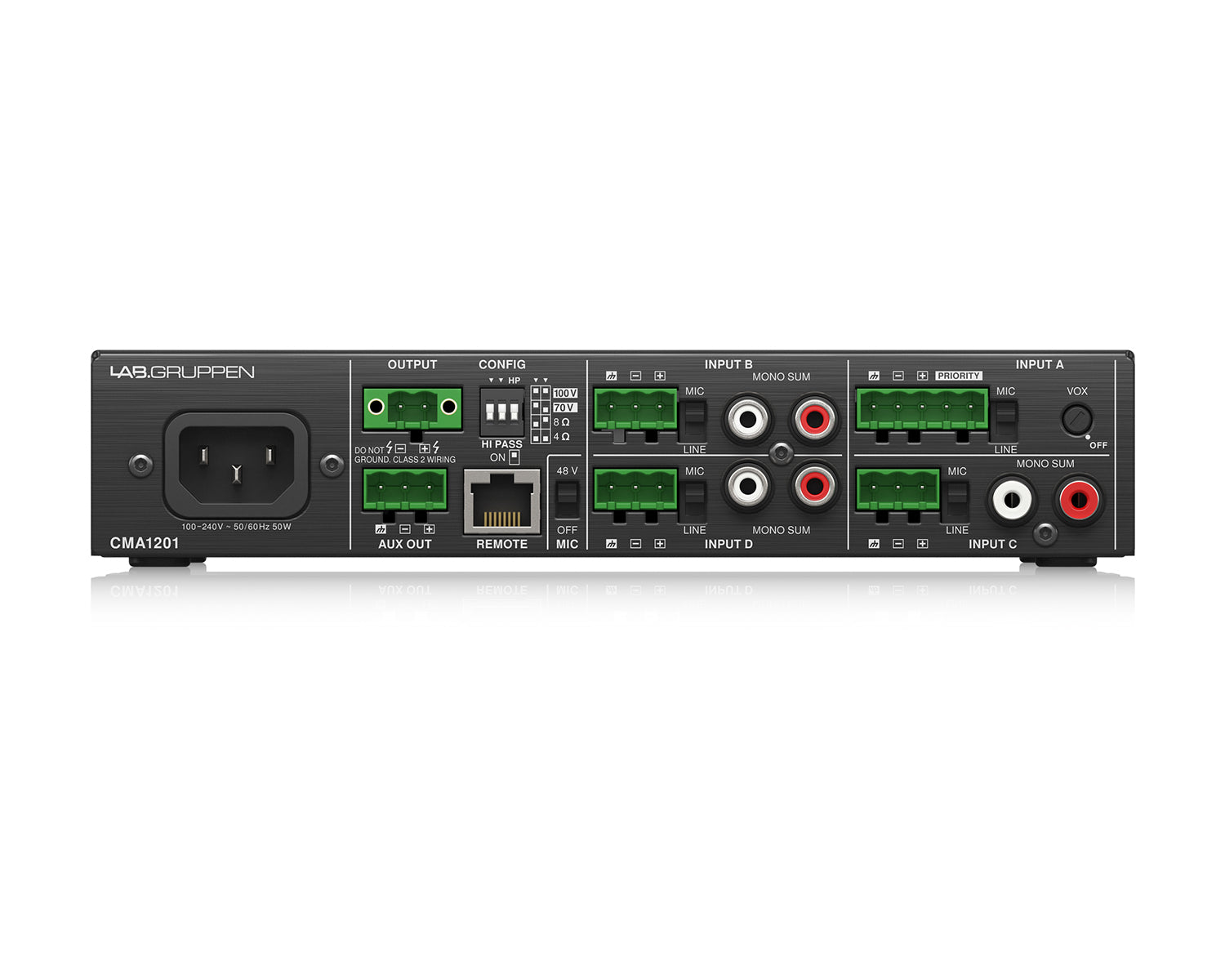

| Inputs | 1 × 5-pin Euroblock mic/line with priority/ducking (channel A); 3 × 3-pin Euroblock plus summed stereo RCA (channels B, C, D) |
| Input impedance | 20 kΩ balanced mic/line; 10 kΩ unbalanced line and RCA |
| Maximum input level | 4.88 V (+16 dBu) |
| Phantom power | 48 V |
| Amplifier output | 2-pin Euroblock connector |
| Aux output | 3-pin Euroblock, max level 4.88 V (16 dBu) |
| Tone controls | Bass ±10 dB @ 100 Hz; treble ±10 dB @ 10 kHz |
| High-pass filter | 80 Hz, switchable |
| Output circuit type | Class D |
| Distortion (1/8 rated power) | <0.05% |
| Frequency response | 20 Hz to 20 kHz, +0.5/-1 dB |
| Signal-to-noise | >97 dBA |
| Remote connector | 1 × RJ45 (GPI remote volume) |
| Cooling | Convection cooled, fanless |
| Mains | 100-240 V, 50/60 Hz, IEC connector; fuse T 3.15 A L 250 V |
| Power consumption (1/8 rated power, 4 Ω) | 50 W |
| Dimensions (H × W × D) | 44 × 218 × 299 mm |
| Weight | 2.4 kg |
| Finish | Brushed black anodised aluminium chassis |
| Warranty | 1 year |
