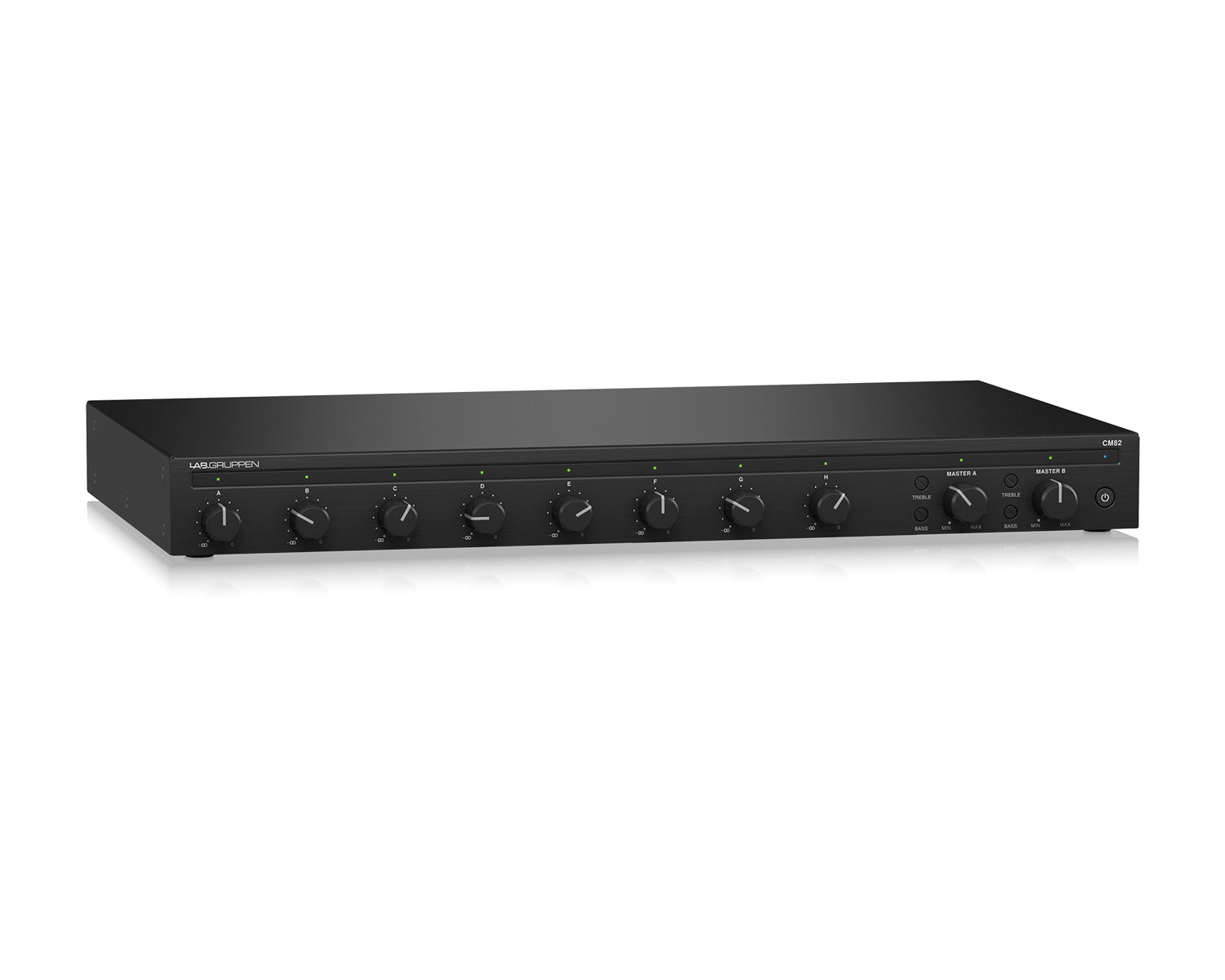

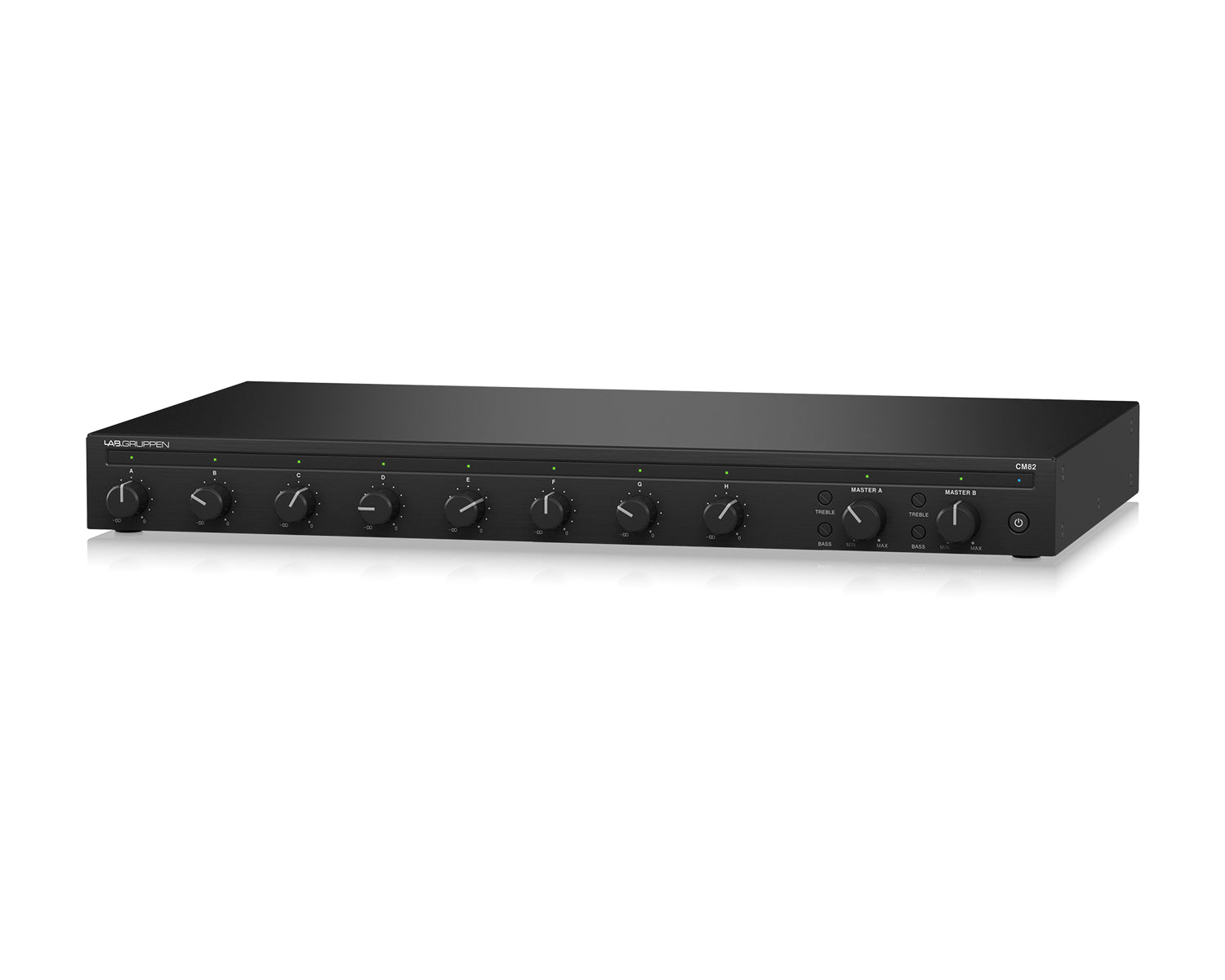

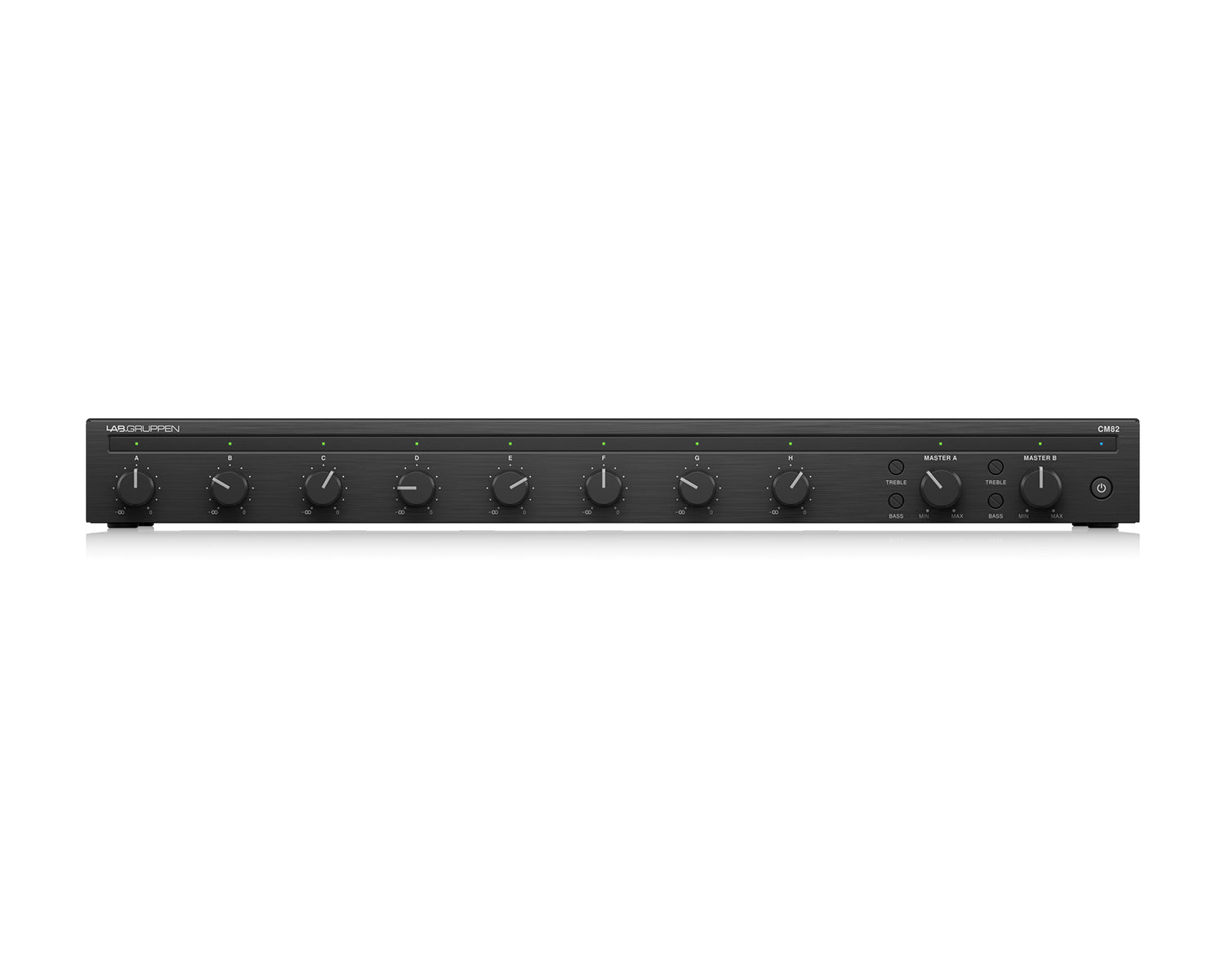

Lab Gruppen CM82 Commercial Rack Mount Mixer 8 In / 2 Out 19″ 1U (0600-AAB86-UK1)

SKU: 0600-AAB86-UK1
Lab Gruppen CM82 Commercial Rack Mount Mixer 8 In / 2 Out 19″ 1U (0600-AAB86-UK1)
Lab Gruppen CM82 Commercial Rack Mount Mixer 8 In / 2 Out 19″ 1U (0600-AAB86-UK1)
Lab Gruppen CM82 Commercial Rack Mount Mixer 8 In / 2 Out 19″ 1U (0600-AAB86-UK1)
Lab Gruppen CM82 Commercial Rack Mount Mixer 8 In / 2 Out 19″ 1U (0600-AAB86-UK1)
Click to enlarge

    £410.00 inc VAT
    £341.67 ex VAT

    9 in stock (more available subject to additional lead time)

    9 available
    More available from supplier in 1–3 weeks
    Order in 0h 20m 16s for FREE delivery by WednesdayClick & Collect available Tue 18th Aug from us in London ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Lab Gruppen CM82 is an 8-input, 2-output rack-mount mixer for commercial and industrial installs: bars, restaurants, retail, hotels, corporate and education spaces running background music and paging. Each mic/line input has its own volume control and output routing, and a configurable priority ducking function lets announcements automatically override the music. It is designed to be operated by non-technical staff once installed, and partners naturally with Lab Gruppen CA-series amplifiers.

    8
    Mic/line inputs
    2
    Outputs
    48 V
    Phantom power
    1U 19″
    Rack mount
    Features
    8 input / 2 output mixer for commercial and industrial applications
    8 mic/line inputs with individual volume controls and output routing
    Individual front panel master volume and bass/treble controls per output
    Configurable priority muting for announcements over background music
    GPI remote volume control via standard RJ-45 and Ethernet cable
    Front panel power control button for direct access
    Aux output for expansion to connect with amplifiers
    Rack-mountable 1U, 19″ enclosure with brackets included
    Euroblock mic/line input and output connectors
    48 V microphone phantom power
    Specifications

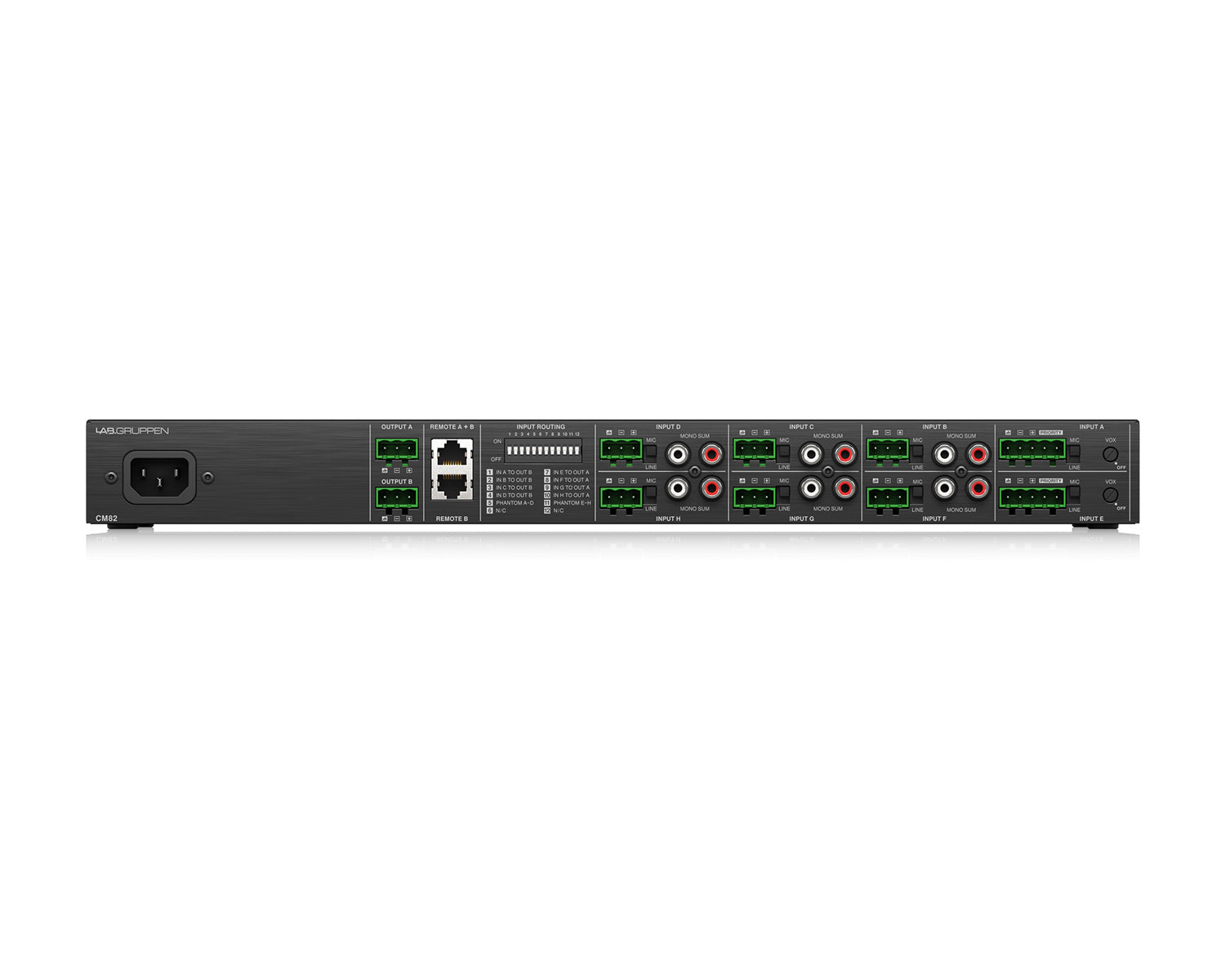

    Inputs 2 × 5-pin Euroblock mic/line with priority/ducking (channels A, E); 6 × 3-pin Euroblock mic/line with summed stereo RCA (channels B, C, D)
    Input impedance 20 kΩ balanced mic/line; 10 kΩ unbalanced line and RCA
    Maximum input level 4.88 V (+16 dBu)
    Phantom power 48 V
    Outputs 2 × 3-pin Euroblock
    Maximum output level 9.6 V (+22 dBu)
    Distortion <0.05%
    Frequency response 20 Hz to 20 kHz, +0.5/-1 dB
    Signal-to-noise ratio >97 dBA
    Remote control 2 × RJ45 Ethernet connector (GPI)
    Mains Universal 100-240 V, 50/60 Hz, IEC inlet; fuse T 3.15 A L 250 V
    Power consumption 20 W
    Dimensions (H × W × D) 44 × 437 × 248 mm
    Weight 2.4 kg
    Approvals CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC Part 15 Class B

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • 8 input / 2 output mixer for commercial and industrial applications
    • 8 mic/line inputs with individual volume controls and output routing
    • Individual front panel master volume and bass/treble controls for each output
    • Configurable priority muting function for background music override
    • GPI remote volume control using standard RJ-45 connector and Ethernet cable
    • Front panel power control button for direct access
    • Aux output for expansion to connect with amplifiers
    • Rack-mountable 1U, 19" enclosure with brackets for rack mounting
    • Euroblock type mic/line input and output connectors
