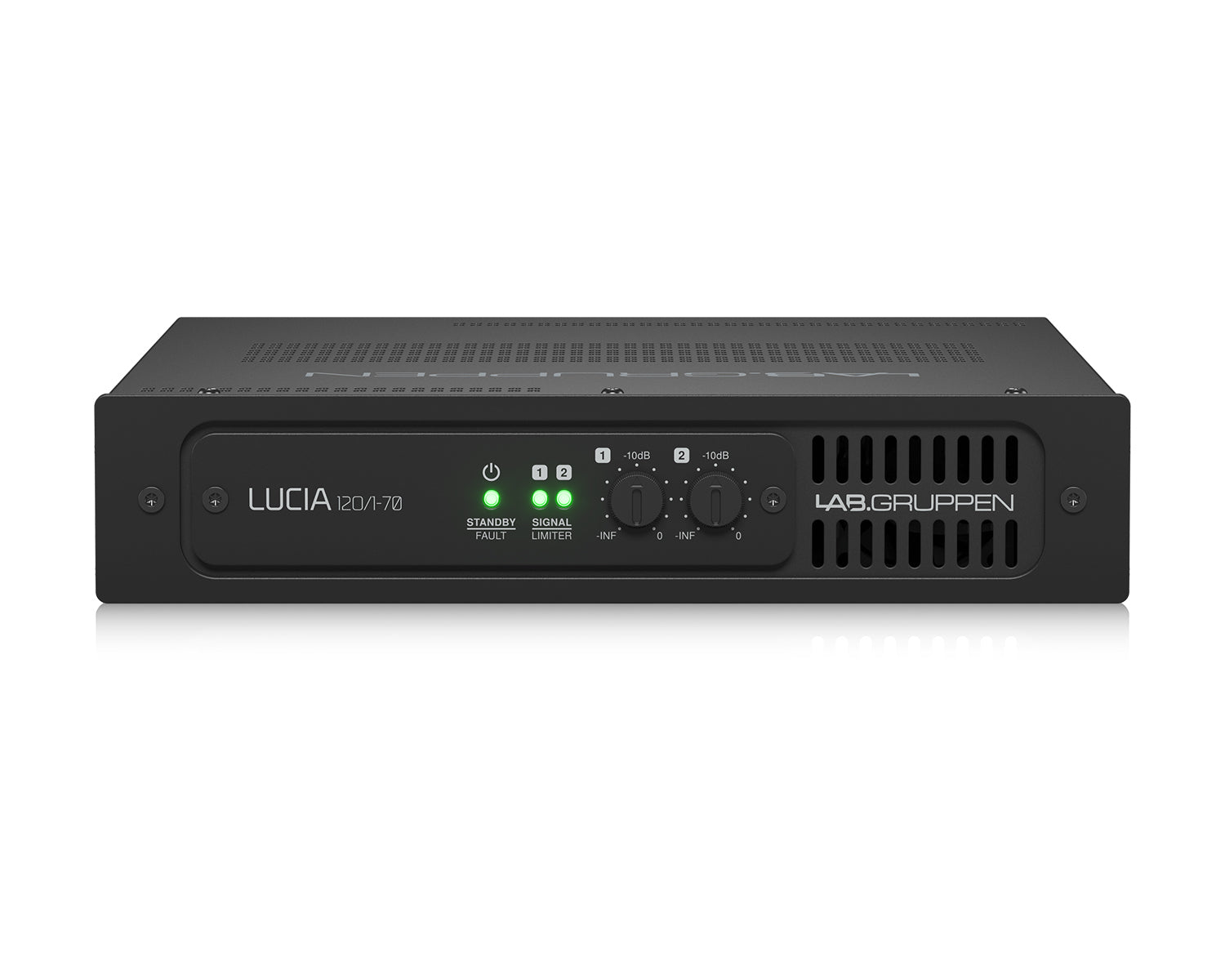

Lab Gruppen LUCIA 120/1-70 Compact 70V Install Amplifier 120W DSP

Product code: 180414

£437.00 inc VAT
£364.17 ex VAT

SKU: 000-DFI04-00010

4 in stock

In stock with Lab Gruppen - ordered on demand
FREE delivery by ThursdayOrder by 3pm tomorrow
Click & Collect Wednesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Lab Gruppen LUCIA 120/1-70 is a single-channel install amplifier delivering 120 W into 70 V constant-voltage speaker lines, 60 W at 100 V, or 120 W into a 16 Ω load. Constant-voltage (70/100 V line) distribution lets one amplifier drive long chains of tapped ceiling and wall speakers, the standard approach for background music and paging in retail, hospitality and corporate spaces. Part of Lab Gruppen’s decentralised LUCIA platform, the half-rack 1U chassis ships with a wall-mount bracket so power, DSP and I/O sit exactly where the zone needs them, behind a display, above a ceiling tile or inside a counter.

120 W
Into 70 V line
1U
Half-rack chassis
<1 W
Standby draw
1.9 kg
Weight

Features

Compact mono amplifier for high-impedance speakers on 70 V distribution lines
Onboard DSP with per-channel high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter
Optimised presets for a wide range of loudspeaker models
Setup wizard and advanced preset editor for Windows and Mac via USB
Automatic Dynamic Loudness Contouring (ADLC) adapts response at any output level
Auto Load Sense sets the Voltage Peak Limiter for the connected load
Enhanced Bass Profile extends LF response with small loudspeakers
Efficient Class-D output stage with low distortion and minimal heat
Energy Star certified with under 1 W standby consumption
Configurable GPIO for wall panels, level control and paging integration; RS232 monitoring
Short-circuit, thermal and under-voltage protection for fail-safe operation
Wall-mount bracket supplied; rackmount, pole-mount and wall panel kits available
Balanced Euroblock inputs and outputs with parallel unbalanced RCA inputs
Temperature-controlled fan stays silent at idle and low output levels
Designed and engineered in Sweden

Specifications

Lab Gruppen LUCIA 120/1-70 Compact 70V Install Amplifier 120W DSP specifications
Amplifier channels 1
Output, 70 V line 120 W
Output, 100 V line 60 W
Output, 16 Ω 120 W
Max output voltage / current 100 V peak / 3.5 Arms
Signal-to-noise ratio >100 dBA
Input sensitivity 4 dBu balanced; -2 dBu RCA
Inputs 3-pin detachable screw terminals (electronically balanced); parallel unbalanced RCA
Output connector 2-pin detachable screw terminal
Control 2 × GPI, GPO contact closure, RS232, USB for configuration and firmware
High-pass filter (rear switch) Off / 50 Hz / 80 Hz
Processing 4 EQ sections per input and output, 2-in/1-out mix matrix, look-ahead limiter, ADLC
Latency User adjustable, 9.15 to 137 ms
Mains supply 100-240 V AC nominal (85-265 V operating), IEC inlet; <1 W standby
Dimensions (W × H × D) 216 × 44 × 280 mm (half-rack, 1U)
Weight 1.9 kg
Approvals CE, CSA, CCC, PSE, FCC, Energy Star

Full features

  • Compact mono amplifier which offers 120 W for high impedance speakers on 70 V distribution lines
  • Comprehensive on-board DSP with loudspeaker processing and innovative features which enhance performance and simplifies system design and commissioning
  • Configuration software wizard for initial set-up and advanced editor for preset configuration (LUCIA connection via USB) available for Windows* and Mac*
  • Energy efficient with Energy Star* certification for supreme green credentials and exceptionally low lifetime running costs
  • Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level
  • Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter
  • Optimized presets available for a wide range of loudspeaker models for fast configuration
  • Enhanced Bass Profile for extended LF response with small loudspeakers
  • Proprietary Auto Load Sense automatically sets VPL (Voltage Peak Limiter) for optimum performance with any connected load
  • Efficient Class-D amplifier with low distortion and minimal heat dissipation
  • Compact form factor in a half-rack, 1U chassis with supplied bracket for discreet on-wall mounting
  • Configurable GPIO port for remote control (e.g. wall panel) for channel switching, level control and integration with paging systems
  • Comprehensive circuit protection for fail safe operation, including short circuit, thermal and under-voltage protection
  • Universal power supply supports 100 - 240 V AC at 50 or 60 Hz
  • Intelligent fan control for silent operation at idle and at lower output levels

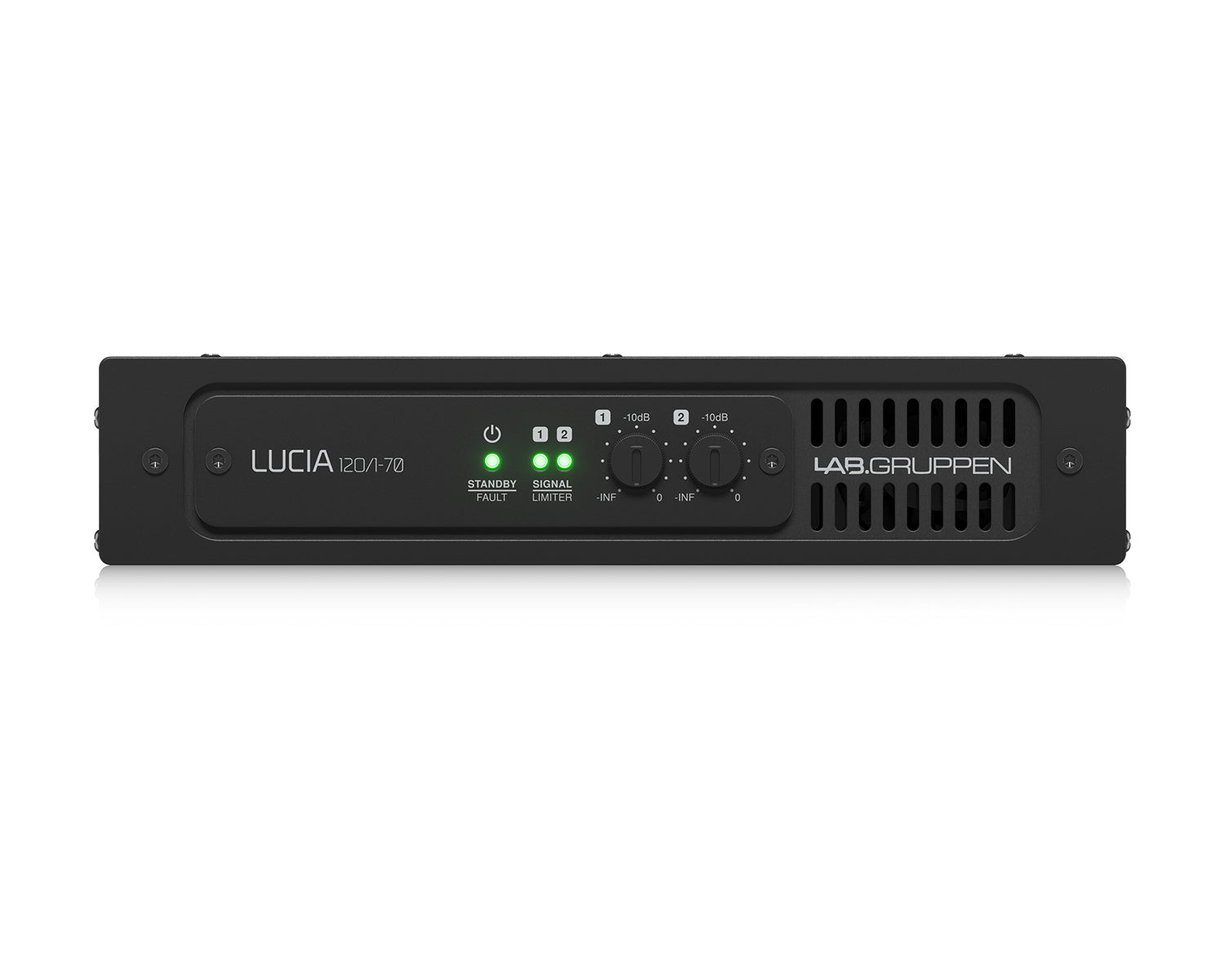

  • Front panel power and fault indication as well as per-channel signal LED and attenuation knob
  • Balanced high quality analogue inputs and amplifier outputs on detachable screw terminals
  • Parallel analogue input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources
  • Rackmount kit, pole-mount kit and wall panel kits available as accessories
  • 10-Year Warranty Program*
  • Designed and engineered in Sweden

Full specifications

General

  • Number of amplifier channels: 1
  • Max total output all channels driven: 120 W
  • Max output voltage: 100 Vpeak
  • Max output Current: 3.5 Arms

Performance

  • 70 V: 120 W
  • 100 V 1: 60 W
  • 16 ohms: 120 W
  • Signal to Noise Ratio: >100 dBA

Gain, Sensitivity and Limiters

  • VPL: 100 Vpeak
  • Sensitivity, balanced input: 4 dBu / 1.23 Vrms
  • Sensitivity, RCA input: -2 dBu / 0.62 Vrms
  • Input headroom for clip, balanced 2: 12 dBu / 3.09 Vrms
  • Input headroom for clip, RCA 2: 6 dBu / 1.55 Vrms

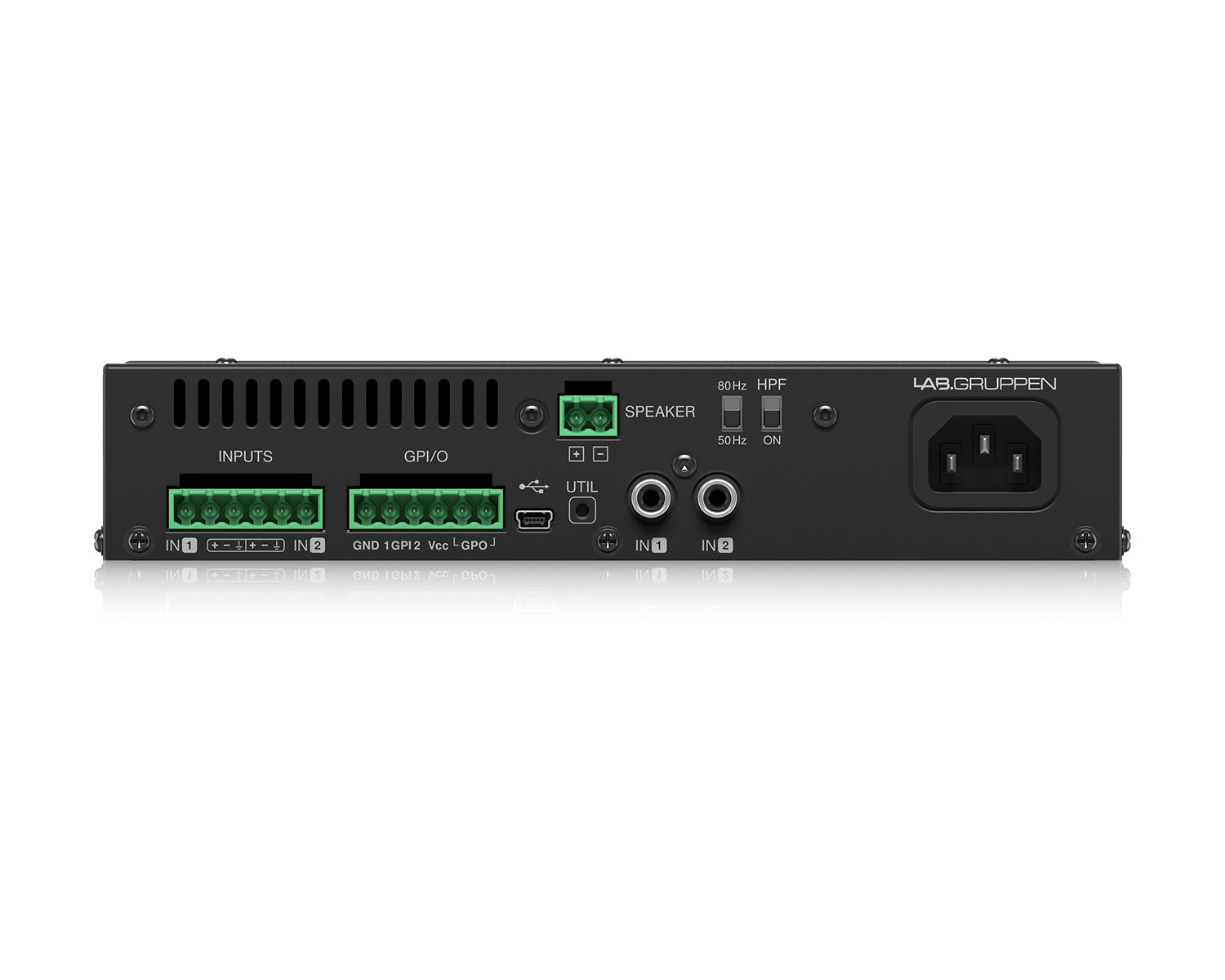

Connectors and Buttons

  • Input connectors (per ch.): 3 - pin detachable screw terminals, electronically balanced
  • Input connectors (ch. 1 & 2): Unbalanced RCA type
  • Output connector: 2 - pin detachable screw terminal
  • GPI 3: 2 channels of voltage sense type. 4 pins in a detachable screw terminal. Default functionality is output level for GPI1 and wake up from stand by for GPI2.
  • GPO (power state output) 3: Contact closure type, 2 pins in a detachable screw terminal Default for external monitoring of fault/protection/power off
  • RS232: Can be controlled and monitored by third parties via RS232 using both the GPI pins
  • USB: For firmware update and configuration of the signal processing and altering the default functions of the GPI ports
  • High pass filter: This filter is in series with the other filters in the DSP and it is controlled with switches on the back. Settings OFF / 50 Hz / 80 Hz.
  • Level adjustment (per input): Front panel potentiometer, detented from -inf to 0 dB

Processing Features

  • Input processing block 4: 4 EQ sections per input
  • Mix matrix routing block 4: 2 in - 1 out mix-matrix controllable from GPI
  • Output processing block 4: 4 EQ sections per output (presets available for many loudspeakers) User adjustable output look ahead limiter ADLC (Adaptive ISO 226 compensation)
  • Latency from any input to any output: User adjustable from 9.15 to 137 ms

Power

  • Nominal voltage: 100 – 240 VAC
  • Operating voltage: 85 – 265 VAC
  • Standby consumption: <1 W
  • Mains connector: IEC inlet
  • Cooling: One fan, no filter required, front to rear airflow, temperature controlled speed. Can stay off if the sustained power average stays below 12 W and the ambient temperature is below 25 C
  • Auto mode: The power state is controlled automatically by the audio signal

Physical & Dimensions

  • Dimensions: W: 216 mm (8.5”), H: 44 mm (1 U), D: 280 mm (11”)
  • Weight: 1.9 kg (4.2 lbs)
  • Finish: Black aluminium front and black steel chassis
  • Approvals: CE, CSA, CCC, PSE, FCC, Energy Star
