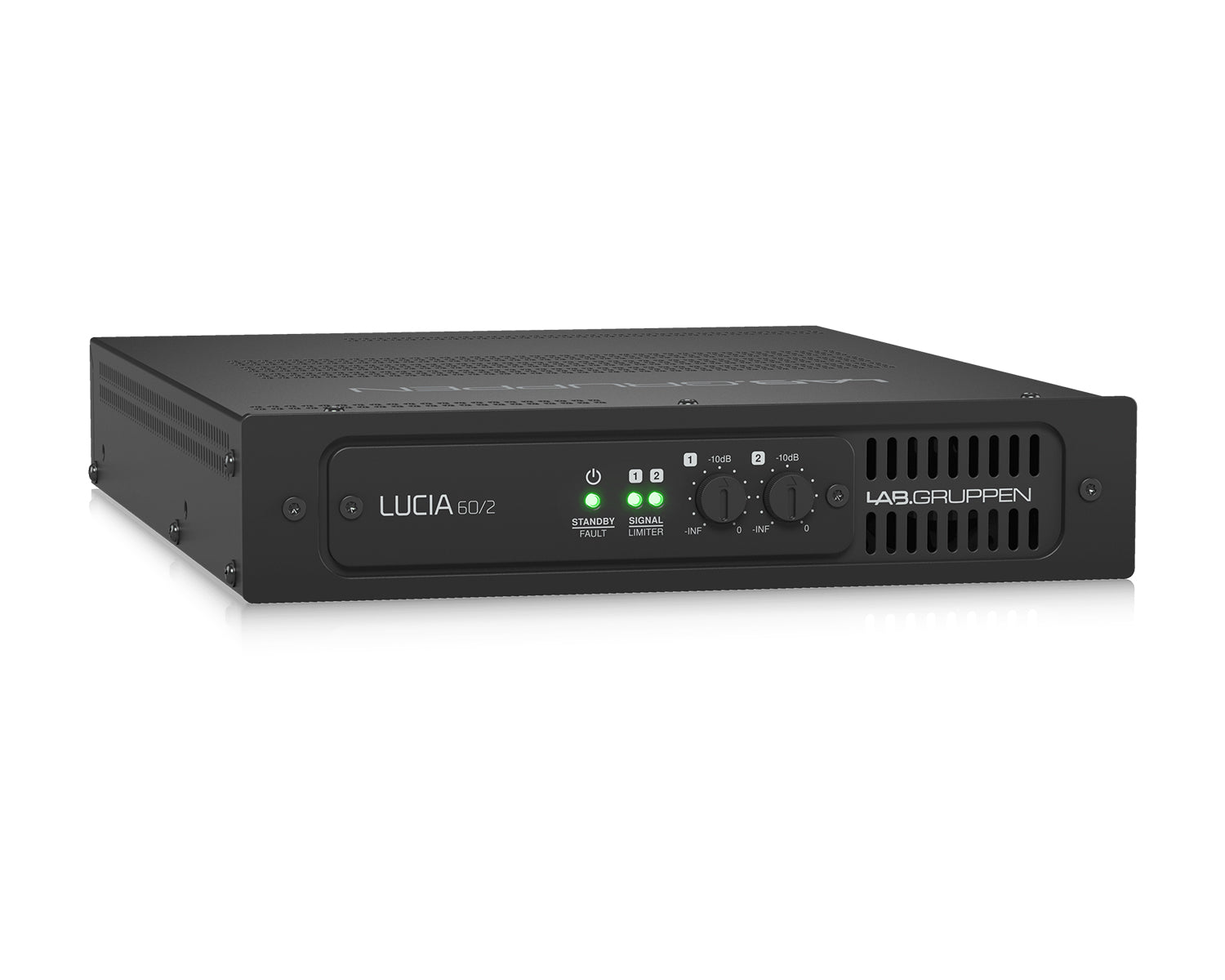

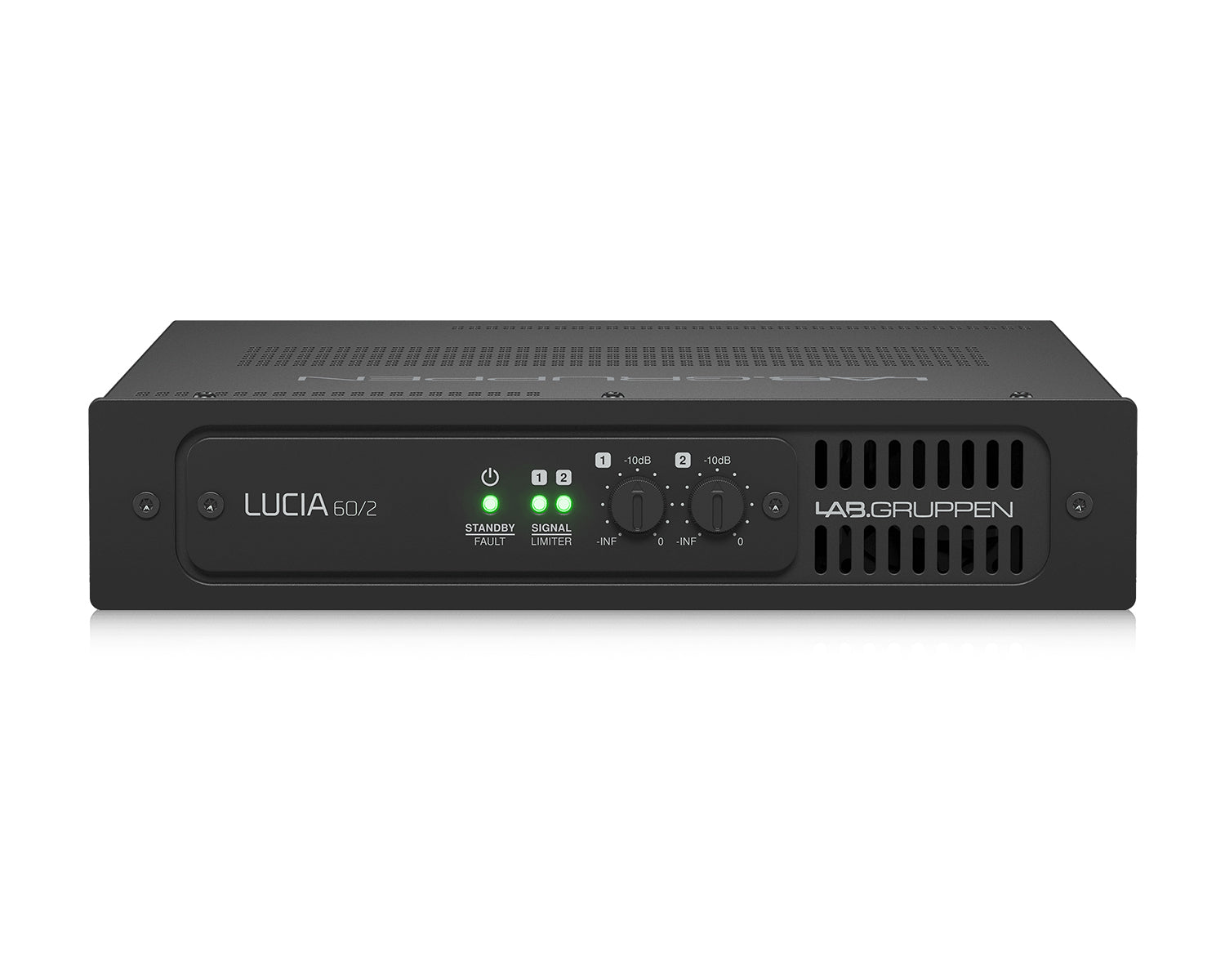

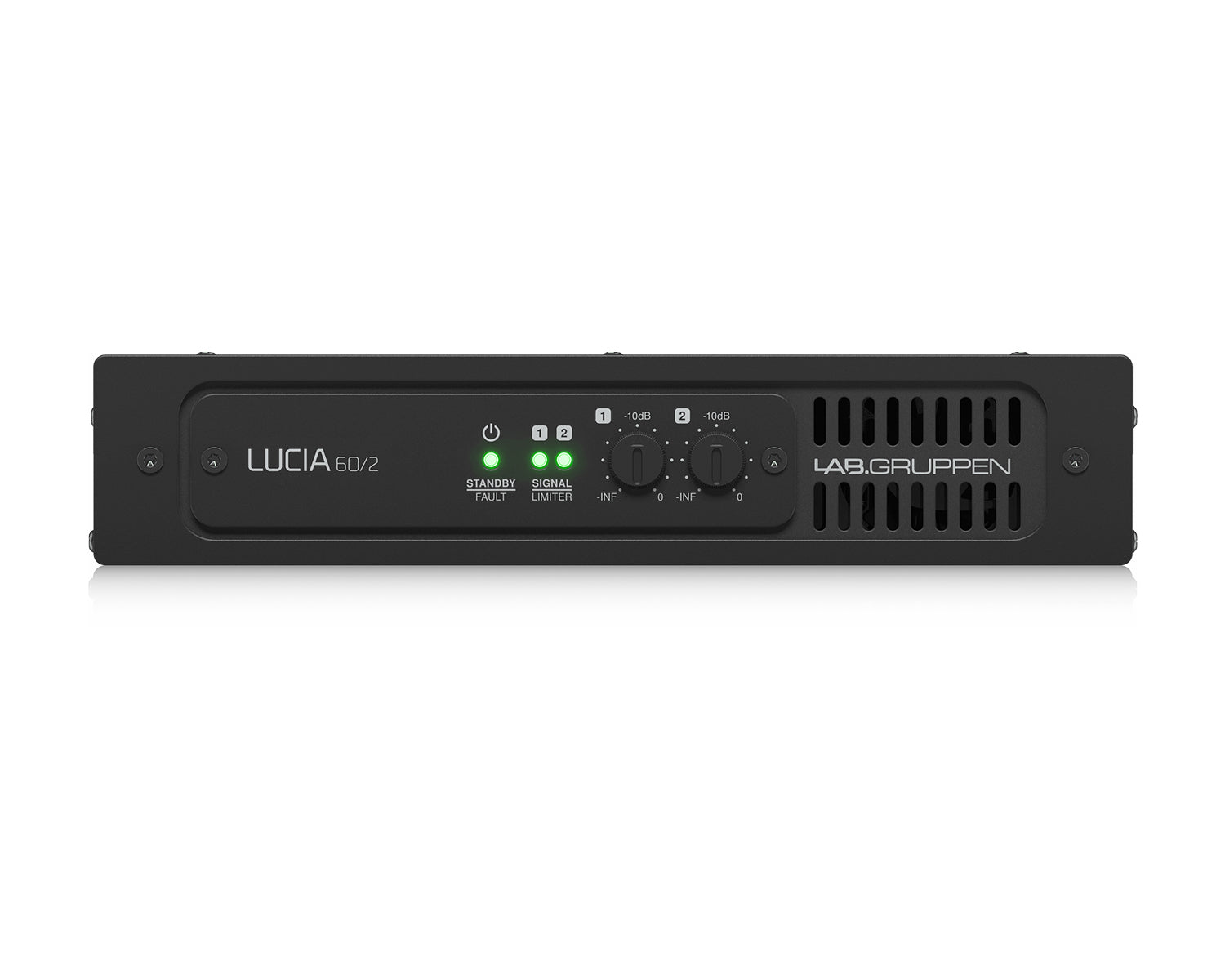

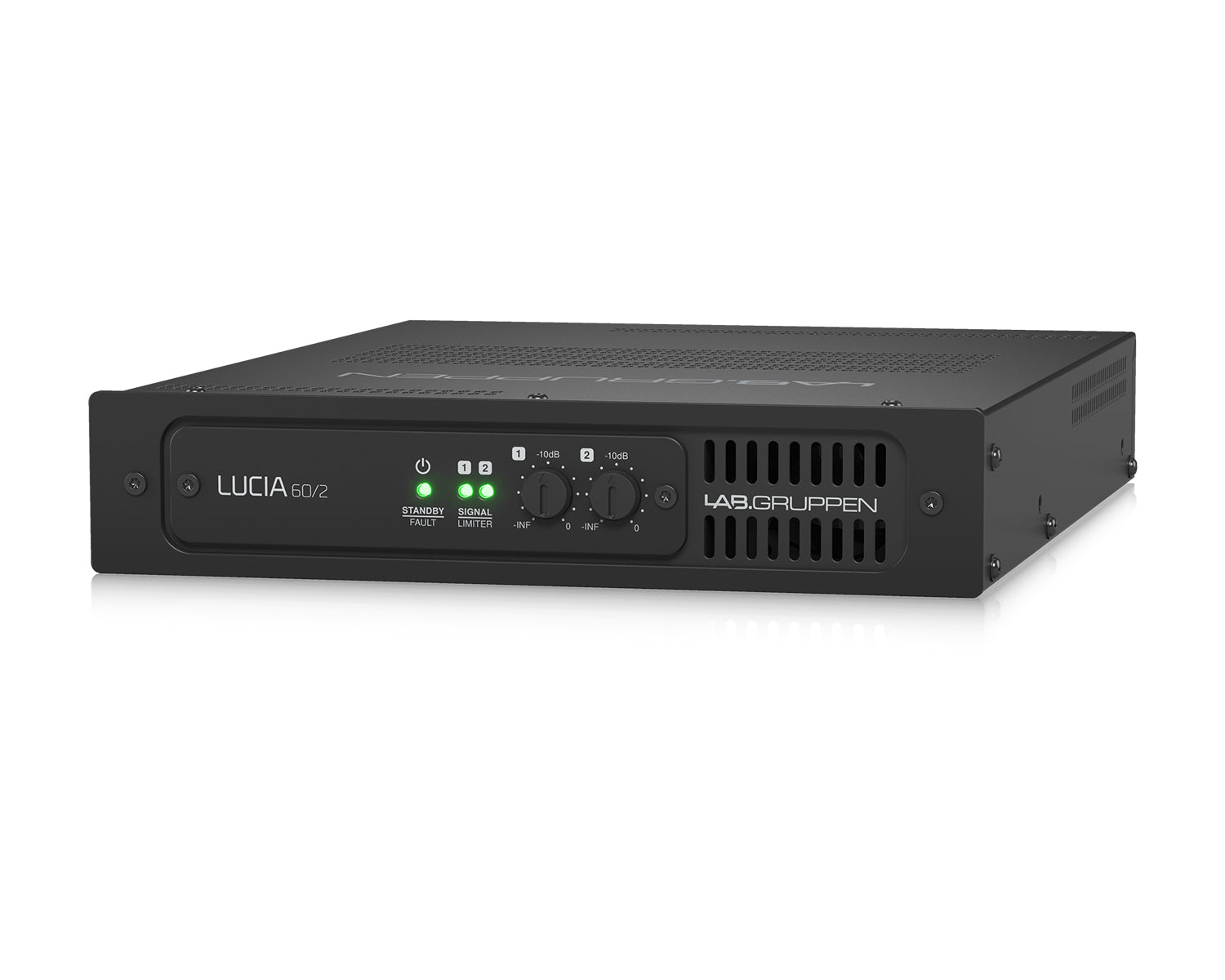

The Lab Gruppen LUCIA 60/2M is the matrix model in the compact LUCIA install range, pairing 2 × 30 W of amplification (full power into 8, 4 or 2 Ω) with a 4 × 4 mix matrix and two balanced line-level outputs. Those line outputs can each feed up to ten further LUCIA amplifiers in parallel, so one 60/2M can act as the mixing and routing hub for a multi-zone system without an external processor. The half-rack 1U chassis ships with a wall-mount bracket for discreet placement wherever the zone needs it.
2 × 30 W
Into 8, 4 or 2 Ω
4 × 4
Mix matrix
2
Balanced line outputs
1U
Half-rack chassis
Features
Compact matrix amplifier: full output power of 2 × 30 W into 8, 4 or 2 Ω
4 × 4 matrix mixes and routes all inputs to the amplifier channels and two balanced line-level outputs
Each line output can drive up to 10 LUCIA devices in parallel
Onboard DSP with per-channel high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter
Optimised presets for a wide range of loudspeaker models
Setup wizard and advanced preset editor for Windows and Mac via USB
Automatic Dynamic Loudness Contouring (ADLC) adapts response at any output level
Auto Load Sense sets the Voltage Peak Limiter for the connected load
Enhanced Bass Profile extends LF response with small loudspeakers
Efficient Class-D output stage; Energy Star certified for low running costs
Configurable GPIO for wall panels, level control and paging integration; RS232 monitoring
Short-circuit, thermal and under-voltage protection for fail-safe operation
Wall-mount bracket supplied; rackmount, pole-mount and wall panel kits available
Temperature-controlled fan stays silent at idle and low output levels
Designed and engineered in Sweden
Specifications
| Amplifier channels | 2 |
| Max total output (all channels driven) | 60 W |
| Output per channel | 30 W into 2, 4 or 8 Ω; 15 W into 16 Ω |
| Max output voltage / current per channel | 21.9 V peak / 3.9 Arms |
| THD | <0.3% (20 Hz to 20 kHz at 1 W into 8 Ω); <0.2% (1 kHz, 1 dB below clip) |
| Signal-to-noise ratio | >95 dBA |
| Channel separation | >60 dBA at 1 kHz |
| Frequency response | 5 Hz to 22 kHz |
| Input impedance / CMR | 10 kΩ / 40 dB |
| Input sensitivity | 4 dBu balanced; -2 dBu RCA |
| Connectors | Balanced 3-pin screw-terminal inputs, 2-pin screw-terminal speaker outputs, balanced 3-pin screw-terminal line outputs (ch 3 & 4) |
| Control | 2 × GPI, RS232, USB for configuration and firmware |
| Processing | 4 EQ sections per input and output, 4-in/4-out mix matrix, look-ahead limiter, ADLC |
| Latency | User adjustable, 9.15 to 137 ms |
| Mains supply | 100-240 V AC nominal (85-265 V operating), IEC inlet |
| Dimensions (W × H × D) | 216 × 44 × 280 mm (half-rack, 1U) |
