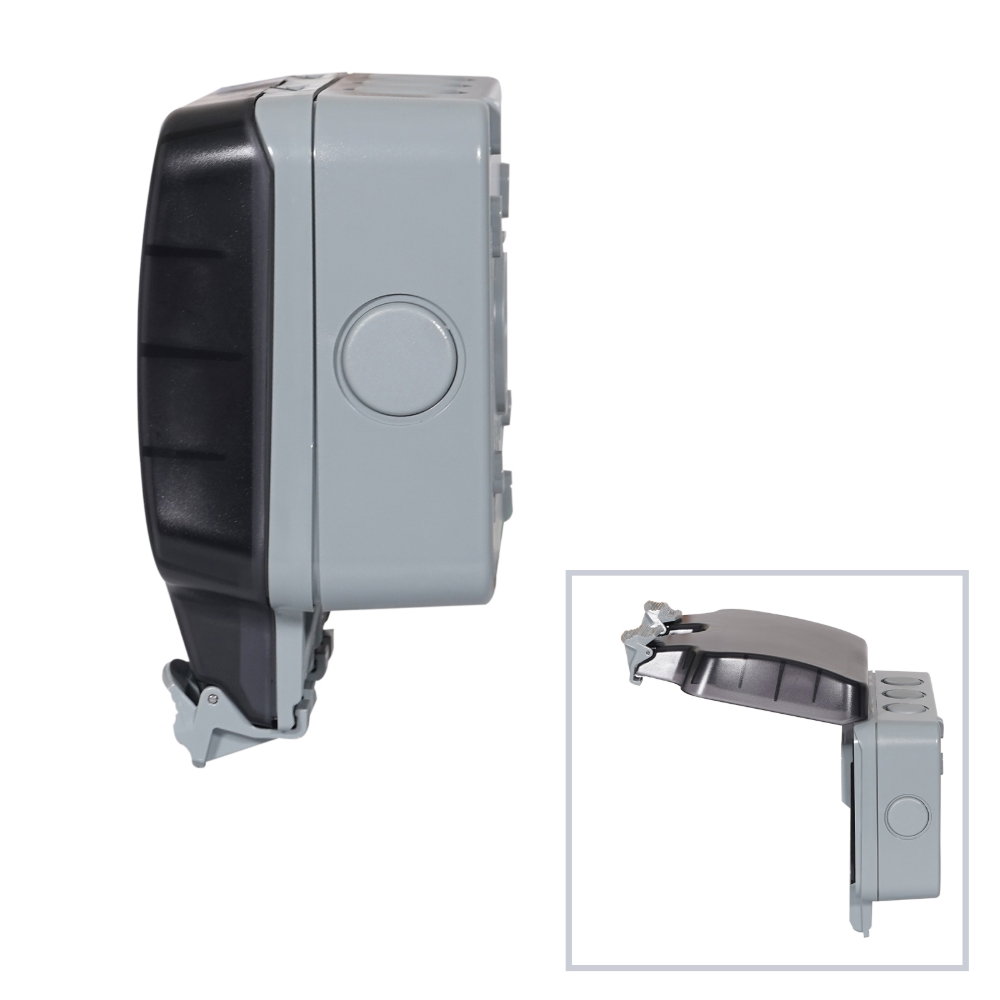

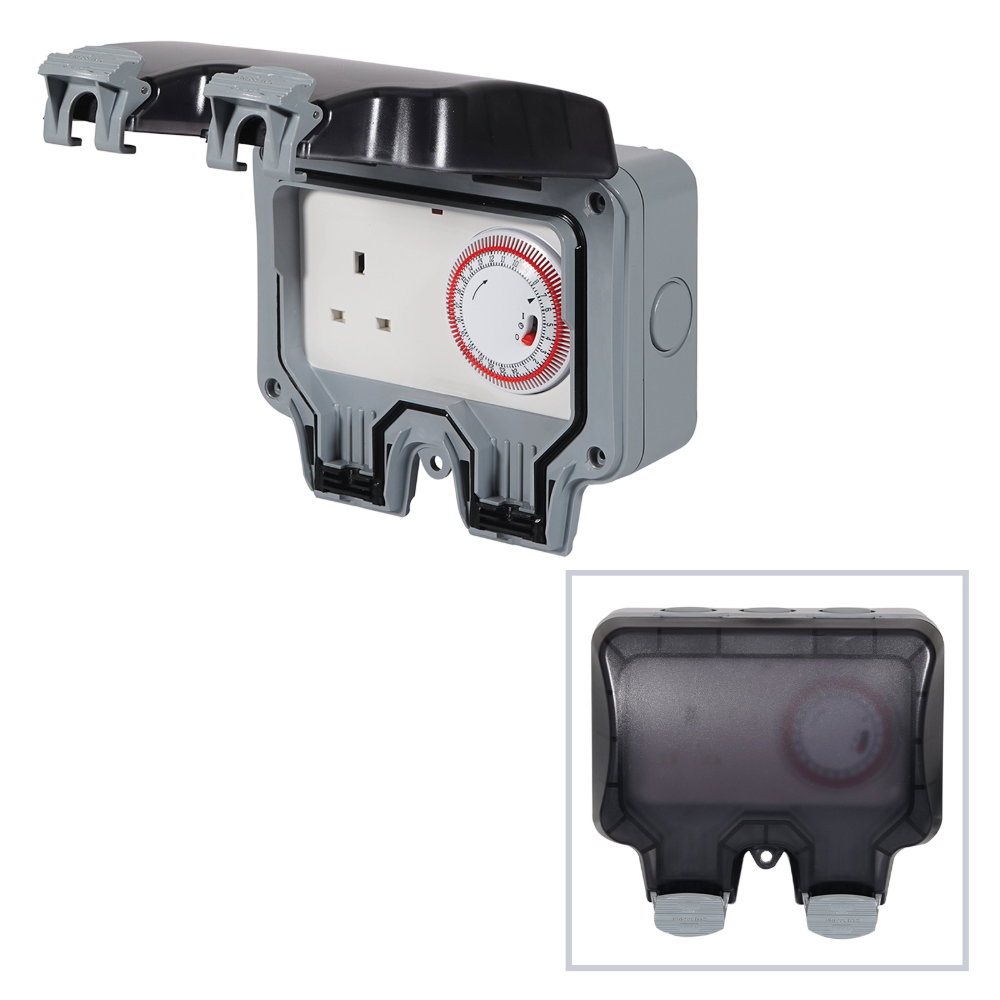

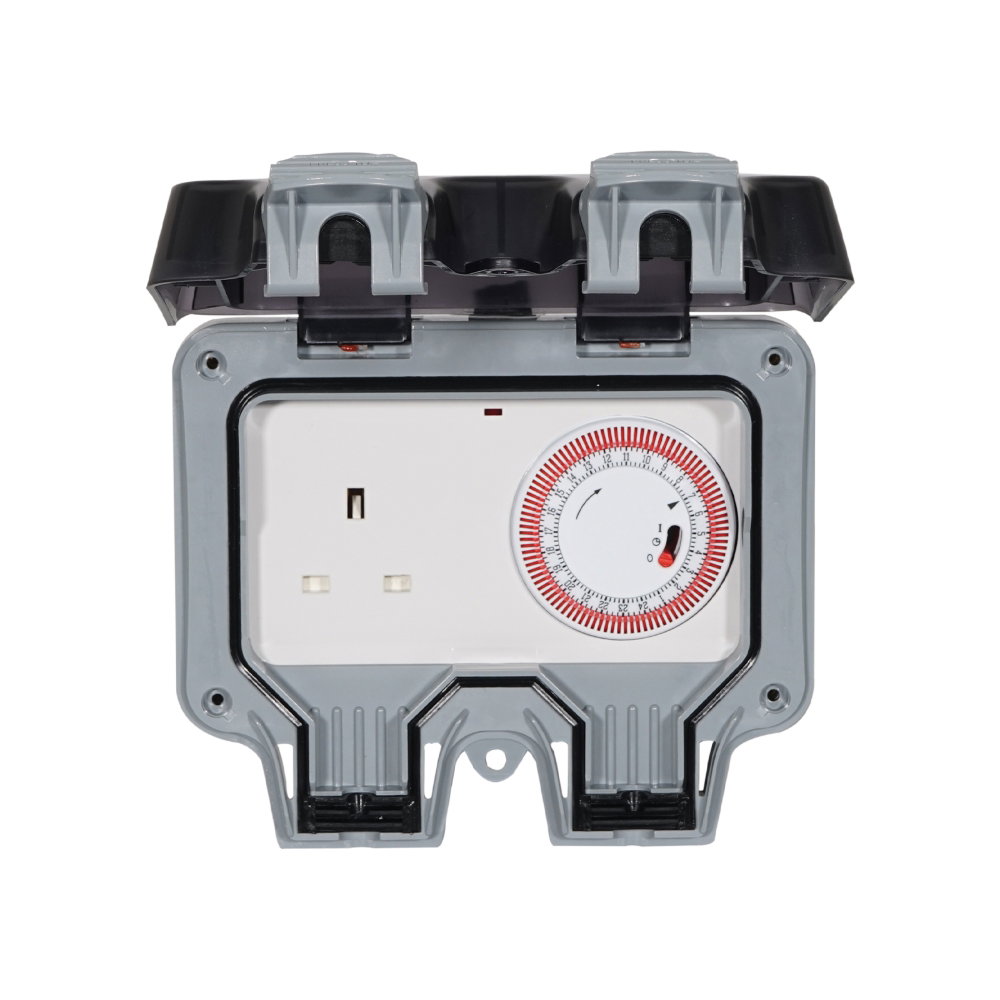

The Masterplug WP23TM24 is a single 13A outdoor socket with a built-in 24 hour mechanical timer, set in 15 minute segments, plus an override switch for permanent on. It holds its IP66 rating with a plug inserted and the cover closed, so it suits festoon, garden, marquee and exterior signage lighting that needs to come on and off at set times. The hinged see-through cover is lockable and has a neck that clears most bulky moulded plugs, and the LED power indicator is visible through it.
InstallationThis is a hard-wired fixed outlet. It should be installed by a qualified electrician in line with BS 7671.
Features
24 hour mechanical timer in 15 minute segments
Override switch for permanent on
IP66 with a plug in use and the cover closed
Socket manufactured to BS 1363-2
LED power indicator visible through the cover
Lockable hinged cover, press to open and close, clears bulky moulded plugs
High impact polycarbonate housing with cable entry seals

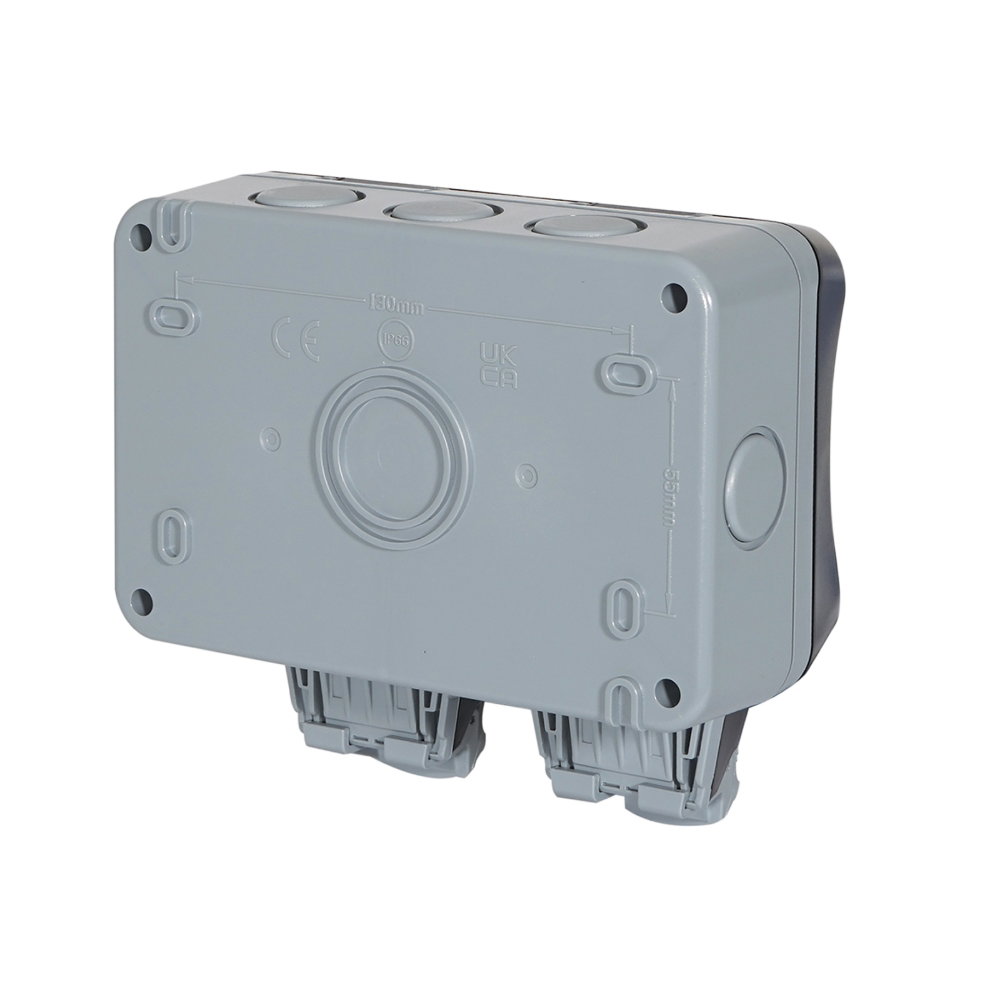

Supplied with a multiple knock-out mounting box
Specifications
| Socket | 1 x 13A BS 1363-2 |
| Timer | 24 hour mechanical, 15 minute segments |
| Ingress protection | IP66 (plug in use, cover closed) |
| Housing | Polycarbonate |

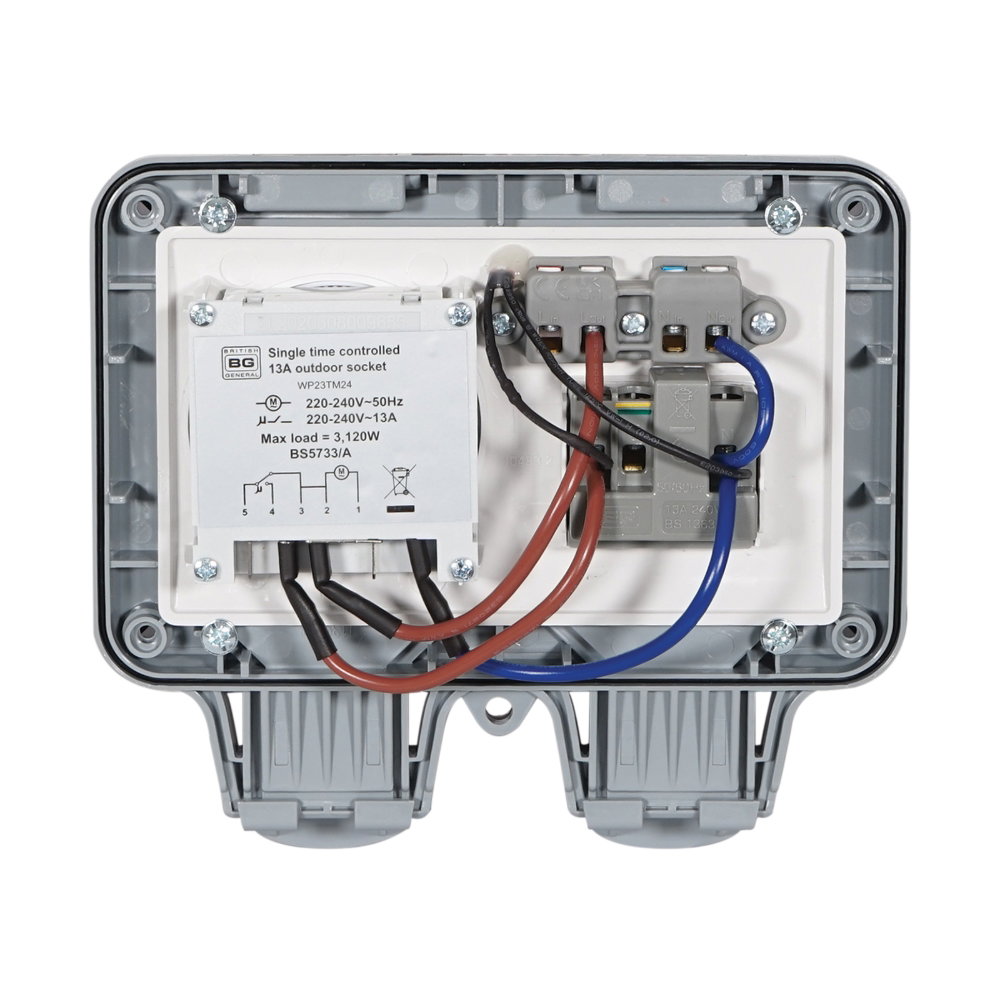

| Terminal capacity | 3 x 2.5mm², 3 x 4.0mm² or 2 x 6.0mm² |
| Model | WP23TM24 |
| Barcode | 5050765044783 |
| Order code | CONN482 |
