Wolfmix WING DMX Controller Expansion for W1

Product code: 191543

£834.00 inc VAT
£695.00 ex VAT

SKU: CONT82
1 in stock (Wembley)
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Wolfmix WING is a DMX controller expansion for the Wolfmix W1, with eight motorised touch-sensitive faders, eight OLED displays and an 8 x 5 RGB button matrix. Connected to a W1 MK1, MK2 or MK3 over USB, the two work as one system with up to 8 DMX universes (each unit comes with 2 and can be expanded to 4), and WING adds four DMX outputs plus cue list, fixture control and mapping modes. Typical uses are touring and club lighting, DJ and band shows, and rental stock.

8
Motorised faders
4
DMX outputs
8
Universes with W1
1.5 kg
Weight

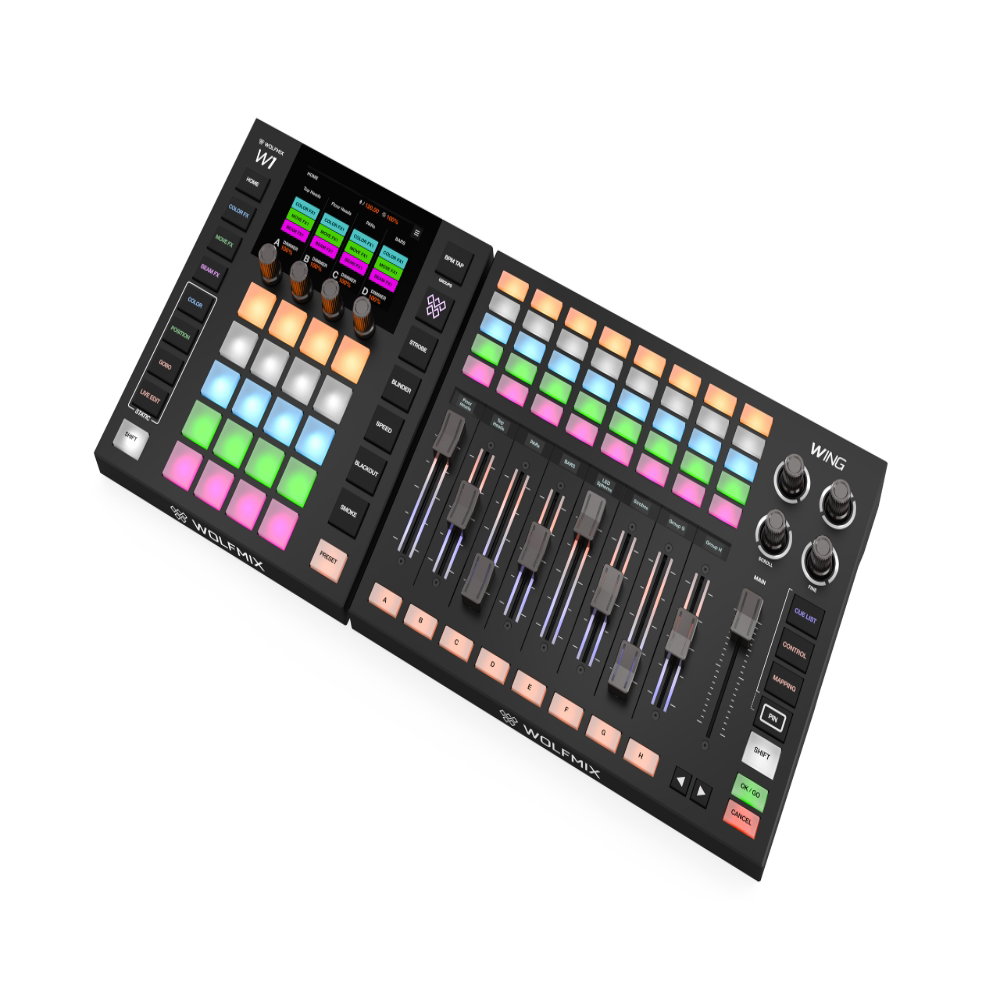

Requires a Wolfmix W1WING is a companion to the W1 (MK1, MK2 or MK3), which is not included. Projects transfer from the W1, and WING works on its own as a generic MIDI controller, and as a solo lighting controller once it has been synchronised with a W1.

Features

8 motorised faders with capacitive touch caps and RGB lightguides
8 OLED displays and an 8 x 5 RGB button matrix with dedicated group controls
Main fader with dedicated OK/GO and CANCEL buttons; SCROLL and FINE encoders plus 2 assignable encoders
CUE LIST mode with fade and hold times, automatic cue jumps and MIDI Time Code
CONTROL mode for direct fixture and parameter access from the faders
MAPPING mode for assigning faders, buttons and encoders across multiple pages
2 DMX universes as standard, expandable to 4; up to 8 when fused with a W1; each output assignable to any universe
Up to 680 fixtures and 1500 beams; 8 groups, each divisible into 8 subgroups
Generic MIDI controller mode for external hardware and software
Powers and connects to the W1 over USB-A; VESA 100 mount on the steel base

Specifications

Wolfmix WING DMX Controller Expansion for W1 specifications

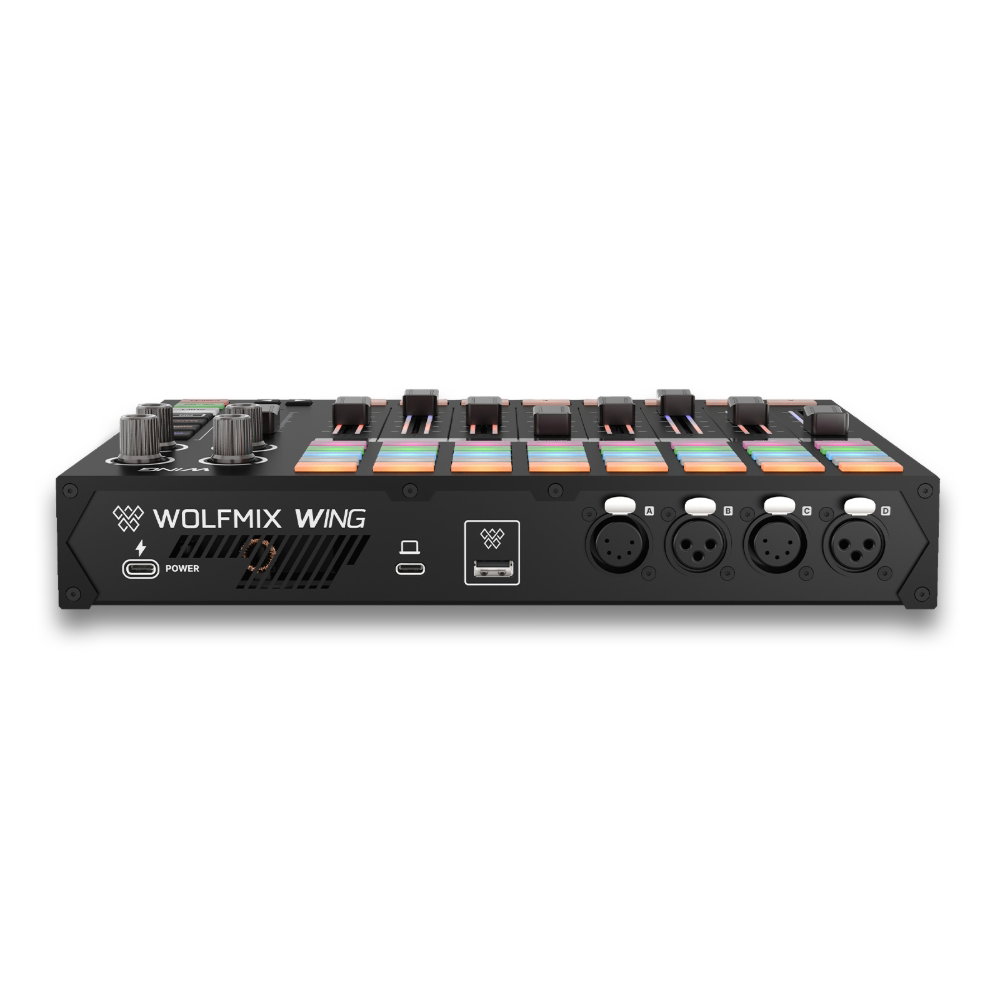

DMX outputs 2x 3-pin XLR, 2x 5-pin XLR
DMX universes 2 as standard, expandable to 4; up to 8 with W1
Fixture capacity 680 fixtures, 1500 beams
Power USB-C, 15 V, 3 A
Data USB-C; USB-A to connect and power the W1
Processor / memory 220 MHz ARM CPU, 8 MB RAM, 16 MB flash
Construction ABS with powder-coated steel base plate
Mounting 100 mm VESA, M4, 6 mm max screw depth
Dimensions (H x W x D) 57 x 290 x 220 mm
Weight 1.5 kg

Full features

  • Designed as a companion controller for Wolfmix W1
  • 8 motorised faders with capacitive touch fader caps and RGB lightguides
  • 8 OLED displays for clear strip parameter identification
  • 8 x 5 RGB button matrix with dedicated group controls
  • Main output fader with dedicated OK/GO and CANCEL buttons
  • Dedicated SCROLL and FINE encoders plus 2 assignable encoders
  • CUE LIST mode for timed preset playback with fade, hold and MIDI Time Code support
  • CONTROL mode for direct fixture and parameter adjustment from the fader banks
  • MAPPING mode with assignable faders, buttons and encoders across multiple pages
  • 8 fixture groups, each divisible into 8 subgroups for more detailed control
  • Supports up to 680 fixtures and 1500 beams
  • 2 DMX universes as standard, expandable to 4; up to 8 universes when fused with W1
  • Compatible with W1 MK1, MK2 and MK3
  • Automatic project transfer when connected to W1
  • Solo lighting control once synchronised with a W1; works on its own as a generic MIDI controller
  • Generic MIDI control for compatible external software and hardware
  • Compatible with any DMX device
  • W1 beam engine with Color FX, Move FX and Beam FX control
  • Project backup and restore via W1
  • PIN function allows WING modes to remain active while W1 is used independently
  • 2 x 3-pin DMX OUT XLR connectors
  • 2 x 5-pin DMX OUT XLR connectors
  • USB-C power: 15V, 3A
  • USB-C data
  • USB-A: connects and powers the Wolfmix W1
  • ABS plastic
  • Powder-coated steel base plate with 100mm VESA mounting, M4, 6mm max
  • 220MHz CPU with ARM core
  • 8MB RAM
  • 16MB Flash
  • Dimensions (H x W x D): 57 x 290 x 220mm
  • Weight: 1.5kg
