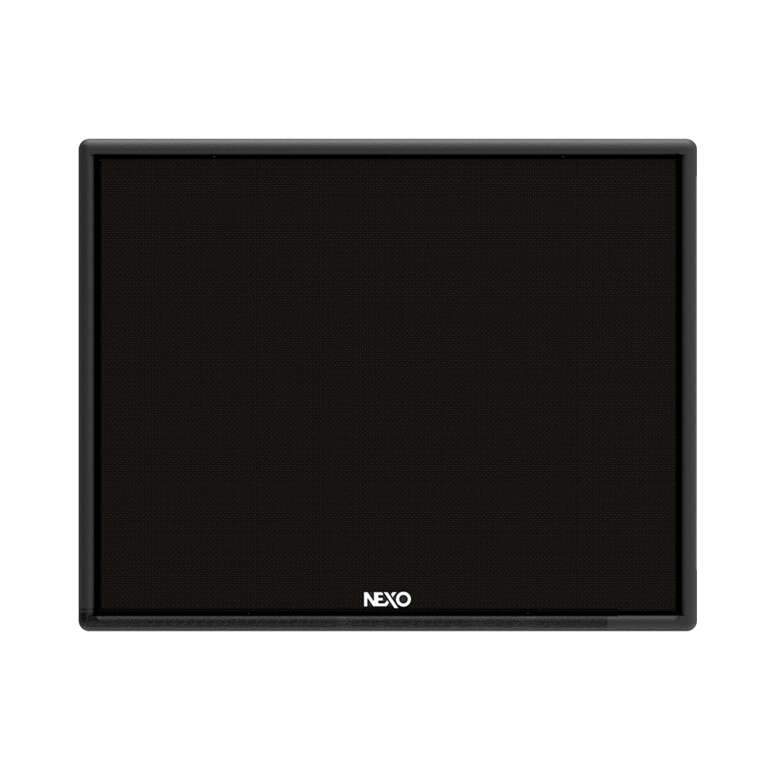

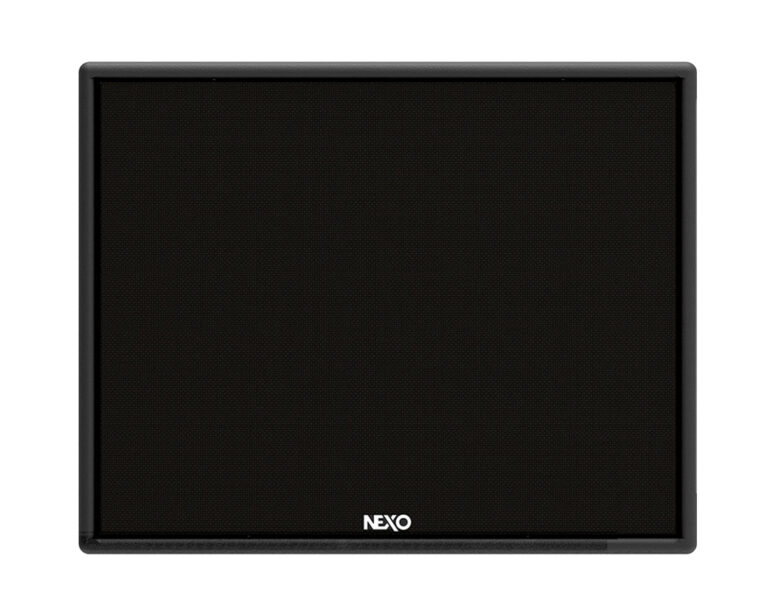

The NEXO eLS600 is a 15″ installation subwoofer delivering powerful low-frequency reinforcement for mid-to-large permanent installations. With a high-excursion driver in a bass-reflex enclosure, it reaches down to 40Hz and produces a peak SPL of 136 dB — substantial output for theatres, performing arts centres, large houses of worship, and corporate venues. Built from 15mm baltic birch plywood with integrated rigging points, it pairs with NEXO ePS loudspeakers and is driven by NEXO nanoNXAMP or DTD controllers.
Driver
15″
High excursion
Peak SPL
136 dB
Bass-reflex design
Low Frequency
40 Hz
-6 dB extension
Weight
26.3 kg
Baltic birch plywood
Features
✓
15″ high-excursion driver for deep, powerful bass reproduction
15″ high-excursion driver for deep, powerful bass reproduction
✓
Bass-reflex enclosure with 136 dB peak SPL output
Bass-reflex enclosure with 136 dB peak SPL output
✓
Low frequency extension down to 40 Hz
Low frequency extension down to 40 Hz
✓
15mm baltic birch plywood construction with polyurethane coating
15mm baltic birch plywood construction with polyurethane coating
✓
Magnelis grille with black UV and fire-resistant cloth
Magnelis grille with black UV and fire-resistant cloth
✓
Integrated rigging points for permanent installation
Integrated rigging points for permanent installation
✓
2x In/Out pitch screw terminal blocks with IP cover
2x In/Out pitch screw terminal blocks with IP cover
✓
Compatible with NEXO nanoNXAMP and DTD controllers
Compatible with NEXO nanoNXAMP and DTD controllers
Specifications
| Driver | 15″ high excursion |
| Enclosure Type | Bass-reflex |
| Peak SPL | 136 dB |
| Low Frequency Extension | 40 Hz |
| Enclosure Material | 15mm baltic birch plywood, polyurethane coating |
| Grille | Magnelis with black UV/fire-resistant cloth |
| Connectors | 2x In/Out pitch screw terminal blocks with IP cover |
| Dimensions (H x W x D) | 423 x 531 x 566 mm |
| Weight | 26.3 kg |
| Finish | Black |
| SKU | 01ELS600 |
