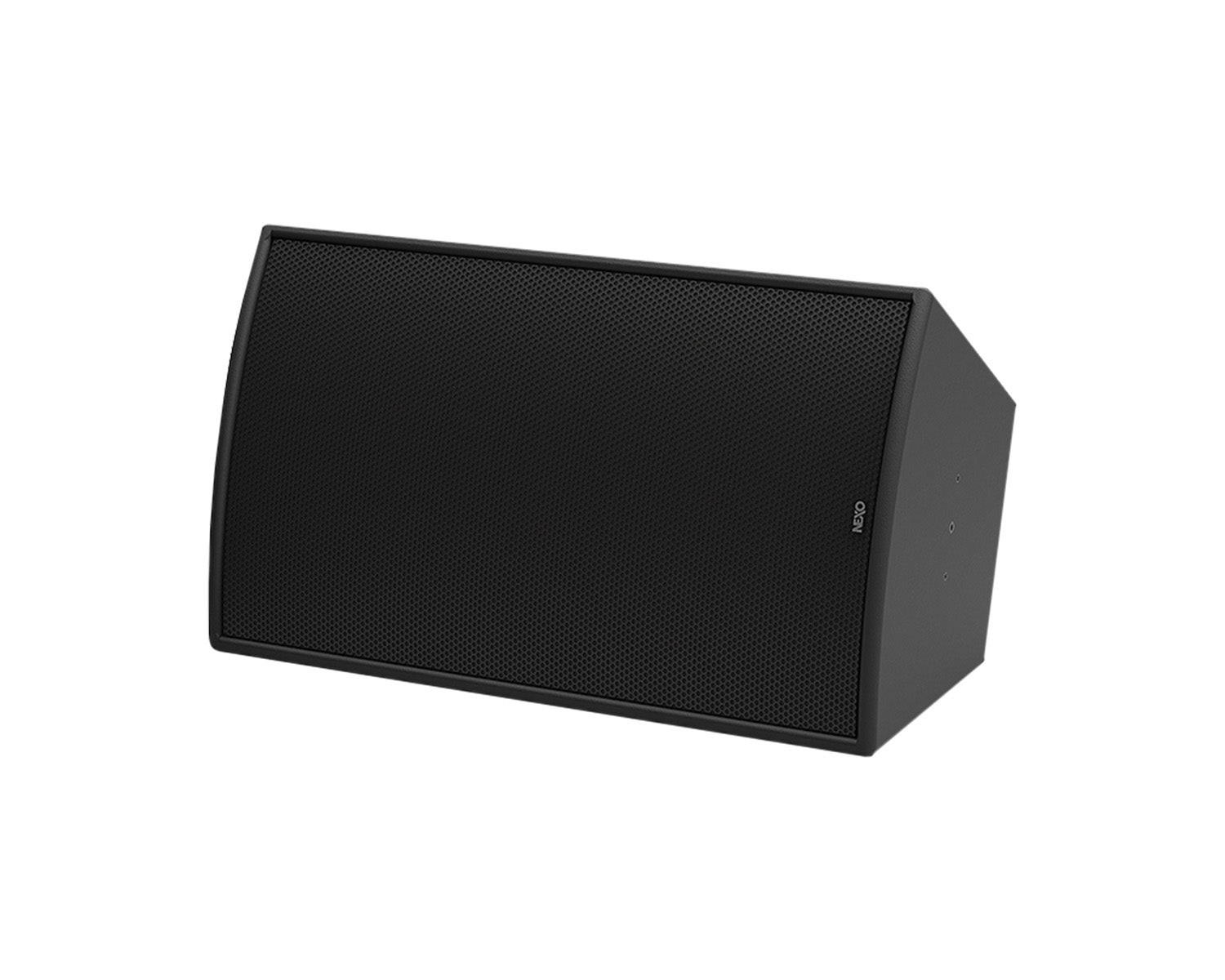

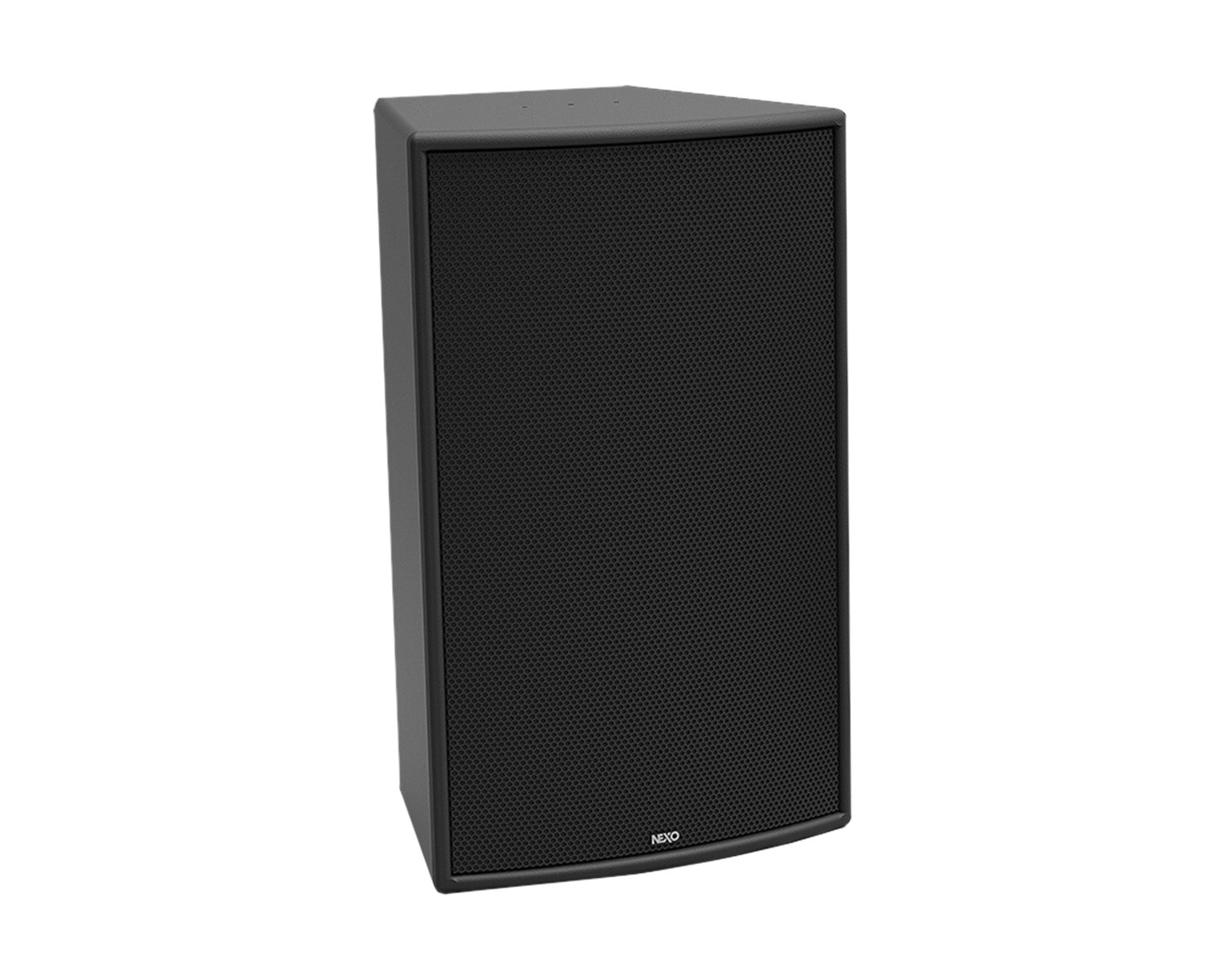

The NEXO ePS12-EN54 is a 12-inch two-way passive install loudspeaker built for life-safety and voice-alarm applications. Its EN54-24 certification, IP55 rating and UV / salt-water protection make it suited to public-address, evacuation and demanding outdoor or coastal installs where compliance and long-term durability are essential.
LF Driver
12″
High excursion
Peak SPL
133 dB
Maximum
Frequency Range
60Hz-20kHz
Ingress Rating
IP55
EN54-24
Life-safety certified
EN54-24 certification, IP55 ingress protection and UV / salt-water resistance make the ePS12-EN54 appropriate for voice-alarm, evacuation and public-address systems in exposed and coastal environments where fixtures must remain serviceable over the long term.
Features
✓
High-excursion 12-inch LF driver
High-excursion 12-inch LF driver
✓
1.7-inch diaphragm HF driver
1.7-inch diaphragm HF driver
✓
Rotatable asymmetric horn
Rotatable asymmetric horn
✓
Bass-reflex trapezoidal cabinet
Bass-reflex trapezoidal cabinet
✓
15mm Baltic birch plywood construction
15mm Baltic birch plywood construction
✓
Rigging points on top, bottom and back
Rigging points on top, bottom and back
✓
Two pairs of In/Out screw-terminal connectors with IP cover
Two pairs of In/Out screw-terminal connectors with IP cover
✓
UV and salt-water protection
UV and salt-water protection
Specifications
| Type | Two-way passive install loudspeaker |
| LF driver | 12-inch high excursion |
| HF driver | 1.7-inch diaphragm |
| Frequency range | 60Hz – 20kHz |
| Peak SPL | 133 dB |
| Cabinet | Trapezoidal bass-reflex, 15mm Baltic birch plywood |
| Certification / rating | EN54-24, IP55, UV & salt-water protection |
| Dimensions (H x W x D) | 600 x 370 x 317 mm |
| Weight | 18 kg |
