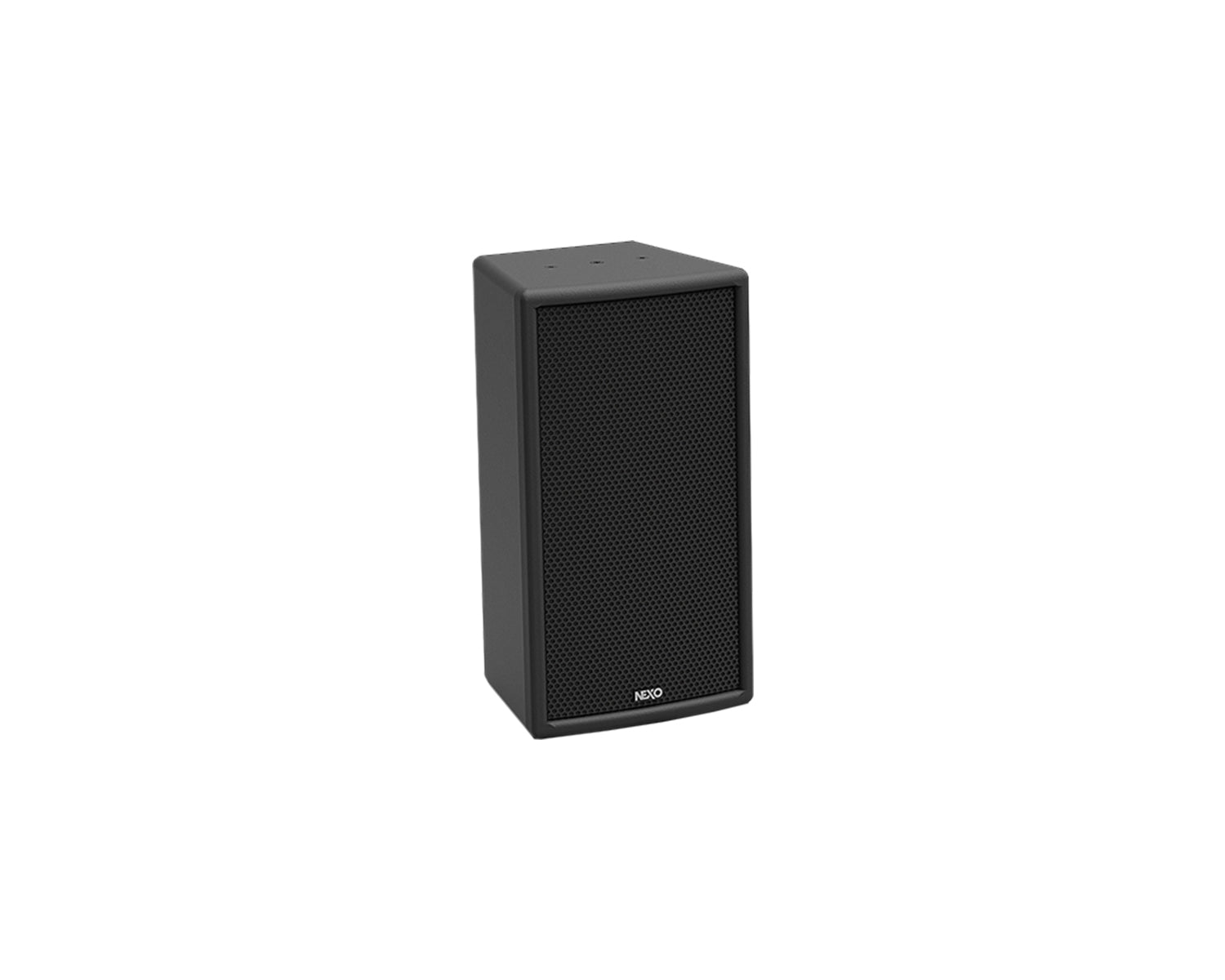

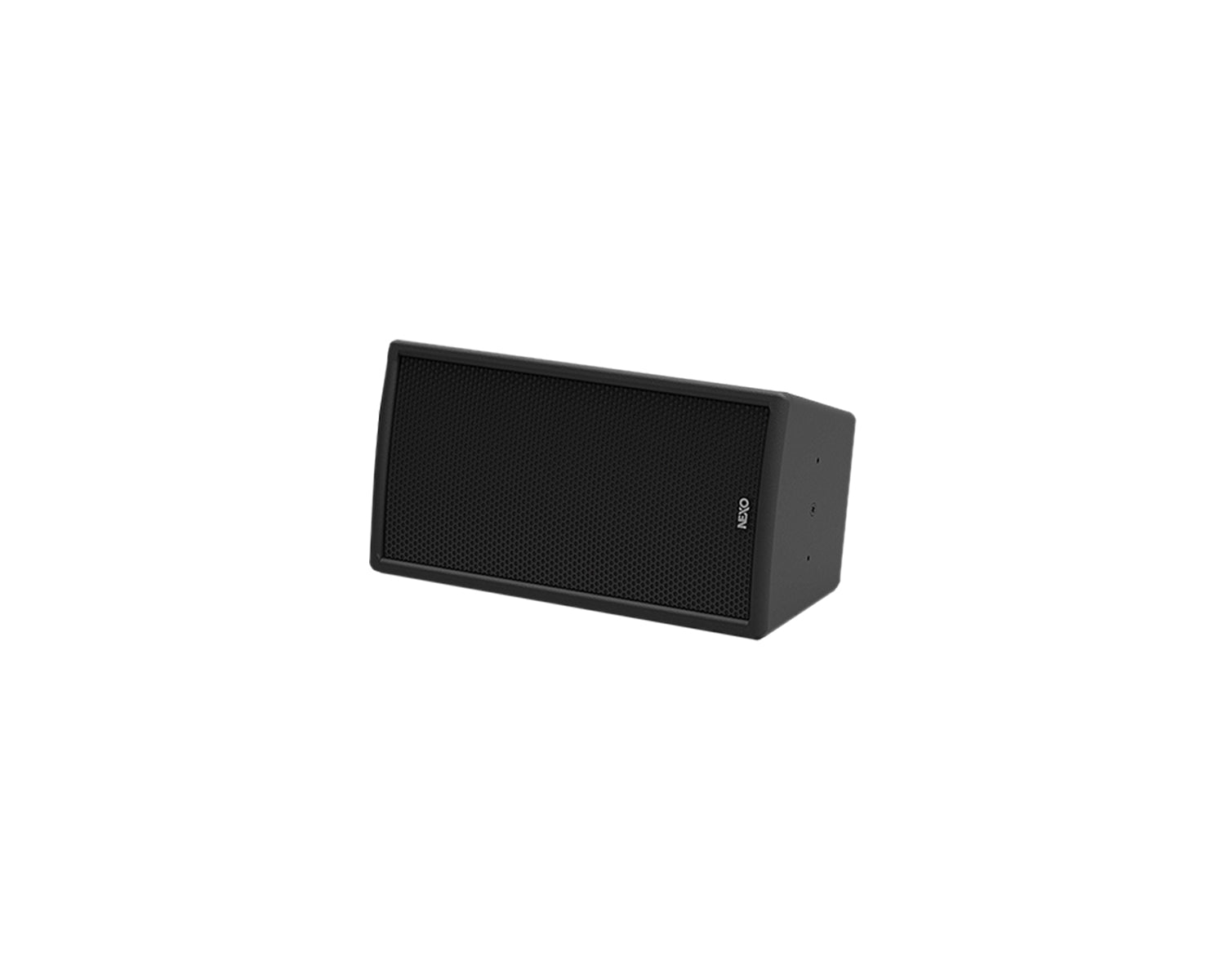

The NEXO ePS6-EN54 is a compact 6-inch two-way passive install loudspeaker built for life-safety and voice-alarm applications. Its EN54-24 certification, IP55 rating and UV / salt-water protection make it suited to public-address, evacuation and demanding outdoor or coastal installs where compliance and long-term durability are essential.
LF Driver
6″
High excursion
Peak SPL
125 dB
Maximum
Frequency Range
90Hz-20kHz
Ingress Rating
IP55
EN54-24
Life-safety certified
EN54-24 certification, IP55 ingress protection and UV / salt-water resistance make the ePS6-EN54 appropriate for voice-alarm, evacuation and public-address systems in exposed and coastal environments where fixtures must remain serviceable over the long term.
Features
✓
High-excursion 6-inch LF driver
High-excursion 6-inch LF driver
✓
1.4-inch diaphragm HF driver
1.4-inch diaphragm HF driver
✓
Rotatable asymmetric horn
Rotatable asymmetric horn
✓
Sealed (closed) acoustic cabinet design
Sealed (closed) acoustic cabinet design
✓
15mm Baltic birch plywood construction
15mm Baltic birch plywood construction
✓
Rigging points on top, bottom and back
Rigging points on top, bottom and back
✓
Two pairs of In/Out screw-terminal connectors with IP cover
Two pairs of In/Out screw-terminal connectors with IP cover
✓
UV and salt-water protection
UV and salt-water protection
Specifications
| Type | Two-way passive install loudspeaker |
| LF driver | 6-inch high excursion |
| HF driver | 1.4-inch diaphragm |
| Frequency range | 90Hz – 20kHz |
| Peak SPL | 125 dB |
| Cabinet | Trapezoidal sealed design, 15mm Baltic birch plywood |
| Certification / rating | EN54-24, IP55, UV & salt-water protection |
| Dimensions (H x W x D) | 365 x 198 x 181 mm |
| Weight | 7.1 kg |
